Siemens MSC-2001
Voice Encryption Unit

The MSC-2001 is a voice encryption unit, developed and manufactured around 1978 by Siemens in Munich (München, Germany). Although it can be used in the audio line of virtually any radio set, it was initially developed for use with the AN/PRC-77 radio. Up to 8 different 50-bit crypto keys can be stored in the device, with the active one selectable with a (1-8) rotary selector. 1

The rotary selector can also be used to select CLEAR mode (no encryption) and for ZEROIZING the device (wipe all keys). The unit is connected to the radio via a short cable between the TX/RX socket and the audio socket of the radio.

New crypto keys are loaded into the device by means of a special key fill unit that is connected to the REMOTE socket. The device is suitable for the transmission and reception of analogue audio (voice) and digital data, all connected via the TX/RX socket. Speech is digitized at various bitrates by means of a built-in Delta Modulator.
MSC-2001 front panel

The device is intended for simplex or half-duplex operation, but can be used for full-duplex communication as well, by using two devices. For encryption, a self-synchronising ciphertext feedback (CFB) encryption algorithm is used, also known as an autoclave, which synchronises in less than 0.5 seconds. In the 1990s, MSC-2001 units started appearing on the surplus market in Europe and the US, as a result of which many are currently owned by collectors and hobbyists.

The MSC-2001 was developed in the late 1970s at the Long Range Communication Systems Division (German: Geschäftsbereich Weitverkehrssysteme) of Siemens in München (Germany), on behalf of Telemit Electronic GmbH, another electronics company – also based in München – with strong ties to the German Army – the Bundeswehr – and to the German intelligence service, the Bundesnachrichtendienst (BND). Telemit exported the MSC-2001 to a number of countries, and also sold it as a repackaged and rebadged product – the PSQ-188 – for use with the PRC-88.

  1. Missing from the MSC-2001A.

MSC-2001 with protective yellow caps over the sockets MSC-2001 voice encryptor Front view Rear view MSC-2001 front panel Front panel Rear panel Key gun connected to the remote socket of the MSC-2001
1 / 8
MSC-2001 with protective yellow caps over the sockets
2 / 8
MSC-2001 voice encryptor
3 / 8
Front view
4 / 8
Rear view
5 / 8

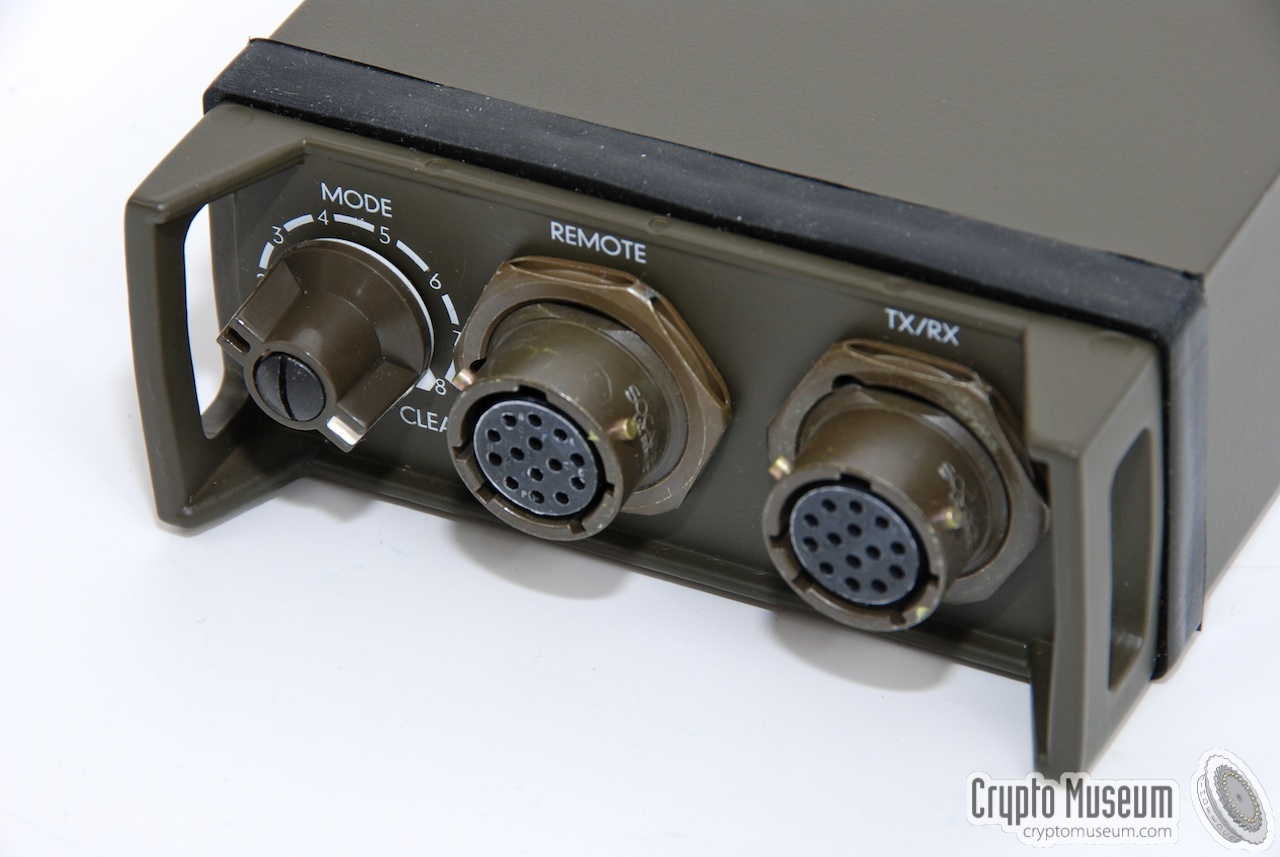

MSC-2001 front panel
6 / 8
Front panel
7 / 8
Rear panel
8 / 8
Key gun connected to the remote socket of the MSC-2001

  • MSC-2001 · S42043-E9-B104
    This version has a rotary MODE-selector on it's front panel, to the left of the REMOTE and TX/RX sockets. Most MSC-2001 units found on the surplus market today, are of this type. The device featured on this page, is also of this type.

  • MSC-2001A · S42043-E15-A104
    This is basically the same device as the MSC-2001 descirbed above, but with the MODE-selector missing from the front panel. With this version, the MODE had to be selected on the externally connected REMOTE control unit. This version was for airborne applications.

  • PSQ-188
    This is bascially the same device as the MSC-2001, but housed in a different enclosure and adapted for use with the PRC-88. The PSQ-188 was sold as a rebranded product by Telemit Electronic GmbH in München (Germany).  More
All controls and connections of the standard MSC-2001 are at its front panel, as shown in the diagram below. At the right are two identical 14-pin female sockets, one for connection to the host transceiver, and one for connection of a remote control unit, or a key transfer device such as the Siemens Key Gun. At the left is a 10-position rotary switch that is used for selection of the desired MODE of operation. It has 8 storage places for an encryption key (1-8). Selecting any of them enables encryption. Setting the switch to the next position after 8, selects CLEAR operation.

In case of an emergency, all cryptographic keys that are stored inside the device, can be erased quickly by ZEROIZING the device. This is usually a two-step procedure, as per NATO standard. In the case of the MSC-2001, it involves breaking the white plastic ring below the MODE knob and placing the MODE-selector in the position before 1, marked CODE ERASE. In practice this means turning the knob with force past position 1. Once this is done, the plastic ring must be replaced.

Key loading
Suitable cryptographic keys for the MSC-2001 were distributed on 5-level punched paper tape, similar to the tapes used with telegraphic equipment (telex) and punched in accordance with the ITA-2 standard, also known as Baudot. The key is 50 bits long and has an extra check character.

Loading suitable encryption keys into the key compartments of the MSC-2001, was done with a special Siemens Key Gun, such as the one shown in the image below. This universal key transfer device has a built-in memory, and is loaded itself by means of a 5-level punched paper tape, that is pulled through the built-in tape reader manually, at an arbitrary speed, similar to the KLL-1.

The keys are loaded from tape into the device by means of a special Siemens Key Gun, of which two versions were available. In its basic form, they Key Gun is connected to the REMOTE socket of the MSC-2001, and the paper tape is simply pulled through the gun's built-in tape reader.

A more advanced version of the key gun – shown in the image on the right – has an internal CMOS memory in which eight keys can be stored. The keys are retained by an internal battery, and can be transferred to one or more MSC-2001 devices later. In case of an emergency, it can be cleared.
Key gun connected to the remote socket of the MSC-2001

In the 1990s, MSC-2001(A) devices started to appear on the European and American surplus markets, and became available to collectors and hobbyists. As the supply of KEY GUNs was very limited — they were unavailable to non-military users — several parties mounted an attempt to develop a replacement. The Odyssee-2001 project is arguable the most successful of these [1].

 More about the Siemens Key Gun

Key tape format
The diagram below shows the format of the key tape, which conforms to the ITA-2 standard. The actual cryptographic key consists of 50 bits. As each ITA-2 character is 5-bits long, this means that the key consists of 10 characters. There are leading and trailing characters, plus characters to identify the start and validity of the key. Furthermore extra stunt characters 1 are inserted after each key, to ensure that the teleprinter – on which the key tape is made – is put in a known state.

The tape starts with a leader that consists of approx. 40 x the letter 'V'. This is followed by the start character – the letter 'A' in this case – and the check character, which is always the letter 'J'. The next 10 characters are the actual key words, each of which has 32 possibilities (25 = 32).

As the key words can be any code from the ITA-2 telegraph alphabet, including a figures shift (FIGS), it is necessary to put the teleprinter back in a known state at the end of the KEY. This is done by inserting the reset sequence: letter shift (LTRS), carriage return (CR) and line feed (LF).

There is no checksum and the tape ends with a trailer that consists of approx. 40 x the letter 'V'. If multiple keys (up to 8) are distributed on a single key tape, the trailer is also the leader of the following key. In that case, the start character 'A' – which is used for a single key – should be replaced by a different one that assigns the key to a specific key compartment of the MSC-2001. The following start characters can be used to address the key compartments 1 to 8:

  • X
    → 1
  • F
    → 2
  • Y
    → 3
  • S
    → 4
  • B
    → 5
  • D
    → 6
  • Z
    → 7
  • E
    → 8
  1. In telegraph speak, 'stunt characters' is a common expression for the control codes: LF, CR, LTRS, FIGS and SPACE. In this case they are used to put the teleprinter in a known state. They are not part of the key.

Block diagram
Below is a (much) simplified block diagram that explains the operation of the MSC-2001. A the left is the host transceiver, of which the audio input and output (i.e. microphone and speaker lines) are routed through the MSC-2001. The handset of the transceiver is at the far right.

At the heart is an integrated cryptographic processor, or crypto logic, that controls key stream generation, randomized initialisation sequency, key selection, and generation of the encrypted signal. It has a built-in device that safeguards the process, to ensure that no clear signal is accidentally transmitted. The delta (de)modulator converts analogue audio to the digital domain and vice versa. In this case, a variable slope delta modulator (VSD) is used. For a more detailed block diagram and a description of the circuit blocks, please refer to the technical manual [D].

The MSC-2001 is housed in a strong rectangular metal enclosure that measures 180 x 100 x 40 mm and weights 924 grams. It consists of a front panel – to which all internal parts are mounted – a metal case shell, and a rear panel that holds the parts together. Rubber gaskets between front panel and case shell, and between rear panel and case shell, make the device water resistant.

The interior can be accessed by loosening the two screws at the rear panel. After removing the rear panel, the 3.4V AA-size backup battery becomes visible. The interior may be removed from the case shell, but pulling out the front.

Inside the case is a die-cast aluminium frame that is attached to the front panel. The frame holds two PCBs that have their components facing inwards. As a result, only the solder side of both PCBs is directly visible. The PCBs are held in place by 6 or 8 screws around the edges, and are inter-connected via a 13-way flex strip.
Processor and memory

The overall design of the MSC-2001 is very good. The device is housed in a strong and compact enclosure, and both PCB are mounted onto a strong die-cast aluminium frame. The components are nicely divided over the two PCBs, but the actual PCB layout it not very good. The tracks are very thin and there is no ground plane whatsover. This must have caused problem with the audio lines, which is confirmed by a number of wire modifications on the solder side of both PCBs.

MSC-200 with rear panel removed MSC-2001 extracted from the case shell MSC-2001 interior - top Modifications for improving the signal ground Analogue board Digital board Both PCBs folded out - Digital board at the front Both PCBs folded out - Analogue board at the front
Analogue board Digital board Power converter Analogue board with hybrid circuit modules 4.096 MHz master oscillator Processor and memory Both PCBs folded out - rear view Both PCBs folded out - rear view
1 / 16
MSC-200 with rear panel removed
2 / 16
MSC-2001 extracted from the case shell
3 / 16
MSC-2001 interior - top
4 / 16
Modifications for improving the signal ground
5 / 16
Analogue board
6 / 16
Digital board
7 / 16
Both PCBs folded out - Digital board at the front
8 / 16
Both PCBs folded out - Analogue board at the front
9 / 16
Analogue board
10 / 16
Digital board
11 / 16
Power converter
12 / 16
Analogue board with hybrid circuit modules
13 / 16
4.096 MHz master oscillator
14 / 16
Processor and memory
15 / 16
Both PCBs folded out - rear view
16 / 16
Both PCBs folded out - rear view

Below is he pinout of the TX/RX socket and the REMOTE socket, both of which are available at the front panel of the MSC-2001. For the wiring of the control socket of the MSC-2001A and the sockets of the control box, the interface unit and the radio, please refer to the service manual [4].

TX/RX socket
  1. System ground
  2. Connection to REMOTE (B)
  3. PTT (input)
  4. AF input
  5. Connection to REMOTE (E)
  6. (+) 27.5V
  7. Transmit relay (output)
  8. Microphone ground
  9. not connected
  10. Clear/cipher criterion (output)
  11. SQ + AF output
  12. (+) 12V
  13. Receive data (input)
  14. Transmit data (output)
Remote socket
  1. System ground
  2. Connection to TX/RX (B)
  3. PTT (input)
  4. AF input
  5. Connection to TX/RX (E)
  6. (+) 27.5V
  7. Key input check (output)
  8. Microphone ground
  9. (-) Reader voltage (output)
  10. Clock (input)
  11. not connected
  12. (+) 27.5V (input) for key input (L)
  13. Data (input)
  14. Read/write (input)
  • Crypto
    Ciphertext Feedback (CFB) autoclave
  • Bitrate
    9.6, 12 or 16 kbit/s   see table
  • Digitizer
    Delta modulator
  • Audio response
    300 - 2700 Hz
  • Key variations
    > 1015
  • Key compartments
  • Key loading
    Via  key loading device
  • Mode
    half-duplex (full-duplex with two devices)
  • Data input
    20mV - 2V at 50 kΩ
  • Data output
    ≤ 5V at 1 kΩ
  • Audio input
    1mV - 1V at 5 kΩ
  • Audio output
    ≤ 2V at 400 Ω
  • Power
    10 - 15 V DC
  • Current
    135 mA (85 mA in standby)
  • Temperature
    -30°C to +60°C (storage: -40°C to +70°C)
  • Dimensions
    185 x 100 x 40 mm
  • Weight
    ~1000 grams
  • S42043-E9-A3
    9.6 kbit/s
  • S42043-E9-A2
    12 kbit/s
  • S42043-E9-A1
    16 kbit/s
Compatible radios
The following radio sets are known to be compatible with the MSC-2001:

  • ARC-34 1
  • ARC-164 1
  • ARC-159 1
  • GRC-27
  • GRC-171 RADAR 1
  • GRC-171 ATC 1
  • RT-841 / PRC-77
  • RT-880 / PRC-88 2
  • TRAP-22 1
  1. Requires modification. See service manual page 1-26 for further details [D].
  2. Repackaged and rebranded version, sold by Telemit as the PSQ-188.

  1. MSC 2001, Sales brochure
    Siemens AG, June 1979. 8 pages (German). 1

  2. MSC 2001, Beschreibung und technische Daten
    Device description and technical specifications (German)
    Siemens AG, date unknown. Chapter 3, 3 pages (German).

  3. MSC 2001, Bedienungsanleitung
    User manual (German). Siemens AG, December 1978. S42043-E9-P201/D.

  4. MSC 2001, Technical Manual, Volume I and II
    Siemens AG, 22 May 1980.
  1. Kindly supplied by [1].

  1. Helmut 'Jim' Meyer, HS0ZHK, My way to Ham - Radio and beyond
    Website QRZ.COM. Personal correspondence, December 2017.

  2. Odyssee 2001, Key Word Creation for Voice Encryption Unit, Version 2.2
    Security Technology Inc. Cheyenne, Wyoming, USA. September 1994, Rev. 1.
