The Telecrypto 53 (TC-53) was an electromechanical wheel-based cipher machine, developed by Dr. Edgar Gretener (Gretag) in Zürich (Switzerland) around 1953. The machine was initially built for the Swiss Army, but was later also supplied to other countries, such as Austria. The machine was based on the earlier TC-35 that was jointly developed by Edgar Gretener and Boris Hagelin.

The rather heavy TC-53 is housed in a large black metal case with a removable lid at the front and carrying grips at the sides. All controls and connections are at the front of the machine.

The machine was intended for use with 14-bit teleprinters, such as the ETK-47, that were also developed by Gretag. With the TCZ-53 converter unit, it was also possible to connect the TC-53 to standard 5-bit (baudot) teleprinter networks.

The TC-53 was an on-line machine that could be used over telephone lines and via radio links.

The image on the right shows a typical TC-53 that was produced after 1957. The top section contains the actual cipher wheels that are hidden behind a hinged panel. The current position of each of the wheels is visible through 12 small windows (4 on the left and 8 on the right). The panel below the wheels hold the switches that are used to control the stepping of the wheels.


An aluminium lid can be placed over the front panel when the machine is not in used or when it is in transit. The lid also provides stowage space for the cables, spare parts and other accessories. The TC-53 was succeeded in 1958 by the more versatile TC-58 that could be mounted on top of a KFF-58 teleprinter. Like the earlier machines, it uses the 14-bit ETK principle, but offered better sychronisation when used over low quality and noisy HF radio channels. As the TC-58 is not compatible with the TC-53, existing TC-53 units remained in service well into the 1970s.

The closed TC053 case
Front lid with ETK cables
TC-53 without the SPG key generator
TC-53 with SPG key generator
Front view of the TC-53
The cipher wheels and the setting switches
The cipher wheels in the top half of the machine
The cipher wheels swung outwards
A
×
A
1 / 8
The closed TC053 case
A
2 / 8
Front lid with ETK cables
A
3 / 8
TC-53 without the SPG key generator
A
4 / 8
TC-53 with SPG key generator
A
5 / 8
Front view of the TC-53
A
6 / 8
The cipher wheels and the setting switches
A
7 / 8
The cipher wheels in the top half of the machine
A
8 / 8
The cipher wheels swung outwards

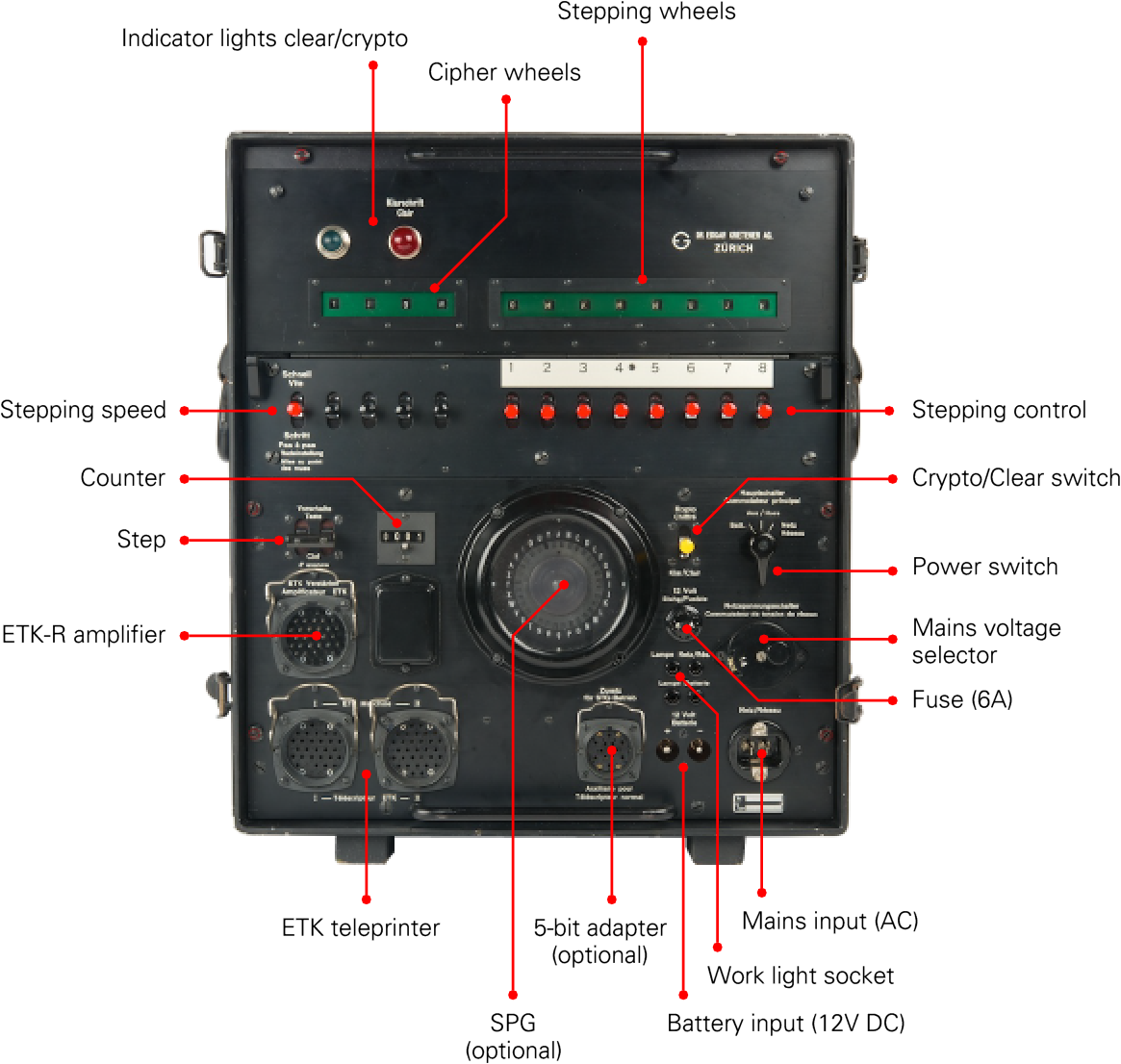

Features
At the top of the front panel is the cipher unit that consists of twelve cipher wheels. The leftmost four wheels are the actual cipher wheels (the scramblers), whilst the remaining eight wheels control the stepping of the cipher unit. The cipherwheels can be accessed through a highed panel in the top section of the front panel. Stepping is controlled by the black and red switches.


The lower half of the front panel contains the connections to the peripheral equipment, such as the ETK teleprinter and the ETK amplifier. It also has an (optional) connection for an external 14-to-5 bit converter, allowing the TC-53 to be used with standard 5-bit (Baudot) teleprinters.

Two power connections, one for the AC mains and one for a 12V DC source, are present at the bottom right. When powering from the AC mains, the voltage selector should match the local mains voltage. The voltage selector also contains the primary fuse. A separate 6A secundary fuse is located to the left of the voltage selector. The main power switch is located above the voltage selector. The yellow switch is for selecting the mode of operation: crypto or clear.

Setup
A minimum setup consisted of a TC-53 cipher machine, an ETK-47 teleprinter, an ETK amplifier, and a standard army field telephone set. The TC-53 was connected to the ETK-47 by means of two thick cables, marked number I and II. Another thick cable connected the TC-53 to the ETK amplifier, which in turn was connected to the telephone line (via the field telephone set).


It was also possible to the the TC-53 over radio, in which case it was commonly used in combination with the Zellweger SE-222 transceiver.




Parts
TC-53 cipher machine
Key production device (SPG)
SPG
ETK-47 tletypewriter with 14-bit technology
Amplifier for ETK-47
Field telephone set
Accessories and tools
TCZ-53 baudot converter
Cipher machine   TC-53
At the heart of the system is the TC-53 cipher unit. It is a separate rotor-based encryption device that is placed between the ETK-47 teleprinter and the line.

The TC-53 can be equipped with an (optional) key generation device, the so-called SPG, which is the circular part at the centre of the lower half in the image on the right.


Key production unit (SPG)
When using the TC-53, the operator had to set the machine to the daily key (Grundstellung) plus an additional randomly picked message key. Due to the way in which the brain works however, such keys are hardly ever random.

For this reason, Gretag developed the SPG, a small key generator that could be mounted at the center of the front panel of the TC-53. It was secret and was only supplied to the Swiss Army.

 More information



ETK-47 teleprinter
The TC-53 was generally used in combination with a Gretag ETK-47 teleprinter that also featured Gretag's unique 14-bit data protocol. The ETK-47 was a very small telex machine that was connected to the TC-53 by means of two thick cables, marked I and III.

Althoug it is possible to use the TC-53 with just the ETK-47, it was commonly used in combination with the ETK amplifier.

 More information



Amplifier
The ETK amplifier is responsible for the trans­lation of the 14-bit code to signals that can be sent over a telephone line or a radio channel, in the same way as a MODEM.

 More information



Field telephone
When using the TC-53 over a land line, the ETK amplifier had to be connected to the telephone line, either via a dedicated line interface unit, or via a standard Swiss Army Field Telephone such as the one shown in the image on the right.

The field phone shown here was issued to the Swiss Army in 1947 and was used well into the 1960s. It can be connected to any 2-wire telephone line and connected to the amplifier of the ETK by means of a short cable with a 6mm jack at either end. At the front right is the crank of the inductor.



Accessories and tools
The following items are stowed in the front lid of the machine (dust cover):
  • ETK connection cable I
  • ETK connection cable II
  • Main cable
  • Work light with flexible arm
  • Battery cable (12V DC)
  • Lamp puller (rubber sleeve)
  • Spare lamps (in metal case at the center)
  • Leather carrying straps (optional, not supplied after 1957)


Baudot converter   TCZ-53
By adding the TCZ-53 converter, shown in the image on the right, to the setup, the TC-53 can be connected to standard 5-bit ITA-2 telegraphy networks and teleprinters. The device converts the 14-bit ETK signals into standard ITA-2 (baudot) characters and vice versa.

Front lid with ETK cables
Mains cable
Metal box with spare lamps, fuses, a telegraph relay and a spare counter
Shifting the panel to the left
Work light and 12V DC cable in the rightmost compartment
Work light that can be attached to the side of the TC-53 and connected to the front panel
12V DC cable
Spare lamps and fuses
B
×
B
1 / 8
Front lid with ETK cables
B
2 / 8
Mains cable
B
3 / 8
Metal box with spare lamps, fuses, a telegraph relay and a spare counter
B
4 / 8
Shifting the panel to the left
B
5 / 8
Work light and 12V DC cable in the rightmost compartment
B
6 / 8
Work light that can be attached to the side of the TC-53 and connected to the front panel
B
7 / 8
12V DC cable
B
8 / 8
Spare lamps and fuses



Interior
The interior of the TC-53 can be reached by loosening 6 large bolts, marked with a red ring, at the edges of the front panel of the device. After placing the machine on its back, the interior can be lifted out by using the two grips at the top and the bottom of the front panel. When doing so, be careful not to damage any components, such as the red selenium rectifier at the corner.

The image on the right shows the interior of the TC-53 as seen from the rear right. All components are mounted onto two separate frames that are held together by the front panel. The upper frame coontains the cipher wheels and the solenoids for the stepping mechanim. The bright red component at the top right is a small selenium rectifier used by the stepper.

The lower frame (i.e. the lower half of the machine) contains the power supply (PSU), the main DC rectifier, several banks of relais, and most of the wiring to the connectors at the front.

Two relay banks can be swung out towards the rear, as shown in the image on the right. It allows easy access to the relay banks when repairing a machine, and also gives access to the large (bright red) selenium rectifier at the center.

Selenium rectifiers replaced valve-based ones in the early 1950s, but were generally much larger and had a relatively high voltage-drop (1V). [4]


In the early 1960s, they were largely replaced by silicon rectifiers. Silicon rectifiers are much smaller, less fragile and have a lower voltage-drop than selenium. As selenium rectifiers are no longer in production, defective ones can safely be replaced by silicon variants, but care has to be taken with respect to the DC voltage inside the machine, which will be higher than before.

TC-53 outside its case. The hole at the front normally caries the SPG or a blank panel.
TC-53 interior seen from the rear left
TC-53 interior seen from the rear
Interior of the TC-53 seen from the rear right
TC-53 interior with swung out relay panels
TC-53 interior seen from the bottom
Mains transformer
Close-up of the rotor stepping contacts at the top
C
×
C
1 / 8
TC-53 outside its case. The hole at the front normally caries the SPG or a blank panel.
C
2 / 8
TC-53 interior seen from the rear left
C
3 / 8
TC-53 interior seen from the rear
C
4 / 8
Interior of the TC-53 seen from the rear right
C
5 / 8
TC-53 interior with swung out relay panels
C
6 / 8
TC-53 interior seen from the bottom
C
7 / 8
Mains transformer
C
8 / 8
Close-up of the rotor stepping contacts at the top

Operation
The TC-53 is a very complex device, mechanically as well as electrically. The machine can roughly be divided in three parts as shown in the simplified block diagram below. The blue part at the bottom is the actual mixer. It performs a modulo-2 operation (XOR) on the input signal (e.g. from the keyboard) by mixing it with the pseudo-random data stream generated by the scrambler [5].

TC-53 simplified block diagram

The pseudo-random data stream is generated by a bit-pattern generator (yellow) and a scrambler (red). The rightmost eight wheels are at the heart of a very complex bit pattern generator. Each wheel has a notched disc at either side (i.e. 16 discs in total). These discs control 16 switches in the so-called inversion chain, where a pattern of 32 ones and 32 zeros is generated (see below).

Of the 32 bits generated by the Inversion Chain, 26 are led to the leftmost permutation wheel. The remaining 6 bits are dropped. After passing through all four permutation wheels, the 26 bits are stored in a relay memory. Four of these bits are used to control the stepping of the permutation wheels before the next character, whilst 8 bits are used for the Stepping Control Unit of the bit-pattern generator. The remaining 14 bits are used as the pseudo-random stream.

Stepping Control Unit
The stepping control unit is a rather complex circuit that takes 8 bits from the (14-bit) memory, the settings of the 8 red switches at the front panel, and the signals from the Z-notches of the 8 wheels, and uses them to control the stepping of the 8 wheels of the bit-pattern generator.

The Z-notches indicate the position of the letter 'Z' on each of the wheels. The Stepping Control Unit is constructed in such a way that a minimum length cipher period is guaranteed. Full details about the exact way in which the signals are combined, can be found in the circuit diagram [2].

Inversion Chain
Another complex part of the bit-pattern generator is the Inversion Chain at the top right. It consists of 16 switches that are actuated by the 16 notches discs (one at either side of the 8 stepping wheels). Each switch generates a logic '1' and a '0' and passes its signals to the next one. As a result, each switch can invert the output of all switches to its right. Like this:

Simplified diagram of the Inversion Chain

The above drawing shows how it works. Each notched disc controls a so-called cross-switch. The incoming logic '1' and '0' lines, can either go straight through or be swapped. The output of each switch is used as the input of the next switch, and so on. Both outputs of each switch are used to create a bit pattern of 32 bits in total. 26 of these bits are used as input to the scrambler.

Notched wheels
Each of the 8 wheels of the bit-pattern generator has two notched discs; one at either side of the wheel. The wheels were manufactured with all notches present, so that the customer could configure them at will. By breaking away several of the notches, a (secret) pattern of notches and gaps is created. For a detailed description of the notched wheels and the rest of the pseudo random stream generator, please refer to Walter Schmid's excellent description of the nearly identical TC-58 cryptogram generator [5]. His book also describes the TC-53 in more detail.


Restoration
Bringing a device like the TC-53 back to life can be really difficult, especially if the machine has not been used for, say, 10 years. In our case, the machine exhibited several issues that had to be fixed before it could be put back to use again. After slowly raising the mains voltage using a VARIAC, we noticed that at approx. 60V AC, the transformer started to make a buzzing sound.

This indicated either a broken mains transformer, or a short circuit immediately behind the transformer. As it turned out, the transformer was still in one piece, but the Selenium Rectifier (the red square at the center of the machine) was causing the problem and had to be replaced.

As the existing rectifier is a typical bright red 'landmark' inside the TC-53, we decided to leave the original one in place and mount a modern Silicon variant somewhere else. The problem was that the machine is already tightly packed with components, leaving hardly any space for this.

After a long search, we found a potential mounting spot not too far from the original one, reachable from the rear through the upper relay door of the bottom part. The new square 10A rectifier is mounted to the bottom of the upper part and the existing leads are soldered to it.


Next are the electrolytic capacitors. After all these years they likely to have lost nearly all of their capacity. There are four of these mounted to the side of the main transformer and can be recognised by their bright green colour. It would be possible to empty them an put a modern variant inside. Such modern variants are generally much smaller and have a larger capacity.

When testing the unit, a blow and some smoke indicated that something was wrong. As it turned out the mains capacitor had died. This capacitor is mounted behind the front panel, to the left of the mains socket. It is a bit difficult to reach, but it should be possible to replace it.

The image on the right shows the old (broken) capacitor and the modern one that was used to replace it. The white capacitor was packed inside a shrink sleeve, in order to hide the fact that it is new. At the left is the metal bracket that is used to mount the capacitor to the front panel rear.


At the rear of the TC-53 is a bank of 14 relais (one for each bit of the 14-element code), each of which has two Selenium diodes, a big one and a small one. Like the Selenium Rectifier above, such diodes can be broken after this long time, but it is less likely as the currents are lower.

If they are broken however, it should be possible to open them, remove the Selenium discs, and replace them by a modern diode. The diodes can be recognised by their typical red and blue end caps. In our case, one of these diodes had come apart. As a temporary fix, the diode is now closed with a short piece of string, as you can see in the images below.

Replacement rectifier above the original (red) one
Close-up of the replacement rectifier
Bracket, broken capacitor and new capacitor
Broken capacitor
New capacitor and black shrink sleeve
Replacement capacitor
Broken selenium diode
Temporary fixed diode
D
×
D
1 / 8
Replacement rectifier above the original (red) one
D
2 / 8
Close-up of the replacement rectifier
D
3 / 8
Bracket, broken capacitor and new capacitor
D
4 / 8
Broken capacitor
D
5 / 8
New capacitor and black shrink sleeve
D
6 / 8
Replacement capacitor
D
7 / 8
Broken selenium diode
D
8 / 8
Temporary fixed diode

References
  1. Dr. Edgar Gretener AG, Das Telekryptogerät, Betriebsvorschrift und Bedienungsanleitung
    User Instructions and Operational Manual (German). 1-12-1953.

  2. Gretag AG, Telekryptogerät TC-53, Funktionsbeschreibung
    Nr. 500-2. Functional description and circuit diagrams (German). 1957.
     Circuit diagrams at A3 size (separate download)

  3. Dr. Edgar Gretener AG, Zusatzgerät für halbautomat. Schlüsselproduktion
    Additional device for key generation (German). 5 October 1957.

  4. Wikipedia, Selenium Rectifier
    Retrieved July 2013.

  5. Walter Schmid, Der Krypto-Funk-Fernschreiber KFF-58
    October 2008.
