Eracom ← CSA-8000
Computer with HSM for secure transactions
- this page is a stub
ProtectServer Orange External is an unbranded Personal Computer (PC),
sold in the early 2000s by the Australian multinational company
Eracom Technologies Pty. Ltd.
(later: SafeNet)
for secure handling of sensitive data and financial transactions.
It is fitted with the company's CSA-8000
Hardware Security Module (HSM),
a.k.a. ProtectHost Orange, and software from
Concord-Eracom.
|

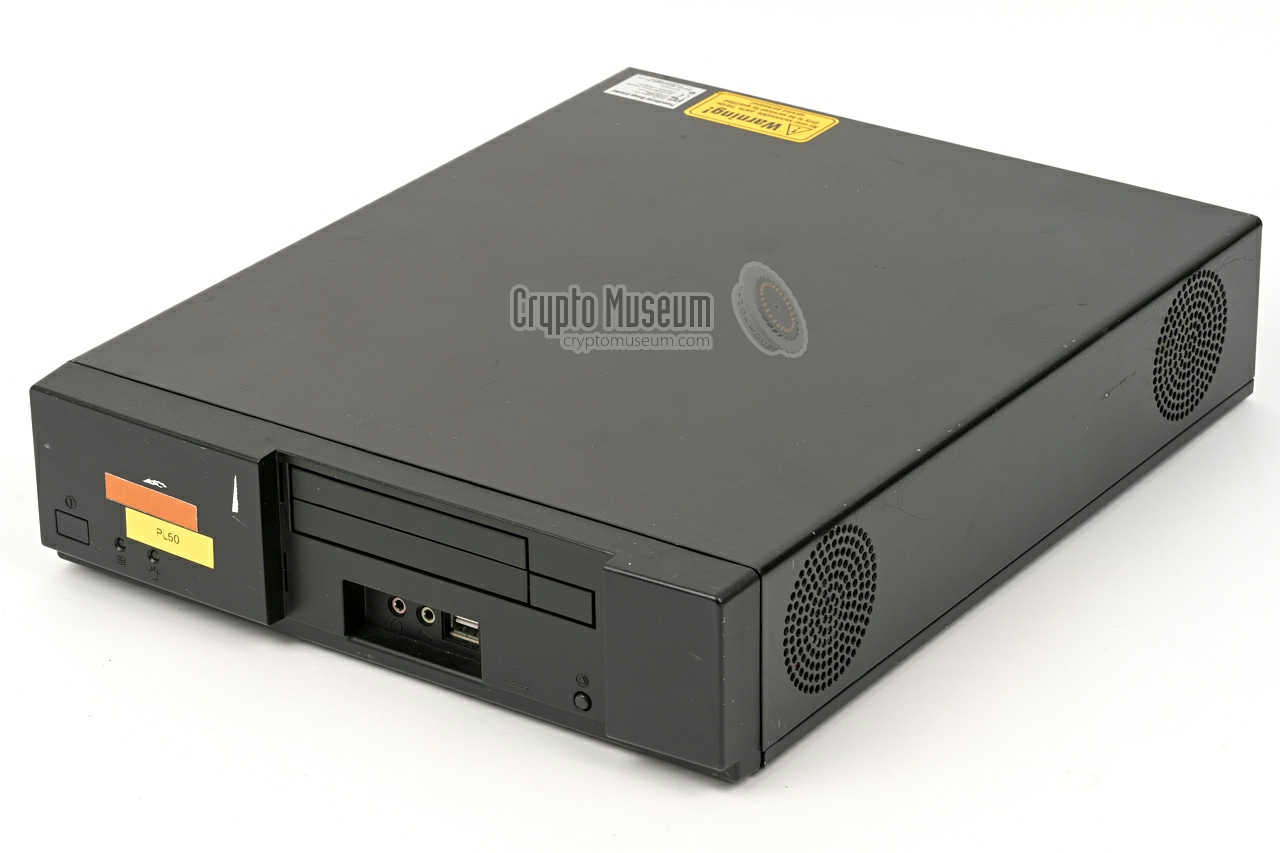

The image on the right shows a typical ProtectServer Orange External
that is fitted with the CSA-8000 HSM.
It was donated in August 2026 by Benne de Weger, a former Concord-Eracom
employee and later Professor at the Coding Theory & Cryptology Group of
the Eindhoven University of Technology (TU/e, Netherlands).
This page currently acts as a placeholder for future information about
this device.
|
|
|
Device Network-attached hardware security module Purpose Secure data processing and communication via public TCP/IP networks Model Protect ServerOrange External Manufacturer Eracom, SafeNet Year 2002-? Country Australia, Germany, Switzerland, Netherlands - CSA-8000
Algorithms RSA (4096), DSA, ECDSA (512), DH
AES, DES, 3DES, CAST-128, RC2, RC4, SEED 1 Modes ECB, CBC, OFB64, CFB-8 (BCF) OS see below Interface Dual LAN (TCP/IP), CLI, GUI Speed 600 RSA signings/sec Compliance FIPS 140-2 Level 3 API PKCS #11, EFT (multi-threaded) RNG True RNG Power 110/220 V/AC (switchable) Dimensions (HWD) 76 × 300 × 327 mm Weight 4 kg
|
-
Other algorithms available upon request.
|
Windows NT, XP, 2000, 2003 (32-bit) Solaris 7, 8, 9 (32/64-bit) Linux RH7, RH8, EL3, FC2 AIX 5.2 (32-bit), 5.3 (32/64-bit) HPUX 11 (32-bit), 11i (32/64-bit)
|
- Benne de Weger, Eracom PL50 computer with CSA-8000 HSM - THANKS !
Crypto Museum, August 2026.
|
|
|
|
