KT-Tasche
Kriminaltechnische Tasche · DDR

Kriminaltechnische Tasche, abbreviated KT-Tasche, (English: Forensic kit), 1 is a collection of forensic tools and con­su­ma­bles, stowed in a foldable leather case, made from the mid-1960s to the late 1980s by VEB Polygraph Repro­technik in Leipzig (DDR). During the Cold War it was used in East-Germany (DDR) by forensic detectives of the Volkspolizei (People's Police) and officers of the repressive East-German intelligence service Ministerium für Staatssicherheit (MfS, Stasi) [1].

The kit comprises a leather carrying bag with a roll-out compartmented custom-made interior and a set of more than 60 tools and con­su­ma­bles, each stowed in its own dedicated space. Among the tools are every day objects, like scissors, hammer and pencil, but also specific tools like brushes, test tubes, bottles, rubber gloves, calipers, waterproof markers and plaster.

Everything needed to investigate a crime scene and secure the evidence is present in the kit, even the tools needed to straighten the fingers and take finger­prints from a deceased person.


This page give a detailed account of the contents of the East-German Forensic Kit, which was in production for many years. As a result, there may be small differences between kits, since items were sometimes replaced by better or newer alternatives. Although the layout of the kit was never changed, there are some differences in construction. In particular the bands that hold the items in place, can be made of leather or elastic band. In the kit featured here, elastic bands are used. The contents of the kit are described in a checklist, of which three versions are known to exist.

Although the kit was produced for more than 20 years, it is very rare. Most kits had been used extensively, and were discarded when the DDR ceased to exist. The ones that have survived, are usually in very good condition as they came from new old stock (NOS). After the Wende, they were often taken home by former police detectives and Stasi officers. Some household items, such as screw­drivers, chisels and the hammer, were reused and are therefore often missing.

  1. Literally translated: Technical Criminalist Bag. Also known as Spurensicherungskoffer (Forensic kit).
Forensic kit (Kriminaltechnische Tasche) - closed
Forensic kit (Kriminaltechnische Tasche) - open
Forensic kit (Kriminaltechnische Tasche) - open, with checklist
Unfolding the interior
Panel 1
Panel 2
Panel 3
Panel 4
Kriminaltechnische Tashe - right angle view
Panel 2 - left angle view
Space between panel 2 and 3
Panel 3 - left angle view
Space between panel 3 and 4
Panel 4 - left angle view
Rolled-up contents - seen from the left
Rolled-up contents - seen from the right
A
×
A
1 / 16
Forensic kit (Kriminaltechnische Tasche) - closed
A
2 / 16
Forensic kit (Kriminaltechnische Tasche) - open
A
3 / 16
Forensic kit (Kriminaltechnische Tasche) - open, with checklist
A
4 / 16
Unfolding the interior
A
5 / 16
Panel 1
A
6 / 16
Panel 2
A
7 / 16
Panel 3
A
8 / 16
Panel 4
A
9 / 16
Kriminaltechnische Tashe - right angle view
A
10 / 16
Panel 2 - left angle view
A
11 / 16
Space between panel 2 and 3
A
12 / 16
Panel 3 - left angle view
A
13 / 16
Space between panel 3 and 4
A
14 / 16
Panel 4 - left angle view
A
15 / 16
Rolled-up contents - seen from the left
A
16 / 16
Rolled-up contents - seen from the right

Layout
Below is an overview of the layout and contents of the kit in our collection. This is largely iden­ti­cal to the layout shown in the photograph in the original booklet, with a few corrections to the index and the descriptions. Furthermore, the red marker has been moved to a different location. Each of the parts is discussed in more detail below the image, followed by the original checklists.


Note that the forensic kit shown here has elastic bands for holding the various items, whereas the one in the orignal photograph has leather straps. As a result, there are a few vacant spaces which can be used for additional items. According to the photograph in the original booklet, the red wax marker should be stowed in the same position as the rubber gloves on panel 1. There is very little space at that position however, so we moved it to a vacant space on panel 2. We also re­ver­sed the position of the combination pliers and the gimlet on panel 2, as otherwise they fell out.


Parts
Leather case
Leather wallet with paper, forensic forms, checklist, etc.
Wooden container for sublimate tablets
Glass Panel
Marker
Rubber gloves
large and small brushes
Stone chisel
Center punch
Pocket knife
Punch
Eyebrow pencil
Small lipstick (cherry red)
Anatomic tweezers
Scissors
Drawing compass
Eraser
Sponge
Kitchen towel
vernier caliper
Combination pliers
Gimlet (hand drill)
Postmortem finger straightener and cadaver spoon
Wood chisel
Hammer
Screwdrivers (large and small)
Plaster cup (rubber)
Metal ruler
Teasing brush and comb
Three small test tubes
Four glass bottles
Two large test tubes
Military compass
Ink roller
Folding magnifying glass
Candle
Tailor's tape measure
Travel soap
Matches
Box with thumbtacks
Plaster spatula
Coloured pencil
Two pechnical pencils
Plastic sheet
Modelling clay
Nylon cord
Black printing ink
Tape measure (5 m)
Two bags with plaster
Flashlight with colour filters
Handbuch für Kriminalisten (Criminalist Handbook)
Handbuch für Kriminalisten - Musterakte -
Leather case
All items described below are packed in a com­pact brown leather case of which the interior can be unfolded. The fold-out, of which one end is fixated to the case, consists of four rigid leather panels, with soft leather strips in between. Some of the soft strips also hold items.

By attaching the leather carrying strap to the sides of the case, the forensic kit can be carried from the shoulder.



Leather wallet
A large leather wallet at A4+ size is stowed in­side the kit. At one side it carries the checklist. At the other side is a large pocket in which A4 writing paper is kept, along with blotting paper, carbon paper, a set of envelopes and a leaflet.

In practice, this pocket also contained empty forms for describing a crime scene, evidence, post mortum examination, etc.

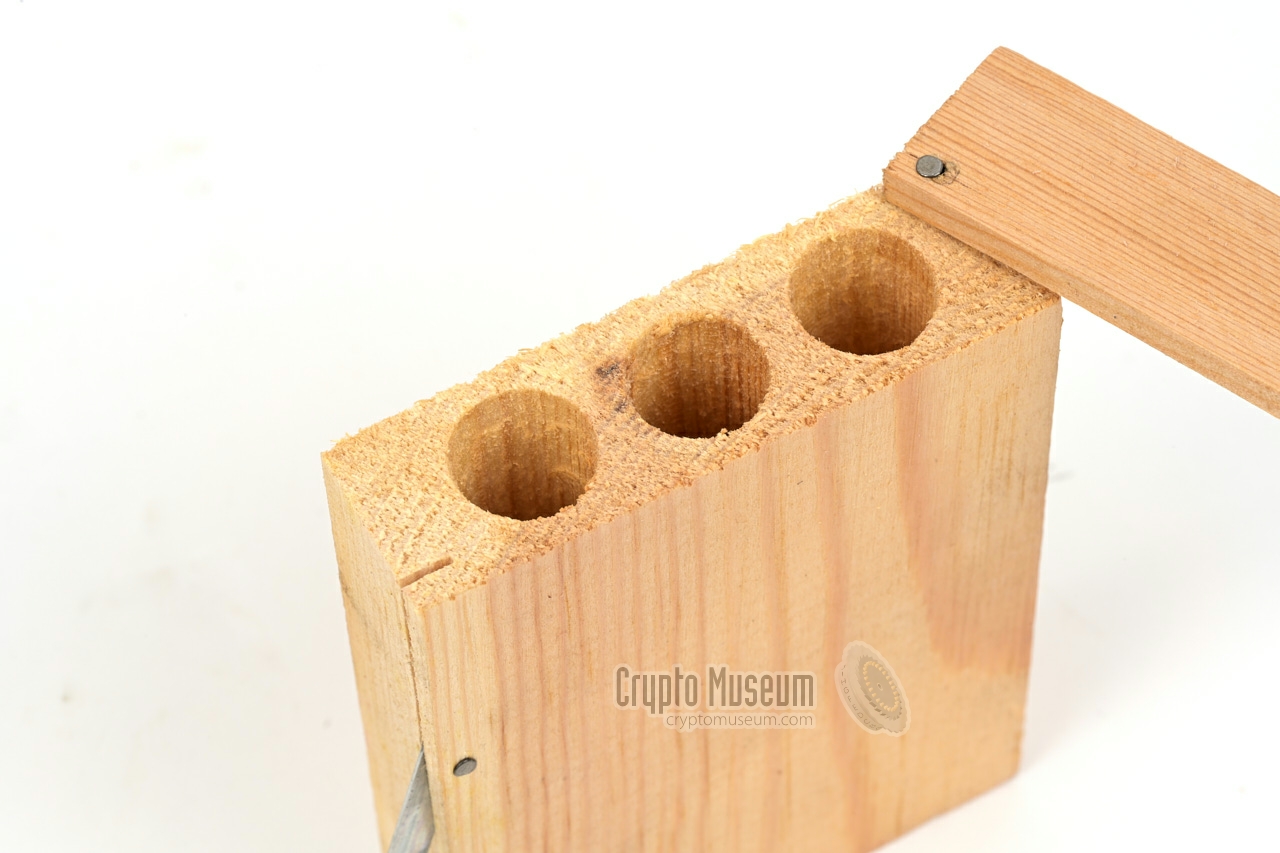

Sublimate tablets
This wooden container is stowed in the pocket on panel 1. It has three cylindrical hollow spaces that are closed by a movable lid. The lid can be locked by means of a pivoting metal arm. The container is used to store sublimate tablets.

In the DDR, sublimate tablets (German: Su­bli­mat­tabletten) were used for disinfection.



Glass panel
A small glass panel is stowed under the wooden container for sublimate tablets in the pocket on panel 1. It can be used for a variety of pro­ce­dures, including the taking of fingerprints.

When taking fingerprints, a drop of ink is applied to the glass panel, which is then evenly spread by means of the ink roller, after which is can be transferred to the fingers.



Marker
Several markers were provided that could be used for a variety of purposes, such as marking the position of a body in a crime scene. A red marker, in German known as a Signierstift, was stowed on panel 1 together with the rubber gloves. Additional markers in different colours were often used by the investigators.

In a later version of the kit, the marker was stowed on panel 2, in between the wood chisel and the hammer.



Rubber gloves
In order not to compromise any evidence, it is mandatory for the investigator to wear rubber gloves at all times. A plastic bag with two pair of rubber gloves (medium and large) is stowed on panel 1. It is stowed together with the marker.

Note that a fresh pair of gloves had to be obtained after each investigation, The pairs shown here have deteriorated beyond use.



Brushes
Two soft flat brushes – a large and a small one – (German: Pinsel) are provided for general use. They are stowed on top of each other on panel 1.



Stone chisel
A small stone chisel (German: Meißel) is provided for general use. It is stowed at the bottom left of panel 1, and should be used in combination with the supplied hammer.

The stone chisel can be used to cut-off small parts of stone, e.g. when taking samples, or for creating a small gutter to hide a (covert) wire. In the latter case, the cutter can be closed with the supplied plaster once the wire is in place.



Center punch
A regular center punch (German: Körner) is provided for general use. It should be used in combination with the supplied hammer.

A center punch is a tool to mark the centre of a point. It is often used to mark the centre when drilling a hole, and prevents the drill from 'wandering' (i.e. drifting from the centre).



Pocket knife
A common pocket knife (German: Taschen­messer) was provided for general use, such as cutting. Several types of pocket knifes, in a variety of colours, are known to have been supplied with the kit over the years, depending on whatever was available on the DDR market.

The image on the right shows the knife that was originally supplied with the kit in the 1960s and 70s. Variants, such as this red knife are also known to have been supplied.



Punch
A regular punch (German: Durchslag) is provided for general use. It should be used in combination with the supplied hammer, and is stowed at the bottom left of panel 1. The punch should not be confused with the center punch which is also located on panel 1.

A punch is similar to a center punch but has a flat tip and a tapered shaft. It can be used to drive a flat-head nail, to punch a hole in a thin object, or to align the holes of two separate components before inserting a fastener. In the latter case it is also known as a drift punch.



Eyebrow pencil
A regular black of brown eyebrow pencil (German: Augenbrauenstift) was provided for enhancing the contrast of a (dead) person's eyebrows before taking pictures.

Several types of eyebrow pencils are known to have been supplied with the kit, including the one shown in the image on the right. When the tip of the pencil is worn out, it can be cut off, after which a new tip can be created by sliding the black knob towards the tip, in the same vein as a technical pencil.



Lipstick
This miniture lipstick (German: Lippenstift) was used to highlight the lips of a dead body before taking photographs. Even with black & white photography, this improves the contrast.

The lipstick was from the East-German Florena brand, model 'Billy', and the colour was cherry red (German: Kirschrot). Note that the lipstick may have dried out and become brittle after 50+ years. It should not be used anymore. In our case, we replaced the insert with a fresh one.



Tweezers
Anatomic tweezers (German: Pinzette) were supplied for picking up small objects that should not be touched by hand, such as fibres and hair.

Scissors
A regular pair of (medical) scissors (German: Schere) was provided for general use.

Drawing compass
This drawing compass (German: Zirkel) from the East-German brand Richter was provided for general use. It can be used to draw a map of a crime scene, using the supplied drawing paper, but also to measure the internal width of an ob­ject, in cases where regular ruler can't be used.

The drawing compass has two hinged legs, one with a needle and one with a pencil lead. If necessary, the lead can be replaced by another needle or by an inking attachment nib (which is also supplied in the kit).



Eraser
A regular pencil eraser is provided for general use. It can be used for example to make correc­tions when drawing a a situation scetch, or for removing markings on objects.



Vernier caliper
A high precision vernier caliper was provided for taking accurate dimensions. In German it is known as a Shieblehre or Meßschieber.

The caliper supplied with the kit is slightly shorter than a regular one, as otherwise it doesn't fit the leather case. The caliper is stowed on panel 1, with its front end covered by a leather flap.



Sponge
A small viscose sponge (German: Viskose­schwamm) is provided to allow liquids to be sampled and transferred to a test tube, glass bottle or any other storage container.

The sponge is usually kept in a plastic bag that is stowed on panel 1.



Towel
A commom linen kitchen towel (German: Hand­tuch or Küchenhandtuch) is provided for general use. It is kept in a plastic bag (German: Perlon­beutel), stowed in the pocket under panel 1.

The towel shown in the image on the right was originally supplied with our kit. It is typical for the era, but other types were provided as well.



Combination pliers
A pair of combination pliers (German: Kom­bi­nati­onszange) is provided for general use. It can be used for example for cutting (electric) wires, fastening and loosening bolts and nuts, bending steel, etc.

The pliers are stowed in the top left of panel 2 (above the gimlet), but is not firmly held by the elastic band. For that reason, some users stowed it upside down. Note that this is only possible with kits that have elastic bands.



Gimlet
This small hand drill, also known as a gimlet (German: Schneckenbohrer or Nagelbohrer), can be used for drilling small holes, mainly in wood, without splitting.

The gimlet is stowed under the combination pliers on panel 2.



Postmortem fingerprint tools
Taking fingerprints from a deceased person can be difficult, as the fingers may be bended and stiff, as a result of rigor mortis. For this purpose, the two tools shown in the image on the right are supplied. The left one is a post mortem finger straightener and has a claw at one end.

The right one is a cadaver spoon, also known as a post mortem strip holder. The rigs in the cur­ved interior can hold a paper strip, allowing the finger­prints to be trans­ferred to the paper strip without moving or rotating the fingers of the deceased.



Wood chisel
A medium-size wood chisel (German: Beitel or Stecheisen) is provided for general use. It is stowed on Panel 2 and can be used for a variety of things, including the taking of samples, and modifying a wooden floor or a piece of furniture in order to place a listening device (bug).

Hammer
A small hammer is provided for simple me­cha­ni­cal tasks. It can be used for example in com­bi­na­tion with the wood and stone chisels that are supplied with the kit.

The hammer was initially missing from the kit in our collection, but has meanwhile been replaced by an identical model from new-old-stock (NOS).



Two screwdrivers
Two regular flat-head screwsdrivers were pre­sent: a large one with a width of 6 mm and a small one with a width of 3 mm. The latter is typically used for electric wiring, plugs, etc.

The image on the right shows an example of the screwdrivers that were typically supplied with the forensic kit, although other types and sizes are known to have been supplied as well.



Plaster cup
This flexible rubber cup was supplied for mixing plaster or other substances with water. The one shown here is still flexible, but is a bit deformed due to long stowage under an elestic band. It is still perfectly fit for use though.

At the bottom of the cup are several markings and order numbers. The accompanying plaster can be found in the two leather pockets on panel 4. For mixing and applying the plaster, a spatula can be found between panels 3 and 4.



Metal ruler
This universal metal ruler (German: Stahlmaß) can be used for taking dimensions, measuring small distances, and making crime scene draw­ings. It can also be used as a size reference when taking forensic pictures, such as photo­graphs of confiscated items, the size of a bullet hole or the length of a wound.

It can be found at the soft leather section between panels 2 and 3, where it is stowed together with the teasing brush and/or comb.



Teasing brush and comb
The teasing brush and the comb shown in the image on the right, are regular household items of DDR vintage. They were supplied with the fo­ren­sic kit for tidying up a corpse prior to taking photographs.

Some kits came with the teasing brush only, some with a comb only and some with both. Colours may vary.



Small test tubes
Three small glass test tubes (German: Reagenz­gläser) can be found at the top left of panel 3. They are approx 83 mm long and 16 mm wide, and are closed with a rubber cap.

The test tubes are intended for keeping samples, fibres, hair, etc. that is found on a crime scene. When filled with liquid, they should be kept out­side the kit, as the cap may come off.



Glass bottles
Four glass bottles (German: Glasflasche) with glass caps are provided for general use. One bottle has a wide neck, whilst the other three have a regular (narrow) neck.

The bottles can be used for a variety of things, but were generally used to keep specific liquids or other chemical substances.



Large test tubes
In addition to the three small glass test tubes, (German: Reagenzglëser) there are two tall ones with a removable glass cap. An accurate scale printed along the body of the tube, allows it to be used for precision work.

The two test tubes are stowed in two tall wooden containers (German: Holzbehalter or Holzhülse) that can be found on panel 3.



Ink roller
When taking fingerprints (from a living or a deceased person), this ink roller can be used in com­bi­na­ti­on with the black printing ink (the tube on panel 4) and the plass panel stowed in the leather pocket on panel 1.

A drop of ink should be applied to the glass pa­nel, and should then be spread evenly with the ink roller, before transferring it to the fingers. After use, the roller must be cleaned and packed in a plastic bag, before stowing it on panel 3.



Military compass
This plastic compass was used for orientation, especially when working in the field. It was also used to specify the orientation of a dead body.

The compass was manufactured in East Germany (DDR) and was supplied with operating in­struc­tions and a warrantly card. It is known in German as a Marschkompass (marching compass).



Magnifying glass
For finding hair, fabric fibres or any other silent witnesses on a crime screne, this folding mag­ni­fier was provided. It is stowed on panel 3. It is slightly larger than the black variant that was supplied with earlier versions of the kit.

In German it is known as Einschlaglupe.



Candle
A standard household candle was supplied with the kit. Its exact purpose is currently unknown, but is seems likely that the melted candle wax was used for duplicating small objects, such as keys and fingerprints.



Tailor's tape measure
When taking dimensions of a curved object – for example body parts – this flexible tailor's tape measure was supplied. It is one metre long and can be wrapped around an object. In German it is known as Schneiderbandmaß.

For rigid objects, the metal ruler should be used instead. For objects longer than one metre, the 5 metre roll-up tape measure should be used.



Travel soap
Two small packs of regular travel soap (German: Reiseseife) are provided for general use. They can be found on panel 3. In an earlier version of the forensic kit (1968), the soap was kept in a small container (German: Seife in Dose).

The two packs of soap shown in the image on the right were originally supplied with the kit.



Matches
A box with common household matches (Ger­man: Streich­hölzer) is provided for general pur­poses, such as lighting the supplied candle. For safety reasons, it is held in a metal con­tainer that is stowed on panel 3.

The matches shown here are of DDR vintage and were made by VEB Zündwarenwerke in Riesa (DDR). They were originally supplied with the kit.



Box with thumbtacks
Thumbtacks (German: Reißzwecken) are always useful for temporarily fixating things, such as pinning a note to the wall.

A small carton box with 50 thumbtacks are provided for general use. It can be found on panel 3.



Plaster spatula
This curved spatula was used for mixing plaster with water, using the supplied rubber cup. It was also used for applying the plaster, for example when repairing a wall after hiding a covert liste­ning device (bug) or a tapping wire.

Coloured pencil
One regular coloured pencil (German: Maga­zin­stift) is provided for making water resistant markings, colouring drawings and signing of documents, such as official forensic reports.

In most cases, a red or blue pencil was supplied. The coloured lead of such pencils is not made of graphite but from a wax compound, which cannot easily be erased. It was often used as a proof of authenticity of an original (signed) document.



Two technical pencils
Two yellow technical pencils (German: Druck­fall­stift) are present. One is filled with a regular gra­phite pencil lead (German: Druckfallstift mit Bleimine), whilst the other one holds a so-called copy lead (German: Druckfallstift mit Kopier­mine), used for drawing consistent width lines.

The advantage of using technical pencils is that they can be refilled with bare leads, and that spare leads can be kept inside their bodies.



Plastic sheet
A large plastic sheet is provided for general use. When unused, it is folded and held in a plastic bag that is stowed in the pocket under panel 4.

On the German checklist it is listed as Gummi­unterlage im Perlonbeutel (Rubber pad in nylon bag) or Plastfolie (Plastic sheet). The latter is the correct description, as the sheet is not made of rubber and the bag is not made of nylon. In rea­lity, both the bag and the sheet are made of a PVC-like material.



Modelling clay
A plastic bag with green modelling clay was pro­vided as part of the kit. In German it is known as Plastelina, which is one of many brand names un­der which it was available at the time. The clay stays flexible and does not dry out, so that it can be used over and over again. It is ideal for tem­po­ra­ri­ly fixating an object, or du­pli­cating small shapes like house keys.

Despite the fact that the Plastelina was intended to stay flexible, the clay shown here has mean­while dried out and become rigid after more than 50 years in storage.



Nylon cord
A plastic spool with 10 metres of nylon cord was provided for temporarily tying things together or for cordonning off the area of a crime scene.

It is probably the only item in the kit that is specified as 'nylon' (German: Perlon) and which is actually made of nylon.



Printing ink
This tube with black printing ink was typically used for taking fingerprints, either from a living or a deceaded person. It was applied to the glass panel stowed in the leather pocket on panel 1, and the ink roller on panel 3. The roller was used to spread the ink evenly over the glass panel before transferring it to the fingers.

Tape measure (5 m)
This 5 metre long roll-up tape measure was ty­pi­cal­ly used to measure dimensions and dis­tan­ces higher than 1 metre. Like the 1 metre toilor's tape measure, it is flexible, so that it can be wrapped around objects and corners.

The tape measure (German: Rollenbandmaß) is stowed at the bottom left of panel 4.



Plaster (2 bags)
Two bags of plaster are supplied with the kit. They are stowed in the two leather pockets on panel 4, and should be mixed with water in the supplied rubber cup on panel 2. A spatula for mixing applying the plaster, is stowed between panels 3 and 4.

Plaster can be used for example for duplicating footprints and tyre tracks, but also for repairing a wall after hiding a covert listening device (bug) and/or its wiring.



Flashlight
This flashlight was supplied with every forensic kit. It is of East-German manufacture, and is si­mi­lar to the ones used by the German Army du­ring WWII. The sliders at the front can be used to place a red or green filter in front of the lamp.

Flashlight were typically used to illuminate the scene when working in the dark, or as a warning mark at a crime scene.



Handbook
This small pocket book is the handbook for forensic investigators (German: Handbuch für Kriminalisten). It describes all situations that an investigator may encounter, and gives guidelines on how to proceed and how to secure evidence. The book is slightly larger than DIN A6 and has a plastic red cover.

At least two issues of the book are known, re­leased in 1975 and 1982 respectively. It should be used in combination with the supplement be­low, in which many examples and forensic forms can be found.



Handbook - example forms -
This book is a supplement to the Handbuch für Kriminalisten shown above, and provides exam­ples of the various forensic forms and how they should be completed by investigators.

The DIN A5-sized supplement had a soft red paper cover.



Leather case
Leather case with foresnsic kit
Forensic kit with carrying strap
Leather carrying strap
Leather wallet with checklist
Leather wallet with leaflet
Leather wallet with document pocket
Wallet with paperwork
Wallet with paper work
Wallet with checklist, leaflet, writing paper, blotting paper, carbon paper and envelopes
Criminalist Handbook issue 1
Criminalist Handbook issues 1 and 2
Colour-coded pages
B
×
B
1 / 13
Leather case with foresnsic kit
B
2 / 13
Forensic kit with carrying strap
B
3 / 13
Leather carrying strap
B
4 / 13
Leather wallet with checklist
B
5 / 13
Leather wallet with leaflet
B
6 / 13
Leather wallet with document pocket
B
7 / 13
Wallet with paperwork
B
8 / 13
Wallet with paper work
B
9 / 13
Wallet with checklist, leaflet, writing paper, blotting paper, carbon paper and envelopes
B
10 / 13
Criminalist Handbook issue 1
B
11 / 13
Criminalist Handbook issues 1 and 2
B
12 / 13
Colour-coded pages
B
13 / 13
13 / 13

Panel 1
Wooden container for sublimate tablets
Close up
Wooden container for sublimate tablets (open)
Glass panel
Two pair of rubber gloves
Two flat brushes (large and small)
Stone chisel
Center puch
Pocket knife (closed)
Pocket knife (open)
Pocket knife (closed)
Pocket knife (open)
Punch
Eyebrow pencil (closed)
Eyebrow pencil (open)
Miniature lipstick 'Florena Billy'
Miniature lipstick 'Florena Billy'
Tweezers
Scissors
Drawing compass
Drawing compass
Inking attachment nib (for drawing compass)
Eraser
Vernier caliper (DDR)
Sponge in plastic bag
Sponge
Kitchen towel in plastic bag
Kitchen towel
Kitchen towel
C
×
C
1 / 29
Wooden container for sublimate tablets
C
2 / 29
Close up
C
3 / 29
Wooden container for sublimate tablets (open)
C
4 / 29
Glass panel
C
5 / 29
Two pair of rubber gloves
C
6 / 29
Two flat brushes (large and small)
C
7 / 29
Stone chisel
C
8 / 29
Center puch
C
9 / 29
Pocket knife (closed)
C
10 / 29
Pocket knife (open)
C
11 / 29
Pocket knife (closed)
C
12 / 29
Pocket knife (open)
C
13 / 29
Punch
C
14 / 29
Eyebrow pencil (closed)
C
15 / 29
Eyebrow pencil (open)
C
16 / 29
Miniature lipstick 'Florena Billy'
C
17 / 29
Miniature lipstick 'Florena Billy'
C
18 / 29
Tweezers
C
19 / 29
Scissors
C
20 / 29
Drawing compass
C
21 / 29
Drawing compass
C
22 / 29
Inking attachment nib (for drawing compass)
C
23 / 29
Eraser
C
24 / 29
Vernier caliper (DDR)
C
25 / 29
Sponge in plastic bag
C
26 / 29
Sponge
C
27 / 29
Kitchen towel in plastic bag
C
28 / 29
Kitchen towel
C
29 / 29
Kitchen towel

Panel 2
Combination pliers
Combination pliers
Nail drill
Nail drill - close up
Dear body claw and spoon
Dear body claw and spoon
Dear body claw and spoon (separated)
Dead body claw - tool to straighten the fingers of a deceased person in order to take fingerprints
Chisel (large)
Chisel (chisel)
Red wax marker (Signierstift)
Hammer
ammer
Two screwdrivers
Rubber plaster cup
Rubber plaster cup - bottom
Metal ruler
Metal ruler (close up)
Brush and comb
Teasing brush
Comb
D
×
D
1 / 21
Combination pliers
D
2 / 21
Combination pliers
D
3 / 21
Nail drill
D
4 / 21
Nail drill - close up
D
5 / 21
Dear body claw and spoon
D
6 / 21
Dear body claw and spoon
D
7 / 21
Dear body claw and spoon (separated)
D
8 / 21
Dead body claw - tool to straighten the fingers of a deceased person in order to take fingerprints
D
9 / 21
Chisel (large)
D
10 / 21
Chisel (chisel)
D
11 / 21
Red wax marker (Signierstift)
D
12 / 21
Hammer
D
13 / 21
ammer
D
14 / 21
Two screwdrivers
D
15 / 21
Rubber plaster cup
D
16 / 21
Rubber plaster cup - bottom
D
17 / 21
Metal ruler
D
18 / 21
Metal ruler (close up)
D
19 / 21
Brush and comb
D
20 / 21
Teasing brush
D
21 / 21
Comb

Panel 3
Three small test tubes
Three small glass test tubes
Four glass bottles for holding fluids
Glass bottle
Two wooden containers with glass test tubes
Test tubes in wooden containers
Precision glass test tube with glass cap
Precision glass test tube with glass cap
Ink roller in plastic bag
Ink roller
Using the ink roller
Compass - closed
Compass - open
Compass with operating instructions and warranty card
Folding magnifying glass
Candle
Tape measure
Hand soap
Matches in metal container
Matches in metal container
Matches (top)
Matches (bottom)
Box with thumbtacks
Box with thumbtacks
Plaster spatula
Two technical pencils
Coloured pencils
E
×
E
1 / 27
Three small test tubes
E
2 / 27
Three small glass test tubes
E
3 / 27
Four glass bottles for holding fluids
E
4 / 27
Glass bottle
E
5 / 27
Two wooden containers with glass test tubes
E
6 / 27
Test tubes in wooden containers
E
7 / 27
Precision glass test tube with glass cap
E
8 / 27
Precision glass test tube with glass cap
E
9 / 27
Ink roller in plastic bag
E
10 / 27
Ink roller
E
11 / 27
Using the ink roller
E
12 / 27
Compass - closed
E
13 / 27
Compass - open
E
14 / 27
Compass with operating instructions and warranty card
E
15 / 27
Folding magnifying glass
E
16 / 27
Candle
E
17 / 27
Tape measure
E
18 / 27
Hand soap
E
19 / 27
Matches in metal container
E
20 / 27
Matches in metal container
E
21 / 27
Matches (top)
E
22 / 27
Matches (bottom)
E
23 / 27
Box with thumbtacks
E
24 / 27
Box with thumbtacks
E
25 / 27
Plaster spatula
E
26 / 27
Two technical pencils
E
27 / 27
Coloured pencils

Panel 4
Large PVC sheet
Large PVC sheet (close up)
Green modelling clay
Spool with nylon cord (10 m)
Tube with black printing ink
Tube with black printing ink
Tube with black printing ink (label)
Tape measure (5 m)
Two bags with plaster
Flashlight with colour filters
F
×
F
1 / 10
Large PVC sheet
F
2 / 10
Large PVC sheet (close up)
F
3 / 10
Green modelling clay
F
4 / 10
Spool with nylon cord (10 m)
F
5 / 10
Tube with black printing ink
F
6 / 10
Tube with black printing ink
F
7 / 10
Tube with black printing ink (label)
F
8 / 10
Tape measure (5 m)
F
9 / 10
Two bags with plaster
F
10 / 10
Flashlight with colour filters

Restoration
We received the forensic kit featured on this page in August 2025 as a gift from the Australian Spy Museum [1]. Despite its age — probably more than 50 years — it was in excellent condition, with only minor wear to the exterior. The sides of the case had become detached from the bot­tom, as the stitches were almost completely gone. We decided to have the exterior and the lea­ther carrying strap professionally treated by a leather specialist and have the sides re-stitched invisibly, so that it will survive the next couple of decades.

Most of the original items were present, but some of the more common household items were missing, in particular the hammer, screwdrivers, pocket knife and vernier caliper. It seems likely that, after the Wende, the kits were taken home by forensic investigators, who used these objects for work in and around their house. Luckily these items were easily found on German auction web­sites like eBay. Even the rarer items from the former DDR, such as the red marker (Signier­stift) and the coloured pencil (Magazinstift) could still be found on the internet.

Items that were wrapped in a plastic bag, were cleaned and were then placed in a modern poly­ethylene bag, as the original ones had started to decompose (see below). The small lipstick that is stowed on panel 1, had come apart and had spread itself throughout the interior. Luckily, it could easily be removed as the lipstick itself of become hard and brittle over the years. The contents of the lipstick holder were replaced by a fresh insert from a local store. We also added two books that are not part of the orignal kit: the Criminalist Handbook (Handbuch für Kriminalisten) and a supplement with numerous examples of completed forensic reports and forms.

Perlon
Some of the items are packed in a transparent plastic bag that appears to have degraded over the years. In the checklists, these bags are described as Perlonbeutel. This refers to the brand name Perlon, or Nylon 6, developed during WWII in Germany to evade existing patents for Nylon 6,6.

It is unlikely though that the plastic bags are actually made of nylon, ans nylon is not trans­parent. It is more likely that in this context Perlon is used as a generic name for plastic.

In any case, some of the plastic bags in our fo­ren­sic kit appear to have become un­sta­ble and have started to decompose, resulting in a 'foggy' and 'sticky' surface. Since it is known that un­sta­ble plastics may damage or degrade materials that it comes in contact with, we replaced them by mo­dern inert alternatives. The original ones are stowed in a safe place for future reference.


The same type of plastic bags were supplied with an East-German spy radio set in our collection, that was found in an underground cache somewhere in Europe. Like the ones found with the forensic kit, these bags had become 'foggy', 'sticky' and less flexible, and had to be removed in order to prevent deterioration of the contents. The problem of old plastics is not unique to the East-German bags, but is also seen with foam rubber manufactured in the former USSR.

Problems
Fixed
  • Exterior stitchings repaired and leather preserved
  • Interior cleaned (lipstick removed)
  • Interior leather preserved
  • Original 1968 checklist reproduced
  • Unstable plastic bags (Perlon) replaced by modern plastic bags
  • New lipstick contents
  • Missing items replaced
Missing items
  • Tweezers
  • Scissors
  • Drawing compass
  • Pocket knife
  • Coloured pencil
  • Vernier caliper
  • Two screwdrivers
  • Marker (Signierstifte)
  • Comb
  • Stone chisel
Broken stitches at the left side
Broken stitches at the right side
Broken stitches and separated leather panels
Kitchen towel in plastic bag
G
×
G
1 / 4
Broken stitches at the left side
G
2 / 4
Broken stitches at the right side
G
3 / 4
Broken stitches and separated leather panels
G
4 / 4
Kitchen towel in plastic bag

Checklist
A complex toolkit like the forensic kit shown here, does not come without a proper checklist. Several versions of the checklist are known to exist, all of which appear to contain mistakes and omissions. So far, the following versions of the checklist have turned up:

  1. Typed and stencilled checklist from 1968
  2. Printed and folded leaflet at A5 size, probably from around 1975
  3. Printed and folded leaflet at A4 size from 1980
Typed checklist (1968)
Below is a transcript of the typed checklist that was found in a KT-Tasche at the Hans Gross Kri­mi­nal­museum in Austria [2]. The checklist is fitted – behind a transparent sheet – at the rear side of the leather wallet that contains a variety of papers. It is believed to be of 1968 vintage. Like with the printed checklist, there are some ommissions and mistakes. In the list below, additional remarks – added by us – are shown in brackets.

 Original typed checklist (1986)

#GermanEnglish
1 Holzbehälter für Sublimaattabletten Wooden container for sublimate tablets
2 Glasplatte Glass panel
3 2 Paar Gummihandschuhe i. Perlonbeutel 1 2 pair rubber gloves in plastic bag
4 Flachpinsel Flat brush (large)
5 Flachpinsel Flat brush (small)
6 Pinzette Tweezers
7 Schiebelehre Vernier caliper
8 Schere Scissors
9 Zirkel mit Bleieinsatz Drawing compass with graphite insert
10 Radiergummy Eraser
11 Lippenstift Lipstick
12 Körner Center punch
13 Meißel Small stone chisel
14 Taschenmesser Pocket knife
15 Augenbrauenstift Eyebrow pencil
16 Signierstift Marker
17 Viskoseschwamm i. Perlonbeutel 1 Sponge in plastic bag
18 Schraubenzieher, groß Screwdriver, large
19 Hammer Hammer
20 Stecheisen (Beitel) Wood chisel
21 Schraubenzieher, klein Screwdriver, small
22 Gipsbecher Plaster cup
23 Totenkralle Finger straightener
24 Totenlöffel Cadaver spoon
25 Kombinationszange Pliers
26 Nagelbohrer Gimlet
27 Stahlmaß Metal ruler
28 Reagenzglas Test tube
29 Reagenzglas Test tube
30 Reagenzglas Test tube
31 Weithalsflasche Wide-neck bottle
32 Glasflasche Glass bottle
33 Glasflasche Glass bottle
34 Glasflasche Glass bottle
35 Reagenzglas in Holzbehalter Test tube in wooden container
36 Reagenzglas in Holzbehalter Test tube in wooden container
37 Farbwalze in Perlonbeutel 1 Ink roller in plastic bag
38 Marschkompass Marching compass
39 Einschlaglupe Folding magnifying glass
40 Kerze Candle
41 Schneidermaß Tailor's measure
42 Seife in Dose Soap in box
43 Metallhülse Streichhölzer Matches in metal enclosure
44 Dose with 50 Reißzwecken Box with 50 thumbtacks
45 Kamm Comb
46 Gipsspachtel Plaster spatula
47 Farbstift Coloured pencil
48 Druckstift m. Kopiermine Technical pencil with copy lead
49 Druckstift m. Bleimine Technical pencil with graphite lead
50 Plastilina im perlonbeutel 1 Modelling clay in plastic bag
51 10 m Schnur 10 m cord
52 Tube Druckfarbe Tube printing ink
53 Gips im Perlonbeutel 1 Plaster in plastic bag
54 Gips im Perlonbeutel 1 Plaster in plastic bag
55 Rollenbandmaß Tape measure
56 Taschenlampe Flashlight
57 Gummiunterlage im Perlonbeutel 1 PVC sheet in plastic bag 2
58 Handtuch im Perlonbeutel 1 Towel in plastic bag
59 1 Bogen Fließpapier 1 Sheet blotting paper
60 10 Bogen Schreibpapier 10 Sheets writing paper
61 10 Umschläge 10 Envelopes
62 10 Durchschreibebogen 10 Sheets carbon paper
63 Durchschlag mit Führung Punch with guide
  1. Perlon is a German brand name for Nylon 6, developed during WWII to evade the existing patents for Nylon 6,6. It was mostly used for the production of fibres, and it is unlikely that it was also used for transparent plastic bags. It is more likely that Perlon was used as a generic name for plastic.  Wikipedia
  2. According to the checklist, the large semi-transparent foldable sheet is made of rubber. In reality though, it is made of a material similar to PVC.
Printed checklist (~1975)
Below is the full list of items in the forensic kit, based on the printed checklist [A] provided with the kit [1]. It should be used in combination with this indexed photograph. Note that the actual items supplied with the kit may differ from the ones shown in the photograph, due to the long time frame in which the kits were manufactured and replacement with better quality items. In practice, many investigators added extra tools and materials in various places over the years.

Also note that both the list and the photograph contain serveral mistakes and omissions. For ex­ample, the position of items 10 (towel) and 36 (nylon bags) is incorrect, and the item at the cen­tre of the 3rd panel – the ink roller – is not listed at all. For a more correct overview, refer to the typed checklist. In the list below, additional remarks – added by us – are shown in brackets.

 Indexed photograph
 Complete leaflet

#GermanEnglish
1 Schreibpaper A4 Writing paper A4
  Fließpapier Blotting paper
  Durchslagpapier Carbon paper
  Briefumsläge A6 Envelopes A6
2 Gummihandschuhe 8½ Rubber gloves size 8½
  Gummihandschuhe 9 Rubber gloves size 9
3 Holzhülse (3×) Wooden container
4 Glasplatte Glass panel
5 Signierstift rot Red marker
6 Pinzette, anatomisch Medical tweezers
7 Meßschieber Vernier caliper
8 Schere Scissors
9 Zirkel Drawing compass
10 Kuchenhandtuch Kitchen towel
11 Kombi-Zangen, isoliert Isolated pliers
12 Nagelbohrer Gimlet
13 Totenkralle und -Löffel Finger straightener and cadaver spoon
14 Stecheisen (Beitel) Wood chisel
15 Hammer Hammer
16 Stahlmaß Metal ruler
17 Reagenzglas Test tube
18 Weithalsflasche Wide-neck bottle
19 Enghalsflasche (3×) Narrow-neck bottle
20 Marschkompass Marching compass
21 Gipsspachtel Plaster spatula
22 Plastfolie Plastic sheet
23 Plastelina, grün Modelling clay, green
24 Perlon-Schnur, Haspel Nylon cord on spool
25 Druckfarbe, schwarz Printing ink, black
26 Modellgips Model plaster
27 Flachpinsel (2×) Flat brushes (2×)
28 Meißel Small stone chisel
29 Körner Center punch
30 Taschenmesser Pocket knife
31 Durchschlag Punch
32 Augenbrauenstift, schwarz Eyebrow pencil, black
33 Lippenstift, kirschrot Lipstick, red
34 Radiergummie Eraser
35 Viskoseschwamm Sponge
36Perlonbeutel 1PVC sheet in plastic bag 2
37 Gipsbecher Plaster cup
38 Schraubendreher 2.5 mm Flat screwdriver 2.5 mm
  Schraubendreher 6.0 mm Flat screwdriver 6.0 mm
39 Topierbürste mit Kamm Teasing brush and comb
40 Reagenzglas in Holzhülse (2×) Test tube in wooden container (2×)
41 Haushaltkerze Hausehold candle
42 Schneiderbandmaß Tailor's tape measure
43 Metallhülse mit Streichhölzer Matches in metal enclosure
44 Reiseseife (2×) Travel soap (2×)
45 Einschlaglupe Folding magnifying glass
46 Reißzwecken (50 Stück) Thumbtacks (50 pcs)
47 Magazinstift Coloured pencil (red or blue)
48 Druckfallstift m. Kopiermine Technical pencil with copy lead
  Druckfallstift m. Bleimine Technical pencil with graphite lead
49 Rollenbandmaß Tape measure
50 Signallampe Flashlight
  1. Perlon is a German brand name for Nylon 6, developed during WWII to evade the existing patents for Nylon 6,6. It was mostly used for the production of fibres, and it is unlikely that it was also used for transparent plastic bags. It is more likely that Perlon was used as a generic name for plastic.  Wikipedia
  2. According to the checklist, the large semi-transparent foldable sheet is made of rubber. In reality though, it is made of a material similar to PVC.
Printed checklist (1980)
Not yet available.


Specifications
  • Object
    Kriminaltechnische Tasche (Criminalist bag, Forensic kit)
  • Purpose
    Criminal and forensic investigations, evidence gathering
  • Model
    KT-Tasche
  • Manufacturer
    VEB Polygraph Reprotechnik Leipzig
  • Country
    East-Germany (DDR)
  • Era
    Cold War
  • Years
    1965-1988 ~
  • Material
    Exterior: leather, interior: various
  • Items
    60+ (see checklist)
  • Dimensions
    ?
  • Weight
    7300 g
Nomenclature
  • KT-Tasche
  • Kriminaltechnische Tasche
  • Kriminalisten Tasche
  • Spurensicherungskoffer
  • Forensic Kit
  • Criminalist bag
Documentation
  1. Original typed checklist (1968)
    Supplied with Kriminal technische Tasche [2].

  2. Original leaflet with checklist (~1975)
    Supplied with Kriminal technische Tasche [1].
     Indexed photograph in high-resolution

  3. Handbuch für Kriminalisten
    Ministerium des Inneren (DDR), First edition, 1982.

  4. Handbuch für Kriminalisten - Musterakte -
    Supplement to C with examples of completed forms (German).
    Ministerium des Inneren (DDR), ?.
References
  1. Australian Spy Museum, Kriminaltechnische Tasche - THANKS !
    Received 14 August 2025.

  2. Hans Gross Kriminalmuseum, Kriminaltechnische Tasche
    Virtual Collection, Object KM-O. 1396. Probably from 1968.
    Graz (Austria). Visited online 5 August 2025.

  3. H. Keith Melton, Criminalist kit
    Ultimate Spy, First Edition, 1996-2002.p. 57.
    ISBN 0-7513-4791-4.

  4. Krimievent.com, KT-Tasche
    Via Facebook. Accessed 29 August 2025.
Further information
Any links shown in red are currently unavailable. If you like the information on this website, why not make a donation?
© Crypto Museum. Created: Wednesday 06 August 2025. Last changed: Thursday, 02 October 2025 - 14:51 CET.
Click for homepage
