Fernschreiberprüfgerät MES 2/3

Fernschreiberprüfgerät MES 2/3, is a teleprinter test device, developed around 1991 by Heeres­instandsetzungswerk 870 (Army Repair Depot 870) in Bad Bergzabern (Germany) 1 — part of the German Army (Bundes­wehr). Is was used as a repair tool for some popular teleprinter equipment.

The device is housed in a green metal enclosure that consists of two halves, held together by a hinge at the rear and two snap-locks at the front. The upper half contains the mains power cable, the 24V power cable and the operating instructions. It can be detached if necessary.

The lower half contains the actual device. All controls and connections are at the top. It has connections for virtually any type of teleprinter with a V.10, ADo4 (ADoS) or ADo8 plug. There are banana sockets for connection to a telex line and to a 600Ω resistor that simulates a long line.


The device was developed especially for the teleprinters that were still in use with the German Army in the early 1990s, but is perfectly usable with most other teleprinters. After teleprinters were decommissioned in the late 1990s, the MES 2/3 was dumped on the surplus market. It can be found for reasonable prices on eBay and from surplus stores, such as Bw-Schmitti in Germany.

  1. Full address: HInstWerk 870, Breslauer Straße 4, 6748 Bad Bergzabern.

MES 2/3 teleprinter tester
Left angle view
Control panel
MES 2/3 front panel
A
×
A
1 / 4
MES 2/3 teleprinter tester
A
2 / 4
Left angle view
A
3 / 4

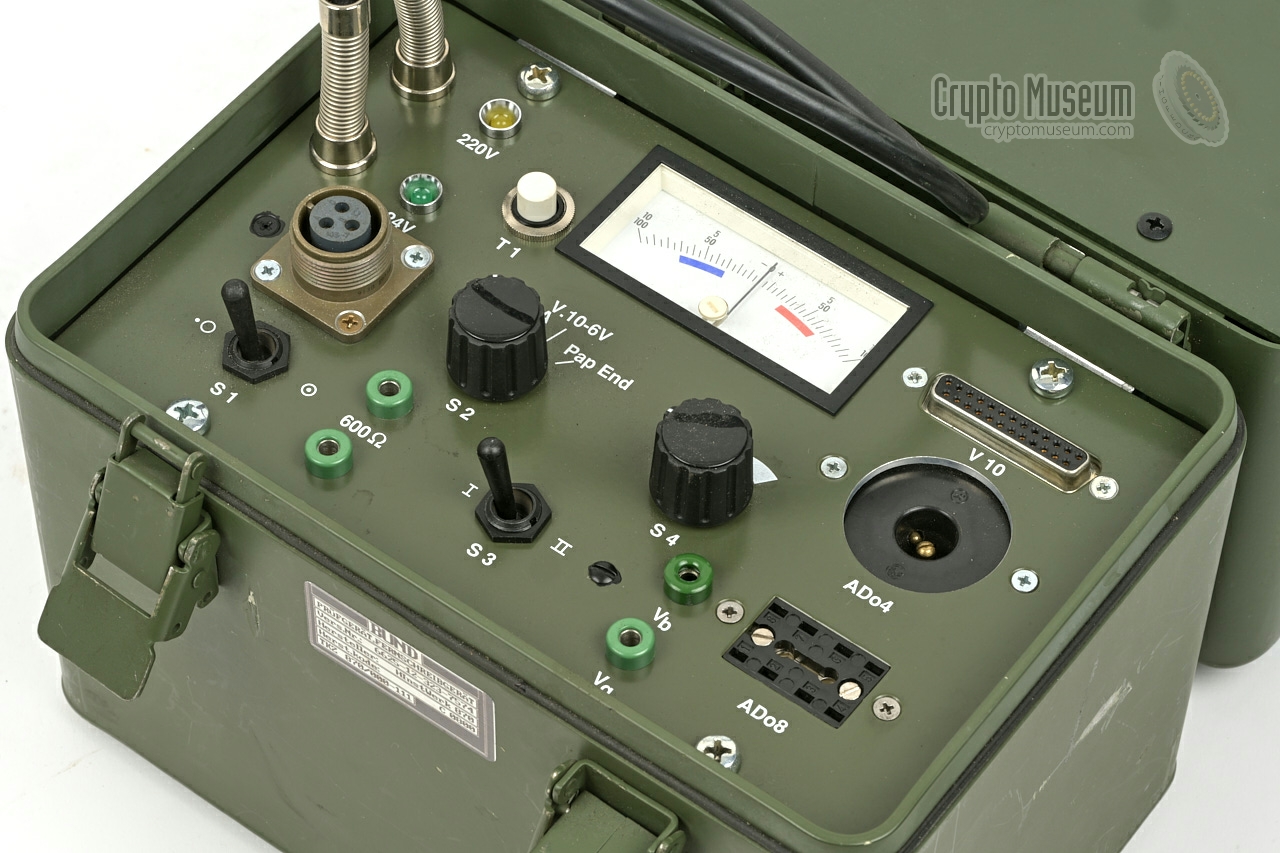

Control panel
A
4 / 4
MES 2/3 front panel

Compatible equipment
Siemens T-100 teleprinter
TeKaDe FS-200Z military electronic teleprinter (telex)
Siemens T-56 Fernschreib-Endsatz (teleprinter terminating unit) with signalling
TekaDe FAG-200 teleprinter connection device
Features

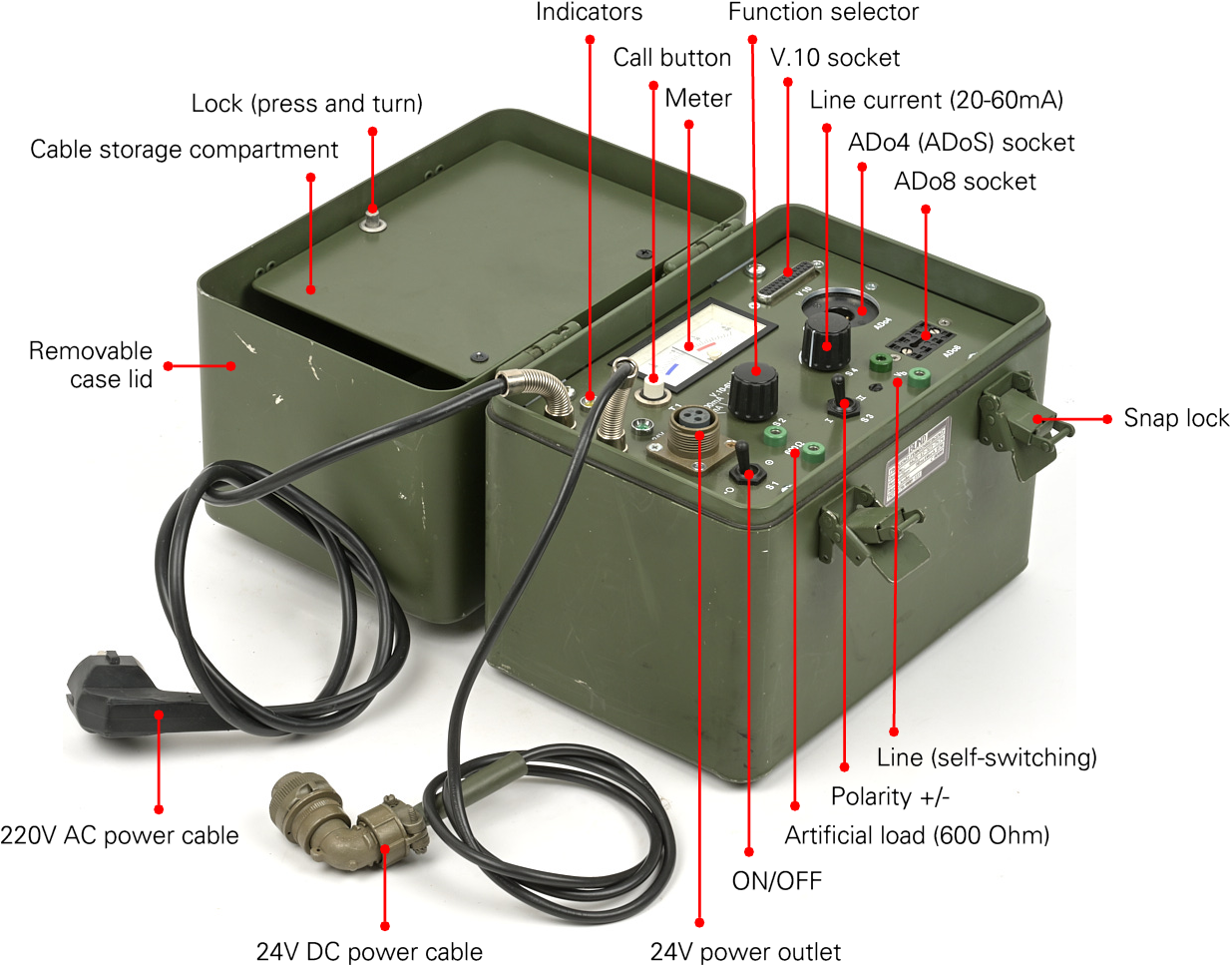

The image below provides an overview of the controls and connections. The case consists of two halves: (1) the actual device, and (2) a hinged lid that also acts as the storage compart­ment for the po­wer cables and the operating instructions. The device is powered from the 220V AC mains or from an external 24V DC source, such as the power source of a 24V powered teleprinter. In the latter case, the teleprinter itself can be connected to the 3-pin socket at the control panel.


At the right are three sockets for connecting a teleprinter. The following interfaces are supported:

Also at the right are two banana sockets for connection to a teleprinter line. They are activated as soon as a plug is inserted in the upper socket. At the upper edge of the control panel is a large current meter that can show positive as well as negative currents. Its function can be selected with the 4-position rotary selector underneath it (S2). The following functions are available:

  1. 10mA
    Meter 10 mA range
  2. 100mA
    Meter 100 mA range
  3. V.10-6V
    V.10 interface ±6V
  4. Pap End
    Paper-end test (ADo8 only)
The device was intended for testing the following devices:

Note however that the test abilities are not limited to the above listed devices. It can be used with virtually any teleprinter or peripheral device that conforms to the TW39 signalling standard and has one of the supported interfaces (ADo4, ADo8 or V.10).


Circuit diagram
Below is the circuit diagram of the MES 2/3 based on the original operating instructions [A]. Please note that the original circuit diagram contains several mistakes. At the left are the connectors for 220V AC input, 24 DC input, 24V DC output and the V.10 in­ter­face socket. The power supply unit (PSU) has two connectors: J1 and J2. J1 is the 220V AC input.


At the right are the ADo4 (ADoS), ADo8 and line sockets, each of which is self-switching. This means that when a plug is inserted, switch S5, S6 or S7 is opened respectively. The function-selector (S2) selects the type of test/measurement. The function of the meter (M1) is selected with S2a and S2c. A protection circuit is connected in parallel with the meter. The 20-60mA output current on the ADo4, ADo8 and Line sockets is adjusted with potentiometer S4.

T1 is a momentary DPDT switch that simulates a call pulse on the ADo8 and V.10 interfaces. The 600Ω resistor at the top, simulates a line. The device is powered from the 220V AC mains or a 24V DC source. The latter is also connected to the 3-pin socket at the front panel. Note that the device does not provide 24V for the teleprinter, when it is powered from the 220V AC mains.

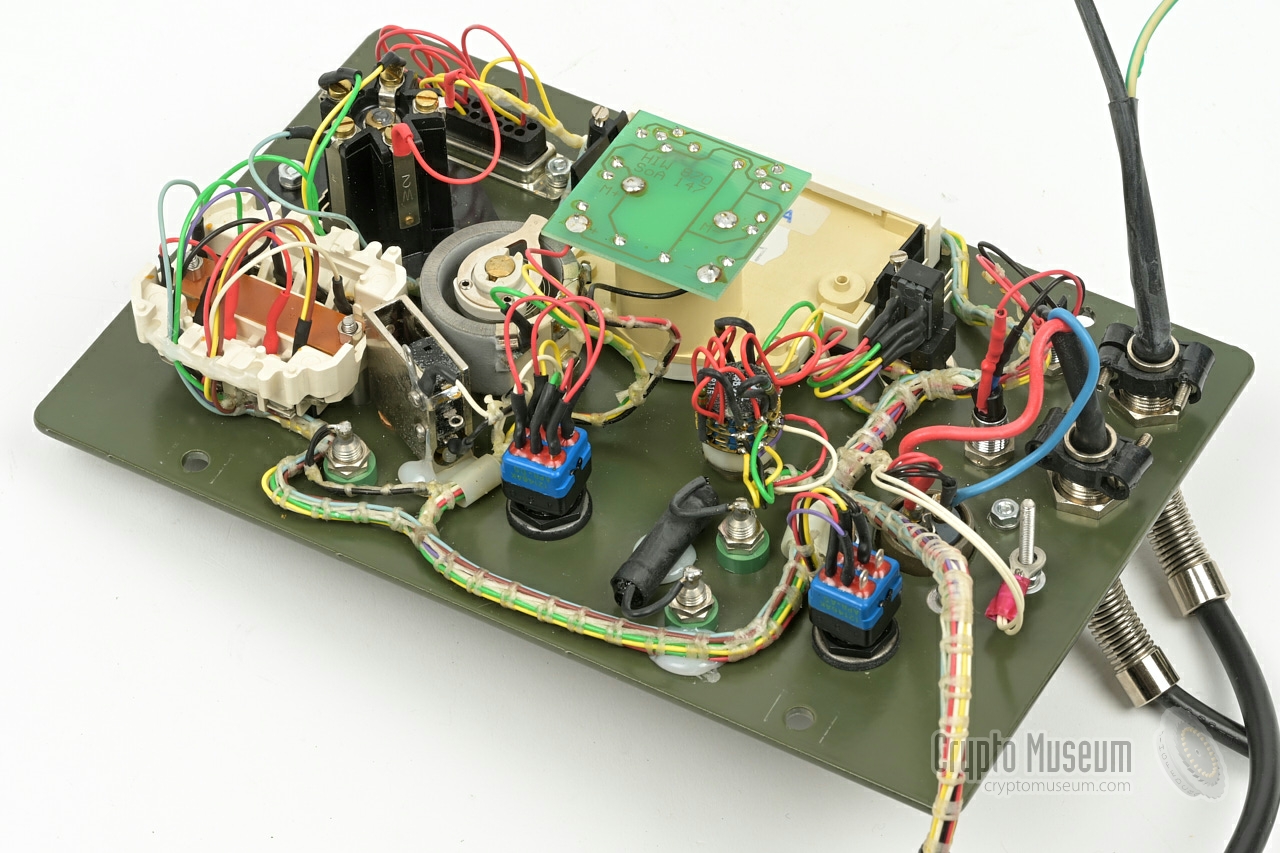

Interior
PSU in bottom of enclosure
Interior separated from the enclosure

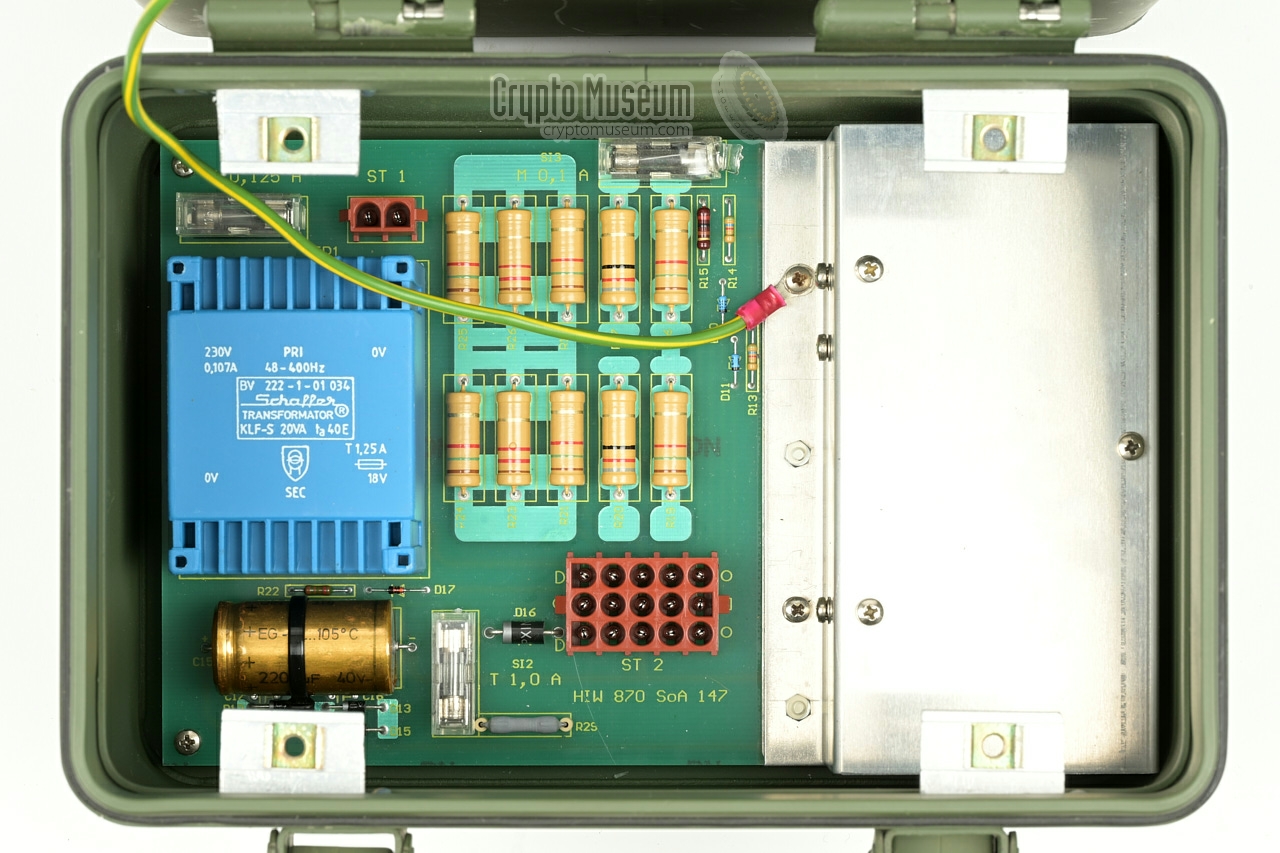

PSU top view
Interior
Function selector wiring
Interface wiring
Meter protection circuit
PSU connector J1 and J2
B
×
B
1 / 8

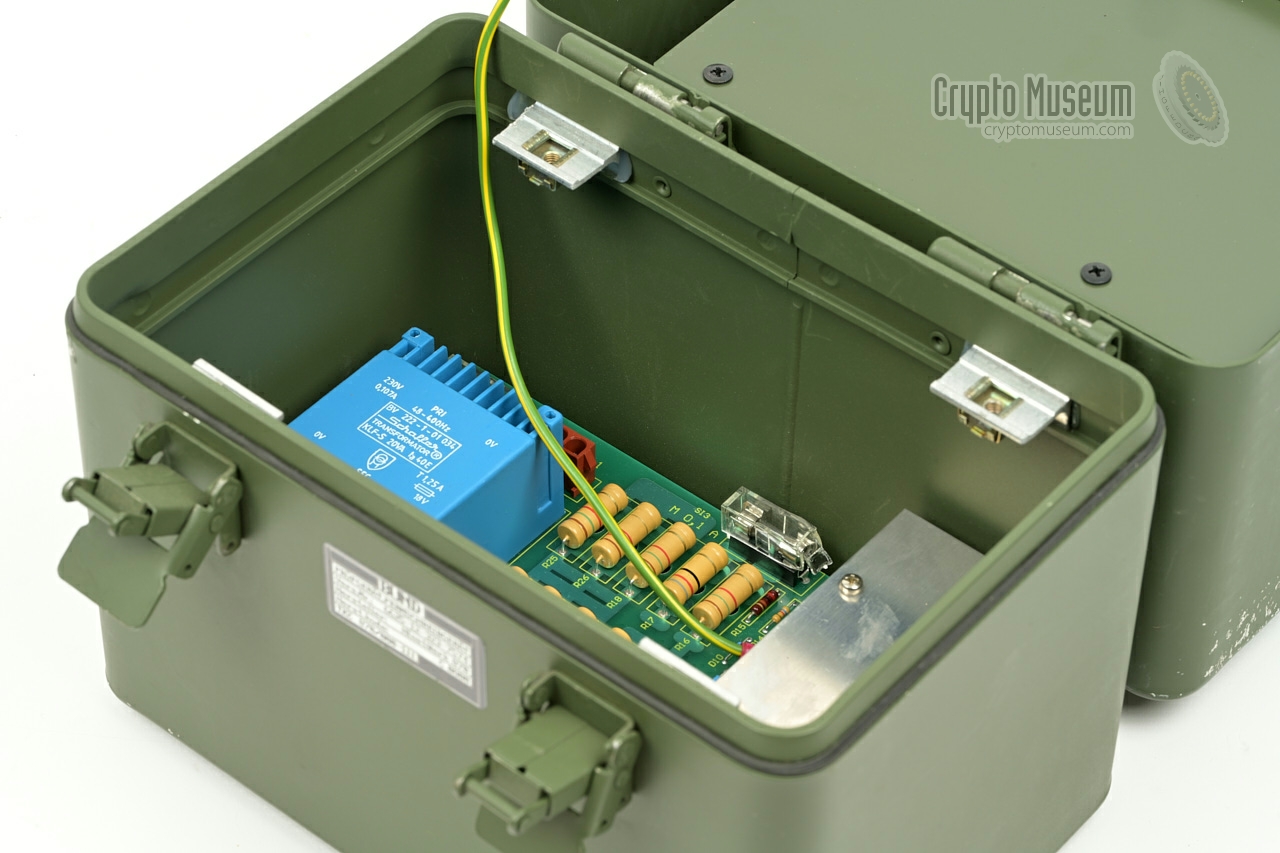

PSU in bottom of enclosure
B
2 / 8

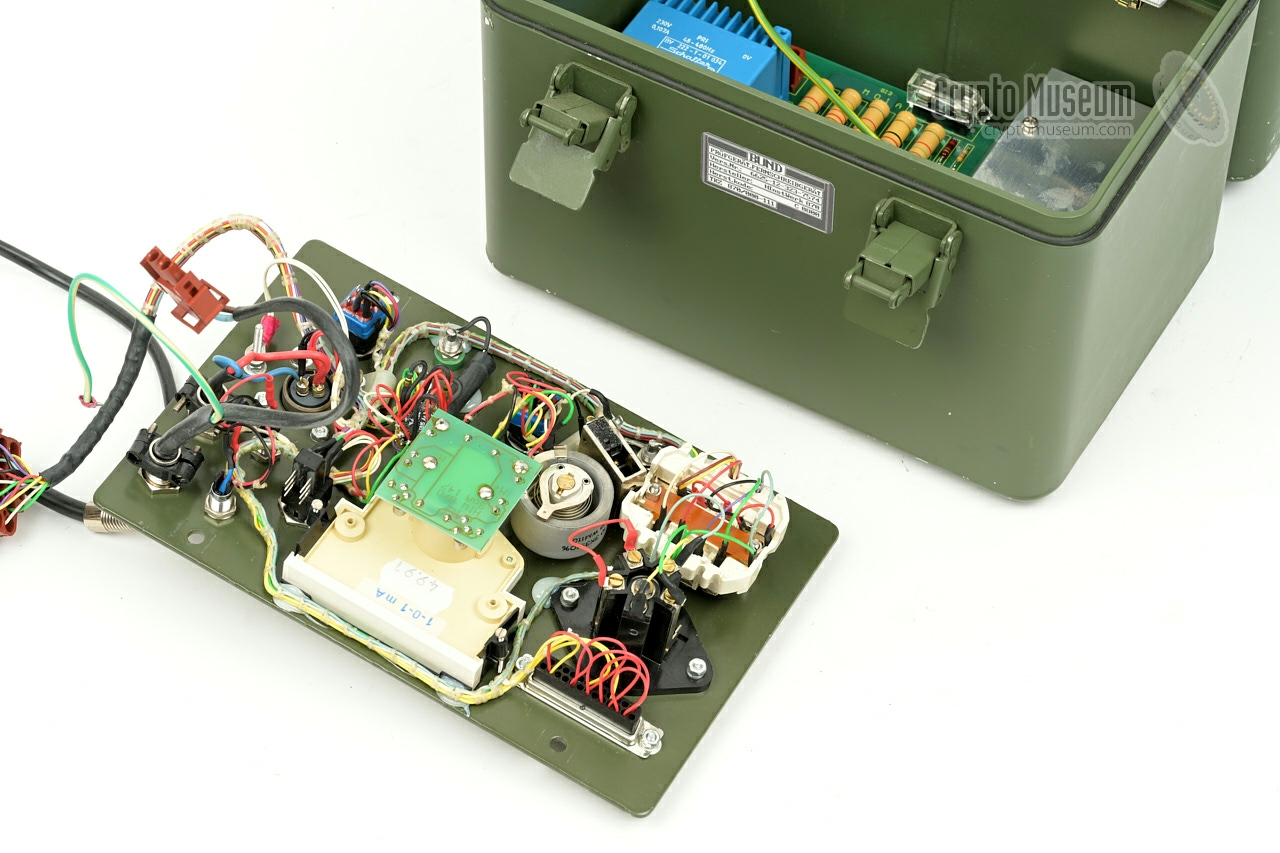

Interior separated from the enclosure
B
3 / 8
PSU top view
B
4 / 8
Interior
B
5 / 8

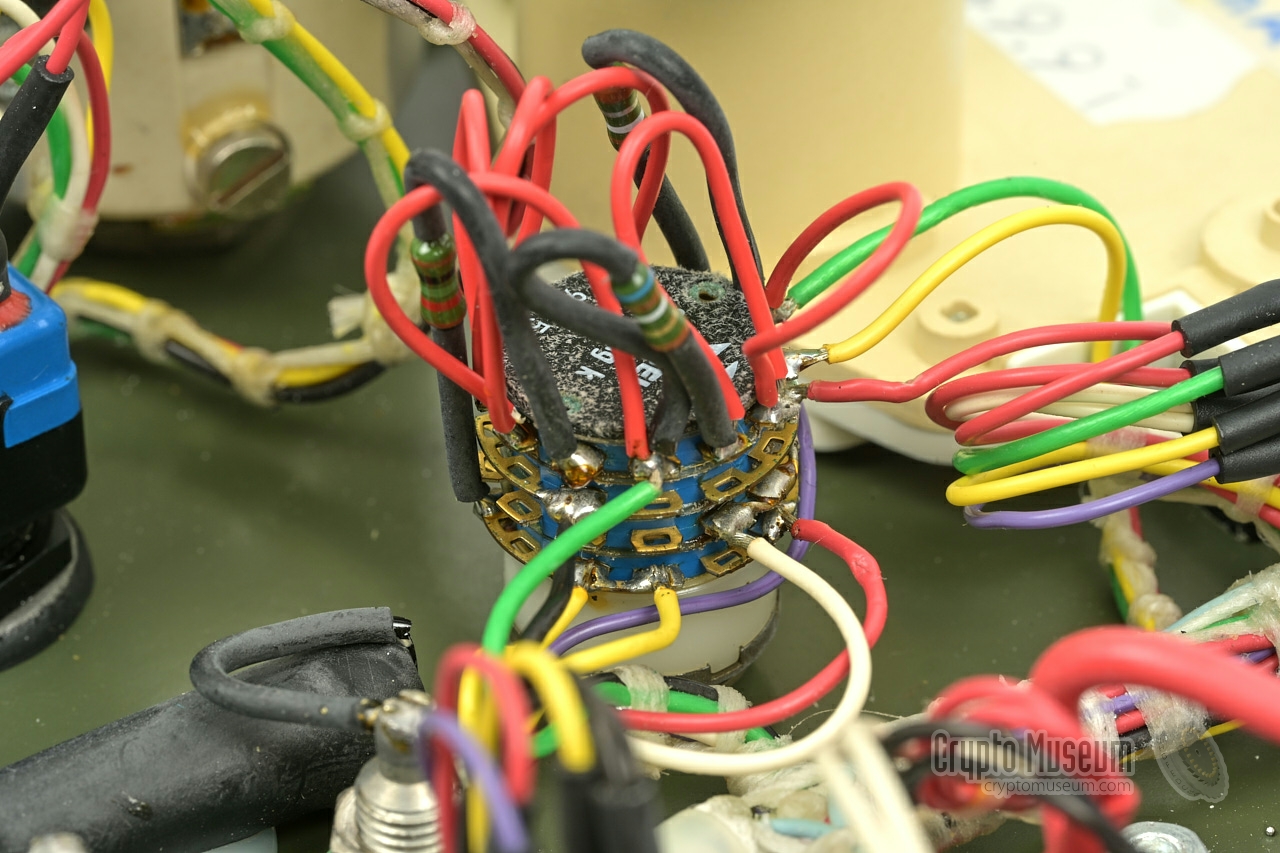

Function selector wiring
B
6 / 8

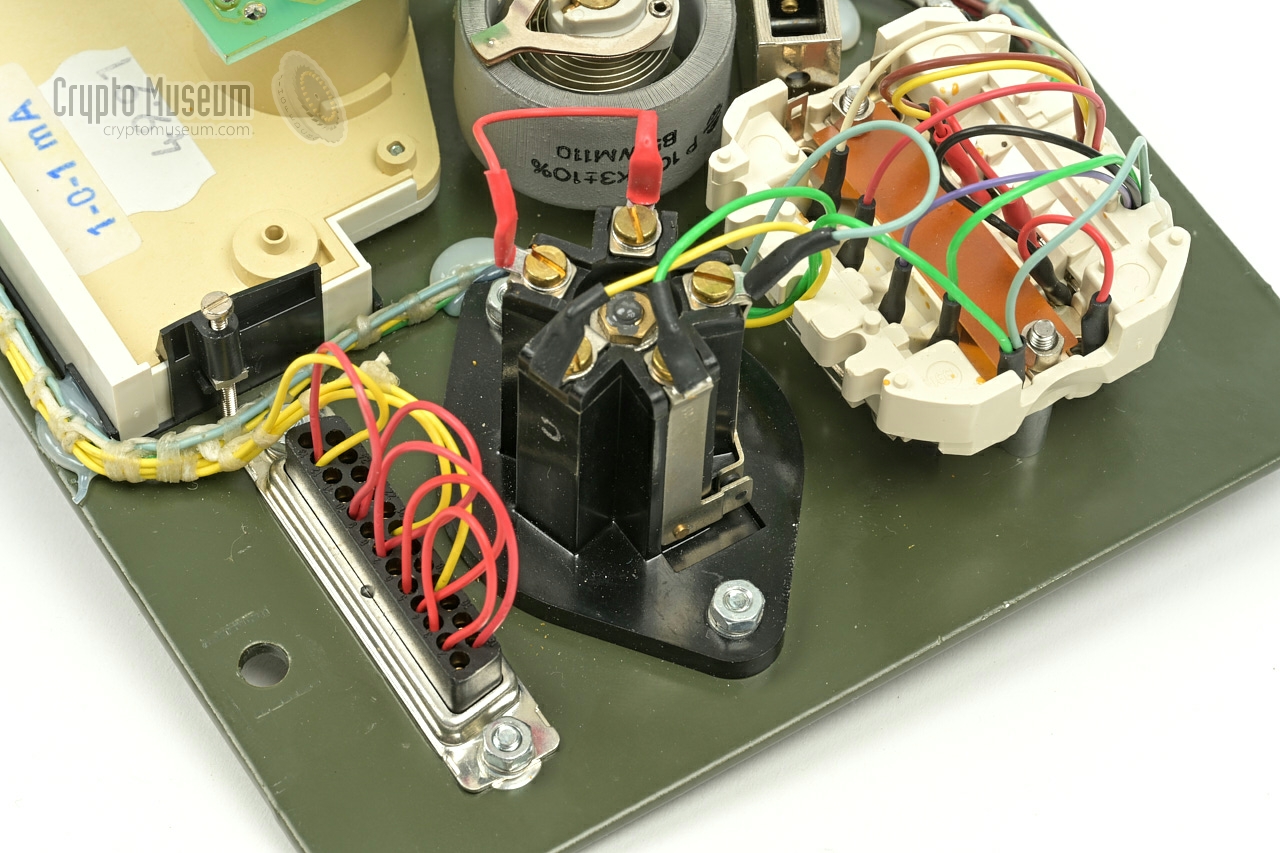

Interface wiring
B
7 / 8

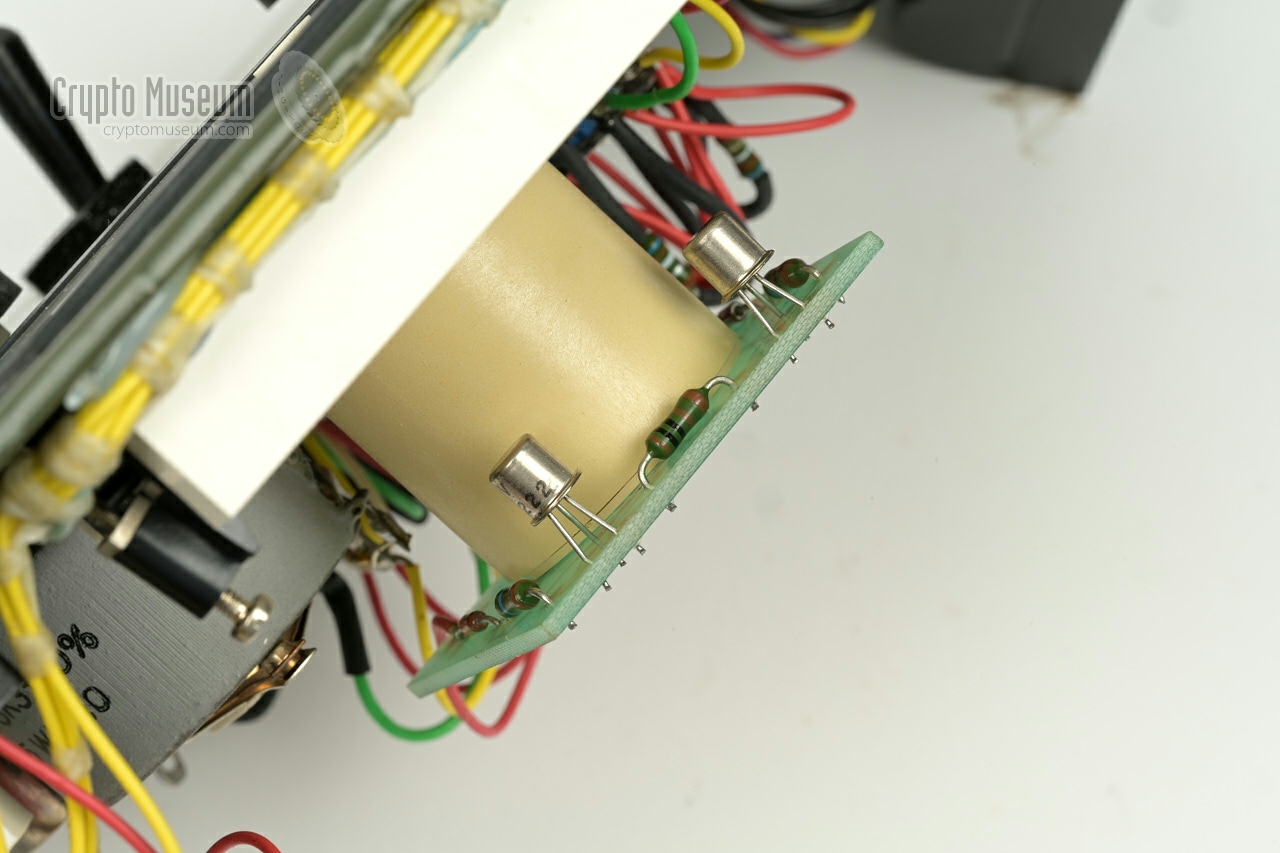

Meter protection circuit
B
8 / 8

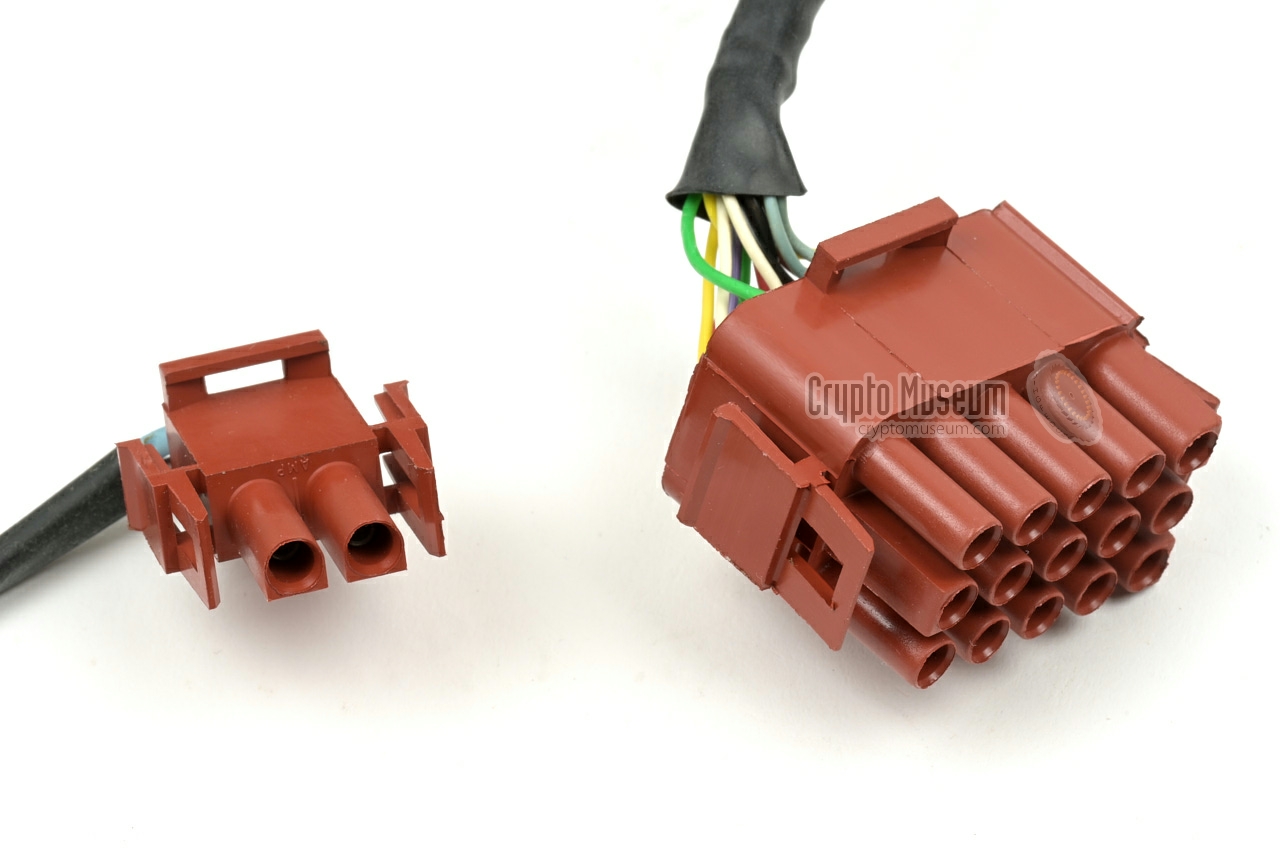

PSU connector J1 and J2

Specifications
  • Device
    Teleprinter dest device
  • Name
    Fernschreiberprüfgerät MES 2/3
  • Model
    MES 2/4
  • Manufacturer
    Bundeswehr, HInstWerk 870
  • Country
    Germany
  • Year
    1991
  • Designator
    870/000-111
  • NSN
    6625-12-323-7574
  • Line
    60V (open rail), 20-60 mA
  • Impedance
    600Ω
  • Interfaces
    see below
  • Harmonics
    < 1.5%
  • Call
    Pulse 20 mA ±10%
  • Mains
    220V AC +10%/-15%
  • Battery
    19-32V DC external - typically 24V
  • Temperature
    -20°C to +40°C
  • Dimensions
    270 × 230 × 175 (HWD)
  • Weight
    4 kg
Interfaces
Documentation
  1. Fernschreiberprüfgerät MES 2/3 description and instructions (German)
    TDv 6625/078-13. December 1991.
References
  1. Johannes Kok, HinstWerk 870 Prüfgerät TKZ 870 MES 2/3 (D)
    Visited 7 September 2024.
Further information
Any links shown in red are currently unavailable. If you like the information on this website, why not make a donation?
© Crypto Museum. Created: Saturday 07 September 2024. Last changed: Monday, 16 September 2024 - 09:58 CET.
