Spy radio transmitter and receiver - this page is a stub

Mk.128 was a valve-based short-wave (SW) spy radio set for morse code signals (CW), developed in the mid-1950s by the Diplomatic Wireless Service (DWS, later: HMGCC) at Hanslope Park (UK). The radio set was intended for airborne use, in particular by the Special Air Service (SAS), and is suitable for a 15 - 20 mile range in the 2 — 8 MHz frequency band. It is also known as SR128.

The radio was available as a one-piece solution (Mk.128 and Mk.128A), but also as the multi-part solution (Mk.128B) shown in the image on the right. It consists of two major units — a transmitter and a receiver — plus accessories.

The radio set covers the 2 — 8 MHz frequency range in two bands, and delivers an output power of approx. 1 Watt.

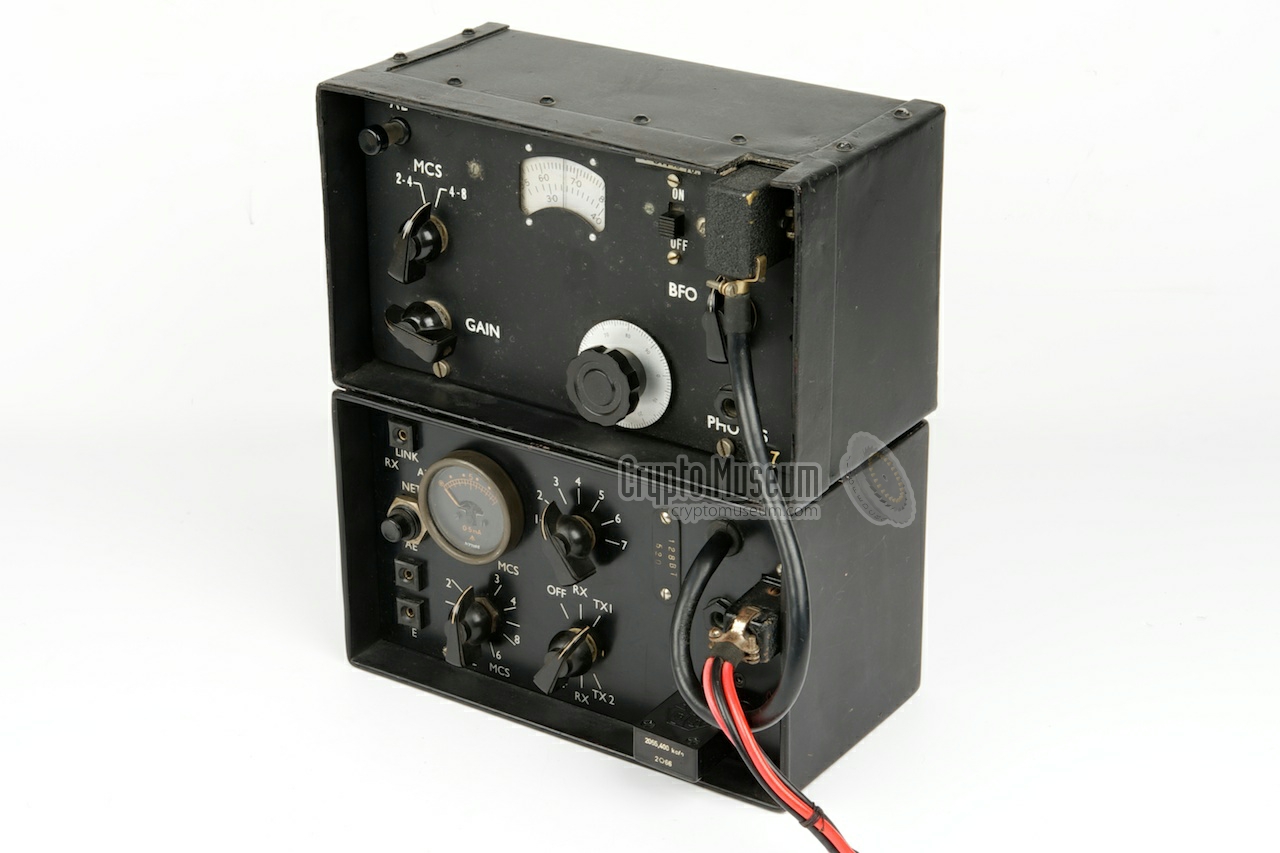

Mk. 128 receiver (top) and transmitter (bottom)

Mk. 128 receiver (top) and transmitter (bottom)
British Mk.128 spy radio set
A
×
A
1 / 2
Mk. 128 receiver (top) and transmitter (bottom)
A
2 / 2
British Mk.128 spy radio set

Versions
  • Mk.128
    All-in-one unit in wooden case, carried in canvas pack
  • Mk.128A
    Later version with improved storage space
  • Mk.128B
    Two-box version with external battery in canvas pack
Specifications
General
  • Device
    Spy radio set
  • Purpose
    Special forces, diplomatic traffic
  • Model
    Mk. 128
  • Developer
    HMGCC
  • Manufacturer
    ?
  • Year
    1957-58 (est.)
  • Country
    UK
  • User
    SAS, DWS
  • Antenna
    Spool with 100 ft of wire
  • Power
    4 x battery 67.5V (No. 1), 1 x battery 1.5V (No. 14)
  • Range
    15 — 20 miles
  • Temperature
    0 — 50°C
  • Dimensions
    460 × 305 × 165 mm
  • Widht
    8 kg
Parts
  • Transmitter
  • Receive
  • Canvas bag
  • Morse key
  • Crystals
  • Headset
  • Antenna and ground wires
  • Reading lamp
  • Ground pin
  • Batteries
  • User manual
  • Spare parts (valves)
Transmitter
  • Circuits
    CO, PA
  • Frequency
    2 — 8 MHz
  • Bands
    2 (2 — 4 MHz, 4 — 8 MHz)
  • Modulation
    CW
  • Output
    1 Watt
  • Valves
    CV1758 (DF92, 1L4), CV807 (DL93, 3A4)
  • Crystals
    Fundamental frequency only
  • Dimensions
    120 × 210 × 108 mm (?HWD}
  • Weight
    1250 g
Receiver
  • Circuits
    Superheterodyne, BFO
  • Frequency
    2 — 8 MHz
  • Bands
    2 (2 — 4 MHz, 4 — 8 MHz)
  • Modulation
    CW, MCW, AM
  • Sensitivity
    15 — 40 µV
  • Output
    1 mW into 20 kΩ
  • Valves
    DK96, CV785 (DF91, 1T4), DAF96, 2 × DF96
  • Dimensions
    120 × 210 × 108 mm (?HWD}
  • Weight
    1350 g
Documentation
  1. Station, Radio, 128 - Technical Handbook - Data Summary
    Issue 1, 19 February 1964. 3 pages. 1

  2. Station, Radio, 128 and 128A - Technical Handbook - Technical Description
    Issue 1, 31 December 1964. 31 pages. 1

  3. Station, Radio, 128 and 128A - Technical Handbook - Unit Repairs
    Issue 1, 25 March 1965. 1 page. 1

  4. Station, Radio, 128 and 128A - Technical Handbook - Field and Base Repairs
    Issue 1, 25 March 1965. 1 page. 1

  5. Station, Radio, 128B - Technical Handbook - Data Summary
    Issue 1, 20 February 1967. 3 pages. 1

  6. Station, Radio, 128B - Technical Handbook - Technical Description
    Issue 1, 21 June 1967. 25 pages. 1
  1. Manual scanned and distributed by The Vintage & Military Amateur Radio Society (VMARS) [2].
    Complete overview of freely downloadable manuals here.
References
  1. Louis Meulstee, Wireless for the Warrior, volume 4
    ISBN 0952063-36-0, September 2004

  2. VMARS, Vintage & Military Amateur Radio Society
    Various manuals of military surplus radios.
