Minature modular spy receiver - this page is a stub

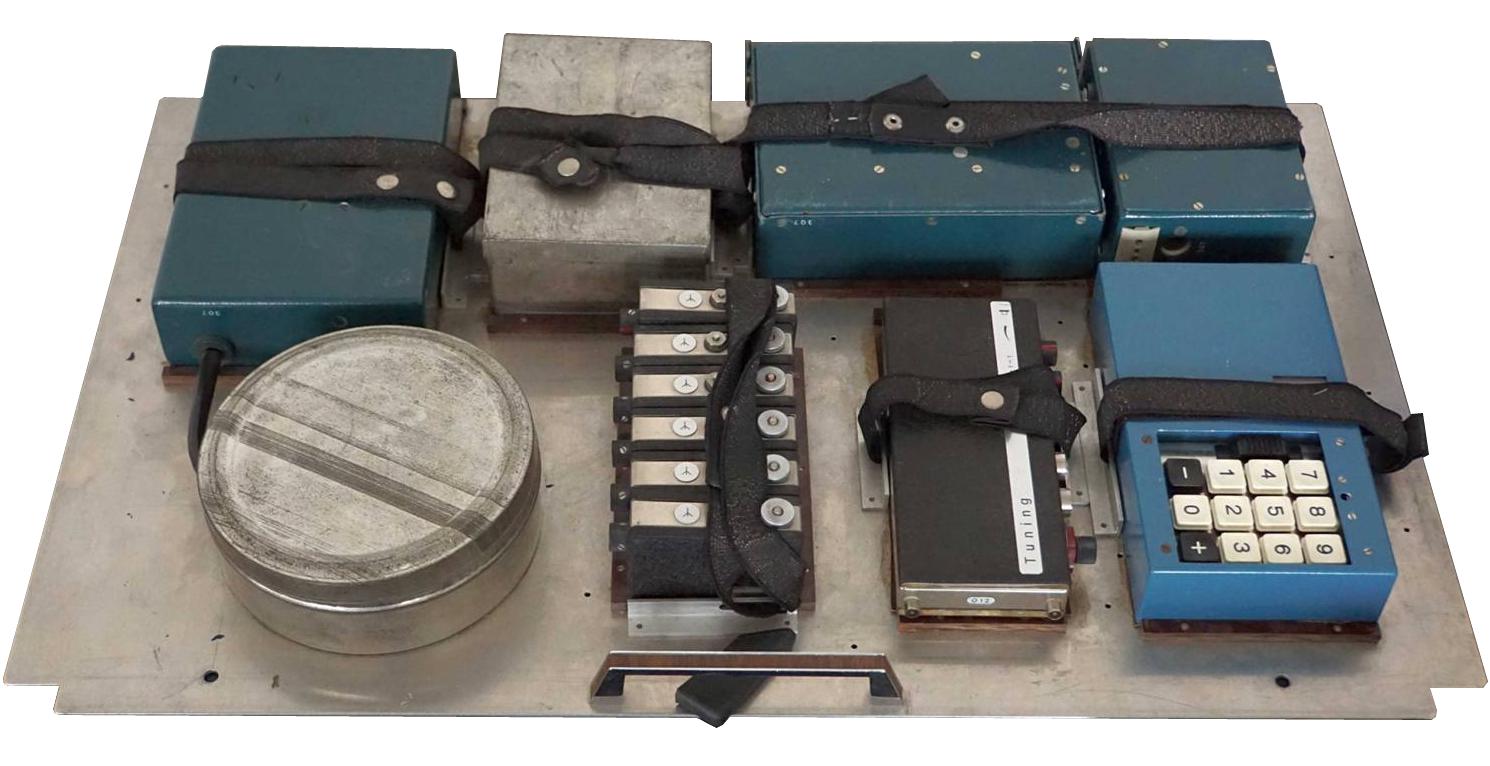

FLE, also known as Projekt 32310, is a miniature modular HF spy receiver (German: Kleinst­empfänger), introduced in 1980 by Department HV A of the repressive intelligence service of the former DDR (East Germany) — Mi­ni­ste­rium für Staatssicherheit (MfS), better known as the Stasi. It covers 3-19.5 MHz and was issued as a stand-alone receiver for Base-to-Agent communication. It was also supplied with the WSA-1 spy transmitter, as part of communication system 32210.

...

Foam container
Contents of the foam container

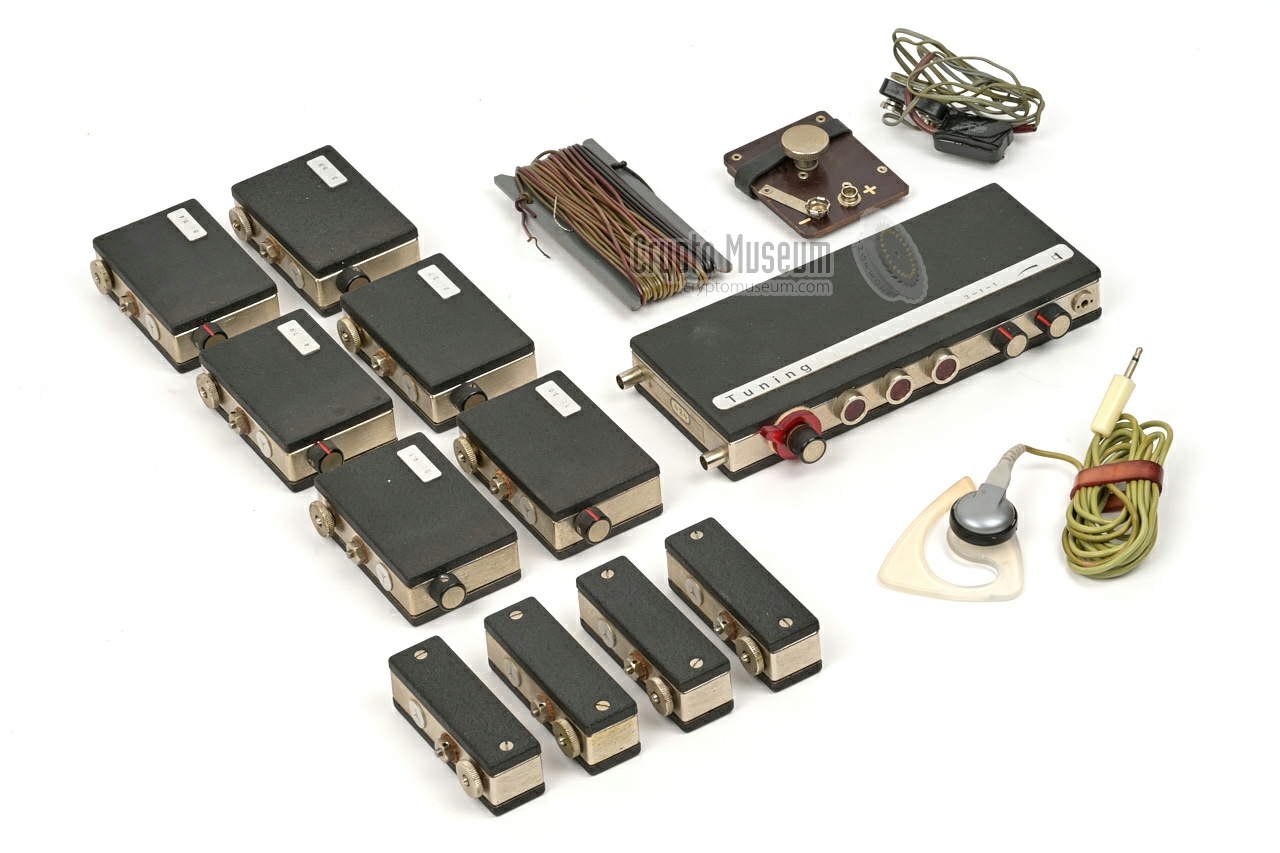

All parts
FLE Receiver with plug-in, earphone and battery

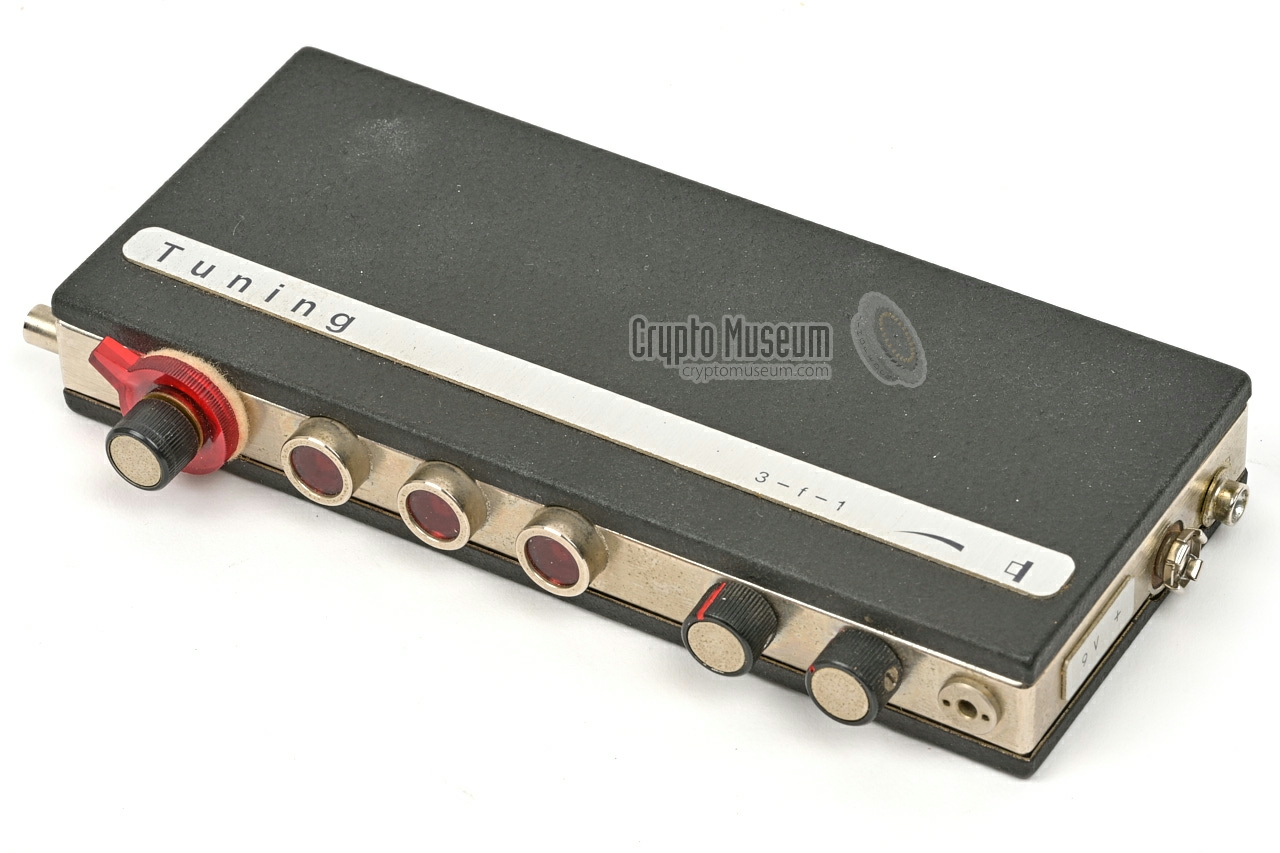

FLE receiver

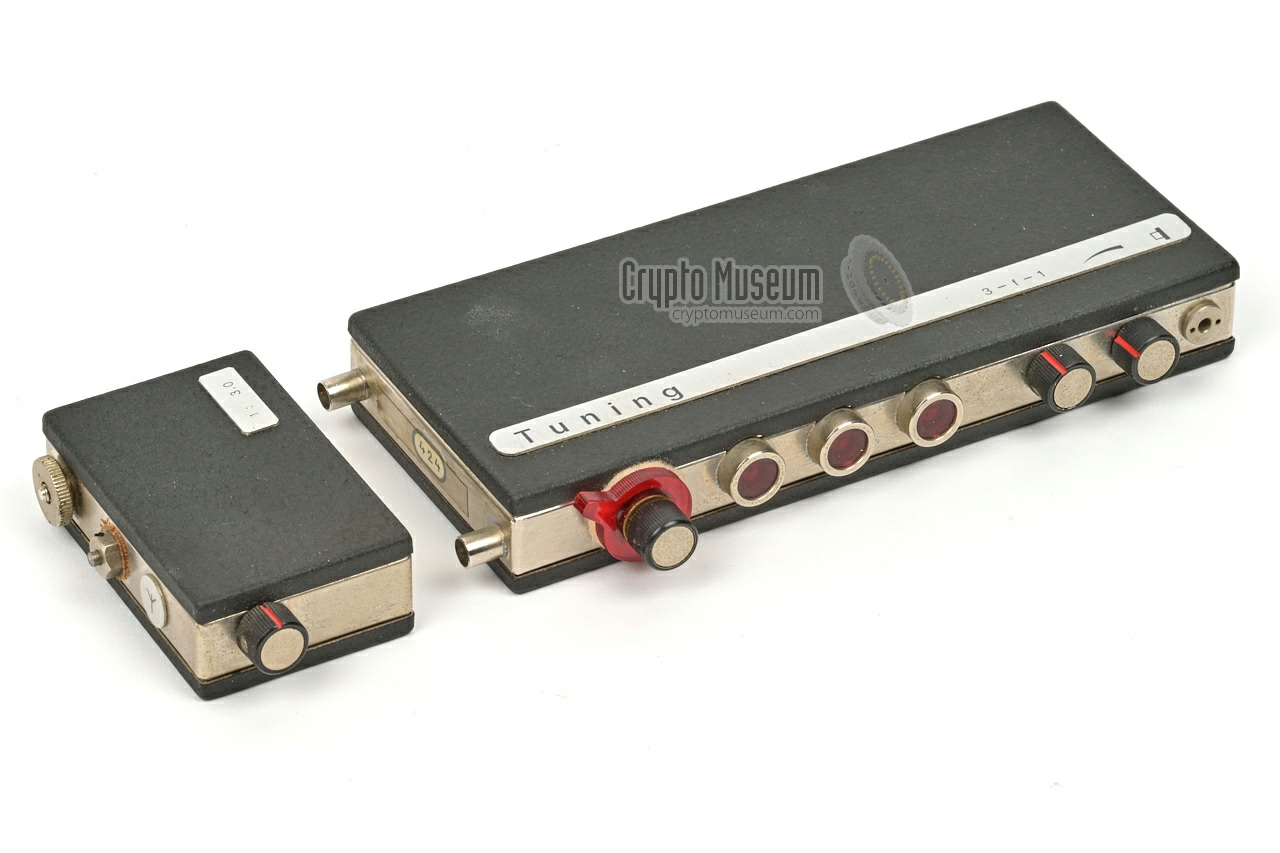

FLE receiver with plug-in
A
×
A
1 / 6
Foam container
A
2 / 6
Contents of the foam container
A
3 / 6
All parts
A
4 / 6

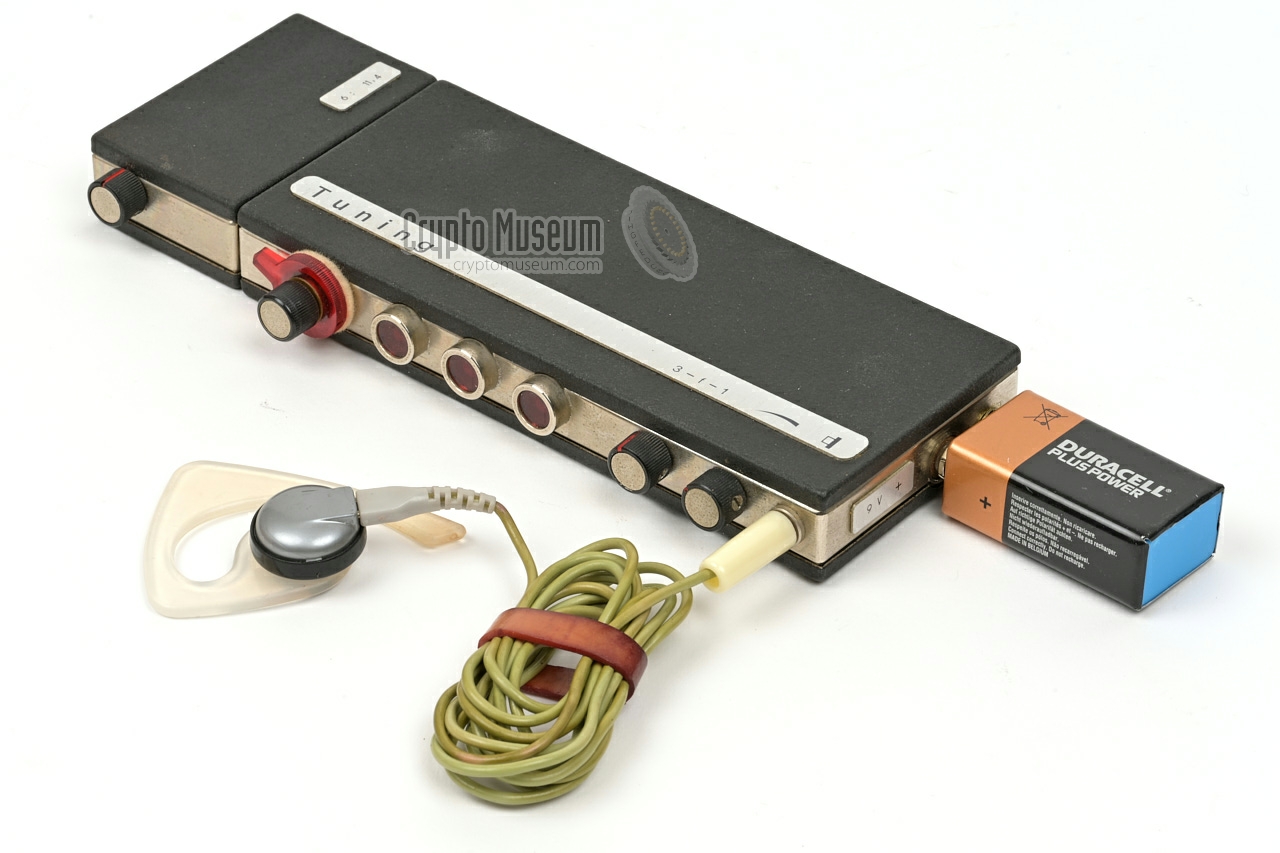

FLE Receiver with plug-in, earphone and battery
A
5 / 6
FLE receiver
A
6 / 6
FLE receiver with plug-in

Features

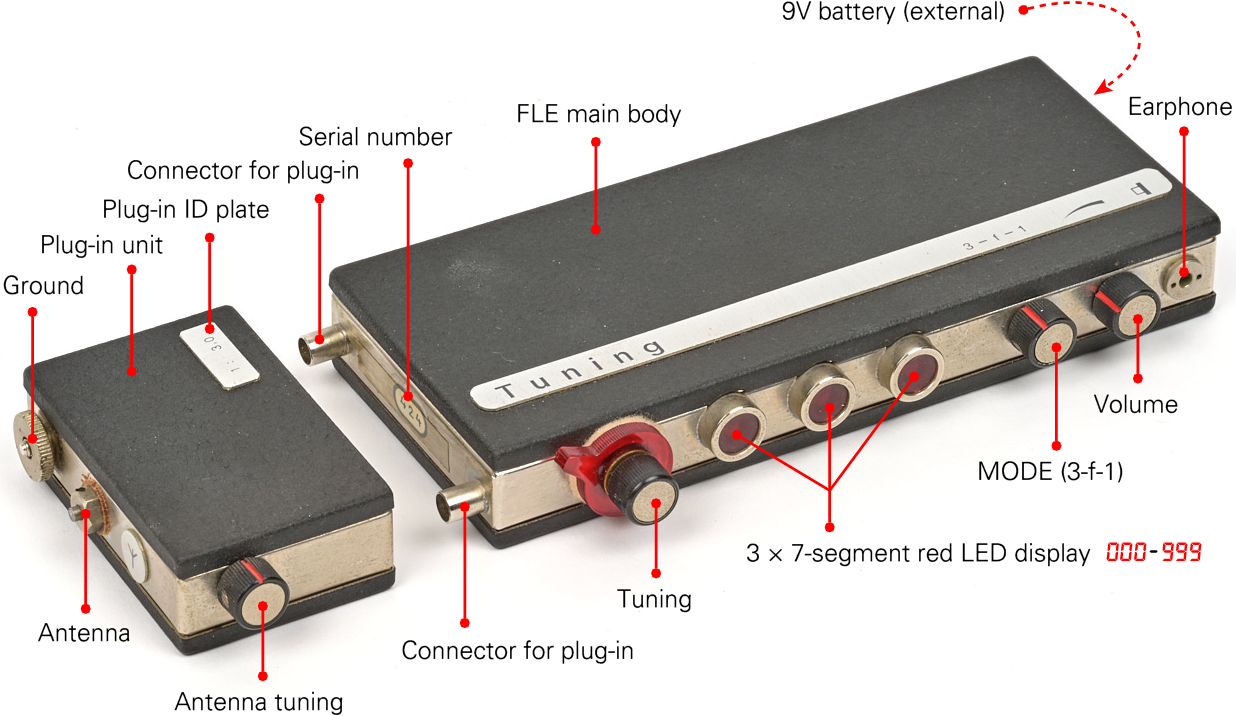

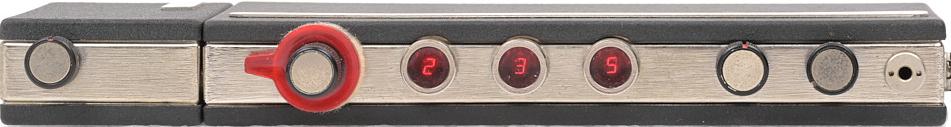

The image below provides a quick overview of the controls and connections of the FLE receiver. The device is shown here with plug-in unit 1 (3 MHz). The plug-in should ba attached to the two coaxial connectors at the left side of the receivers. Antenna and ground wrires should be con­nec­ted to the screw terminals at the left side of the plug-in. The earphone must be connected at the right end of the front panel. The device is powered by a a 9V battery that is attached at the right.

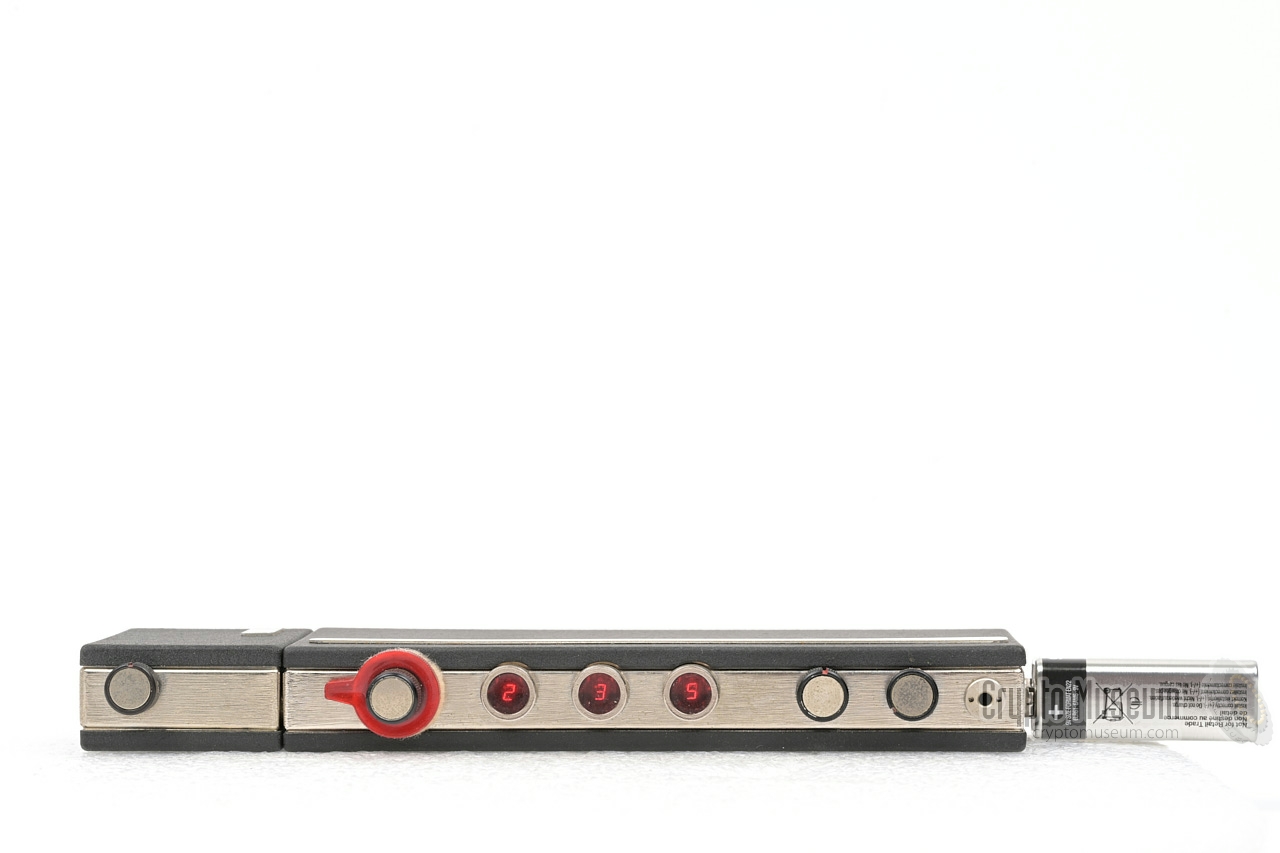

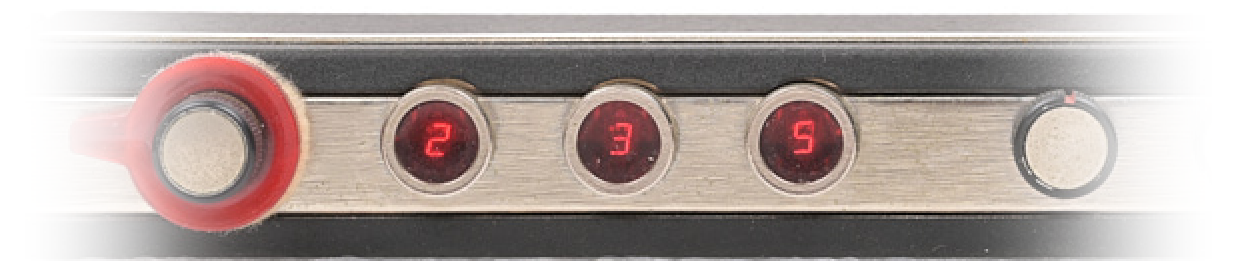

Als controls are at the front panel. At the centre of the front panel are three red circular windows, behind each of which is a miniature red 7-segment display, similar to the ones that were used in the early digital watches of the 1970s. Together, the displays form a 3-digit number that spe­ci­fies the offset (in kHz) from the base frequency printed on the plug-in's ID plate. To alter the offset, place the MODE selector (3-f-1) in the (f) position. This enables the display (but disables the receiver). To receive a radio station, place the MODE selector in the 3 (AM) or 1 (CW) position. This disables the display, although tuning is still allowed (albeit without readout).

MODE selector   3-f-1
3A3, AM, Phone
fFrequency setting (display)
1A1, CW, Morse
Operation
  • Determine the desired receive frequency
  • Select the correct plug-in and connect it to the FLE body
  • Each plug-in covers 1 MHz (e.g.: 5.7 — 6.7 MHz)
  • Calculate the offset from the frequency on the label
    e.g. Frequency = 6453 kHz
    Use plug-in (2) 5.7 MHz (= 5700 kHz)
    Offset = 6453 - 5700 = 753
  • Connect the antenna
  • Connect the earphone
  • Connect a 9V battery (the device should work immediately)
  • Set MODE-selector to centre position (f)
  • Adjust the tuning knob so that the calculated offset is in the display
  • Select the desired modulation type (3 = A3, AM), (1 = A1, CW)
  • Adjust the volume control
  • Adjust Antenna tuning for maximum noise
Low-battery indication
When the battery voltage is too low, the decimal dot of the three displays will light up.


Block diagram
...



Plug-ins
#FromTo
13.0 MHz4.0 MHz
25.7 MHz6.7 MHz
36.8 MHz7.8 MHz
47.9 MHz8.9 MHz
59.1 MHz10.1 MHz
611.4 MHz12.4 MHz
713.0 MHz14.0 MHz
815.5 MHz16.5 MHz
916.9 MHz17.9 MHz
1018.5 MHz19.5 MHz

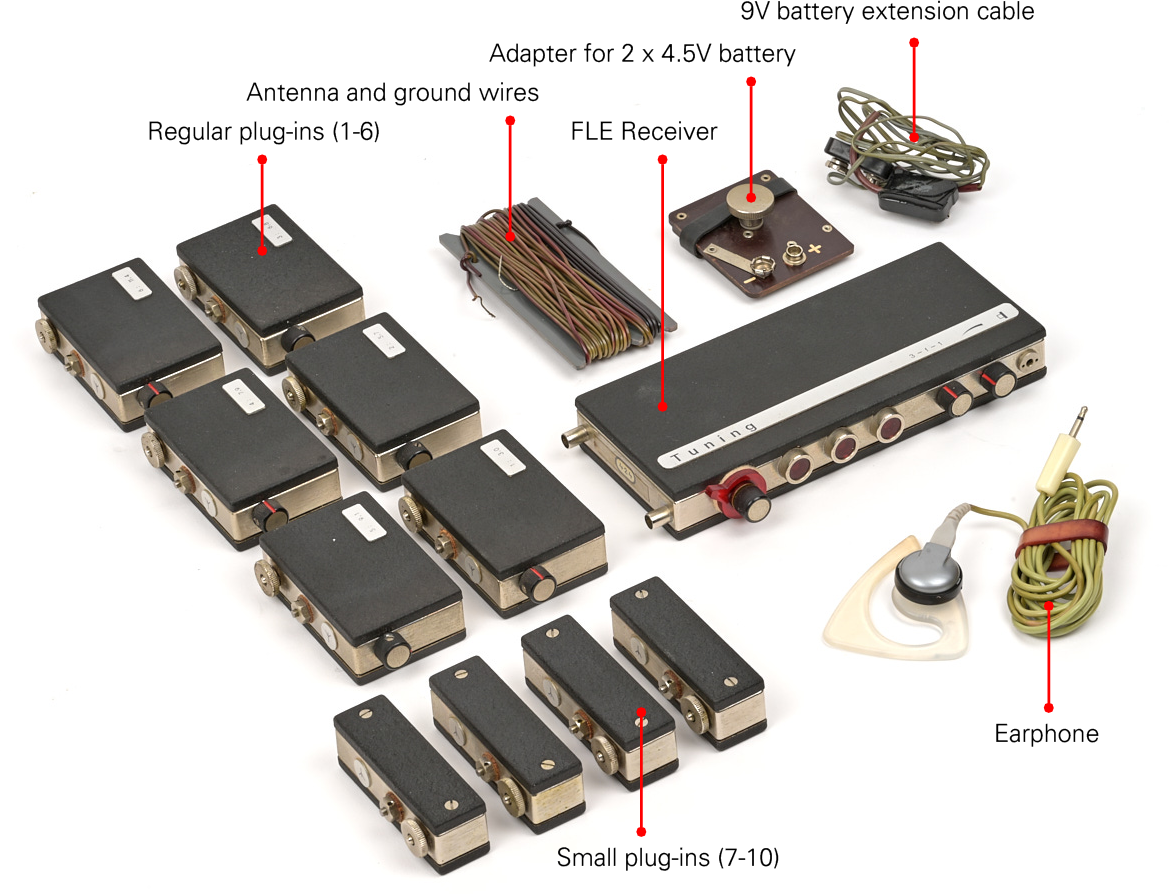

Parts
Foam container for storage
Bare receiver
Plug-ins 1-6
Plug-ins 7-10
Dynamic earpiece
Antenna and ground wires
Battery extension cable
Adapter for 2 x 4.5V flat battery
Storage container

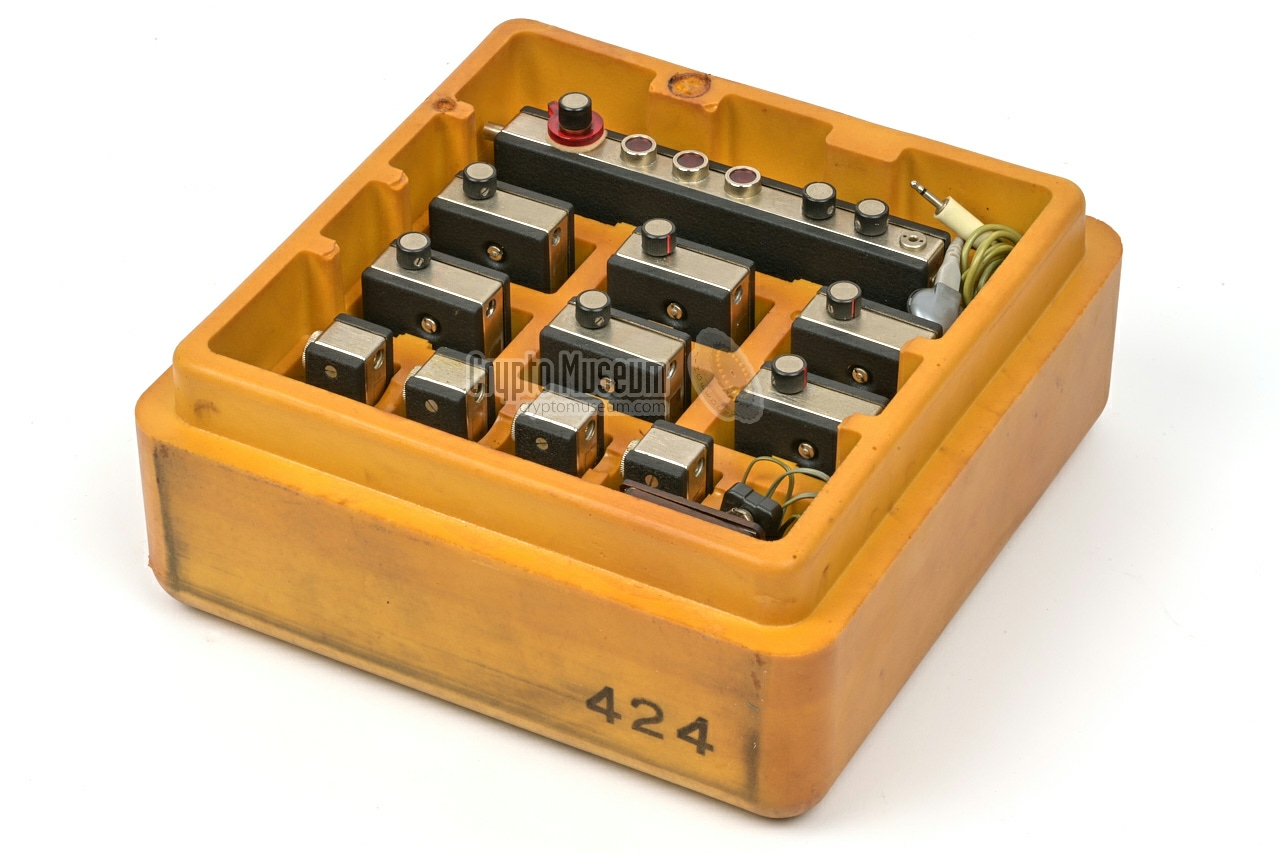

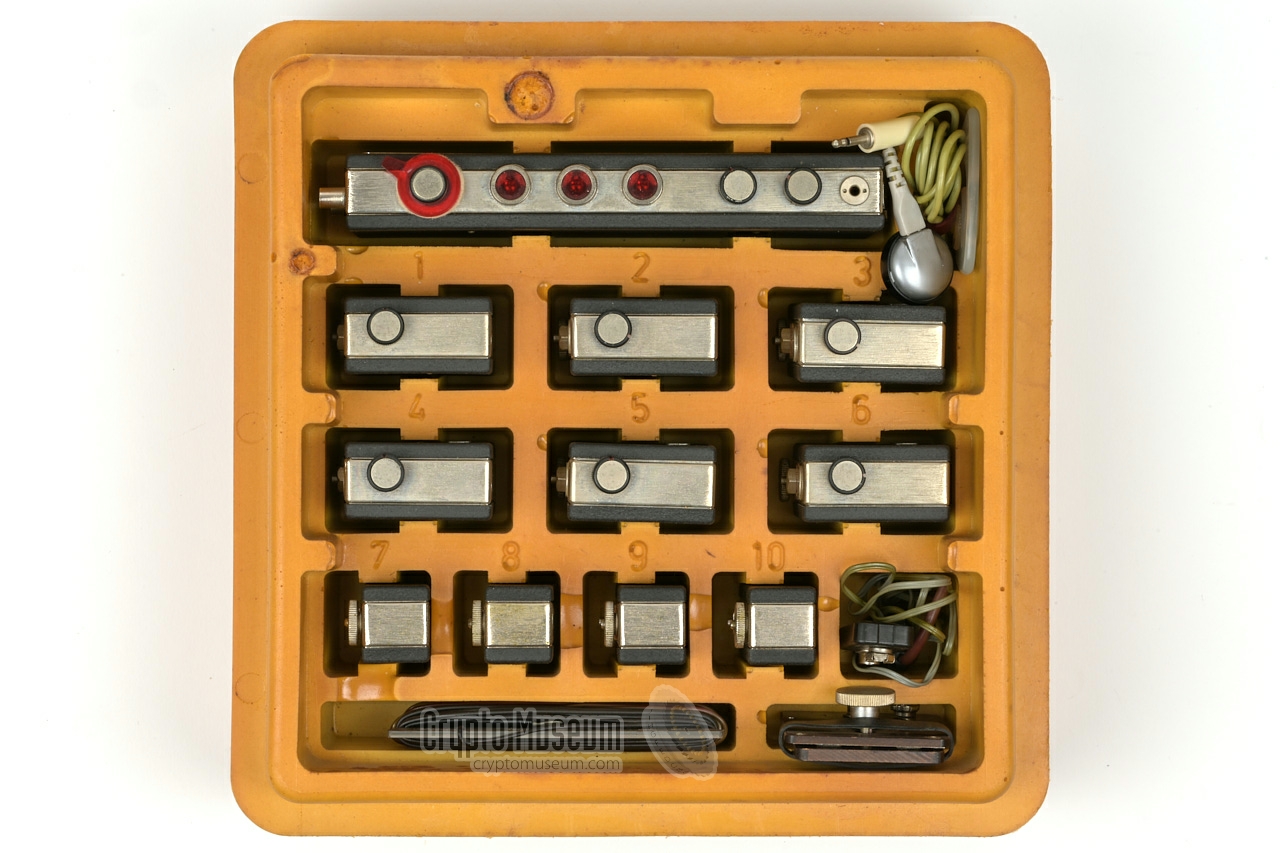

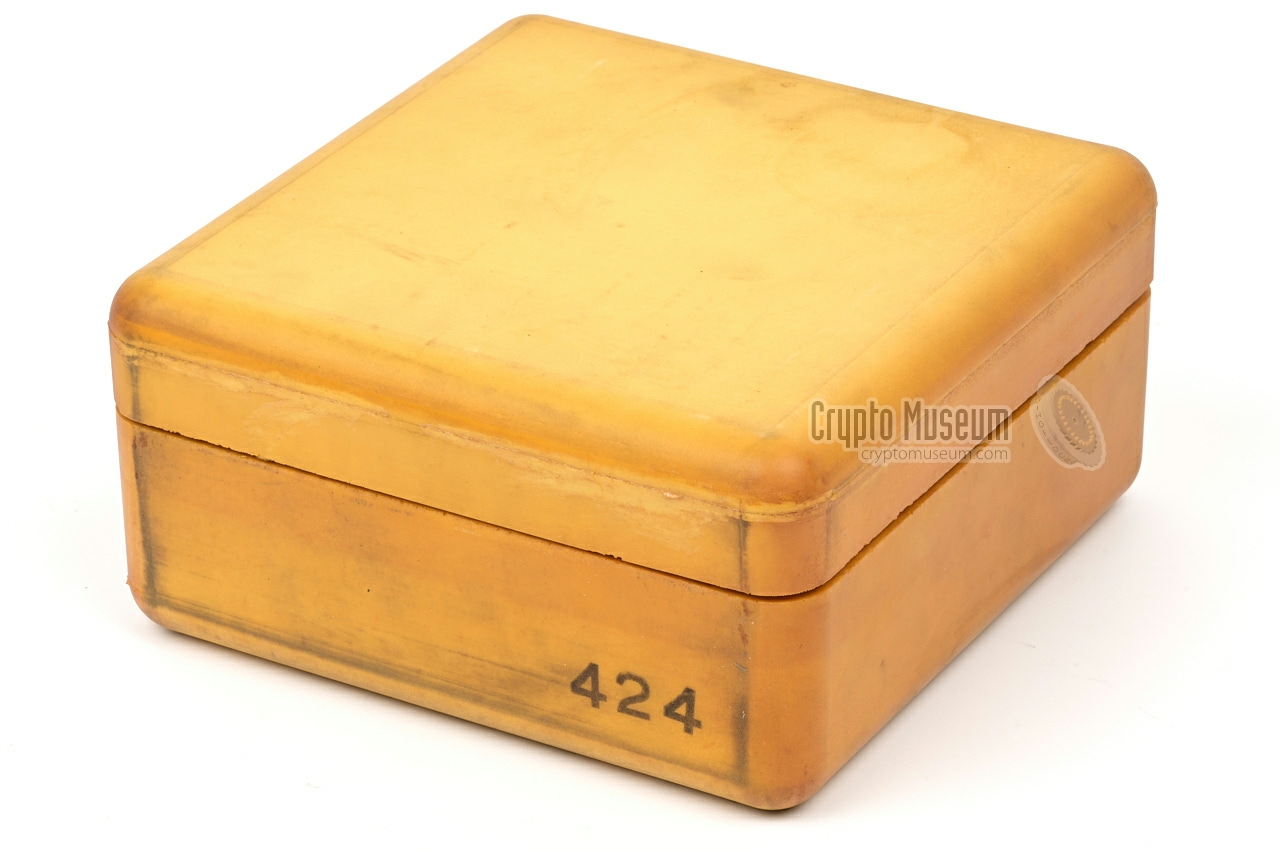

When the receiver was supplied for stand-alone use, it came in a yellow rubber-like foam con­tainer that measures 107 × 215 × 215 mm. In this container, each part has its own dedicated space. The compartments for the 10 plug-in units are numbered (1-10).

The serial number of the receiver is printed on the outside of the container.

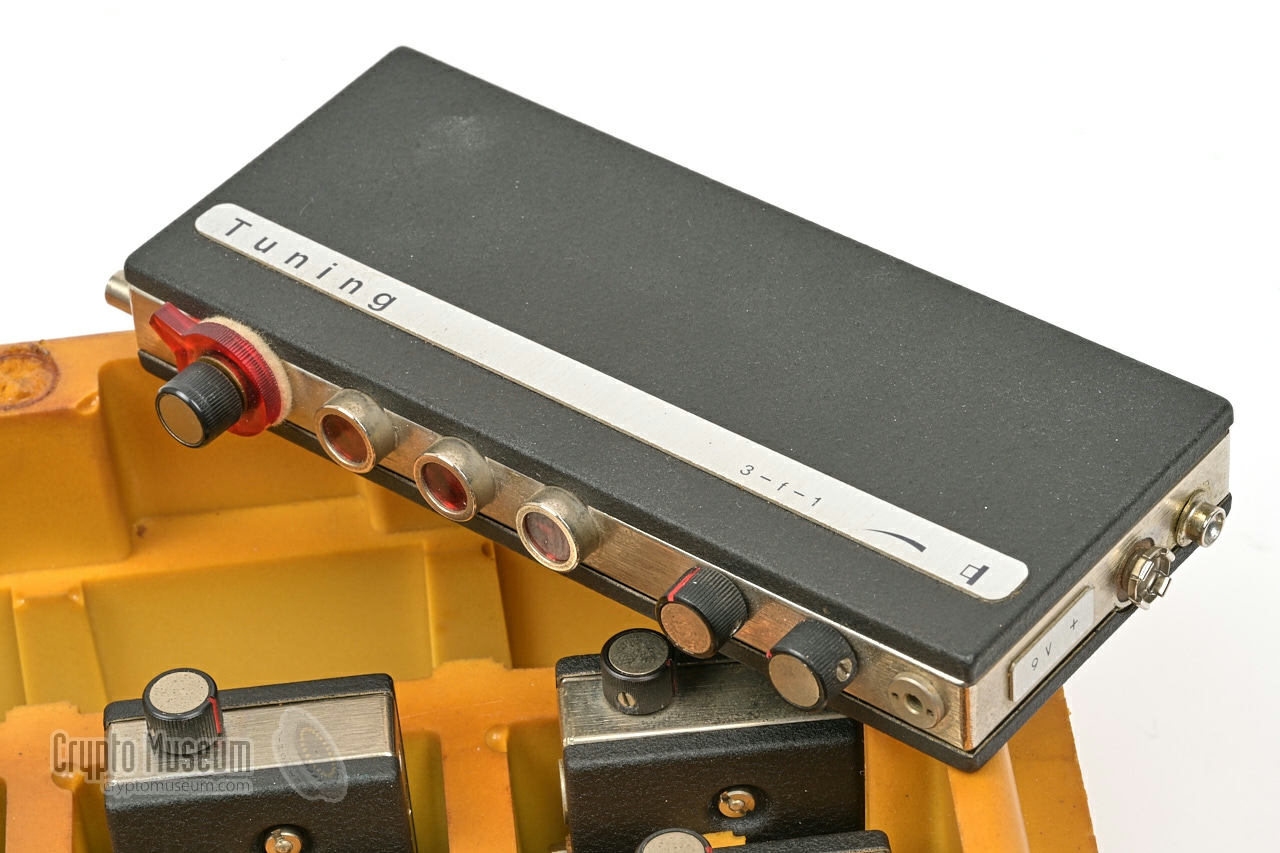

Bare receiver
...

Plug-in   1-6

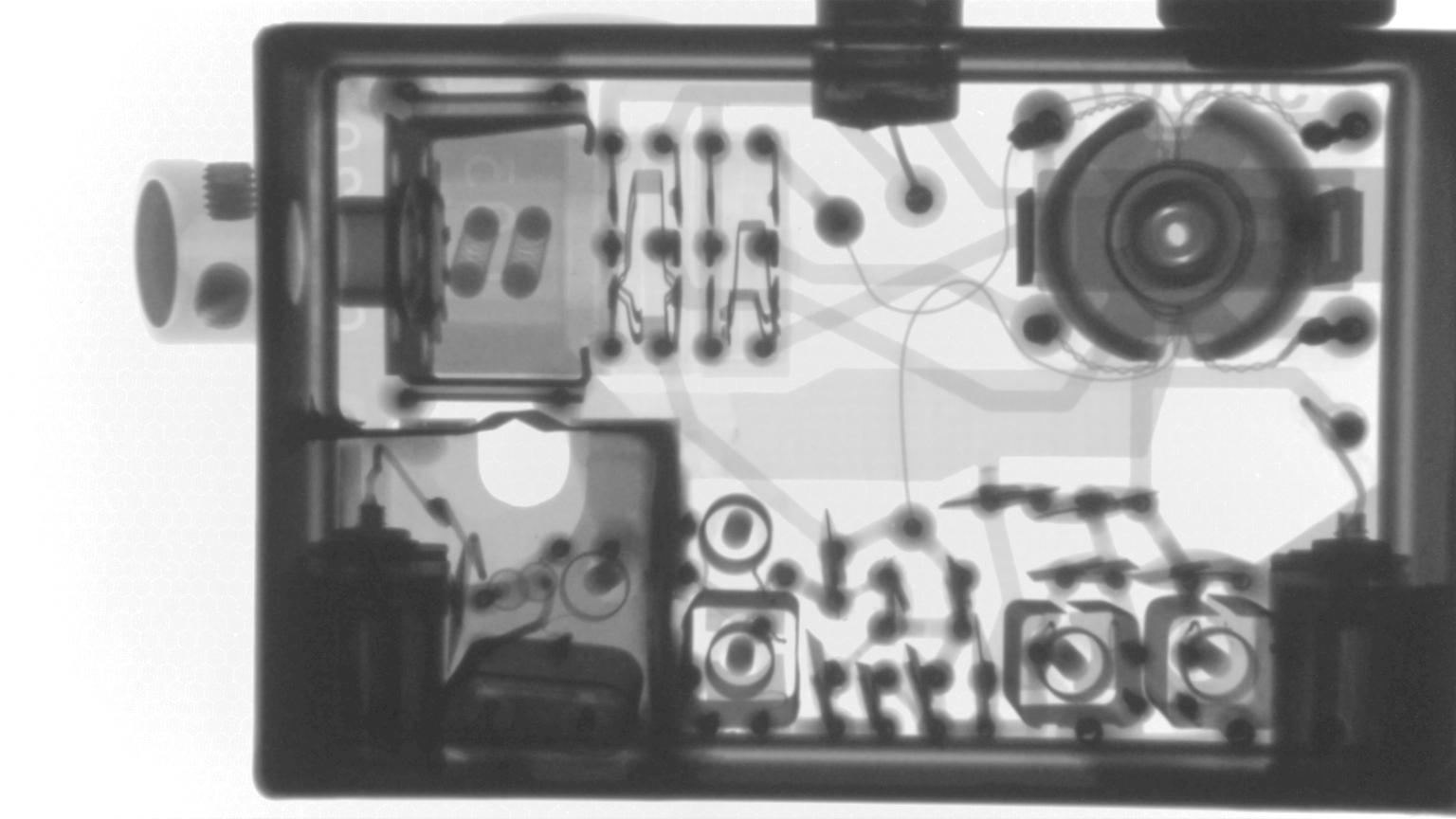

The first six plugs-ins (1-6) measure 20 × 45 × 67 mm and cover the frequency range 3-12.4 MHz. These are the large plug-ins. Note each plug-ins convers a 1 MHz range only, which means there are gaps between the plug-ins.

When the FLE receiver was used with the WSA-1 spy radio station, these were the only six plug-ins that were supplied.

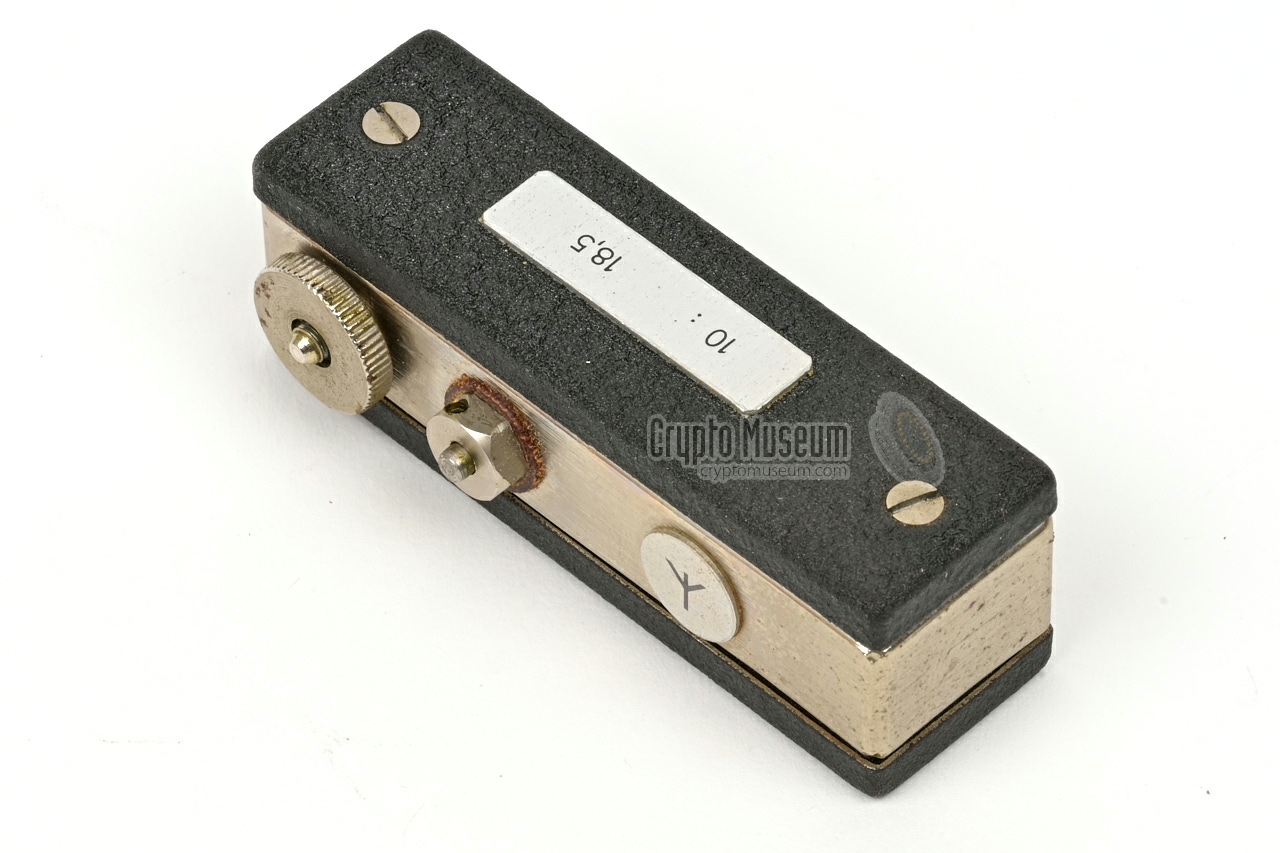

Plug-in   7-10
The higher frequency plugs-ins measure just 20 × 24 × 60 mm and cover the frequency range 13-19.5 MHz. Like with the large plug-ins, each plug-in covers just 1 MHz, which means tat the frequency coverage is not continuous.

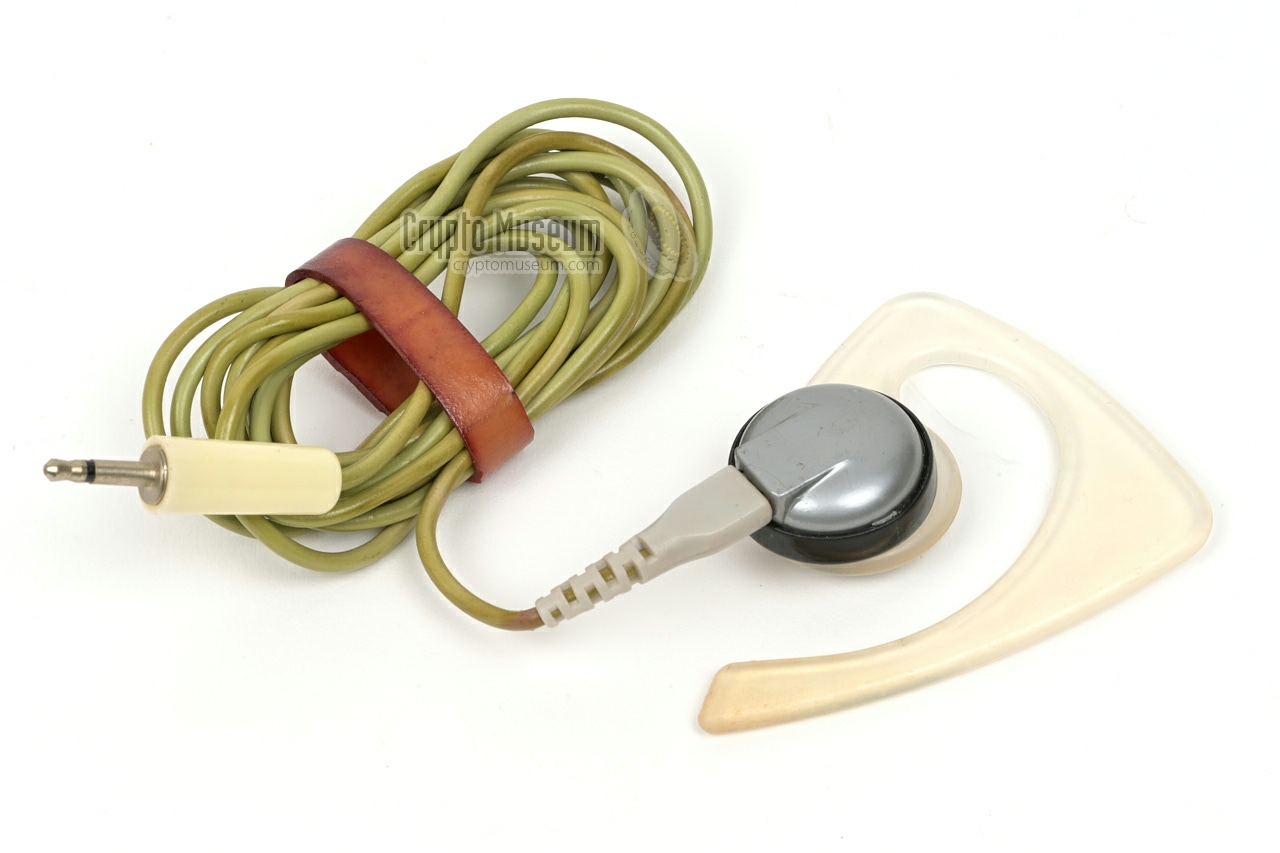

Earphone
The FLE receiver was supplied with a standard dynamic earphone, which terminates in a 2.5 mm jack plug. The earpiece must be connected to the 2.5 mm jack socket at the right end of the front panel of the receiver.

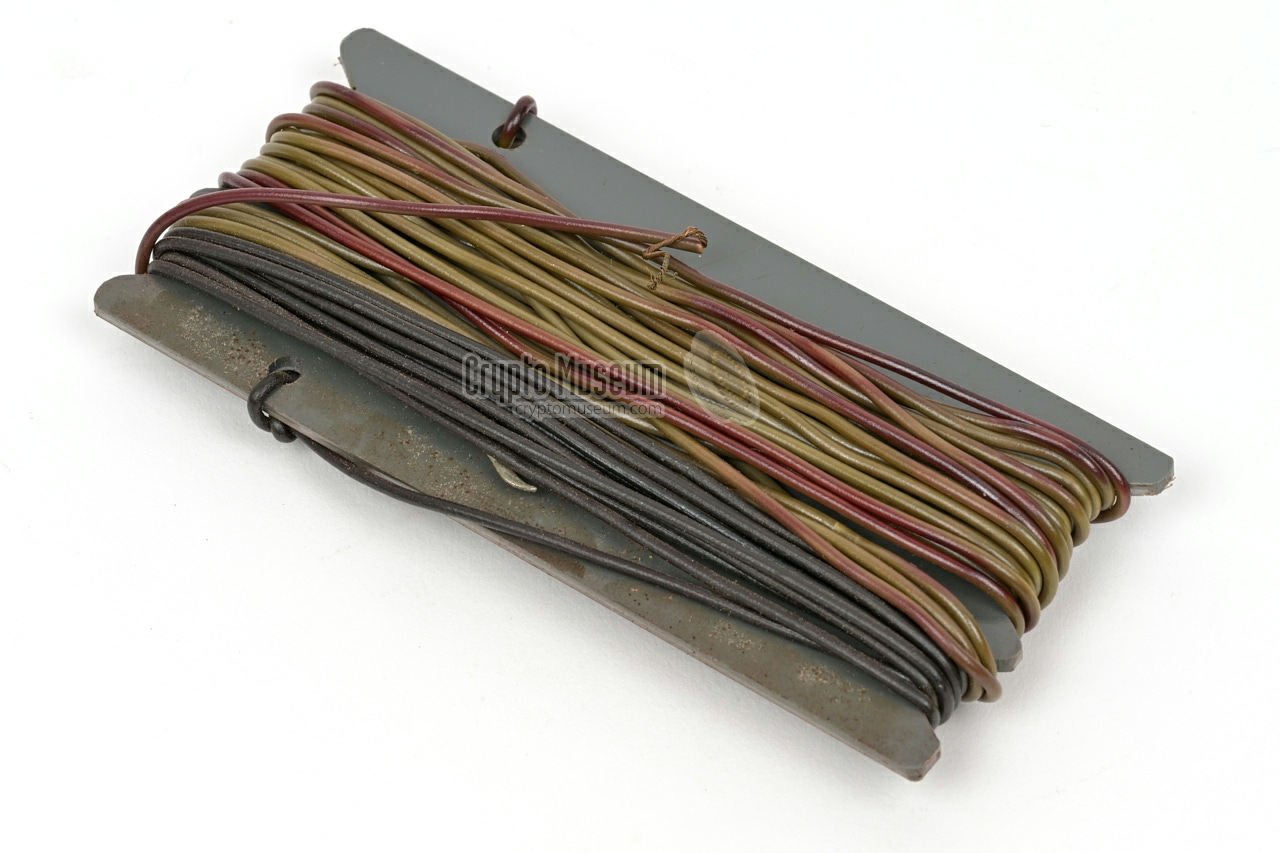

Antenna
Two short pieces of wire were supplied on a plastic carrier. the long part should be used as the antenna, and must be connected to the antenna terminal of the plug-in.

The short wire can be used to connect the ground terminal of the plug-in to ground.


Battery cable

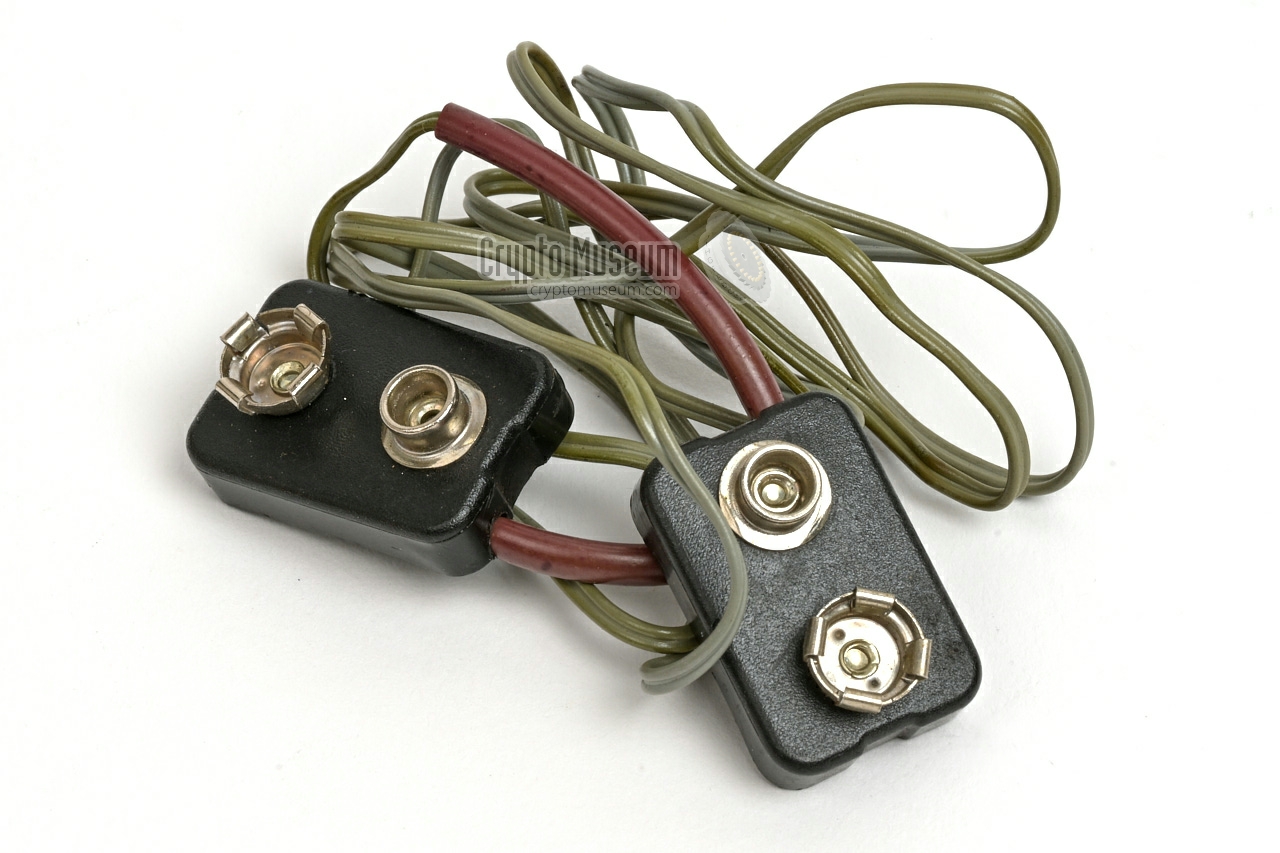

A battery extension cable was supplied for use of the receiver with detached battery. This is particularly usefull when powering the receiver from two 4.5V flat-pack batteries.

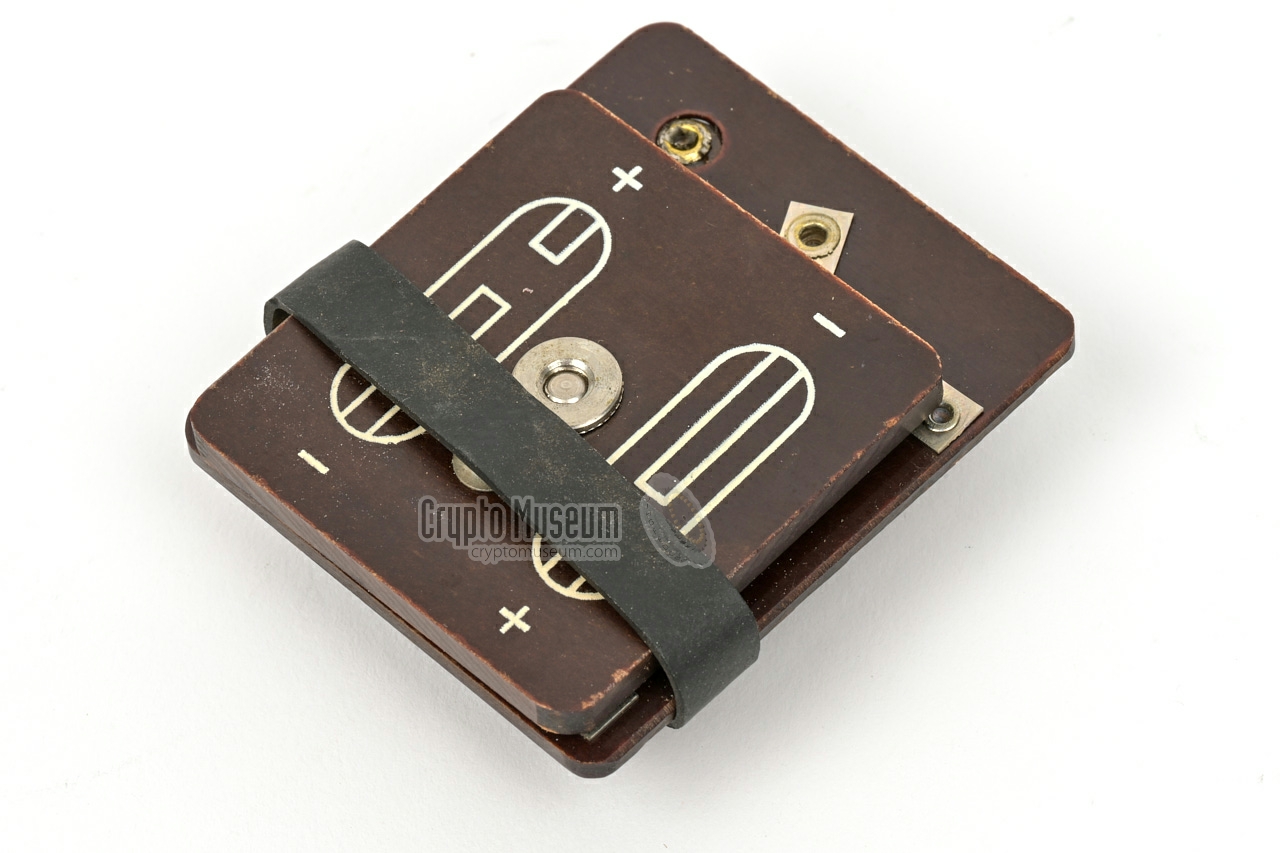

Battery adapter

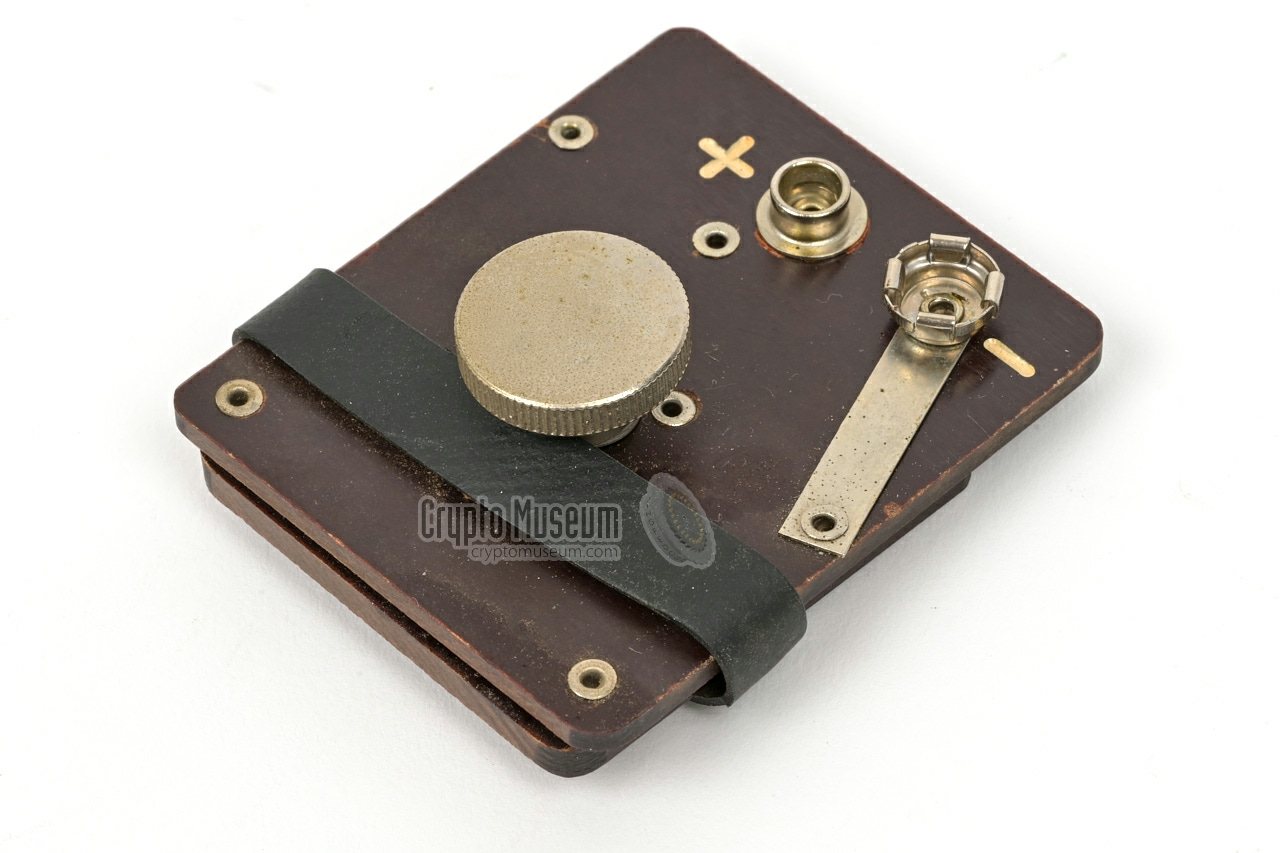

By default, the receiver is powered by a standard 9V black battery. As an alternative, it is also possible to power it from two standard 4.5V flat-pack batteries. In that case, the adapter shown in the image on the right must be used to connect the batteries.

When using the adapter, the battery extension cable (above) should be used to connect it to the receiver.


Foam container

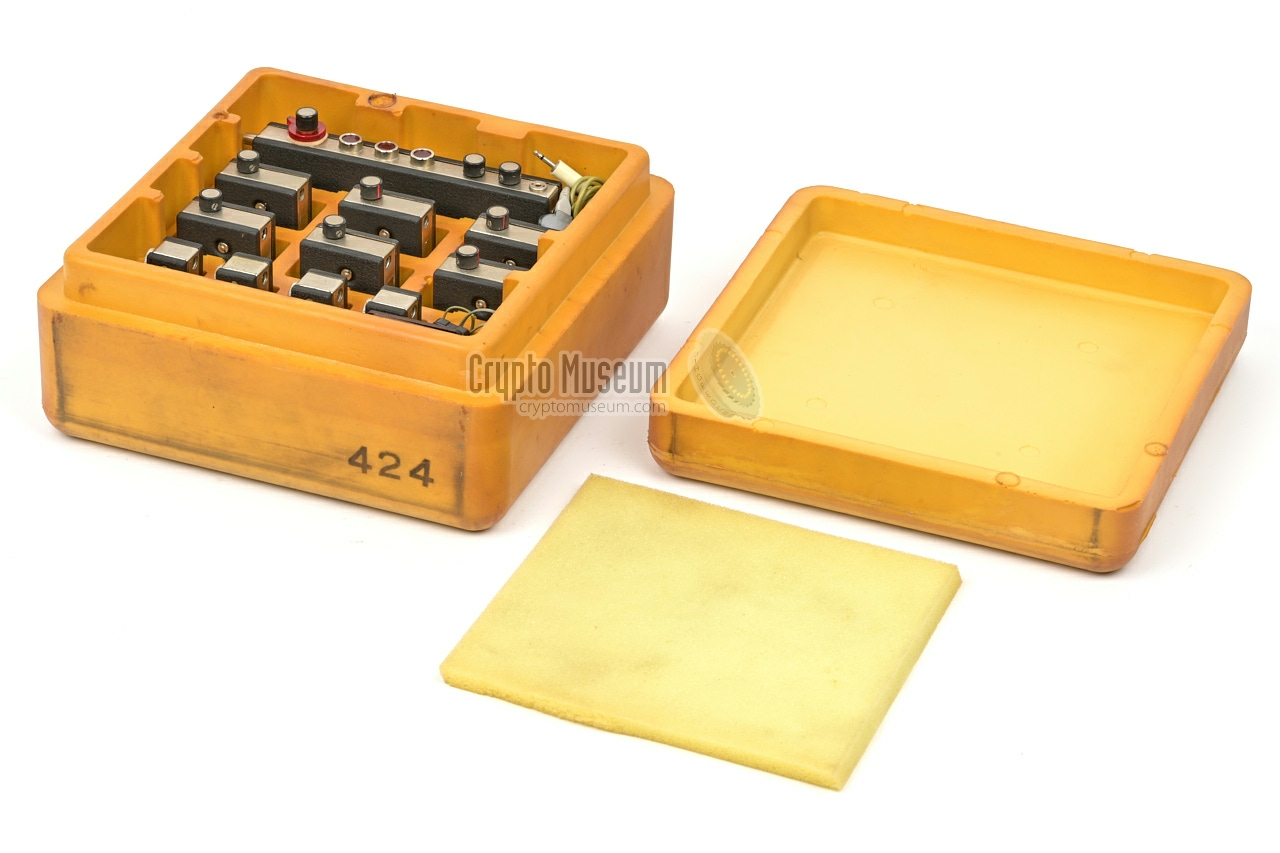

Foam container - open
Contents of the foam container
Top view of the contents of the container
Bare receiver
All parts
FLE receiver

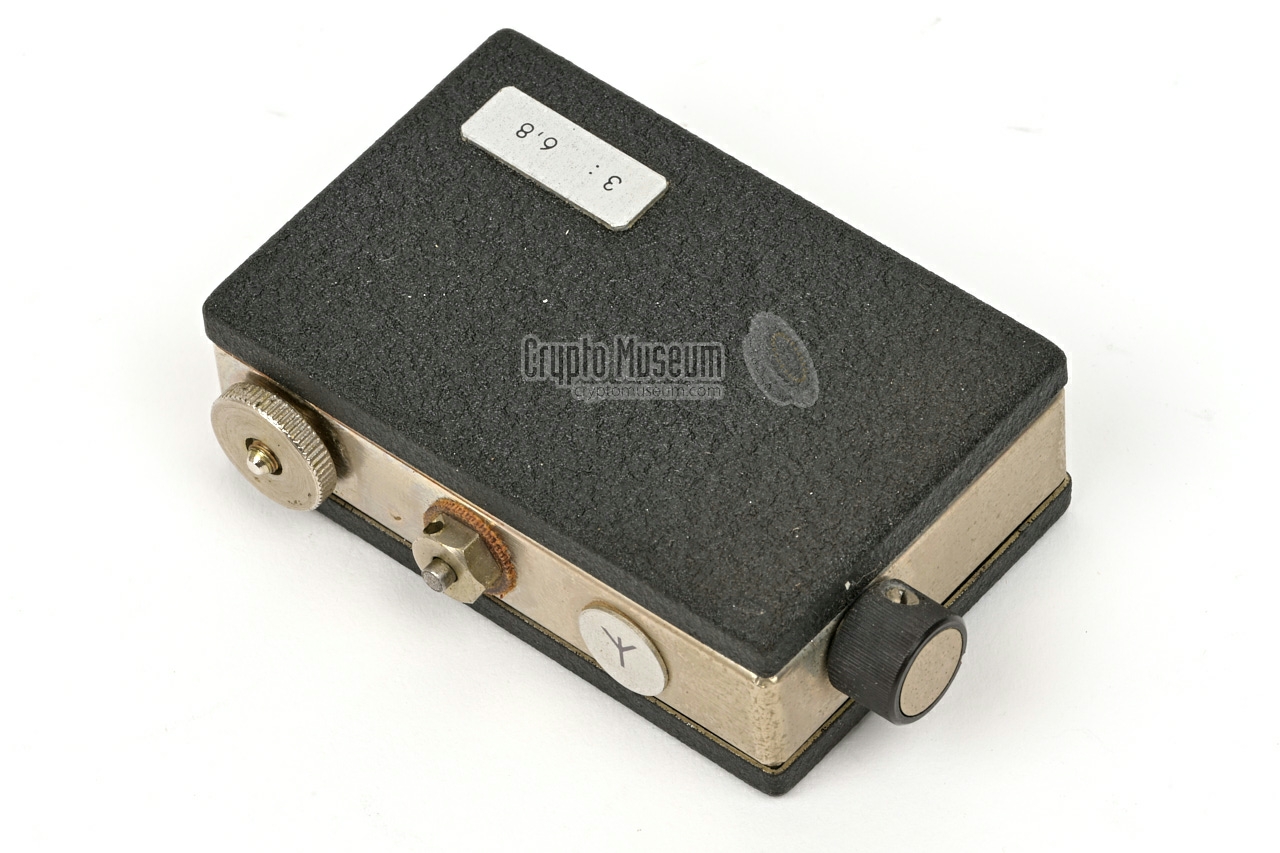

Regular plug-in

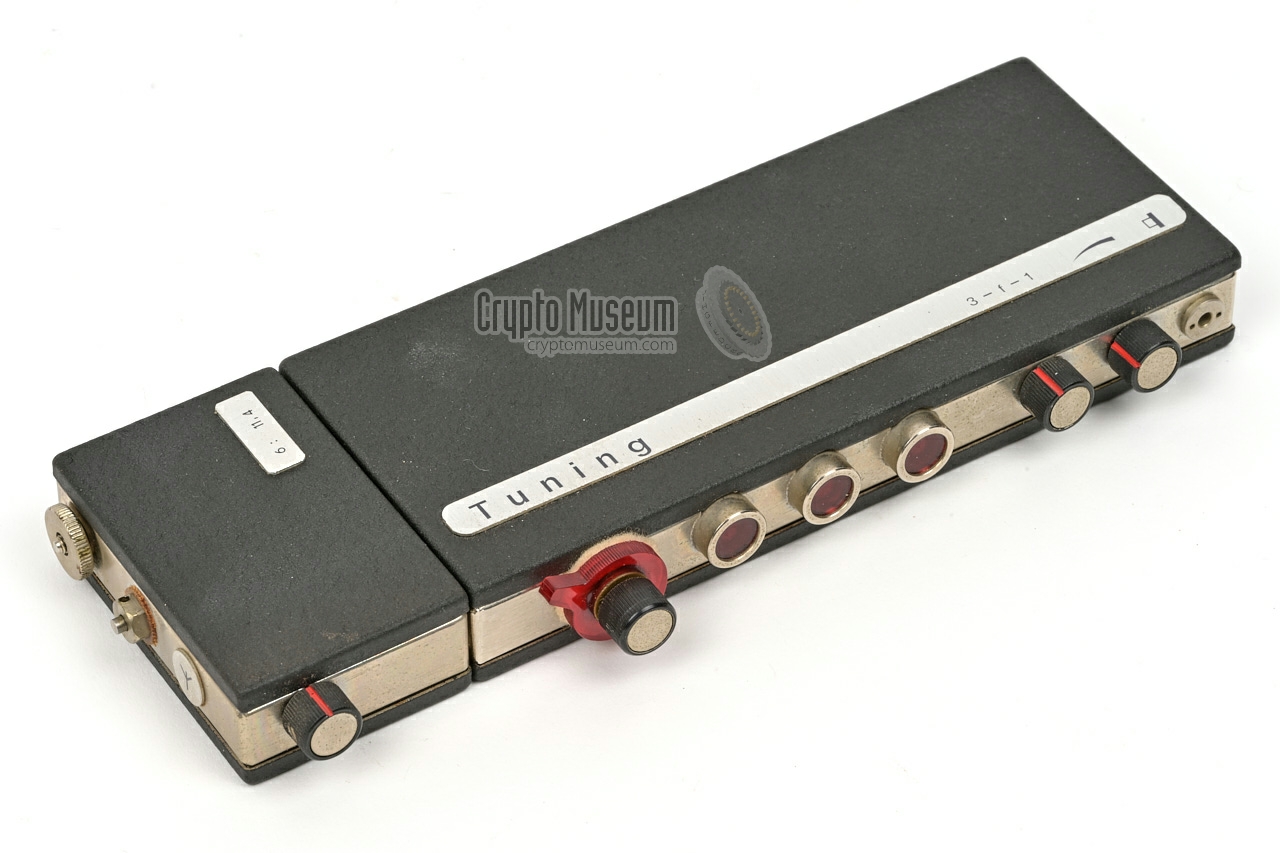

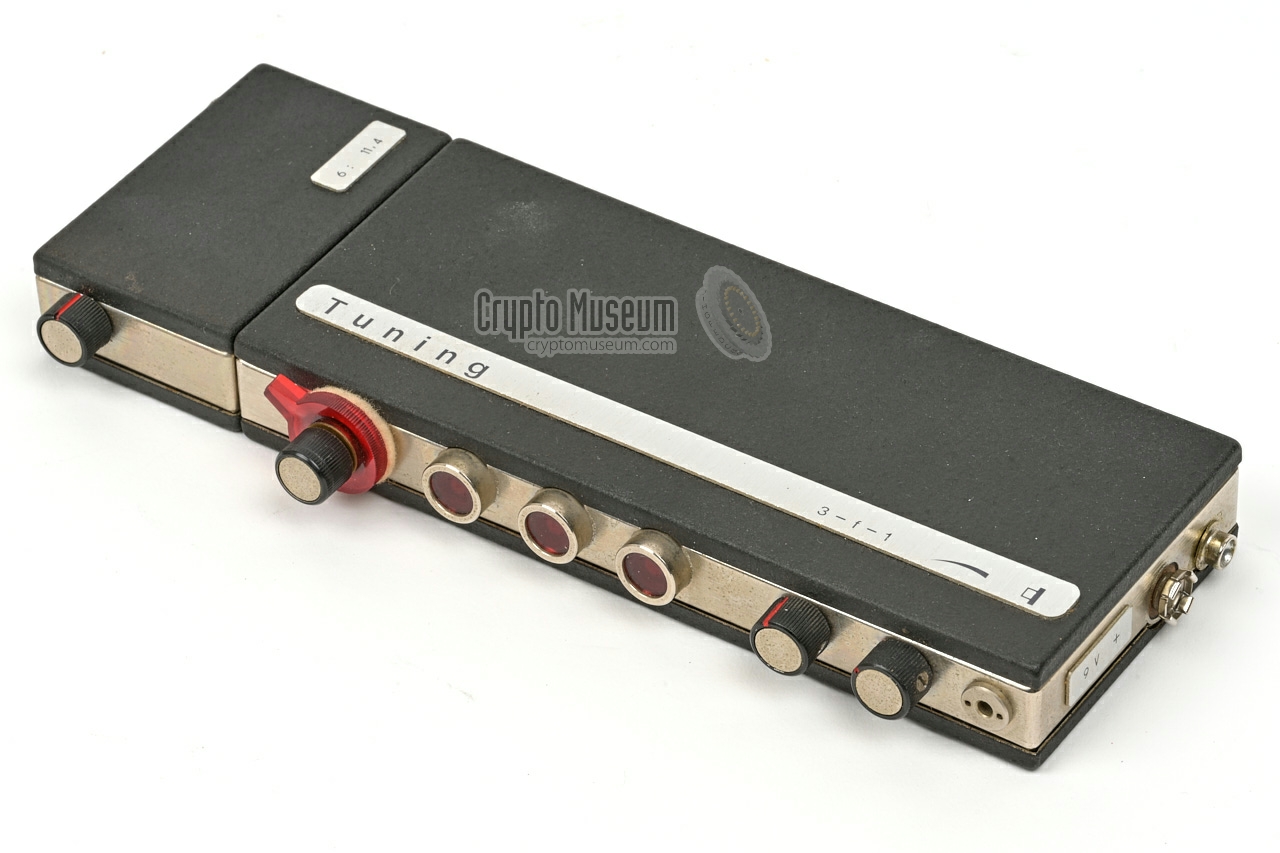

FLE receiver with plug-in installed
FLE receiver with plug-in installed

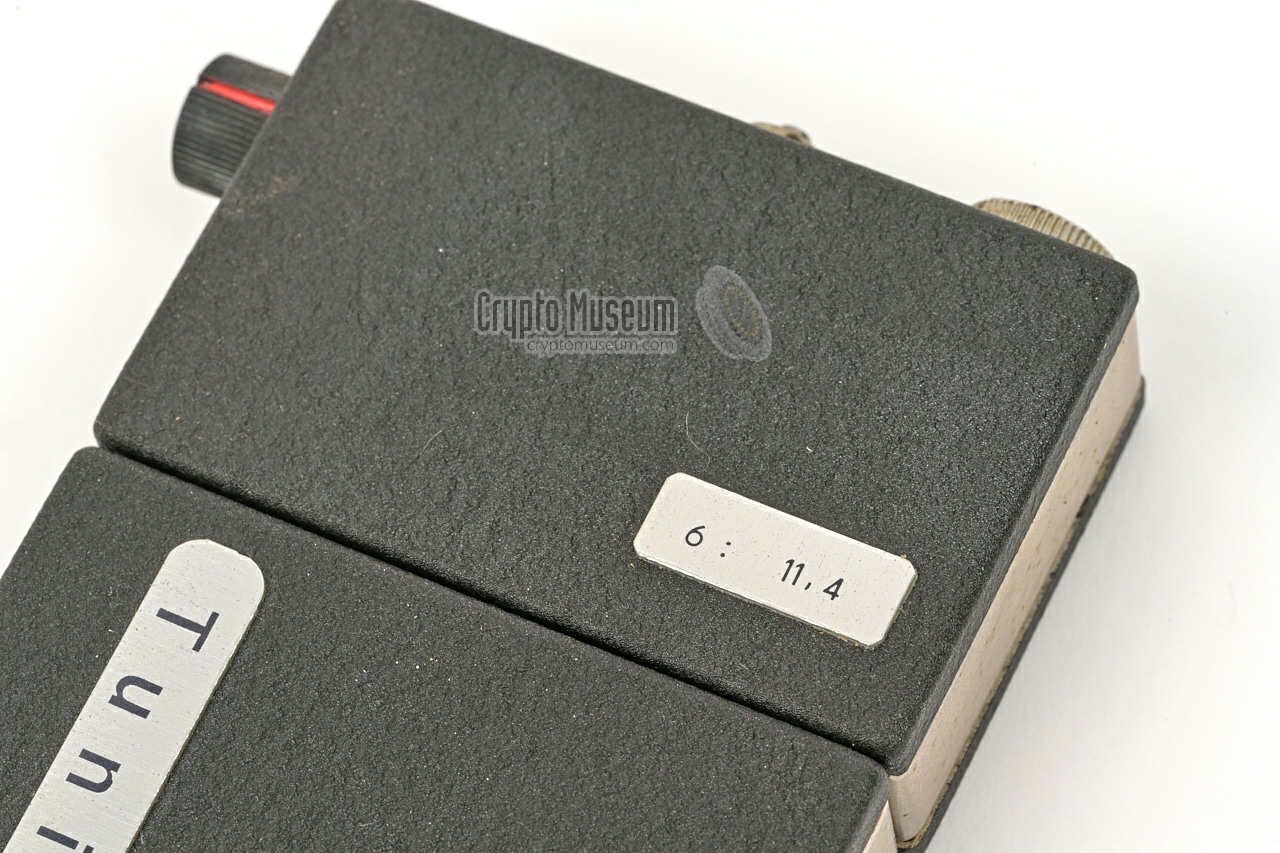

Plug=in attached to the left end of the receiver

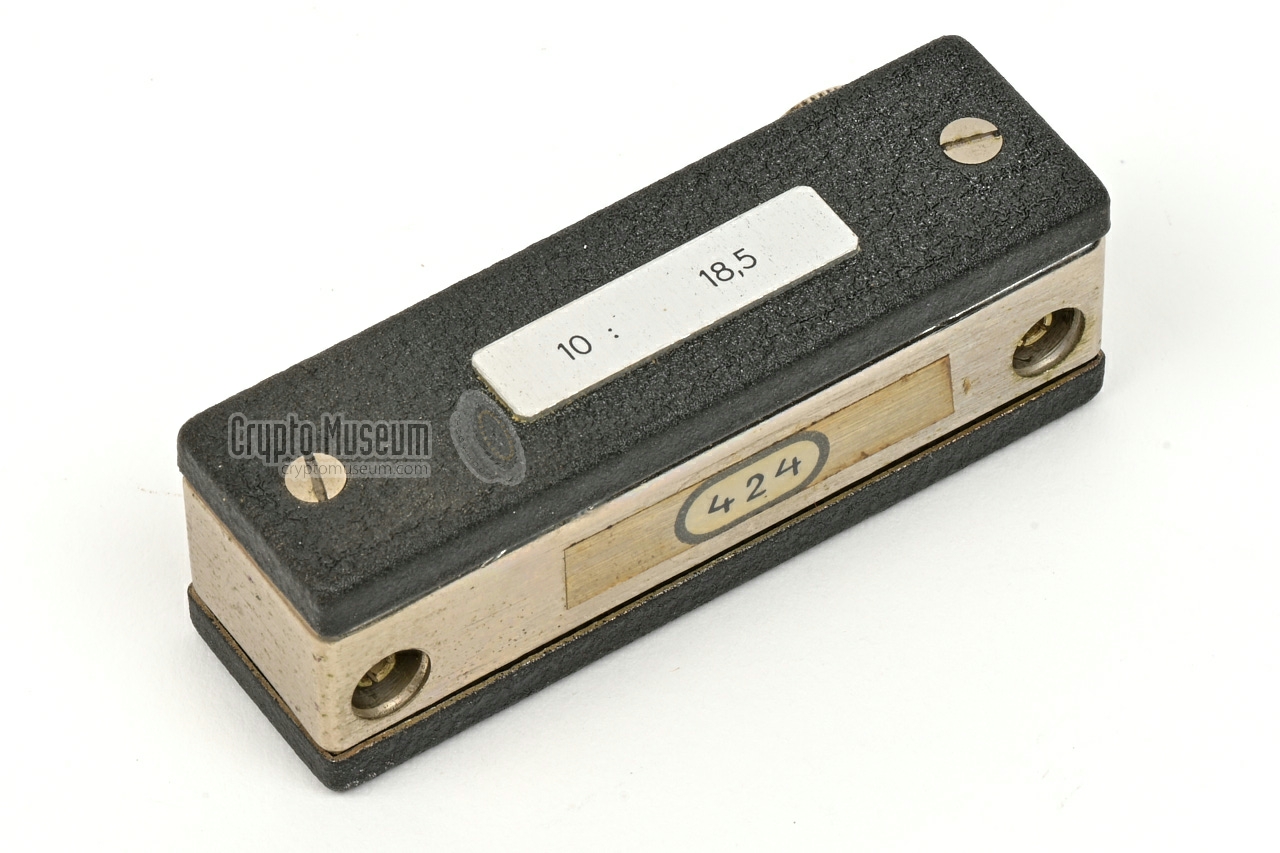

Small plug-in
Small plug-in

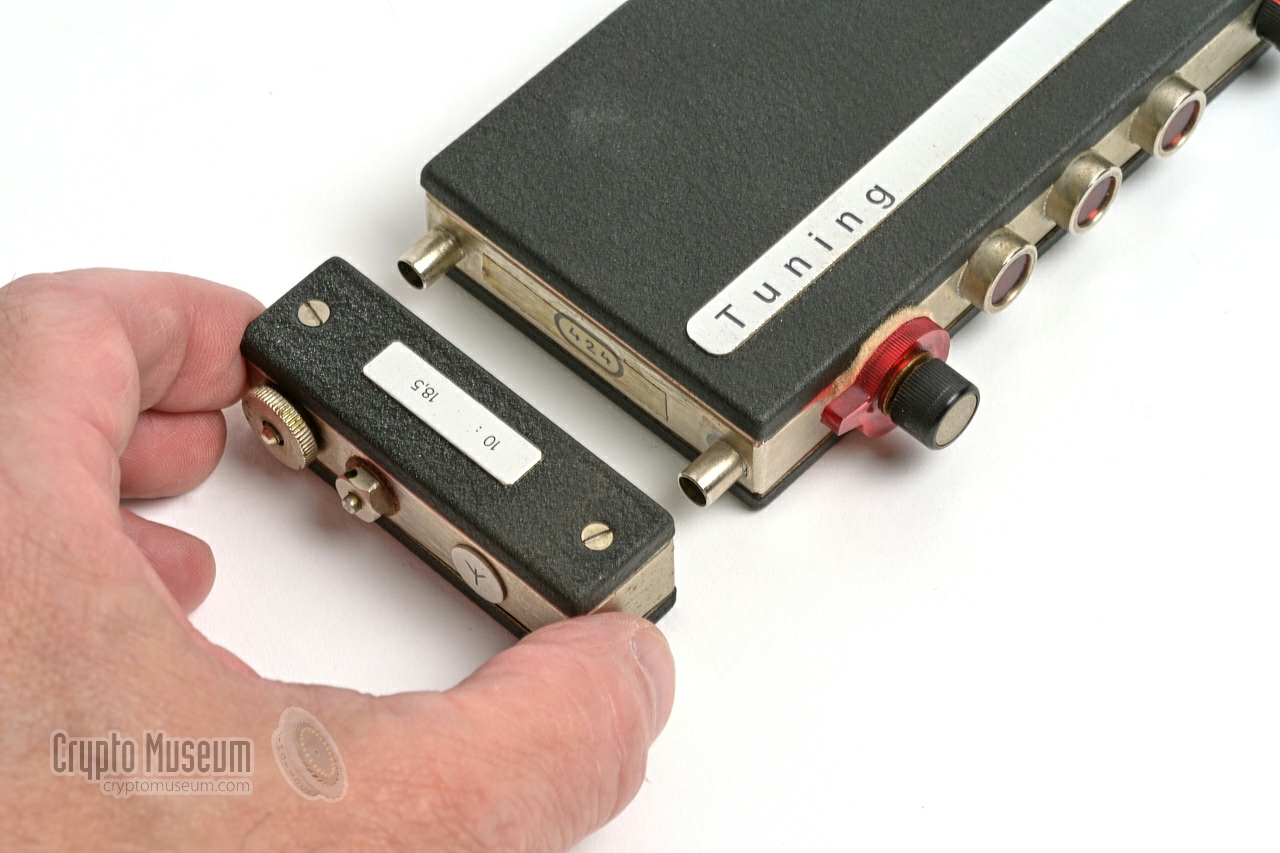

Connecting a small plug-in

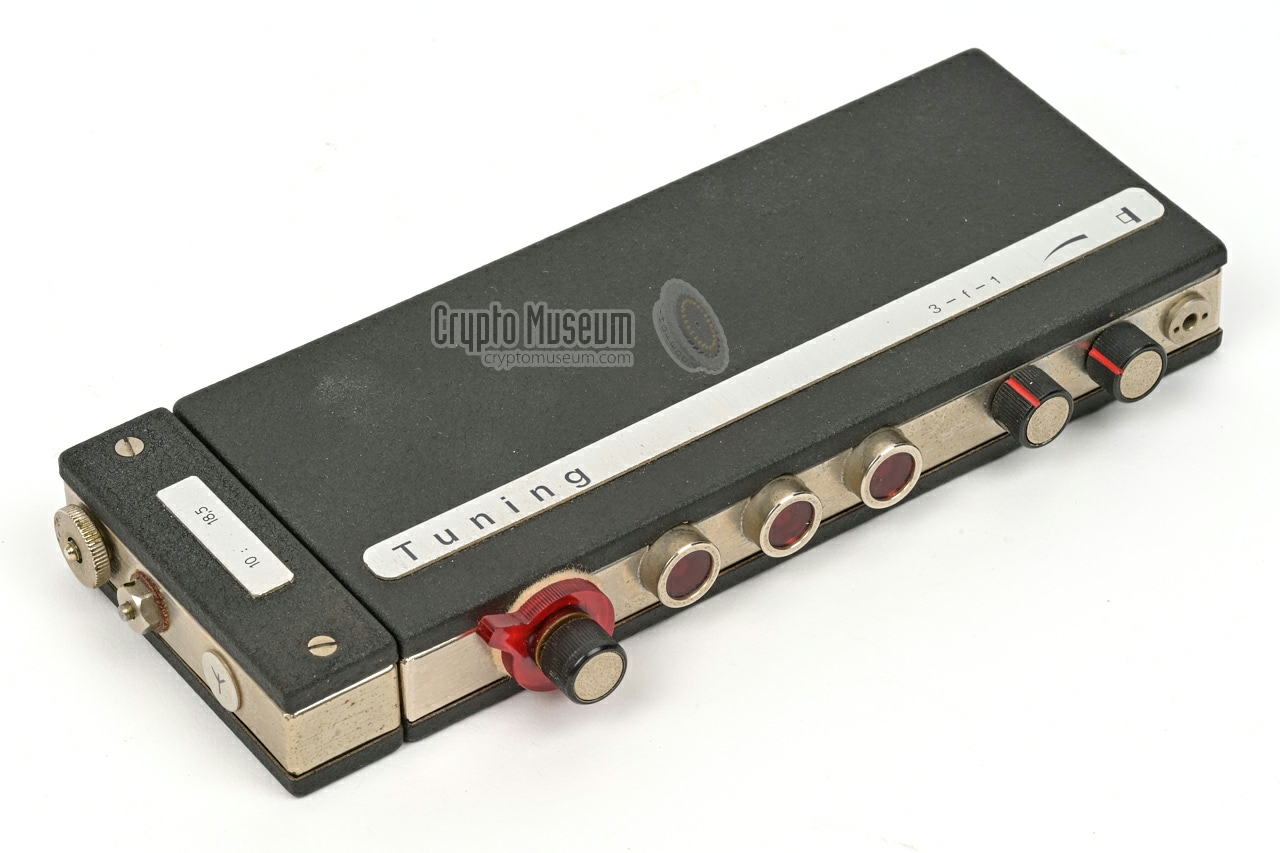

FLE receiver with small plug-in

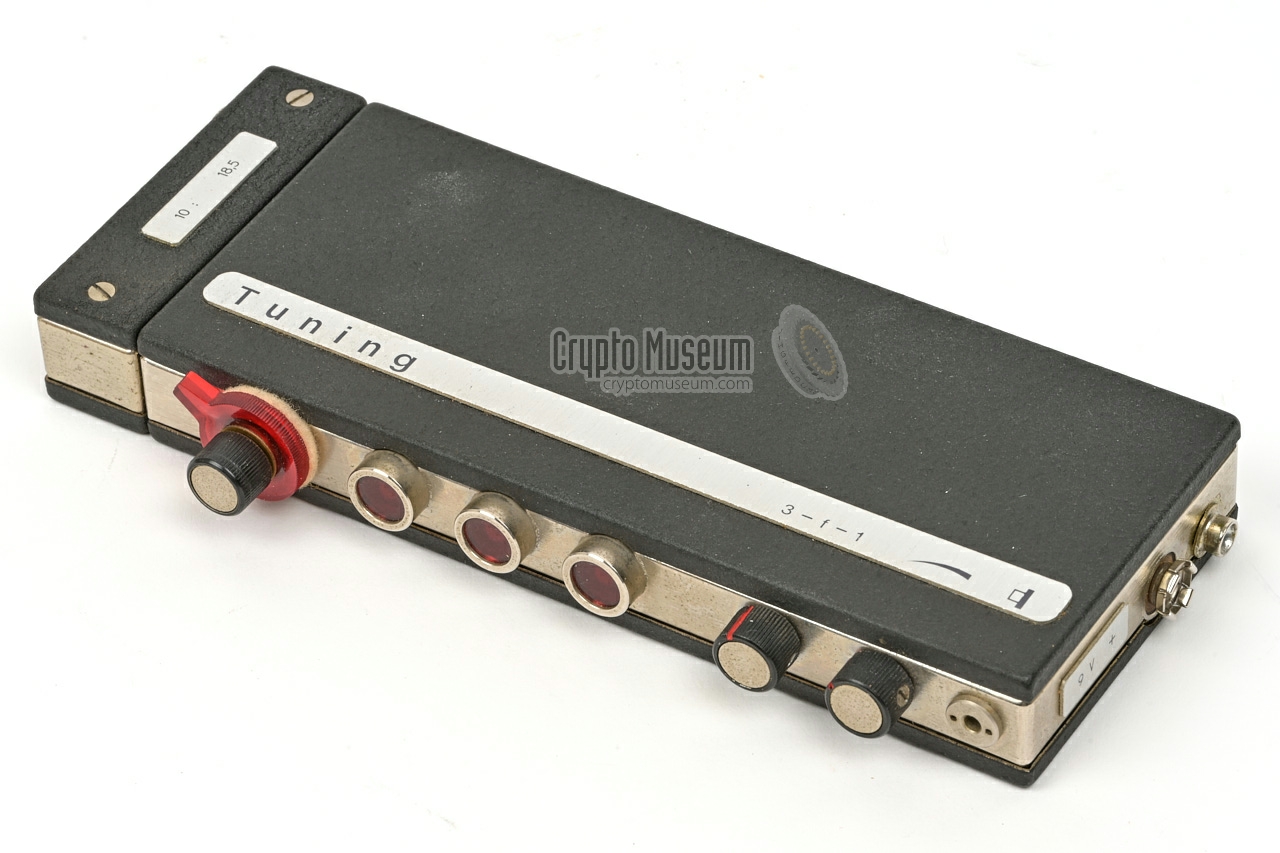

FLE receiver with small plug-in

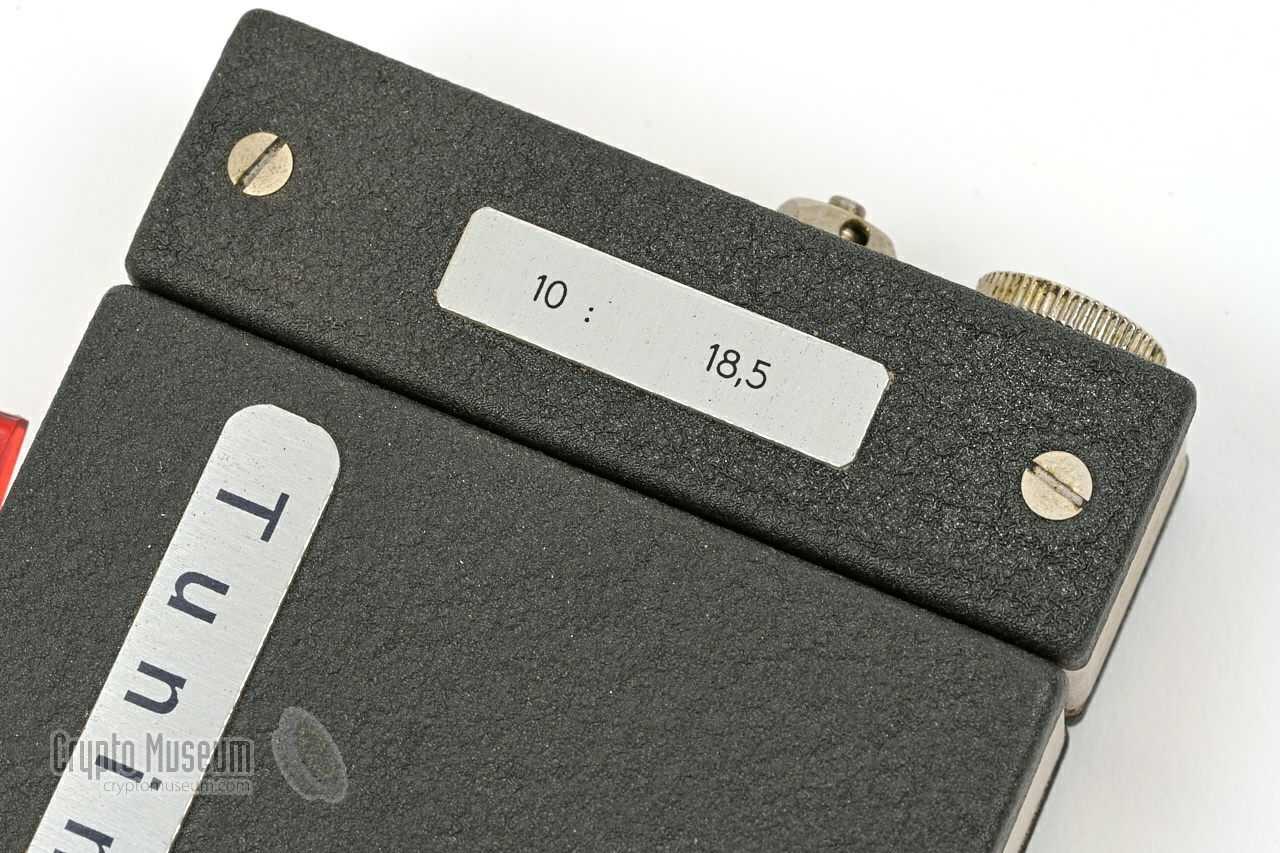

Small plug-in attached to the left end of the receiver
Earphone
FLE Receiver with plug-in, earphone and battery
Antenna and ground wires
Battery extension cable
Adapter for 2 x 4.5V flat battery
Adapter for 2 x 4.5V flat battery
B
×
B
1 / 23
Foam container
B
2 / 23
Foam container - open
B
3 / 23
Contents of the foam container
B
4 / 23
Top view of the contents of the container
B
5 / 23
Bare receiver
B
6 / 23
All parts
B
7 / 23
FLE receiver
B
8 / 23
Regular plug-in
B
9 / 23
FLE receiver with plug-in installed
B
10 / 23
FLE receiver with plug-in installed
B
11 / 23
Plug=in attached to the left end of the receiver
B
12 / 23
Small plug-in
B
13 / 23
Small plug-in
B
14 / 23
Connecting a small plug-in
B
15 / 23
FLE receiver with small plug-in
B
16 / 23
FLE receiver with small plug-in
B
17 / 23
Small plug-in attached to the left end of the receiver
B
18 / 23
Earphone
B
19 / 23
FLE Receiver with plug-in, earphone and battery
B
20 / 23
Antenna and ground wires
B
21 / 23
Battery extension cable
B
22 / 23
Adapter for 2 x 4.5V flat battery
B
23 / 23
Adapter for 2 x 4.5V flat battery

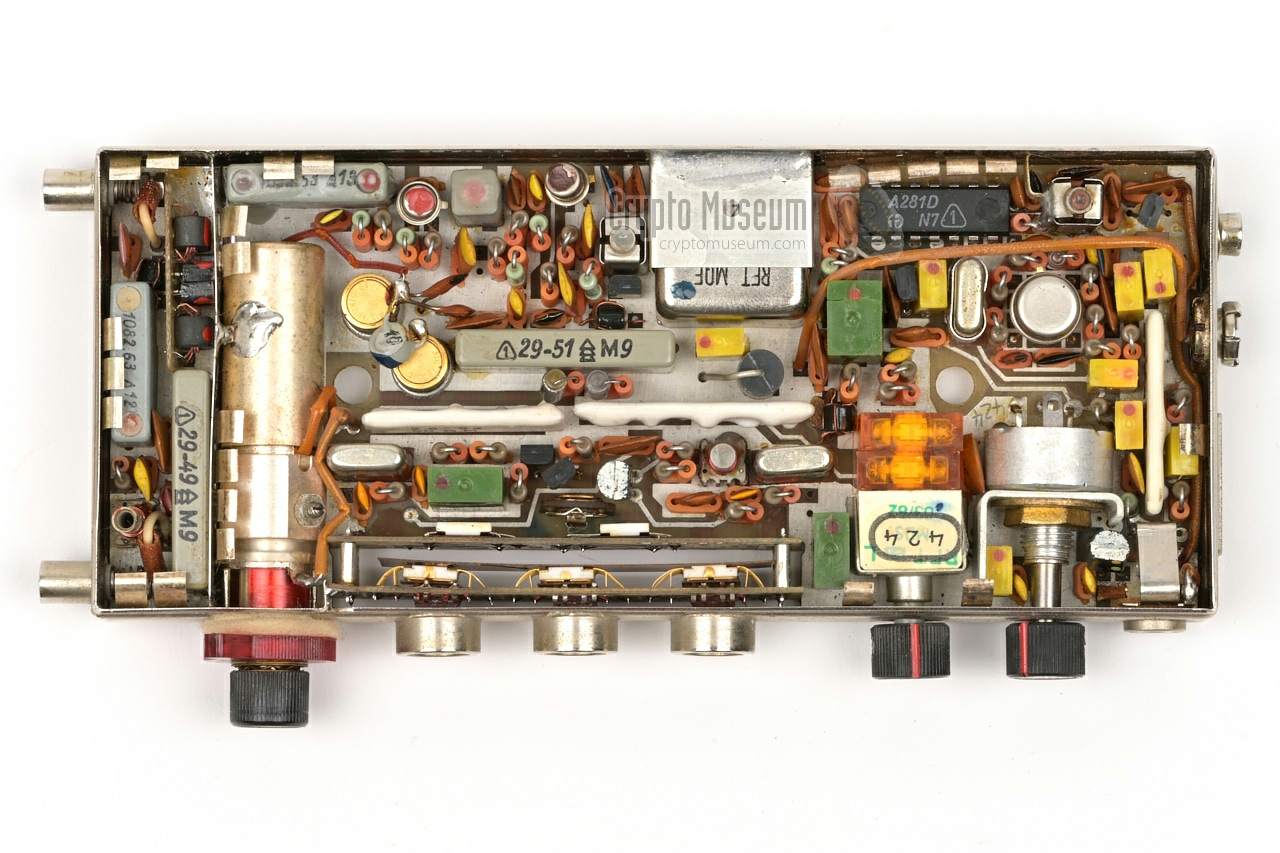

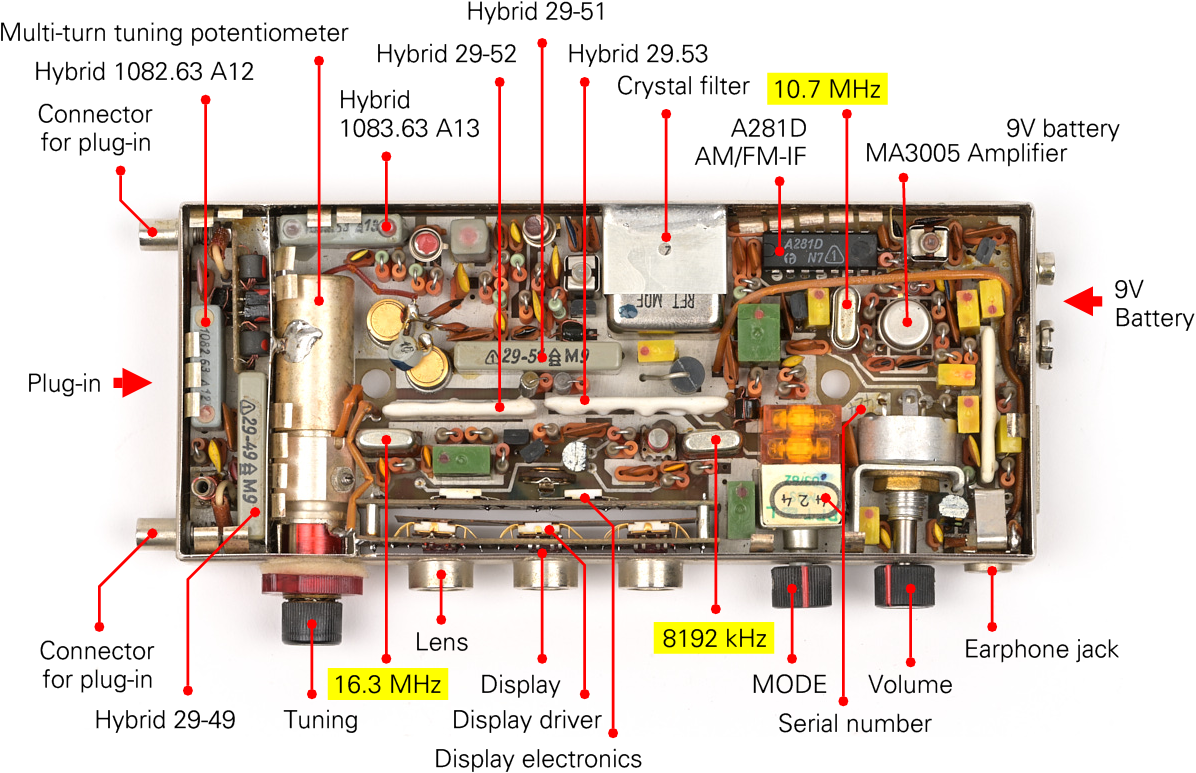

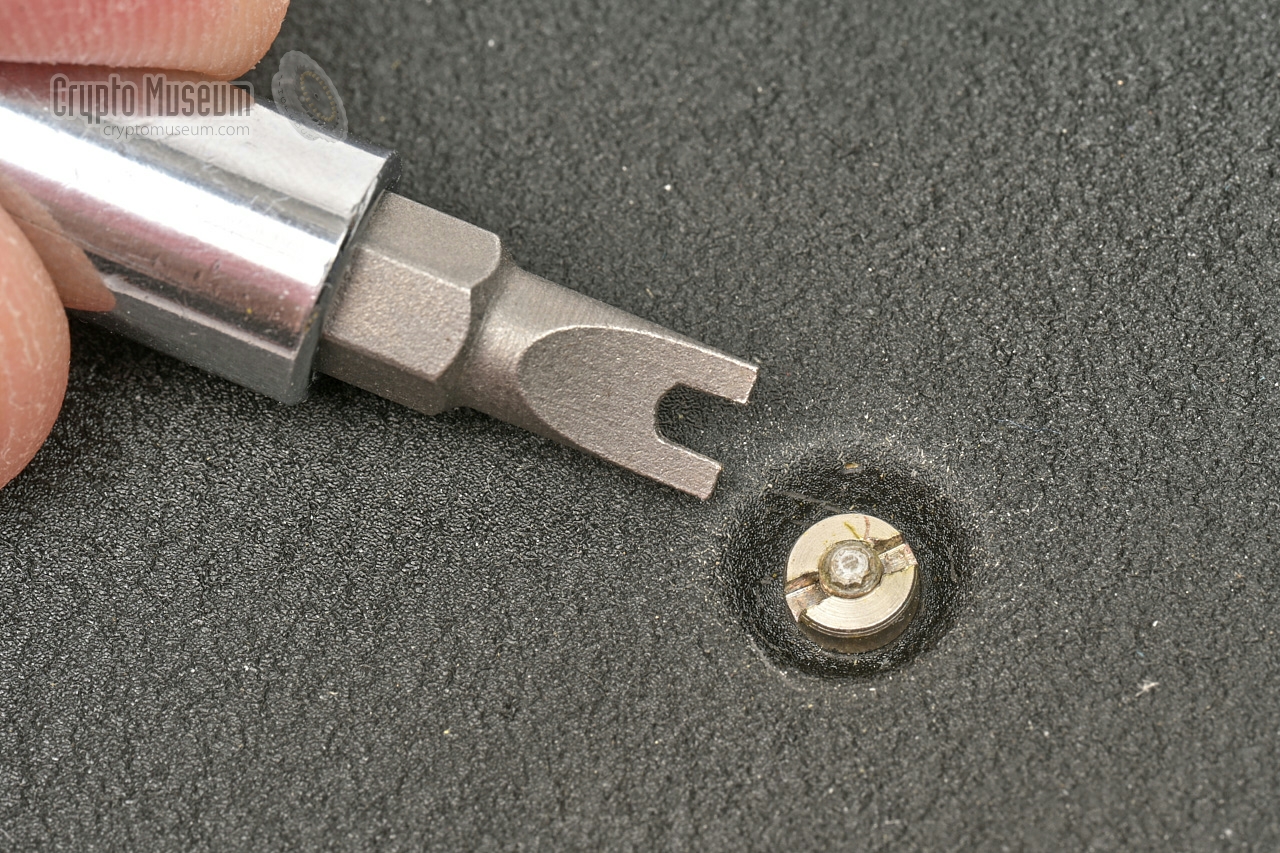

Interior

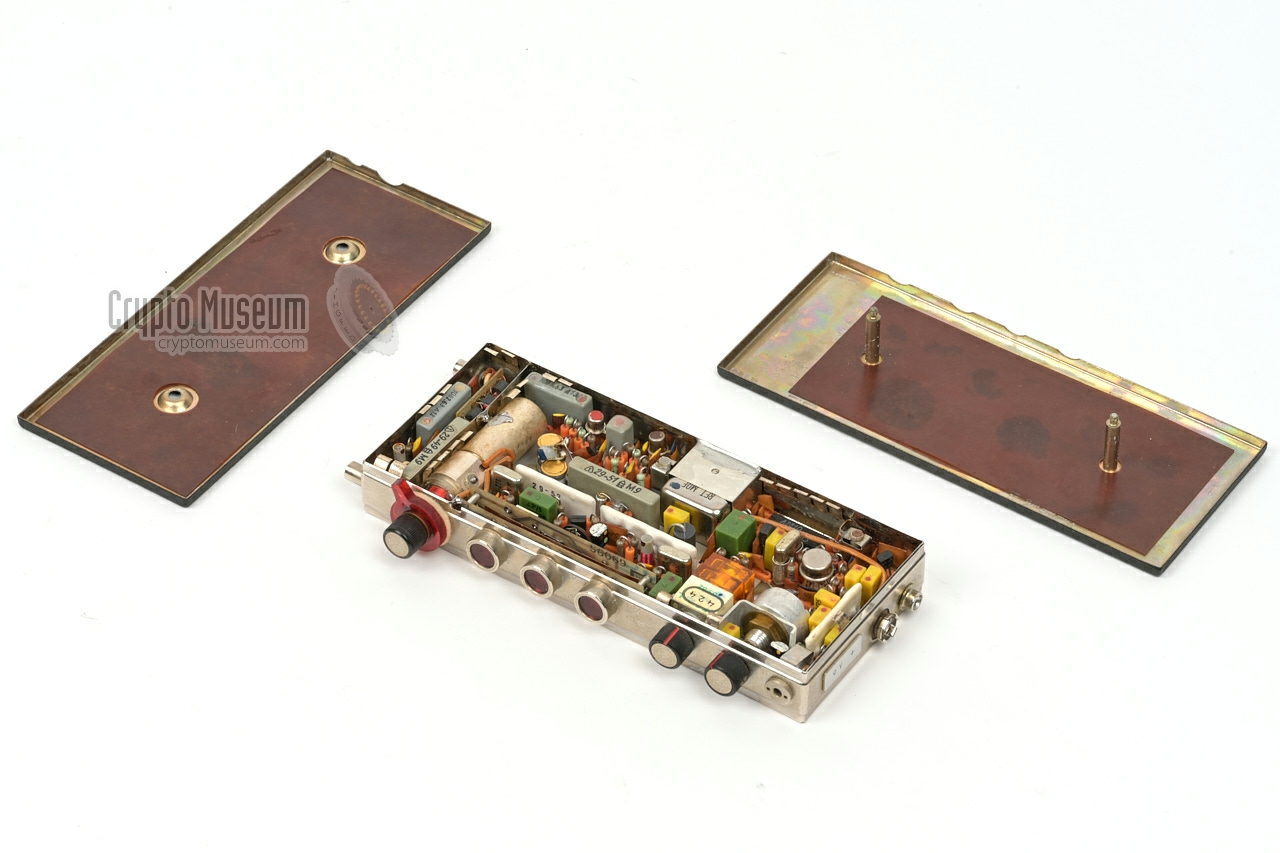

Case shells removed

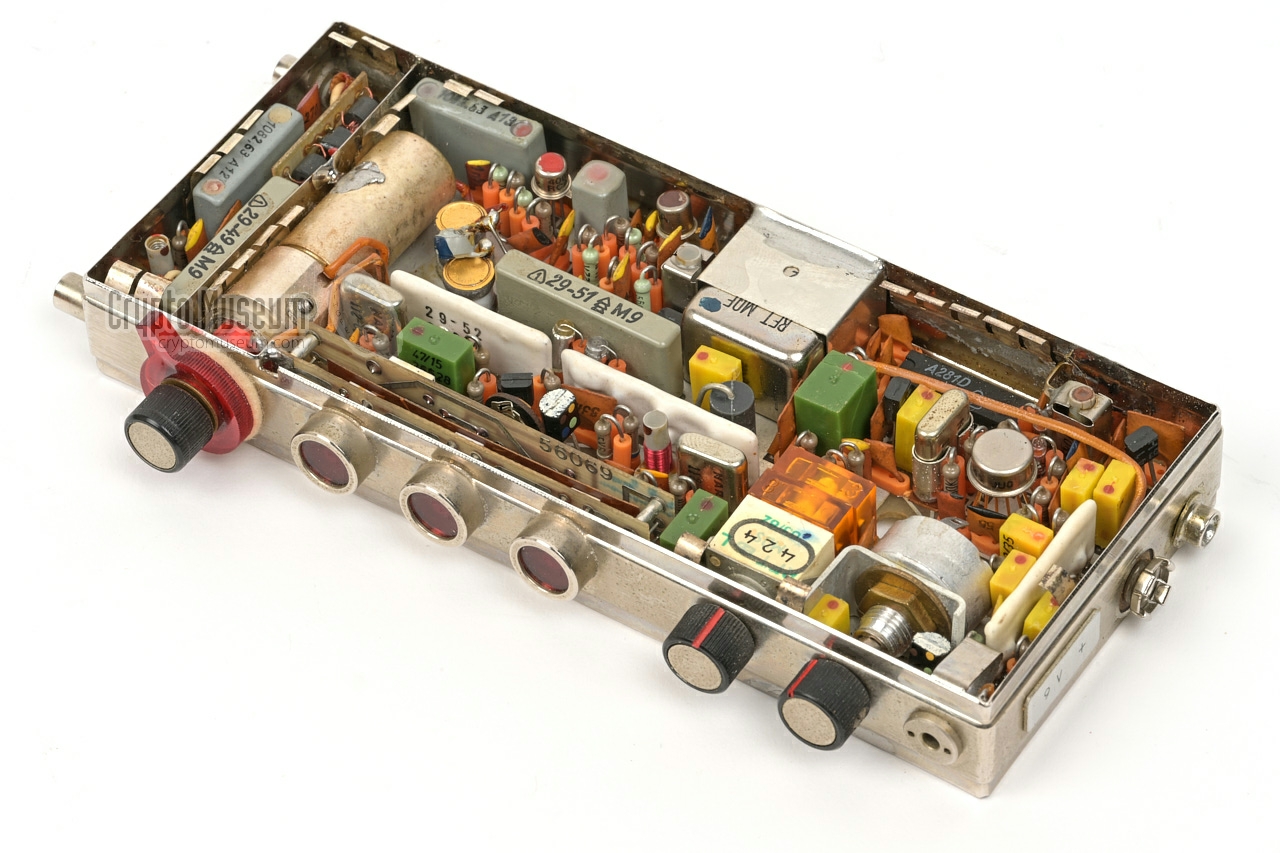

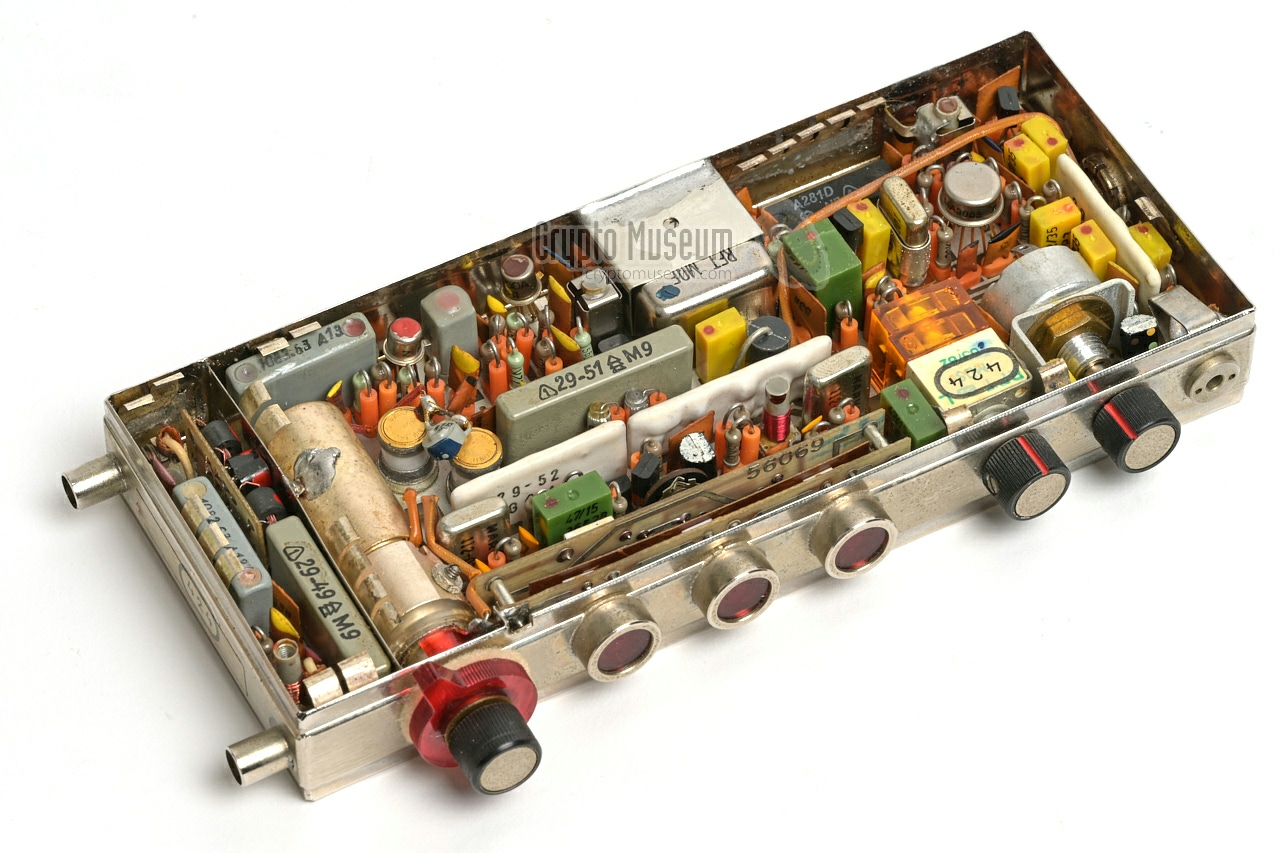

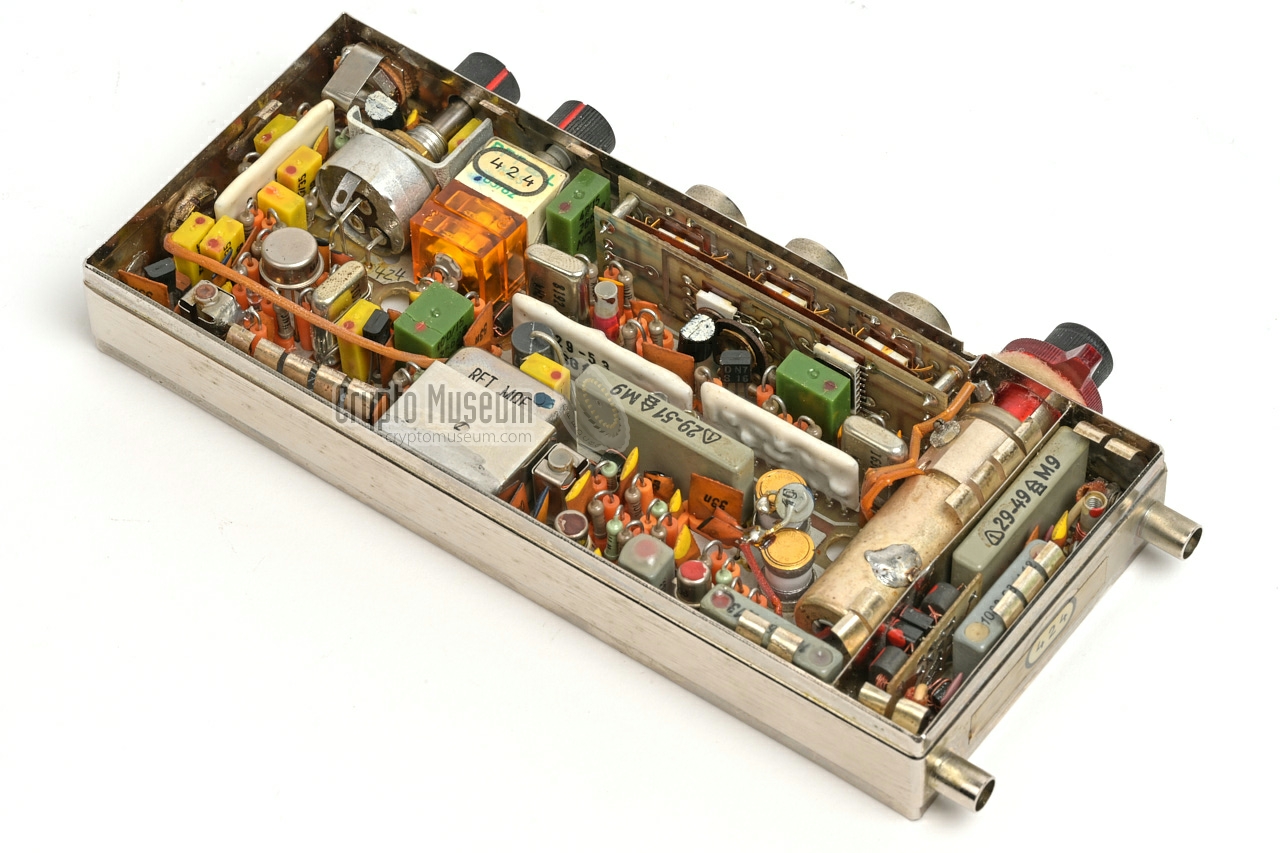

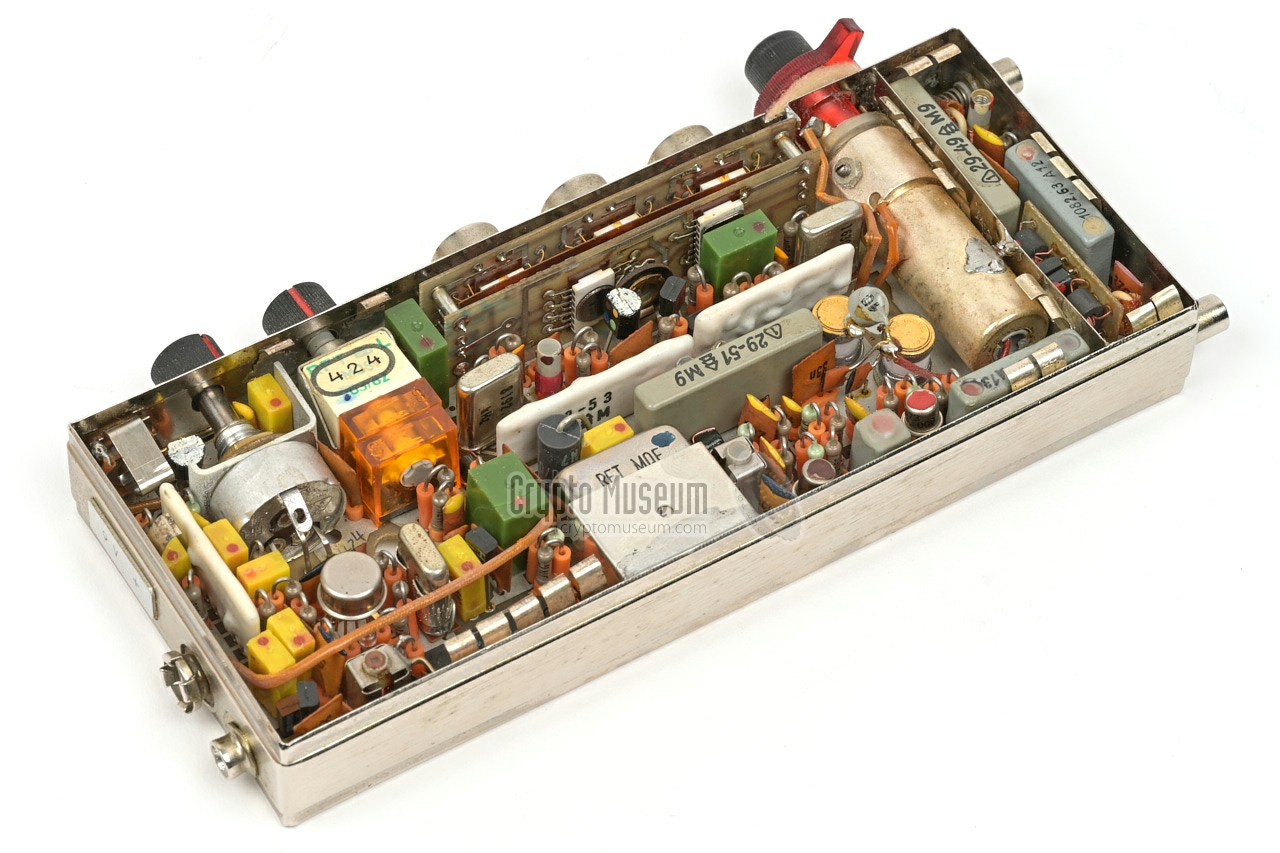

Interior
Interior
Interior
Interior
Interior - seen from the top

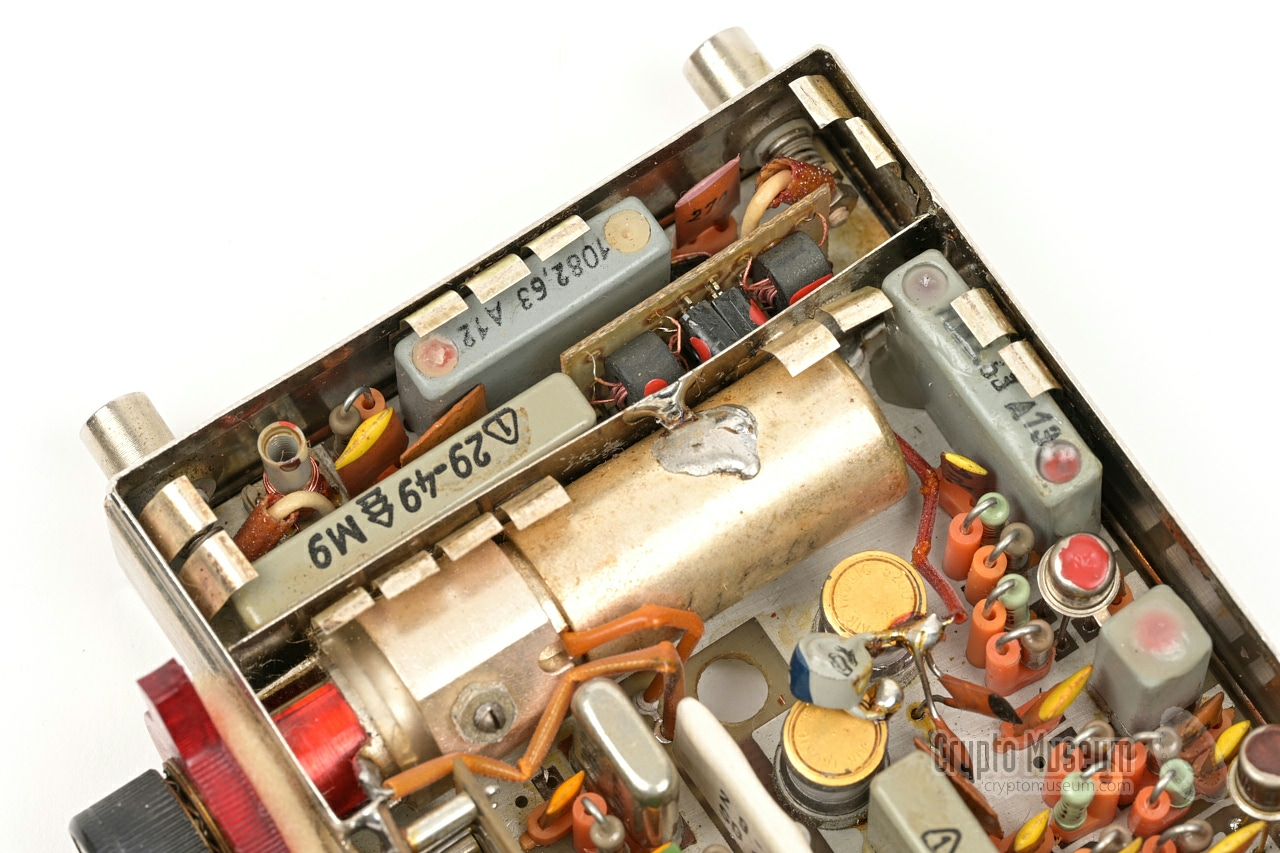

Left end detail

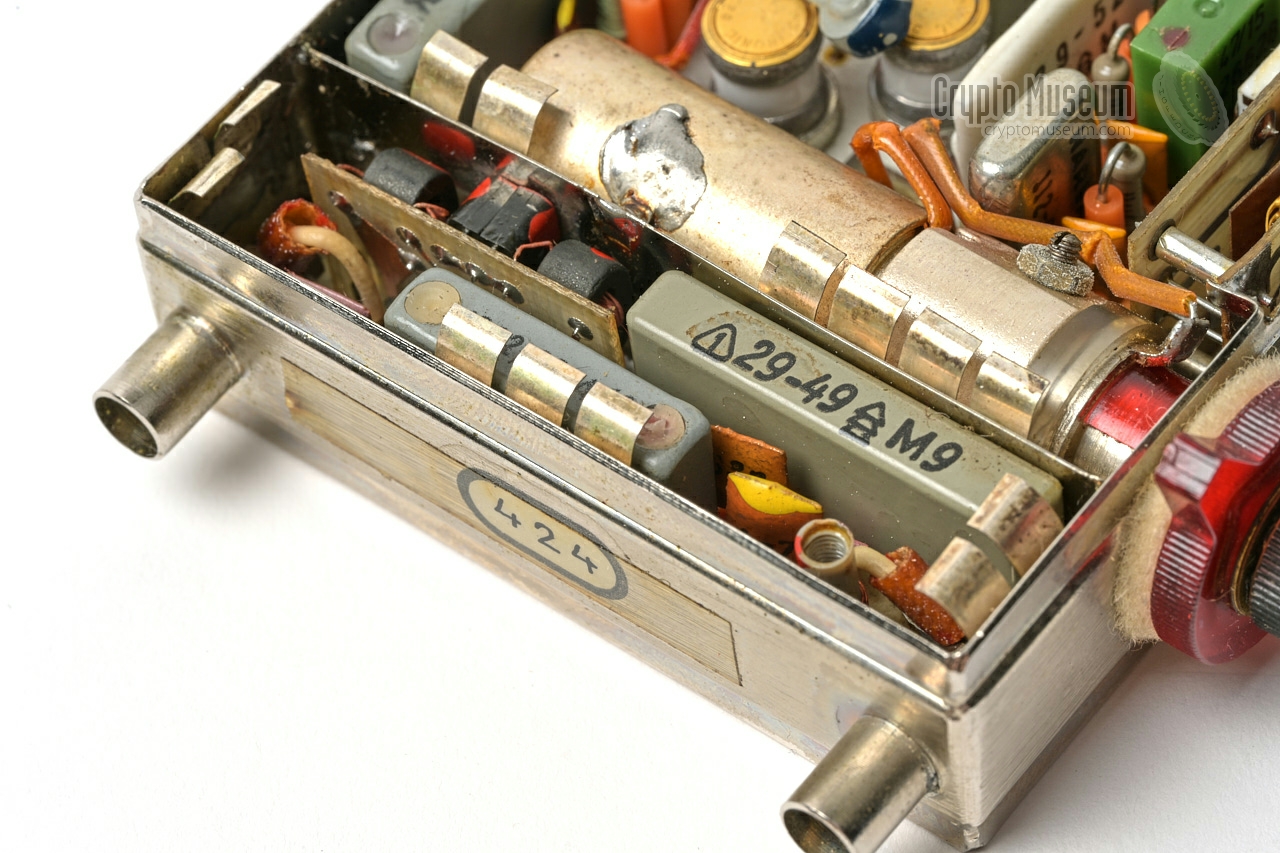

Left end detail

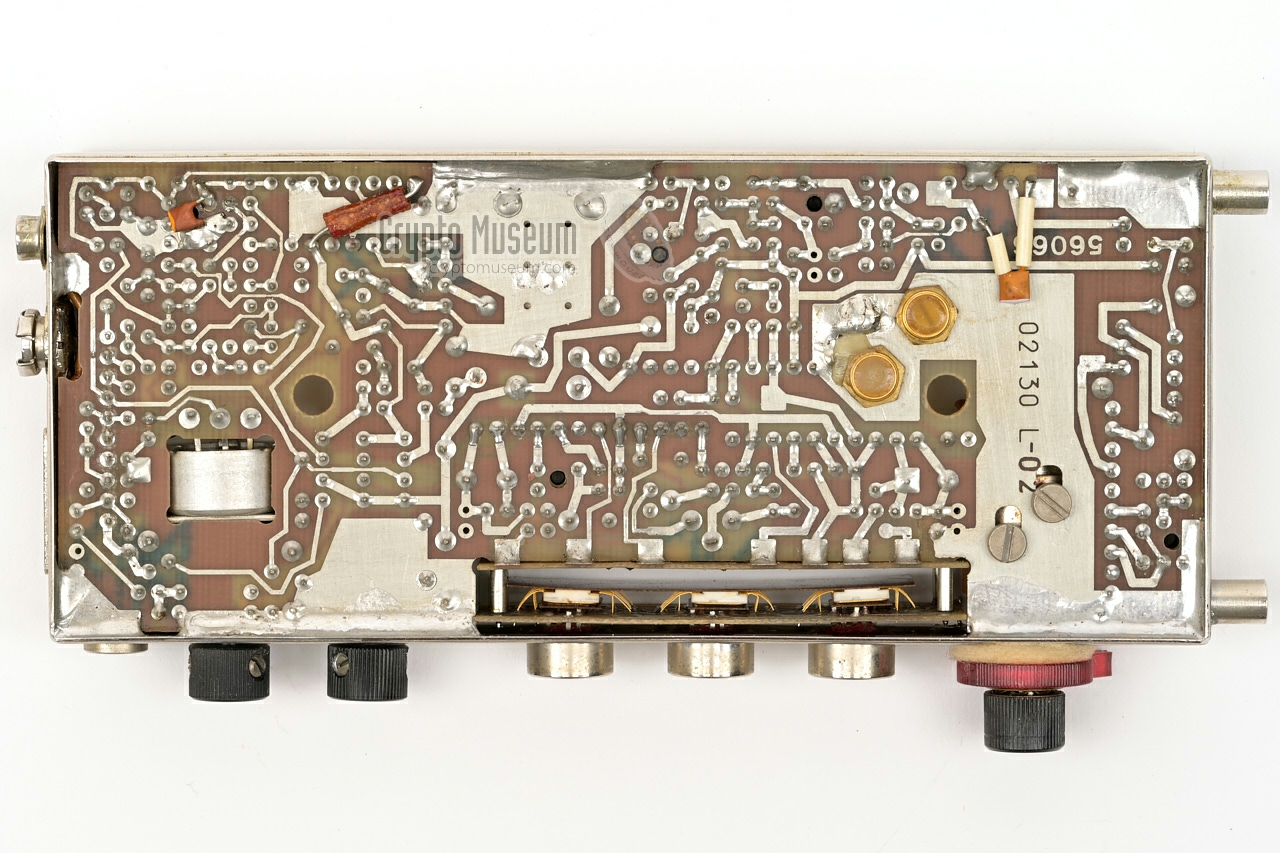

Main PCB - solder side

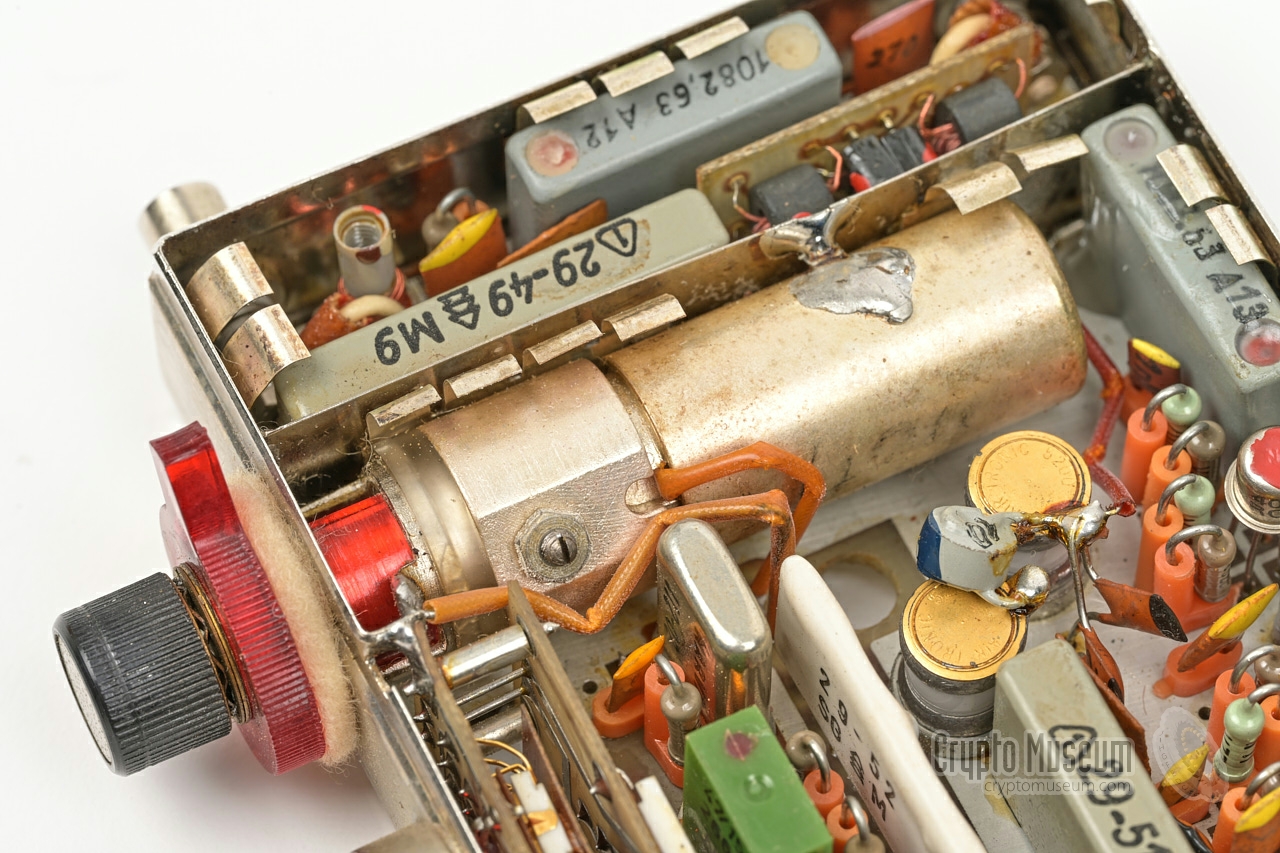

Multi-turn tuning potentiometer

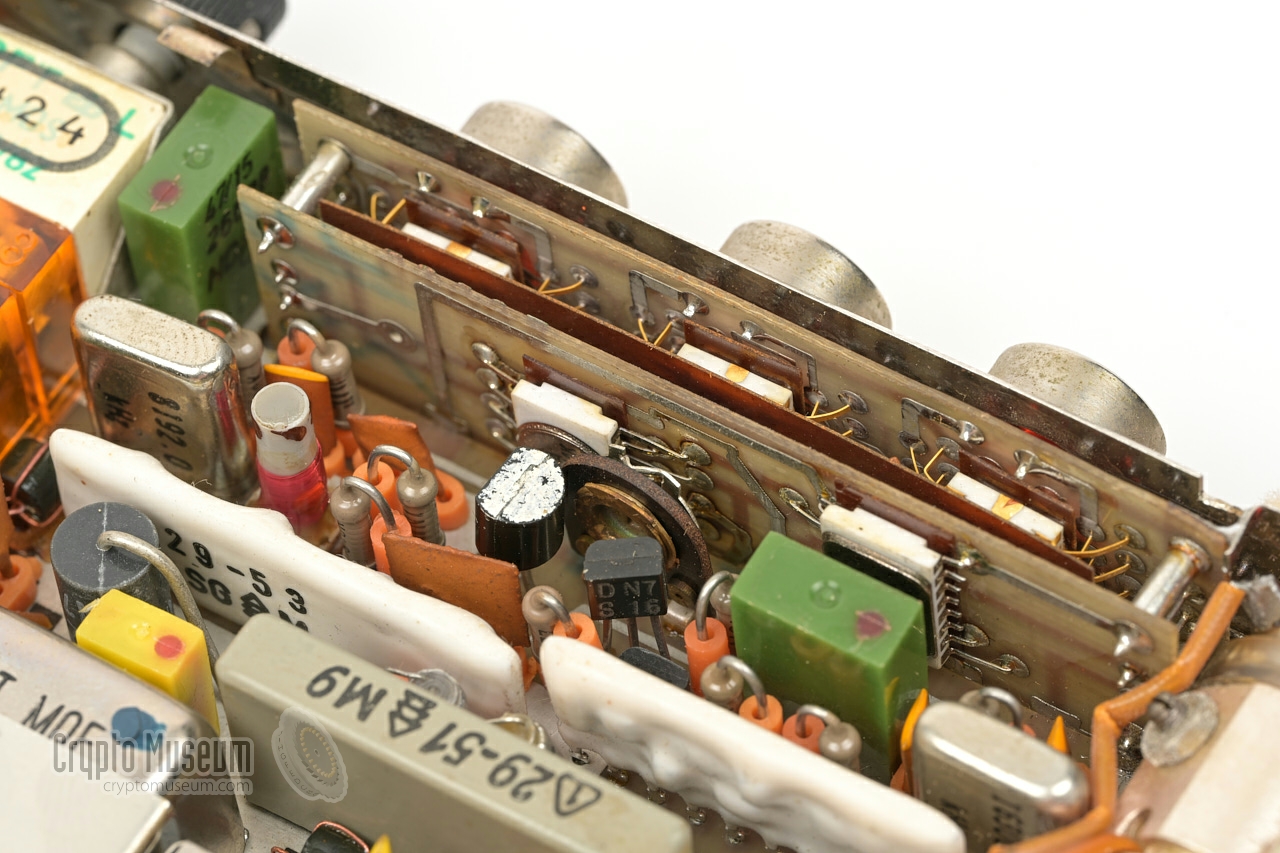

Display circuit

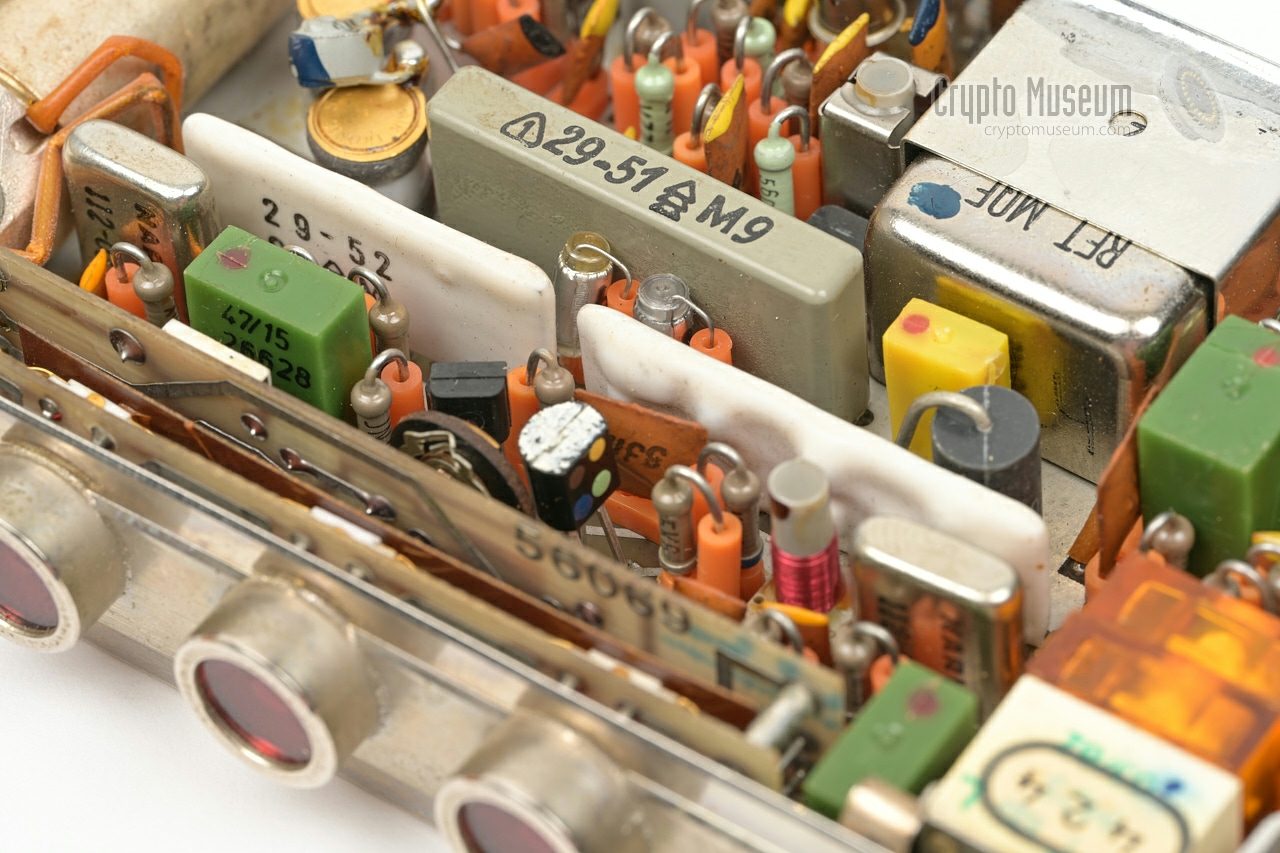

Hybrids

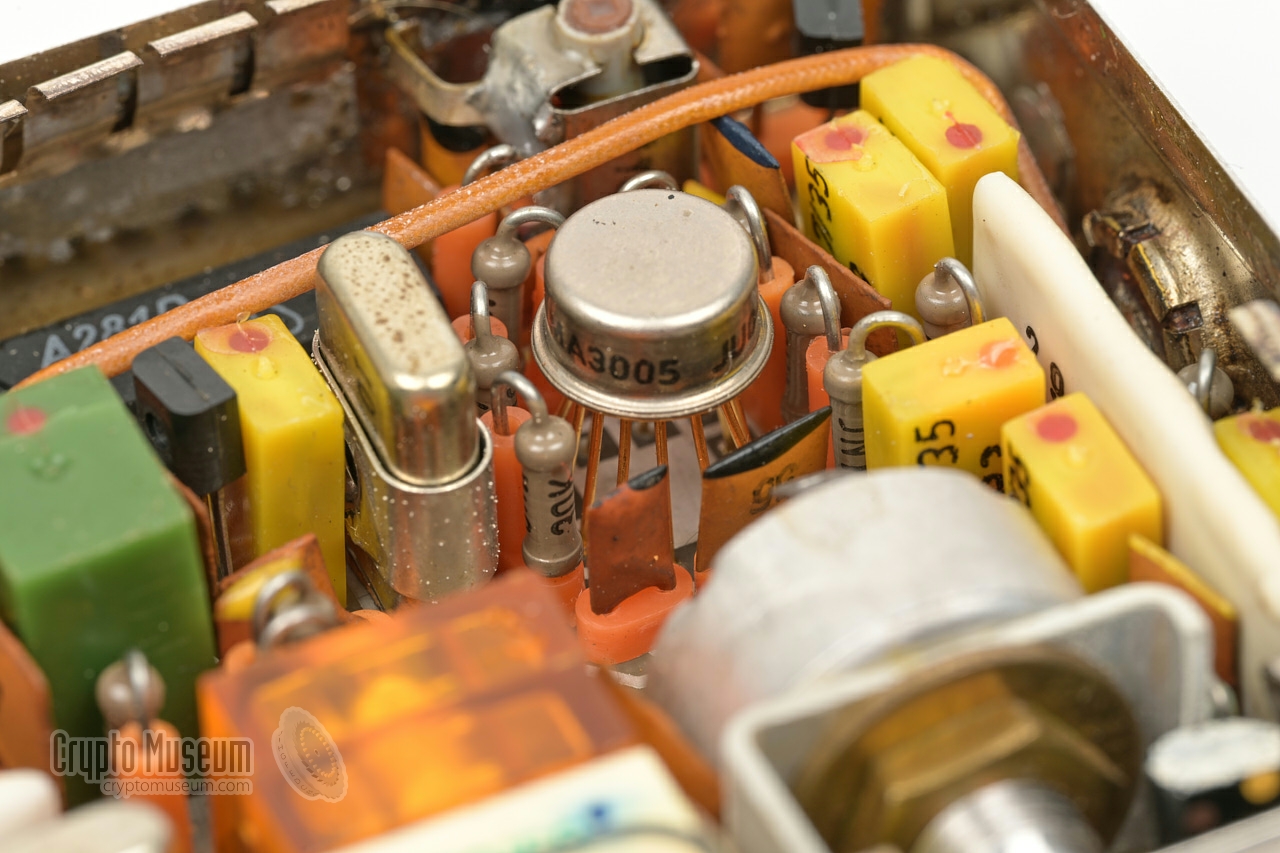

AF amplifier

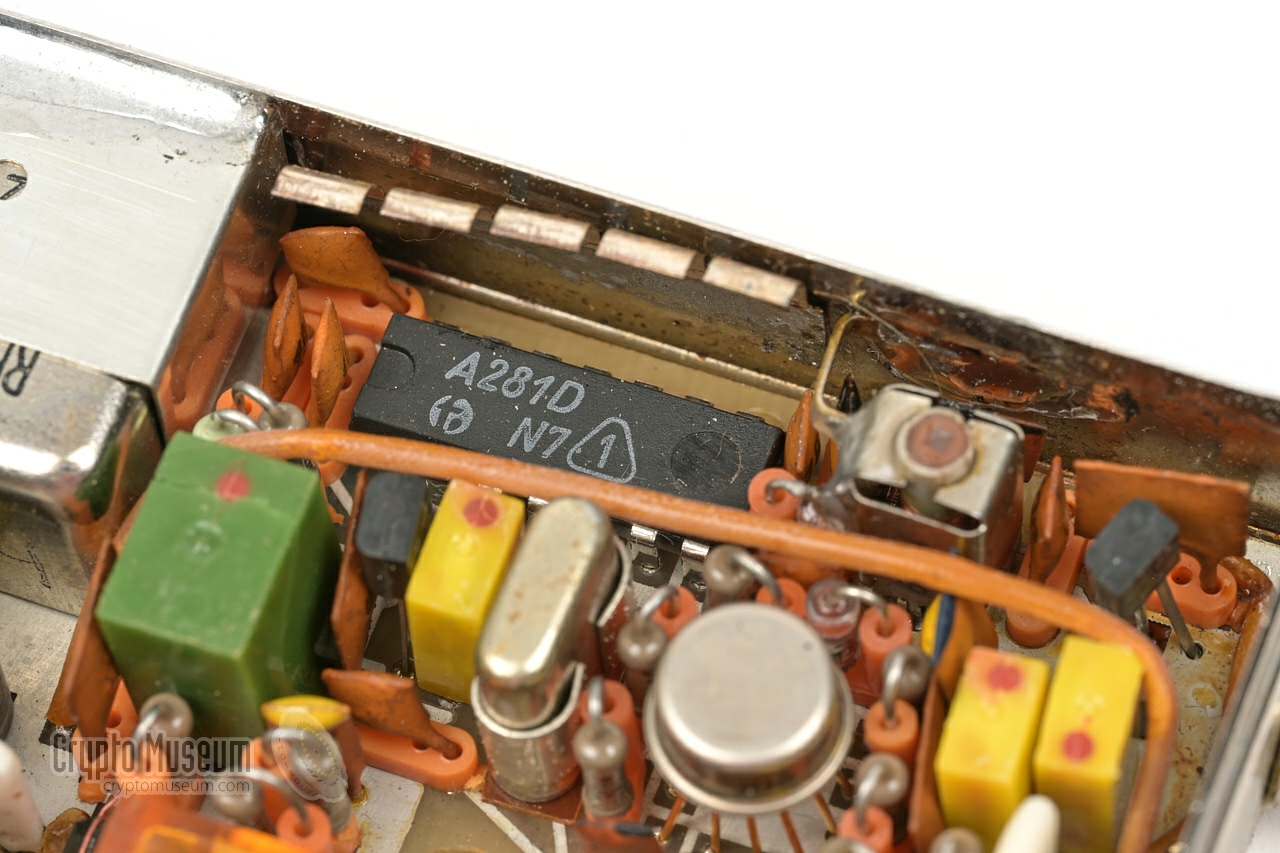

AM/FM-IF circuit (A281D)

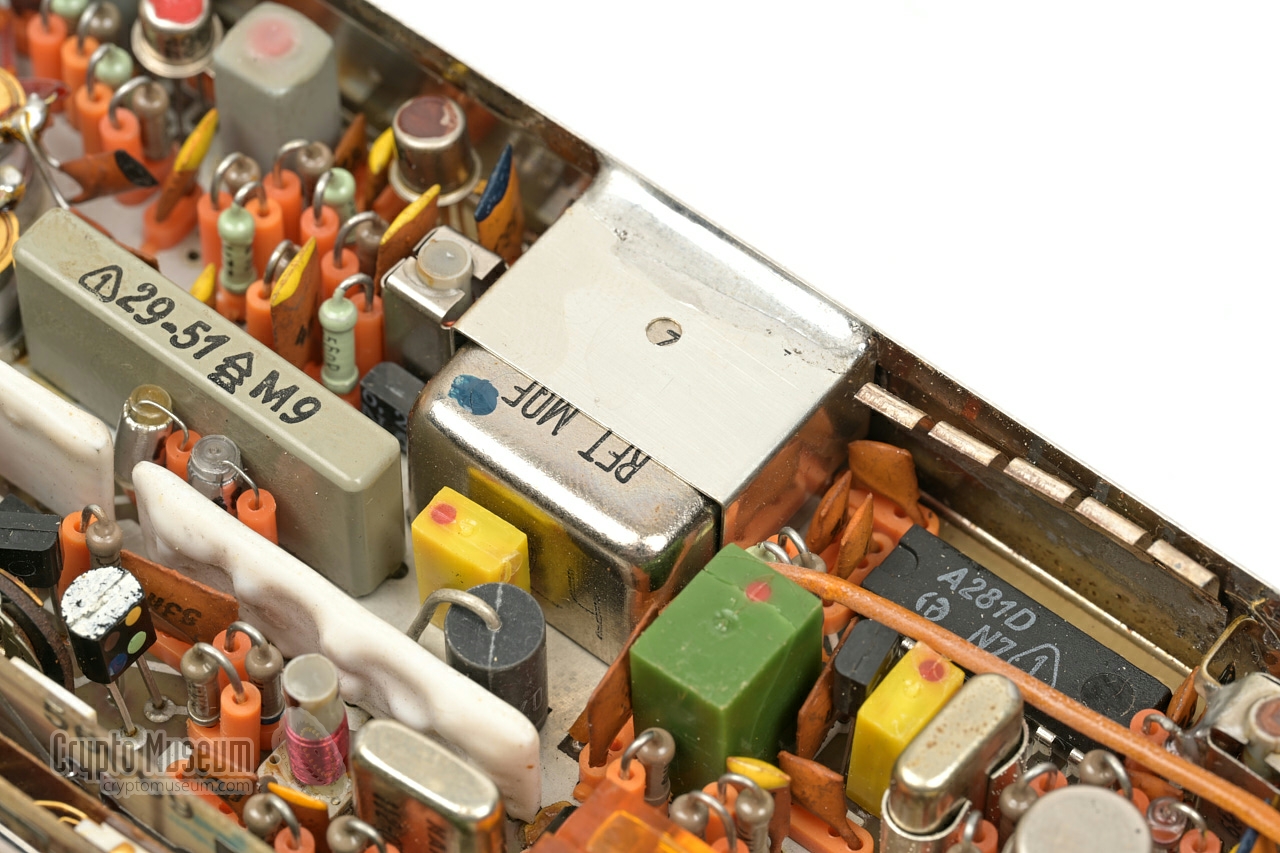

Crystal filter

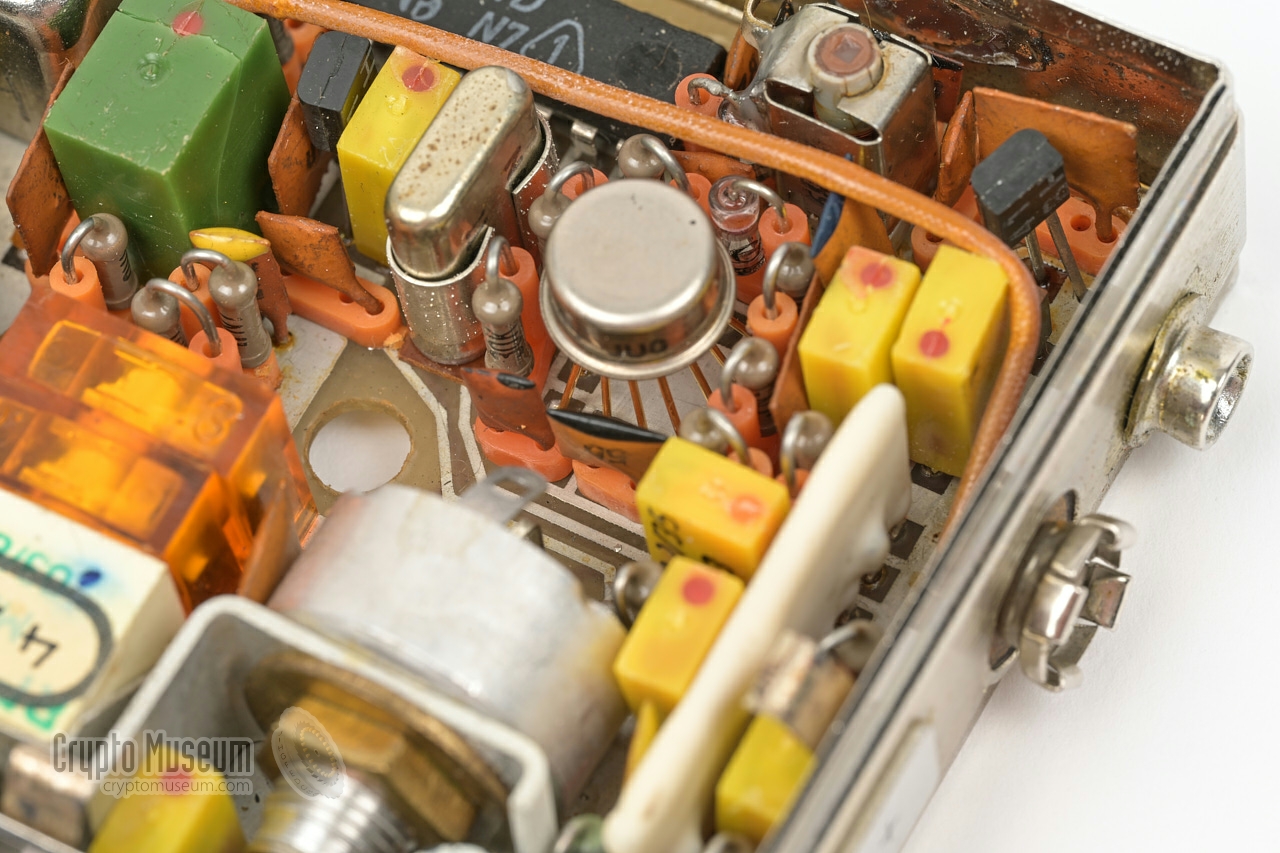

10.7 MHz crystal and AF amplifier

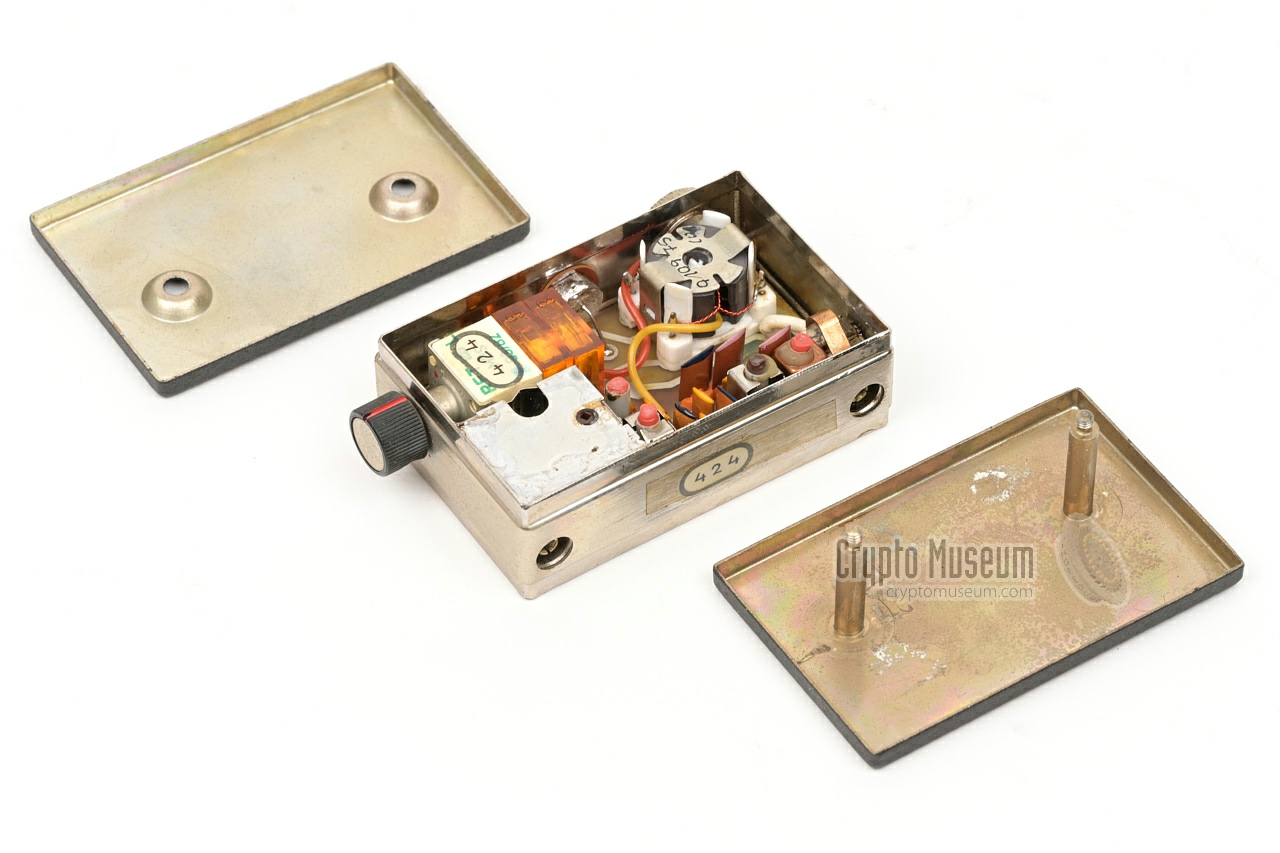

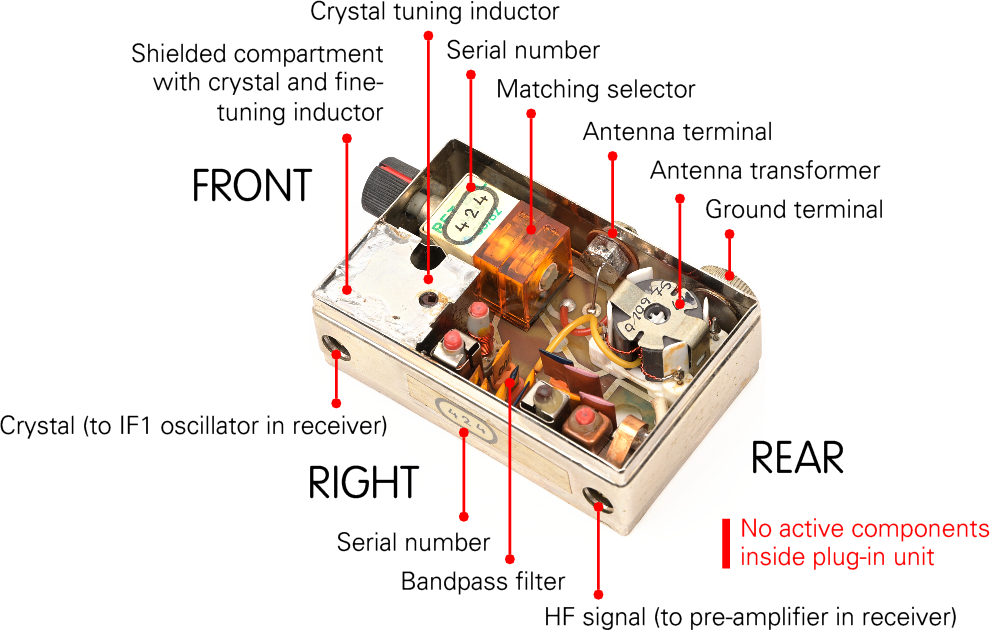

Regular plug-in with removed case shells

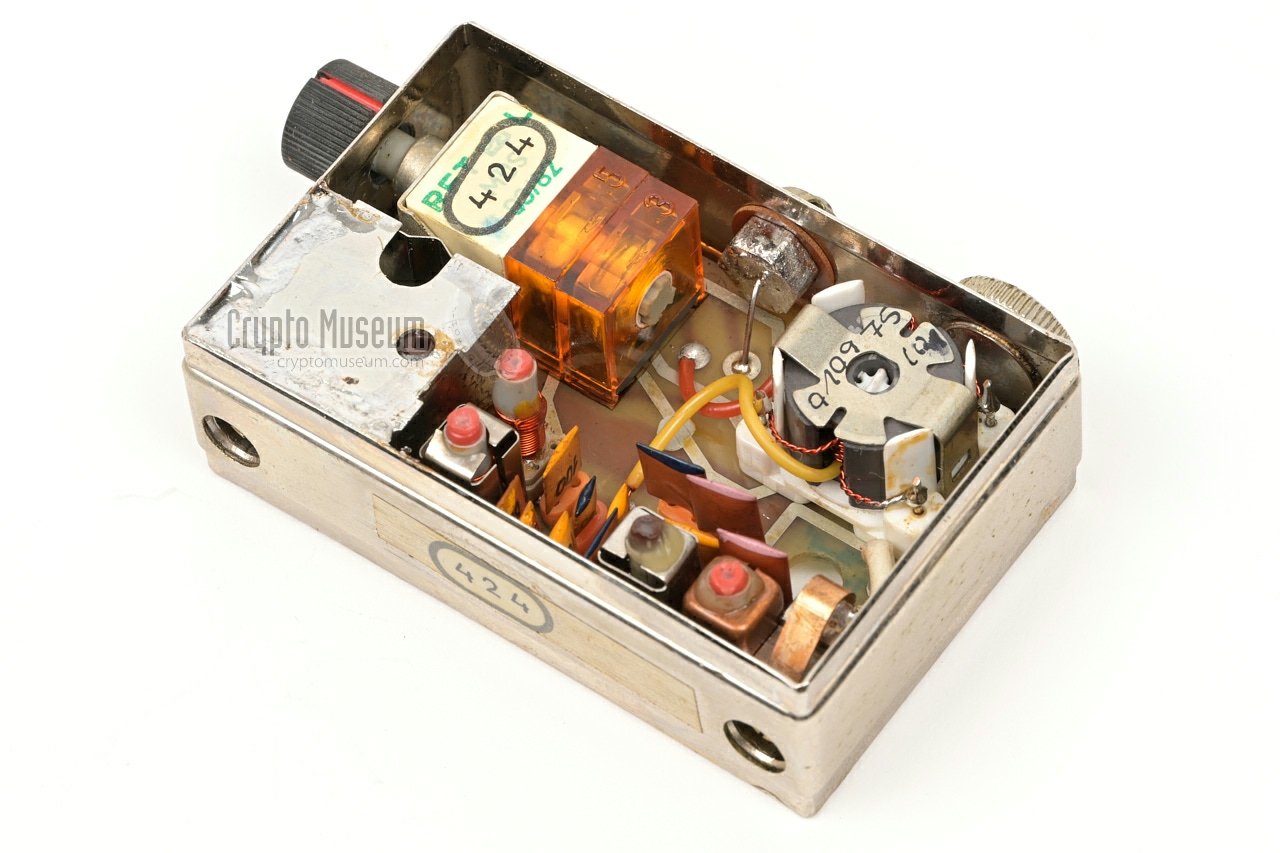

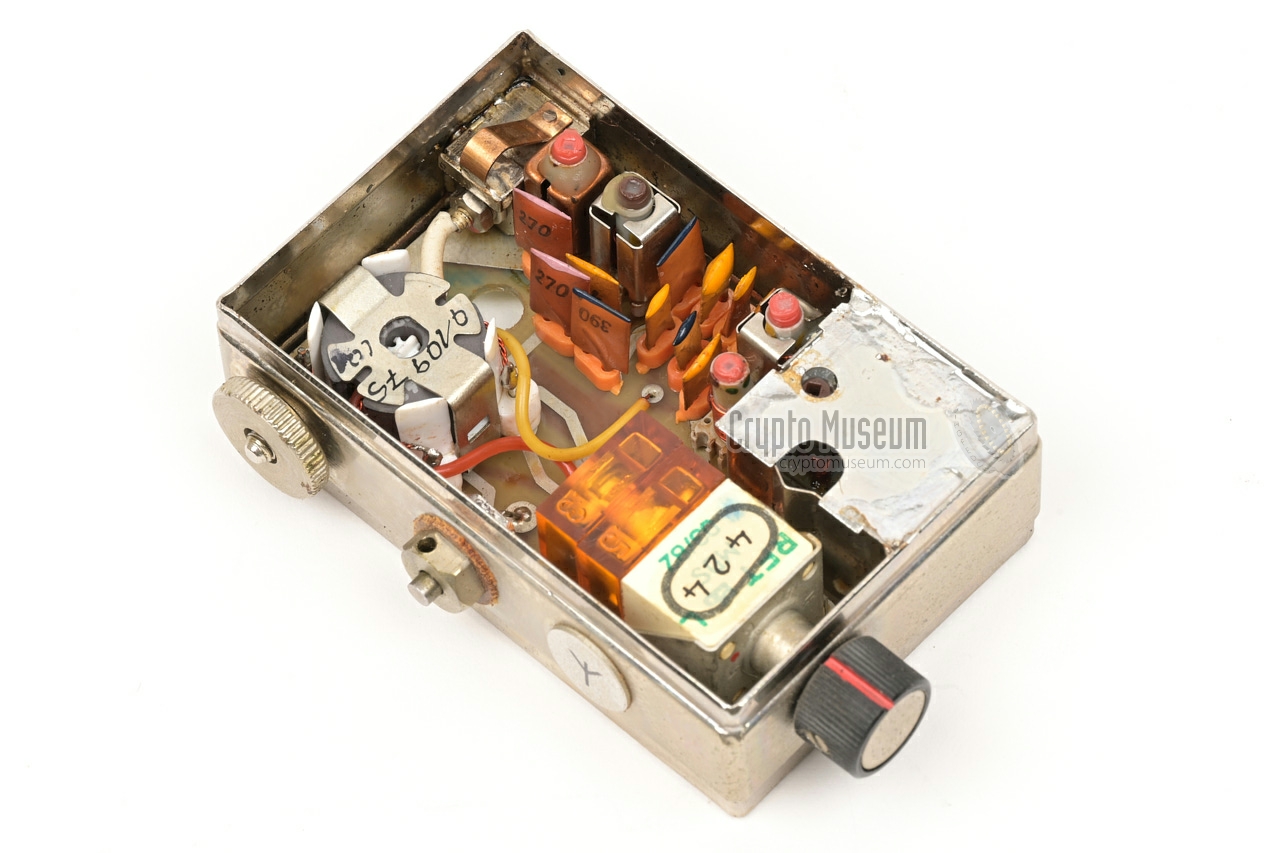

Regular plug-in - interior
Regular plug-in - interior

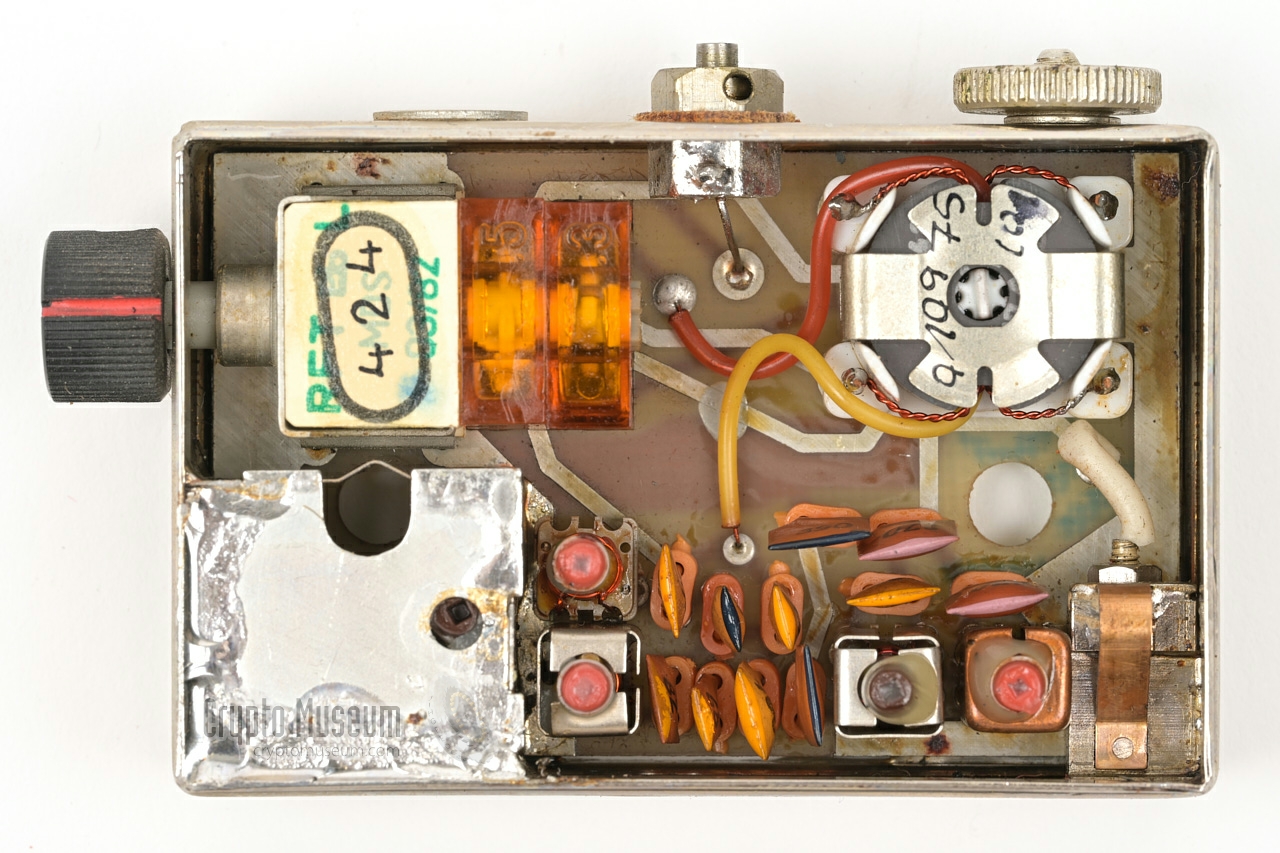

Regular plug-in - top view

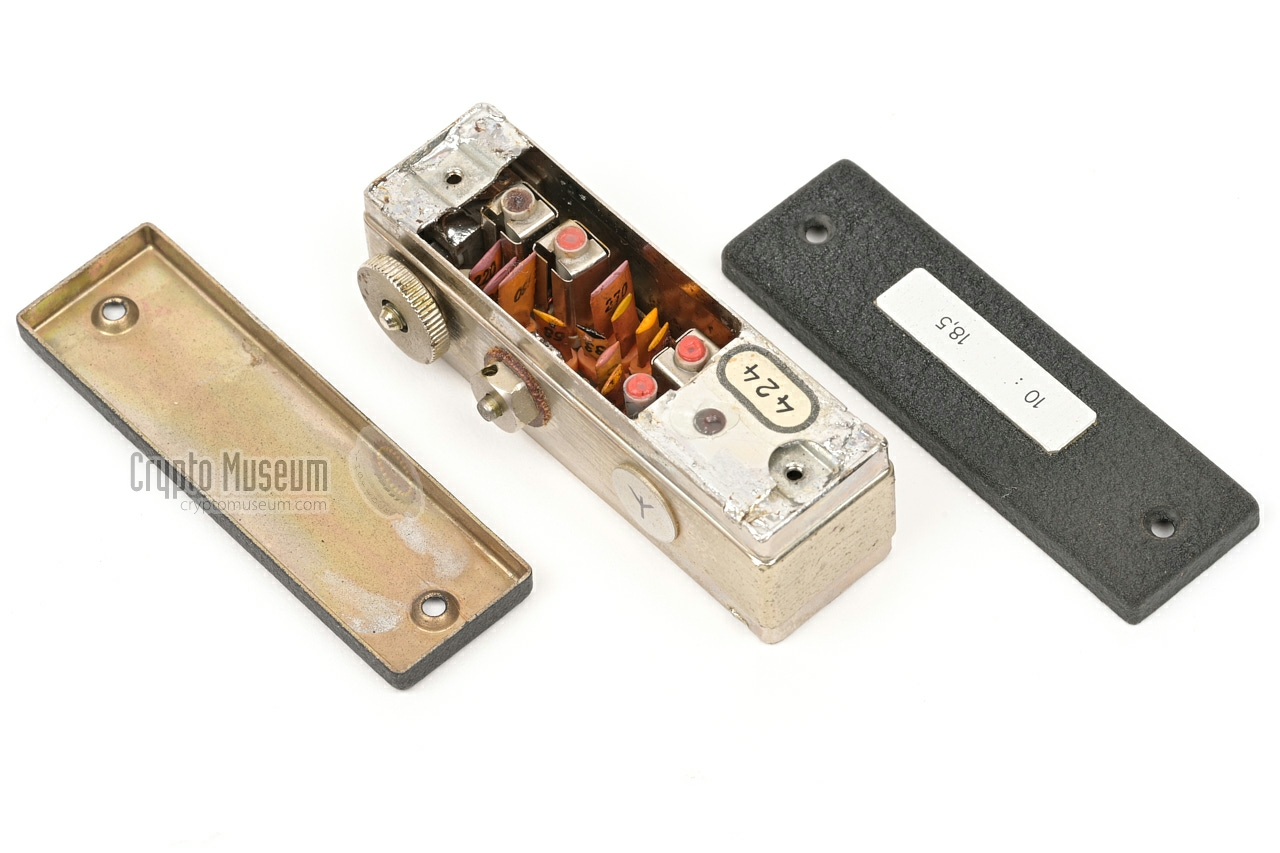

Small plug-in with removed case shells

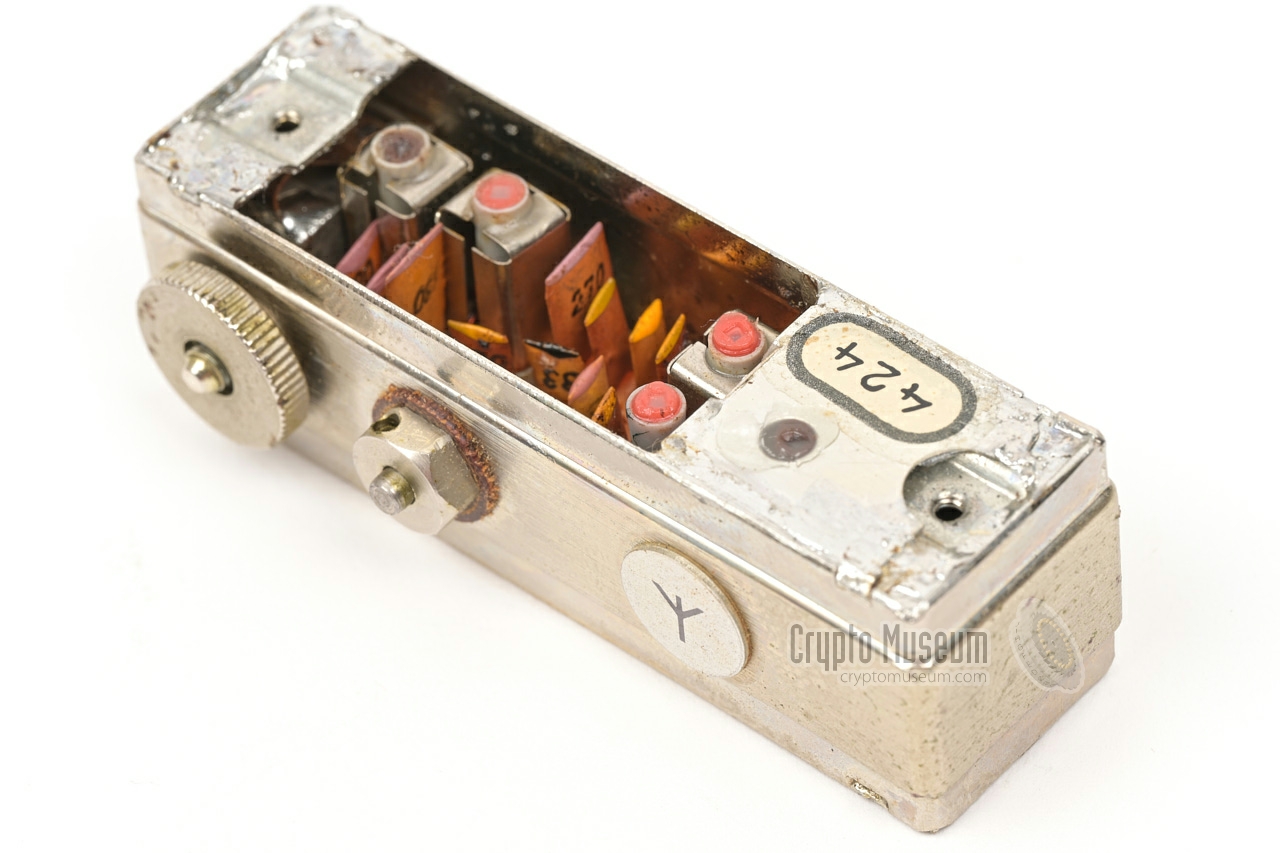

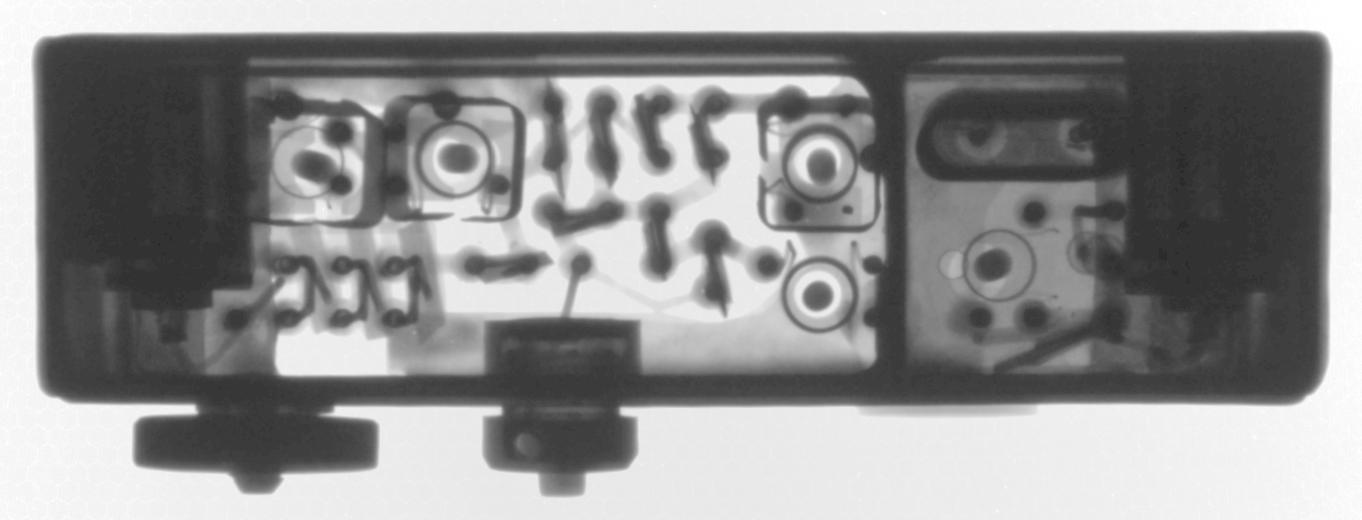

Small plug-in - interior

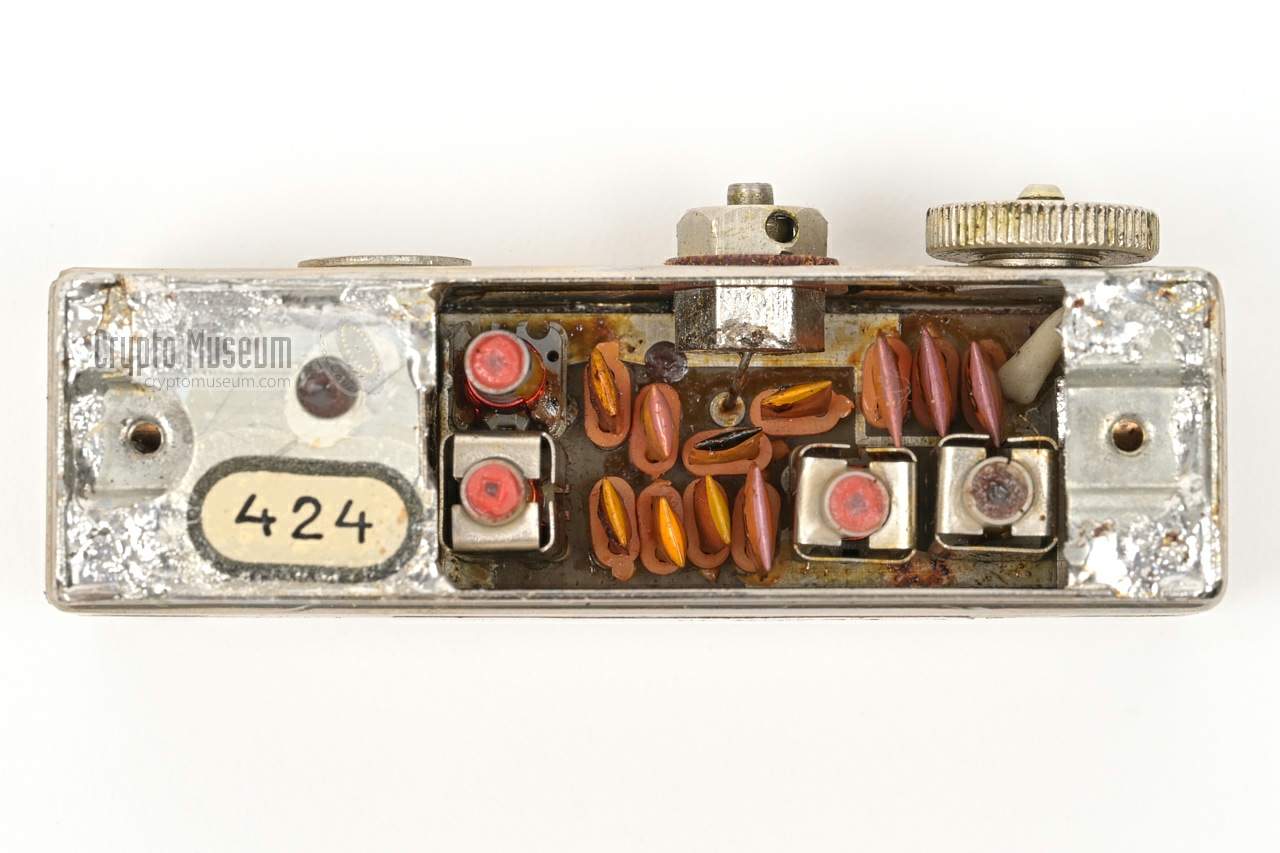

Small plug-in - top view

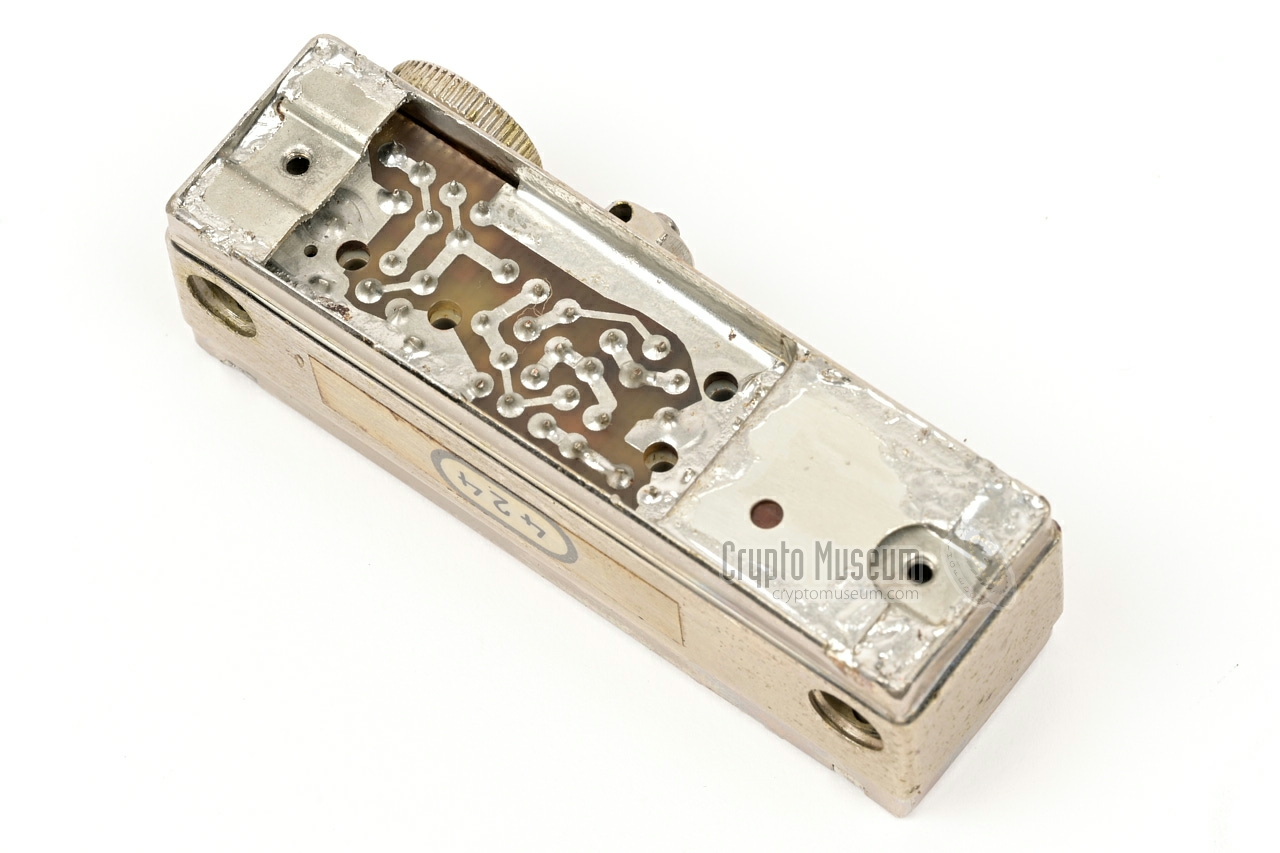

Small plug-in - solder side
C
×
C
1 / 24
Case shells removed
C
2 / 24
Interior
C
3 / 24
Interior
C
4 / 24
Interior
C
5 / 24
Interior
C
6 / 24
Interior - seen from the top
C
7 / 24
Left end detail
C
8 / 24
Left end detail
C
9 / 24
Main PCB - solder side
C
10 / 24
Multi-turn tuning potentiometer
C
11 / 24
Display circuit
C
12 / 24
Hybrids
C
13 / 24
AF amplifier
C
14 / 24
AM/FM-IF circuit (A281D)
C
15 / 24
Crystal filter
C
16 / 24
10.7 MHz crystal and AF amplifier
C
17 / 24
Regular plug-in with removed case shells
C
18 / 24
Regular plug-in - interior
C
19 / 24
Regular plug-in - interior
C
20 / 24
Regular plug-in - top view
C
21 / 24
Small plug-in with removed case shells
C
22 / 24
Small plug-in - interior
C
23 / 24
Small plug-in - top view
C
24 / 24
Small plug-in - solder side

Specifications
  • Device
    Miniature modular HF receiver
  • Purpose
    Agent communication
  • Model
    FLE
  • Project
    32310
  • Manufacturer
    OTS/SF
  • Users
    HV A, OTS/E, NVA
  • Country
    East-Germany (DDR)
  • Year
    1980 [3]
  • Part of
    Stand alone, WSA-1 (32210)
  • Frequency
    3 — 19.5 MHz (in 1 MHz steps)
  • Plug-ins
    10  More
  • Range
    ≤ 5000 km
  • Power
    9V block battery (external)
  • Dimensions
    Complete kit: 107 × 215 × 215 mm (HWD)
  • Weight
    1910 g
Parts
  • Receiver 32310 (FLE)
  • 10 plug-in units
  • Earphone
  • 9V battery extension cable
  • Adapter for 2 × 4.5V battery
  • Wire antenna
Bare receiver
  • Dimensions
    20 × 154 × 75 mm(HWD)
  • Weight
    300 g
Plug-ins (large)
  • Plug-in
    1, 2, 3, 4, 5, 6
  • Dimensions
    20 × 45 × 67 mm (HWD)
  • Weight
    84 g
Plug-ins (small)
  • Plug-in
    7, 8, 9, 10
  • Dimensions
    20 × 24 × 60 mm (HWD)
  • Weight
    48 g
Surviving serial numbers
  • 138
    Bundesamt für Verfassungsschutz, Germany
  • 341
    ?
  • 360
    ?
  • 424
    Crypto Museum, Netherlands
Datasheets
  1. A281D AM-FM-IF Amplifier for battery operation
    Equivalent to Siemens TAA981.
    RFT, no date.

  2. MA3005, Operational Amplifier
    No manufacturer, no date.
References
  1. Detlev Vreisleben, Information about 32310 (FLE)
    Crypto Museum, 6 July 2026.

  2. Louis Meulstee, FLE
    Wireless for the Warrior Vol. 4, Supplement, Chapter 40.
    Version 1.00, November 2015.

  3. Dr. Schiffel (Major), Jahresarbeitsplan 1982, Teil I, Zielstellung
    MfS, OTS/33, 26 August 1981. Page 12.
