CARVOX 2451
Car telephone for ATF-2 network · NMT-450

Carvox 2451 was the first carphone for the Dutch ATF-2 network, released in 1985 by the Dutch telecom monopolist PTT on a subscription base. The device was supplied by Philips, but was in reality a 3533-2 made by AP Radiotelefon A/S in Denmark for the Nordic NMT-450 network.

ATF-2 was the successor to the ATF-1 network – which had a limited capacity and used in-band signalling – and offered a cellular structure with fully automatic hand-over at the cell borders.

Carvox 2451 was the first telephone that became available for the ATF-2 network. PTT customers could not buy it, but had to rent it from them on a subscription base, to which the high costs of the calls were added. The device consisted of a handset – with built-in controls and LCD display – and a 450 MHz transceiver that was so large that it had to be fitted in the trunk of the car.

Handset

Due to the fact that the ATF-2 network used digital signalling by means of internal 1200 baud modems, it was less susceptible to phone phreaking than the old ATF-1 network. Soon after its introduction however, hackers discovered that there were still vulnerabilities in the system, that allowed them to use number spoofing, albeit not as easy and flexible as on the ATF-1 phones.

Furthermore, PTT had learned from the problems with the widely hacked ATF-1 network, and had blocked all inactive numbers. For this reason, hackers could only use valid telephone numbers of existing subscribers. Rather than giving the user of a hacked phone full control of the subscriber number, they programmed them with 10 fixed numbers, selectable with a one-digit thumbwheel. The image above shows a hacked Carvox 2451 that was used by criminals to make 'free' phone calls. It is housed in a professional flightcase and has a built-in battery for semi-portable use.

Closed flightcase Hinged top cover Open flightcase CARVOX 2451 handset and antenna Handset Single-digit thumbwheel, allow selection from 10 available subscriber numbers Clandestine CARVOX 2451 in flightcase
A
×
A
1 / 7

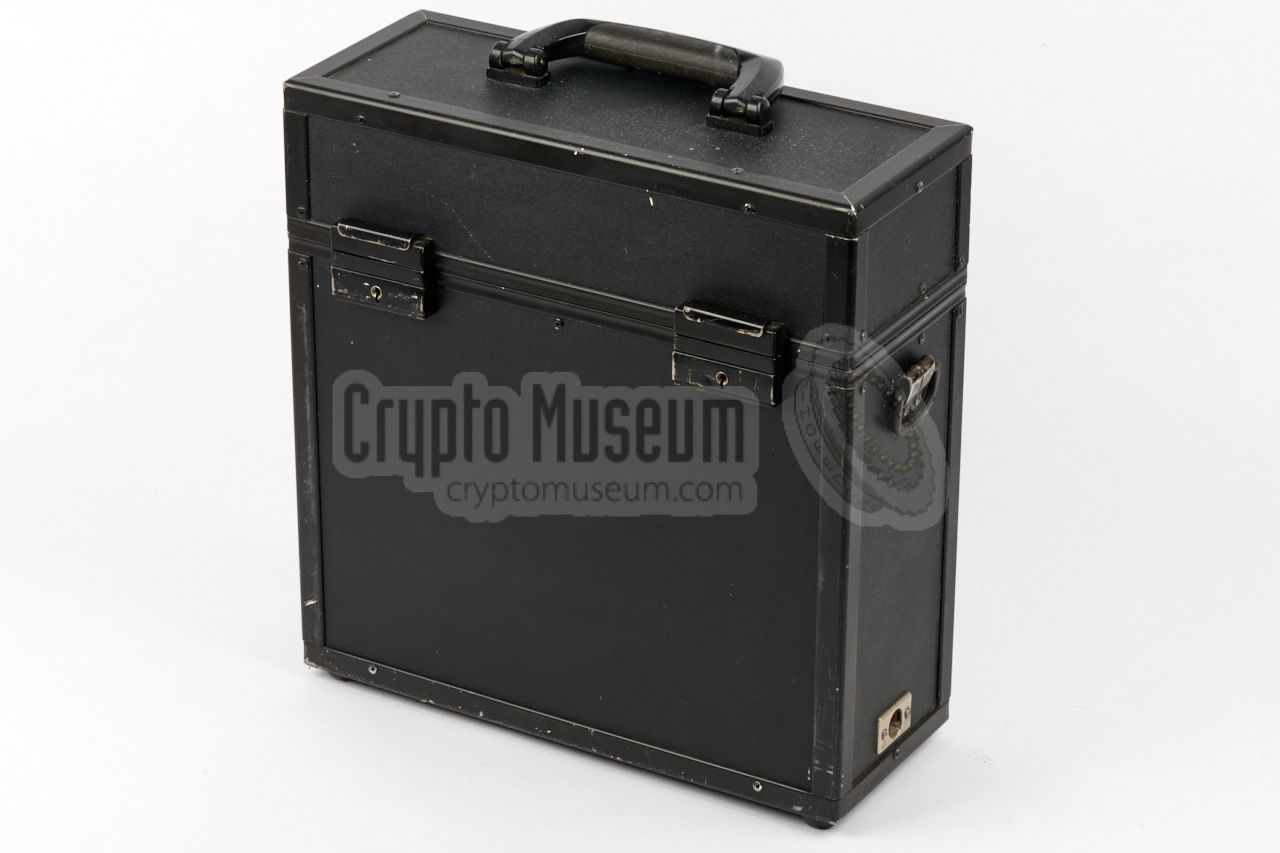

Closed flightcase
A
2 / 7
Hinged top cover
A
3 / 7
Open flightcase
A
4 / 7

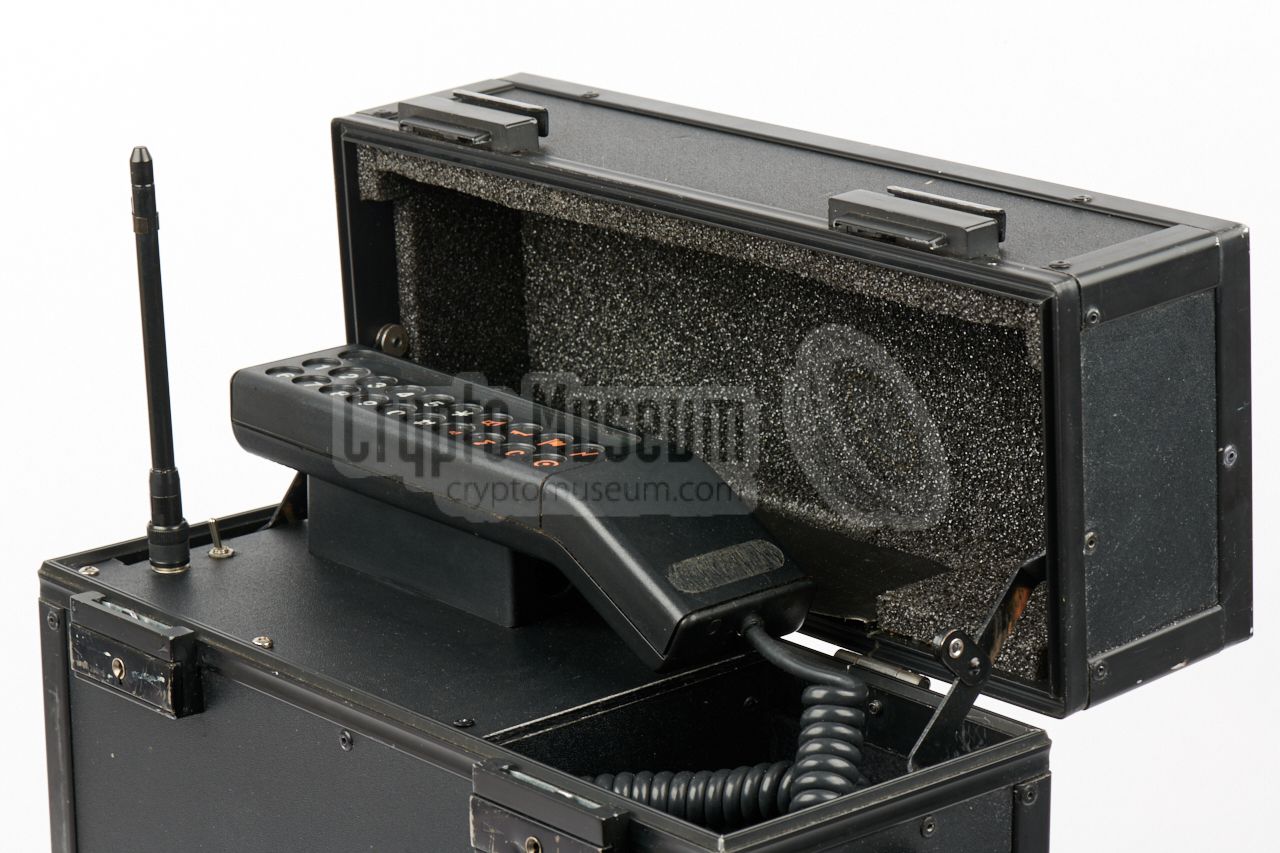

CARVOX 2451 handset and antenna
A
5 / 7
Handset
A
6 / 7
Single-digit thumbwheel, allow selection from 10 available subscriber numbers
A
7 / 7

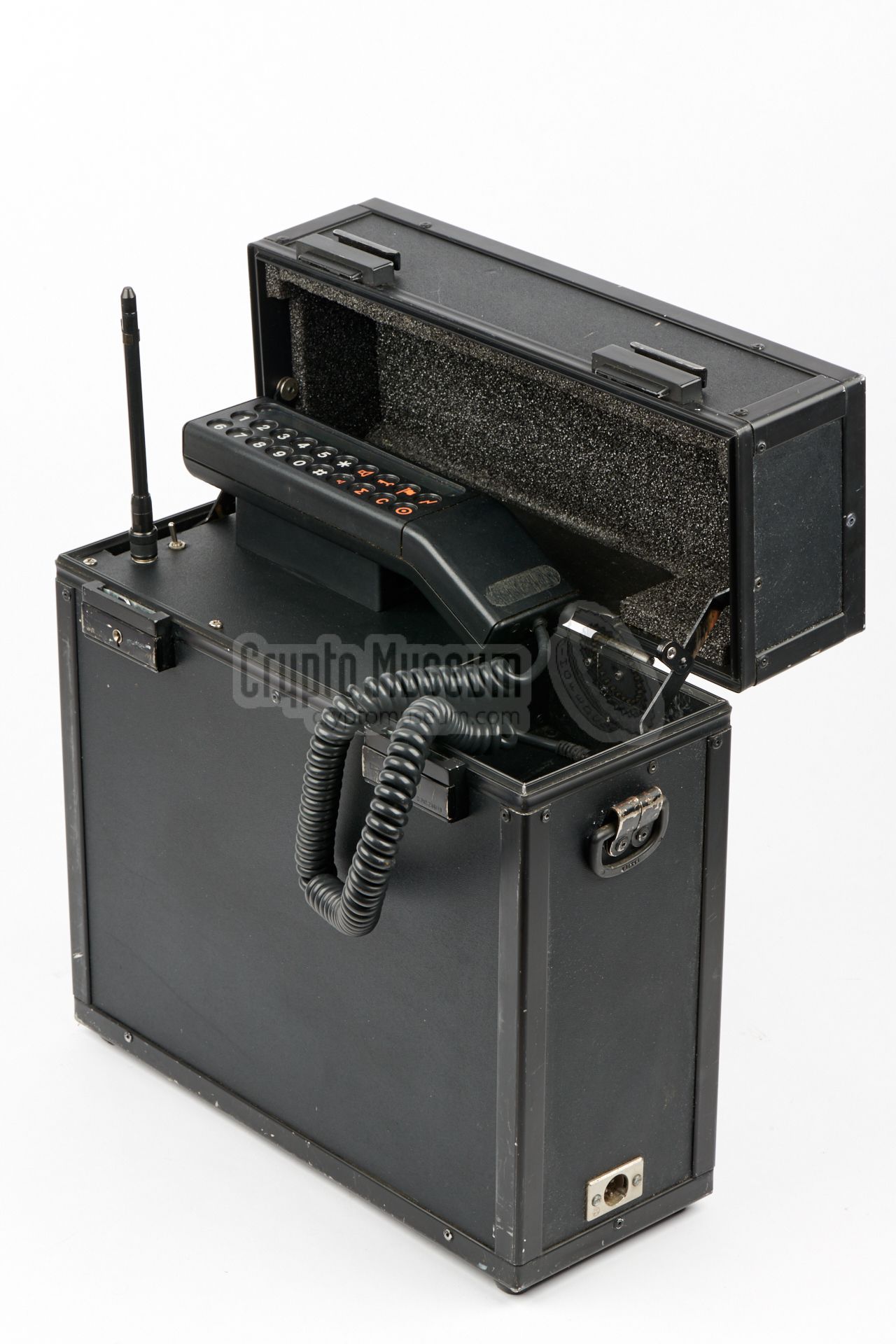

Clandestine CARVOX 2451 in flightcase

ATF-2 network
ATF-2 was the second automatic analogue car telephone network in the Netherlands, introduced in 1985 by the state-owned telecom monopolist PTT (now: KPN). It operated in the 450 MHz band and was based on the Nordic Telecom NMT-450 standard, albeit with a different channel spacing. The network was not protected against eavesdropping and used modem-based digital signalling.

NMT-450 was one of the first cellular telephone networks, in which the country was divided into a series of areas (cells), much like a honeycomb, as shown in the map on the right. Initially, 50 cells were planned for a maximum number of 25,000 subscribers. This was later expanded to 120 cells for a total of 32,000 subscribers. Move over the map to see how smaller cells were used to increase the capacity of the ATF-2 network.

Unlike ATF-1, it was an analogue network with signalling through digital modems, that provided an automatic hand-over when crossing a cell border. As a result, it was no longer necessary to dial a specific area-code (prefix) for each region.

As the conversation was still transmitted in FM (analogue) however, eavesdropping remained possible by means of a simple computer scanner like the Handic 0016. This was done by criminals — for blackmailing people based on intercepted compromising conversations — as well as by the police — for intercepting criminal conversations.

Map of the Netherlands with ATF-2 base stations in 1985 and 1988.

Initially, a network expansion to 150 base stations (for 50,000 subscribers) was planned, but the plans were dropped when it became clear that with the rapidly increasing number of subscribers, this limit would have been reached by 1989. As the new pan-European GSM network (planned for 1990) was delayed by at least one year, it was decided to add an intermediate network: ATF-3.

 More about ATF-2


Clandestine use
ATF-2 was the first analogue mobile network in the Netherlands that used digital signalling by means of internal 1200 baud modems. This made the network more resilient to phone phreaking, but not immune. Shortly after the introduction of the network, hackers unravelled the protocol and discovered that there was no form of authentication, just like on the earlier ATF-1 network.

This lack of security allowed them to make free phone calls by using number spoofing, but this was far less easy than on the ATF-1 network. It was no longer possible to pick a random phone number and program it into the telephone set.

Instead, the hackers had to find valid numbers by trying them one-by-one. In practice, they would program 10 valid telephone numbers into the hacked telephone, that could be selected by the user by means of a single digit thumbwheel. The image on the right shows the thumbwheel of the hacked Carvox 2451 featured on this page.

Single-digit thumbwheel, allow selection from 10 available subscriber numbers

In practice this meant that the malicious user could make 'free' phone calls for which a genuine sub­scriber was billed. As soon as the fraude was discovered, PTT would block the number, after which the malicious user selected another one from the available 10 spoofed numbers. Once the 10 numbers were exhausted (i.e. when PTT had blocked all of them), the user had to return his telephone set to the hacker, who would then reprogram it with 10 new numbers. Reportedly, some hackers ran a life-time warrantly program for this reprogramming service.

After PTT had introduced authentication on the ATF-2 network – around 1988 – number spoofing was no longer possible, and most of the clandestine use of the network disappeared.

 More about clandestine use of ATF-2


Glossary
ATF   Autotelefoon
Name for the Dutch automatically-switched analogue carphone networks, of which three generations have existed (nown as ATF-1, ATF-2 and ATF-3. Succeeded in 1994 by GSM.
GSM   Global System for Mobile Communication
Digital mobile telephone network, with built-in encryption and authentication. Introduced in 1991 and rolled-out in most European countries in 1992. In the Netherlands, GSM was introduced in 1994.  More
KPN   Koninklijke PTT Nederland
Royal PTT of The Netherlands. This was the name of the former Dutch state-owned telecom monopolist PTT after its privatisation in 1989.
PTT   Staatsbedrijf der Posterijen, Telegrafie en Telefonie
Dutch state-owned telecommunications monopolist from 1881 until its privatisation in 1989. Responsible for the development and operation of the post, telegraph and telephone networks in the Netherlands. Also responsible for monitoring the radio spectrum and for enforcing the telecom laws.
