Second generation secure telephone unit

The STU-II was the second generation Secure Telephone Unit (STU) introduced by the NSA in the 1980s. It was the successor to the STU-I, and replaced older systems like the extremely bulky KY-3. The STU-II is also known as the KY-71 or TSEC/KY-71. It uses an LPC/APC vocoder and the GCHQ/NSA-developed SAVILLE encryption algorithm. It came as a two-piece system. In the 1990s, STU-II was replaced by the much smaller STU-III and for NATO by the STU-II/B (KY-71D).

STU-II was built by ITT, using Northern Telecom as a sub-contractor. A complete terminal (end­point) consisted of a large metal cabinet with the electronics (the actual KY-71) and a telephone-style desktop unit, known as the HYX-71, that was used to control it (i.e. the user interface).

The image on the right shows the HYX-71 desktop unit, that was connected to the KY-71 cabinet by means of a 9-way cable. It's a fairly large desktop phone, with a special handset, a regular numeric keypad, several indicator LEDs and three extra MODE-buttons at the bottom.
The HYX-71A desktop unit of the STU-II (KY-71)

Once a call had been established in CLEAR mode, the user had to press the SEC-button to 'go secure'. As the STU-II uses the same LPC-10 vocoder as the later STU-III, there is always a 10 to 15 second delay before secure mode is activated. During this stage, the keys are exchanged. In addition, it was also possible for the calling party to initiate a call directly in encrypted mode.

Voice data was transferred at 2400 baud, resulting in a very synthetic sound. Although speech was relatively clear, it was impossible to recognize the speaker at the other end. Certain versions of the STU-II were able to use 9600 baud, but given the rather poor quality of telephone lines, 2400 baud was used in most cases. When in half-duplex secure mode (simplex), the user had to press the so-called Push-To-Talk switch (PTT), inside the grip of the receiver, when speaking.

Key material was handled by a so-called Key Distribution Center (KDC), which was NSA operated. Keys were transferred to the STU-II by means of a KOI-18 (paper-tape) or KYK-13 (electronic) key transfer device. Approximately 10,000 STU-II units were built [1]. Over the years, a number of STU-II compatible devices were introduced, including the Dutch Spendex 40. In the US, the STU-II was replaced in the 1990s by the much smaller, far cheaper and more capable STU-III. For use by the Army and for NATO, it was replaced by a special version of the STU-III, known as STU-II/B.

The HYX-71A desktop unit of the STU-II (KY-71) STU-II desktop unit Close-up of the CLEAR and SECURE buttons Indicator LEDs Keypad Lifting the receiver Operating the PTT in the receiver
1 / 8

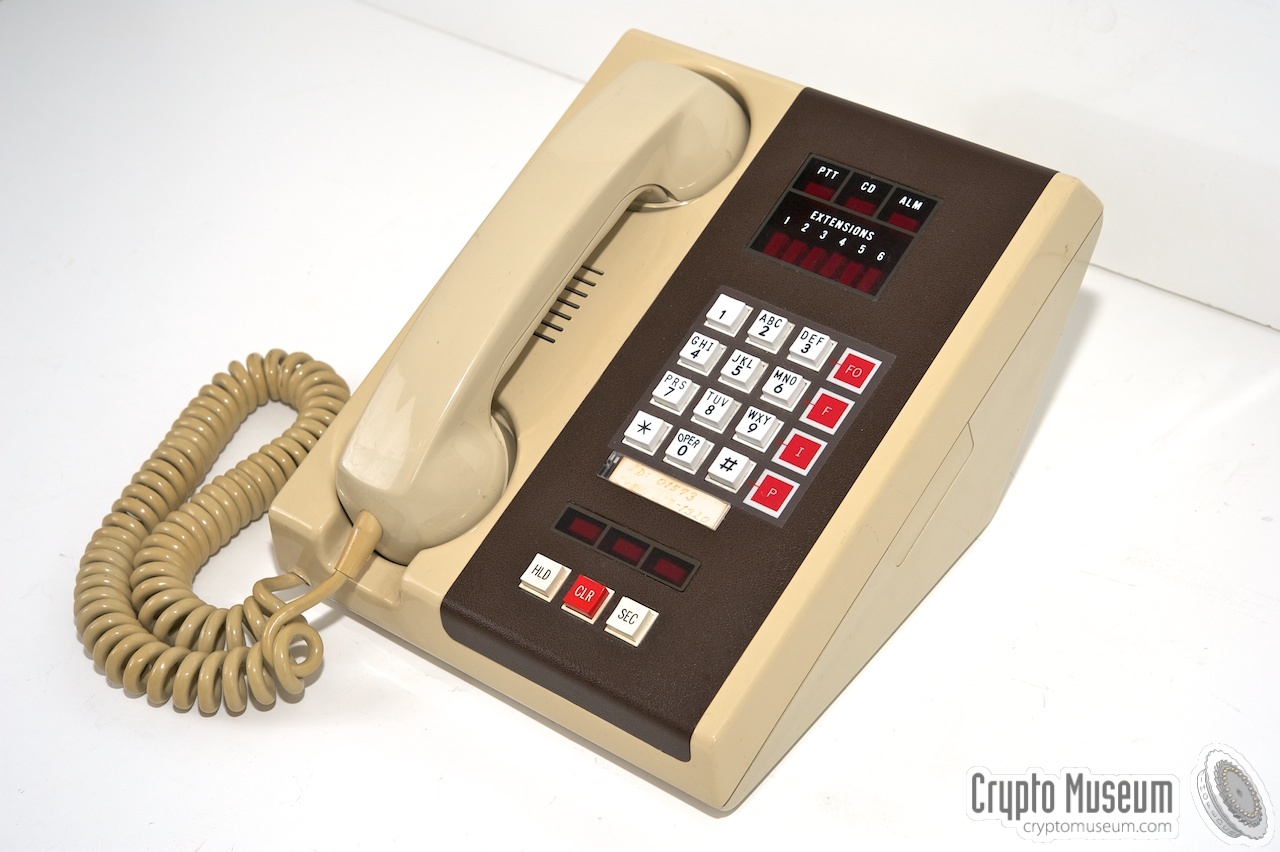

The HYX-71A desktop unit of the STU-II (KY-71)
2 / 8
STU-II desktop unit
3 / 8

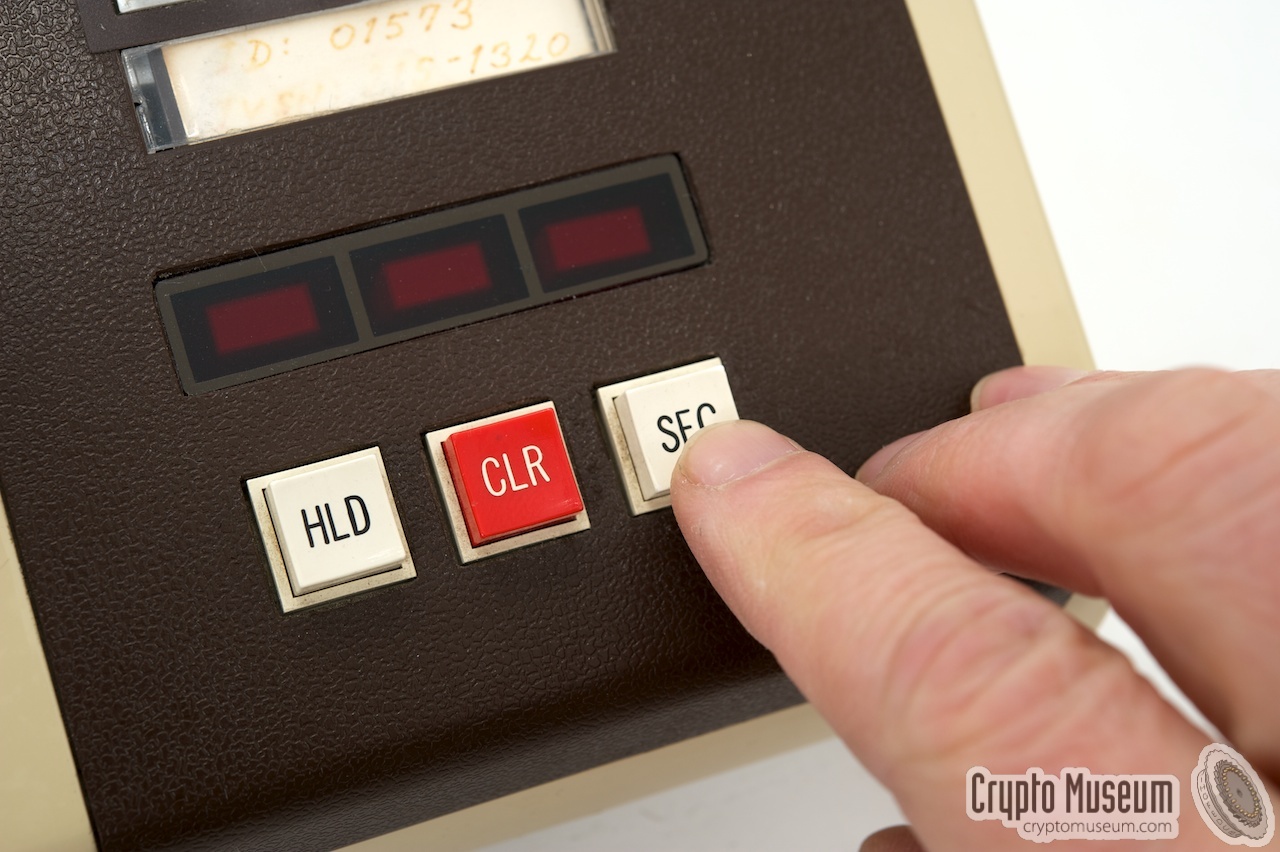

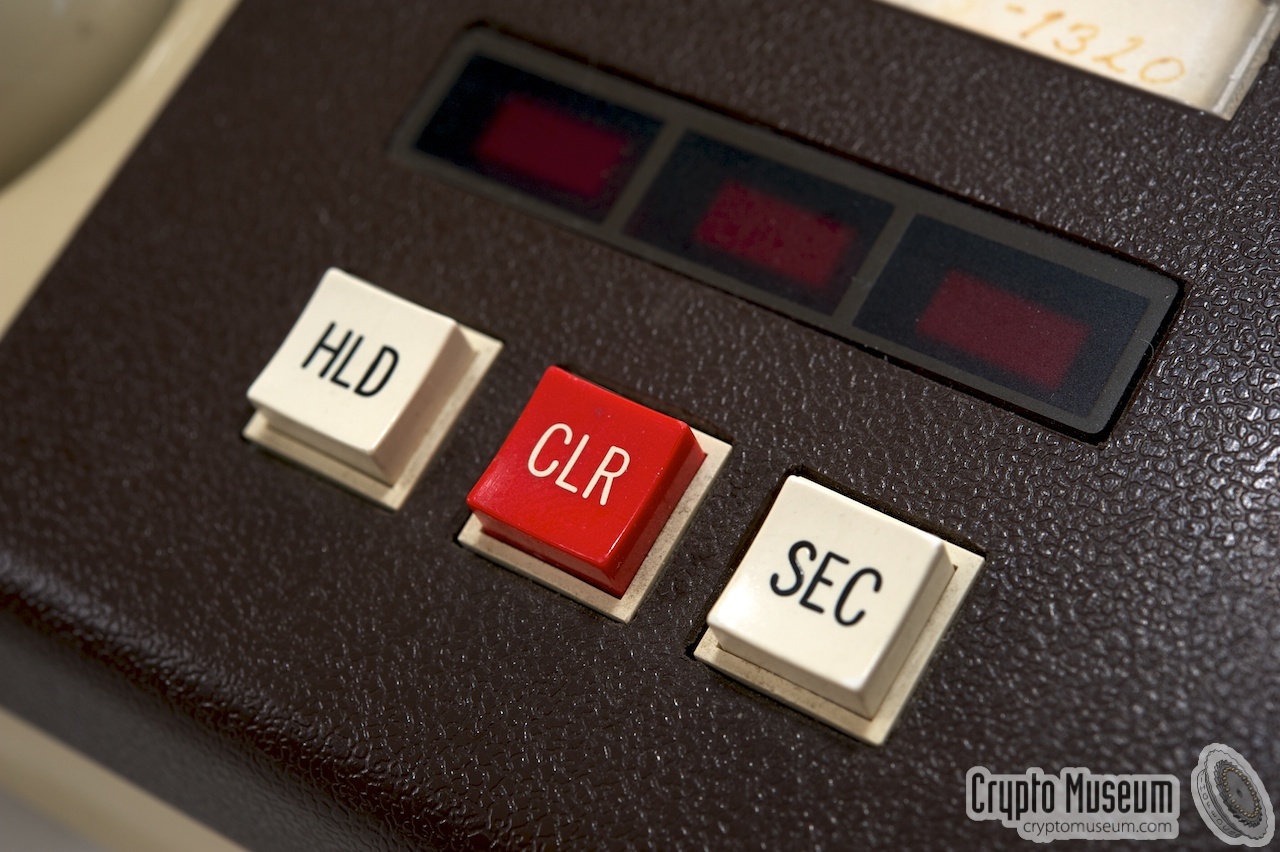

Close-up of the CLEAR and SECURE buttons
4 / 8

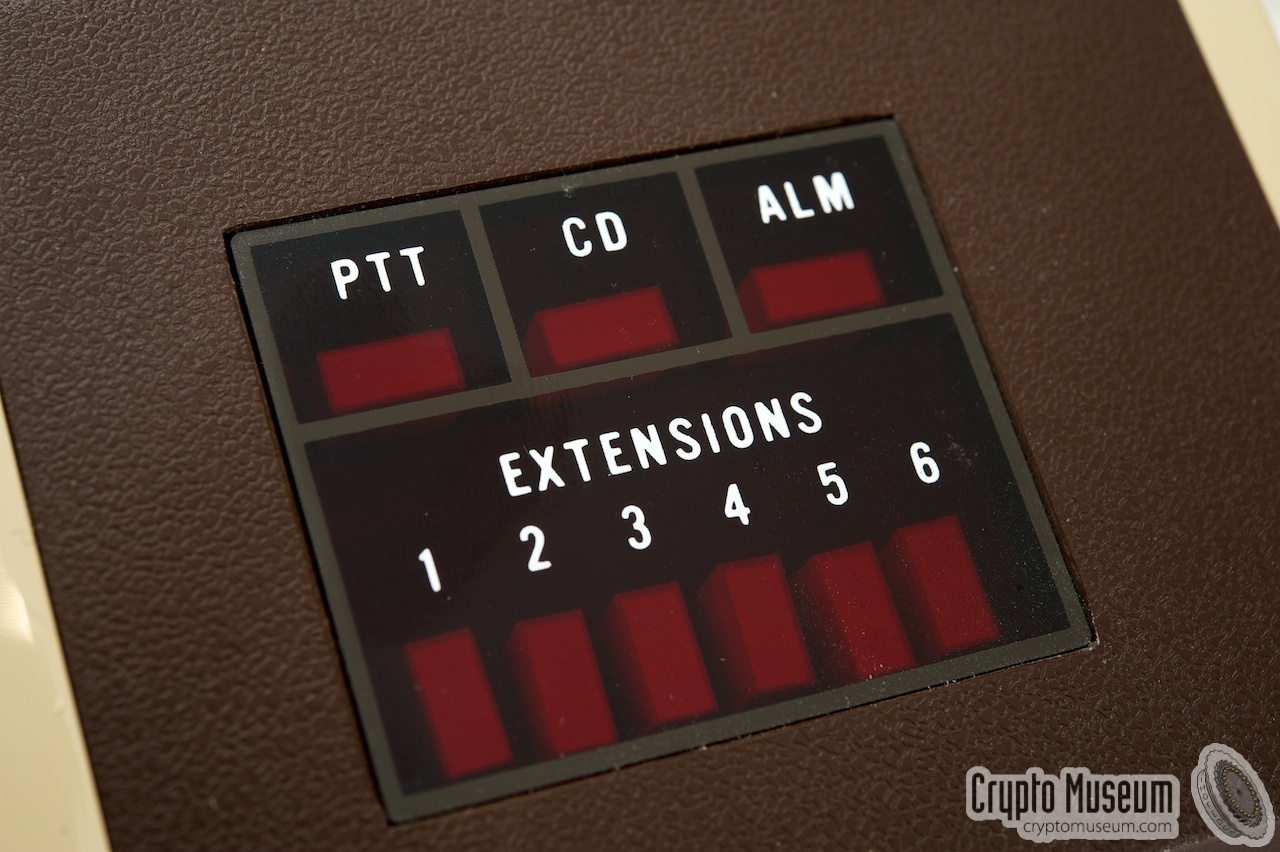

Indicator LEDs
5 / 8
5 / 8
6 / 8
7 / 8
Lifting the receiver
8 / 8
Operating the PTT in the receiver

Although the STU-II was much smaller than its predecessor, the STU-I, it was still too large to be placed on a desktop. For this reason, the unit was housed in a separate case (the KY-71), whilst special telephone sets were used to control it (the HYX-71). The drawing below shows the basic setup of the STU-II. The reason for the strange sloped design of the KY-71 case is unknown.

Basic STU-II setup

The sloped front panel of the KY-71 holds a control panel that is used for selecting the mode of operation and for loading the key variables. It also has a 2-digit 7-segment display that shows the current state of the device and a slot (at the bottom left) for the Crypto Ignition Key (CIK).

The control panel of the STU-II terminal (KY-71)

The right half of the control panel holds the 9-position MODE selector and the INITIATE button. The latter is used to initiate a KEY-loading operation or for selecting the appropriate key variable. During normal operation, the MODE-selector is either set to KDC or NET. In KCD mode, the unit relies on the presence of an external so-called Key Distribution Center that is called for activation of the keys. The KDC no longer exists today. At the far right are two slide-switches. The upper one is used to set the data transfer speed of the terminal at 2400 baud (24) or 9600 baud (96). The lower switch is used to select between Half-duplex (HDX) and Full-duplex (FDX).

Multiple extensions
By using an (optional) expansion unit, the so-called J-BOX or Junction Box, it was possible to connect up to five additional HYX-71 telephone sets to the KY-71. The J-BOX consisted of a rectangular metal case with 7 sub-D sockets (2 x 25-way and 5 x 15-way female sockets). It had no controls or indicators and was usually built inside a 19" rack, together with the KY-71.

The junction box of the KY-71 that allowed 5 additional telephone sets to be connected

The image above shows the layout of the connector panel of the KY-71 J-BOX. The 25-way socket at the left connects the J-BOX to the KY-71 terminal. The next five sockets are used for connecting the additional HYX-71 telephone sets. A complete multi-user setup looks like this:

Multi-user STU-II setup

The KY-71 can handle only one call at a time. Any incoming call is routed to the handset that is picked up first. When a handset is dialling out, the other handsets can not be used to place a call. In a multi-user setup, the KY-71 can be used as a mini-PABX and calls can be placed between the extensions by dialling their single-digit number. They can also be used for conference calls.

Crypto Ignition Key   CIK
The KY-71 introduces the concept of a so-called Crypto Ignition Key (CIK). The CIK-71 is a rectangular module that should be inserted into a special slot to the left of the control panel. It contains a small non-volatile memory unit that is used to store the Key Encryption Key (KEK).

The Crypto Ignition Key (CIK) of the STU-II

The image above shows an educated guess of what the STU-II CIK looked like. It had a metal enclosure with a connector at the bottom. The metal tag at the top contains the product ID (CIK-71) and the serial number. When loading key variables into the KY-71, the keys are encrypted with a so-called Key Encryption Key (KEK) that is randomly generated by the terminal. The KEK is then stored inside the CIK. This way, the KY-71 and the CIK are paired. When the CIK is removed, the key variables inside the KY-71 become meaningless. Likewise, a bare CIK is useless on any other KY-71 terminal and does not reveal any information about the actual keys.

Key loading
The KY-71 has a standard (5-pin or 6-pin) U-229 socket for the connecting of a key distribution device or key filler, such as the KOI-18 or the KYK-13. Each KY-71 can hold two key variables: a NET variable (VN), for keys that are shared between multiple parties, and a UNIQUE variable (VU).

Key variables for the STU-II were supplied on 8-level paper tape and read into the device with a KOI-18 or a similar device. The KOI-18 was connected to the FILL socket of the KY-71 by means of a short cable and the MODE selector on the KY-71 was set to LOAD. After pressing the INITIATE button, the tape was slowly pulled through the key filler at a constant speed.

It was also possible to use a KYK-13 key filler. In that case, the KOI-18 was used to load the key variables into the KYK-13 and the KYK-13 was then used to load the keys into the KY-71.
Using a KYK-13 to load keys into the STU-II [17]

The advantage of using a KYK-13 is that it can hold up to 6 different keys in its internal memory. The image above shows how the KYK was used to load keys into a KY-71 terminal [17]. The KYK-13 is mounted directly to the FILL socket of the KY-71. After selecting the required key variable compartment on the KYK-13, the INITIATE button of the KY-71 is pressed. During key loading, the ALARM light should briefly flash. Once the key is loaded, the display should show '01'.

A canister holding a punched paper tape with the key variables
1 / 1
A canister holding a punched paper tape with the key variables

In case of an imergency, the crypto variables that are stored inside the KY-71 should be purged immediately by executing the ZEROIZE procedure. This should also be done when the loaded keys are no longer needed. Zeroizing is a 2-step operation. Press the ZEROIZE knob and rotate it to the ZEROIZE position. Then turn the knob back to NORMAL in order to resume normal operation.

STU-II zeroize operation

The history of the STU-II starts with the development of the earlier and bigger STU-I device in the late 1960s and early 1970s, after the NSA had recognised telephone communication as one of the major security threats. Initially it was tried to solve this issue by setting up AUTOSEVOCOM, a secure version of the existing Defence Communication System (DCS), called AUTOVON. This system appeared to be too expensive and too cumbersome and was abandoned in the late 1960s, after some 1850 terminals had been installed [2].

Problems with existing systems had shown that speech quality was too bad on narrowband systems, and that it was difficult to distribute cryptographic key material to the users. As a result, many users were still using standard (plaintext) telephones. In the late 1960s, the NSA defined the design goals for a digital Secure Telephone Unit (STU) that would solve the existing problems. The problem of voice quality was solved by using a revolutionary technique called Linear Predictive Coding (LPC), which greatly improved voice quality in narrowband systems. The key distribution problem was solved by introducing the concept of the Key Distribution Center (KDC).

In the light of the Vietnam War, GCHQ and the NSA had developed a highly secure light-weight high-quality encryption algorithm, known as SAVILLE, for use in COMSEC devices such as VINSON KY-57 and KY-58. The same SAVILLE encryption algorithm was used in STU family [4].

The first generation of the new system was called STU-I and was technically successful in that it allowed secure voice communication in full-duplex over standard (analogue) telephone lines, with a relatively good speech quality. Other design goals, such as the size of the unit and the price tag, had failed. So immediately after the introduction of the STU-I, the NSA started development of the 2nd generation, known as STU-II, which should be much smaller and more affordable.

Development of the STU-II took from 1977 to 1980, and the units were in production from 1982 to 1986 [3]. By 1986, some 10,000 units had been delivered to a range of (approved) users world-wide. At US$ 13,000 per unit, the STU-II was much cheaper than its predecessor the STU-I (at US$ 35,000 per unit), but still way above the initial target price of US$ 5000.

Although the STU-II was about half the size of the STU-I, it still wouldn't fit on a desktop and was commonly installed in large cabinet similar to the one used with the STU-I. The image on the right shows a photograph [9] of an STU-II unit that is on display at the NCM [10]. It is currently unknown whether any complete STU-II units (apart from the handset) have survived.
Photograph by Austin Mills [9], taken from a photograph at the NCM [10]. Via Wikipedia.

The STU-II was in operation during the Reagan Administration (1981-1989) [12] and was used on several occasions (see below). Being keen on secure communications, President Reagan strongly supported the wide-spread use the STU-II, and in 1982 Deputy Secretary of Defense Frank Carlucci, decided to buy 5,000 STU-II sets and allocated US$ 120 million for the program [13].

In 1982, at an evaluation meeting at the DoD/DARPA [7], Joel Feldman of MIT Lincoln Laboratory demonstrated a single board LPC coder that was built around three NEC µPD7720 first-generation DSP chips. Around the same time, Philips Usfa in the Netherlands, introduced the STU-II compatible Spendex 40 unit, that had a nearly identical implementation of the LPC vocoder. This proved that it was possible to implement the entire STU-II system as a desktop unit, and convinced the director of the NSA to initiate the development of the STU-III [3].

Instructional videos
From an anonymous contributor we received the following two instructional videos about the use of the STU-II [16][17]. The videos were issued in the late 1970s and were intended For Official Use Only. We have tried to identify the original copyright holder of these videos, but since they are not mentioned in the recording, nor on the original video tape, we have not been able to seek approval. As the material is now over 30 years old and the equipment is no longer in use, we have decided to publish them anyway. Anyone claiming copyright is requested to contact us directly.

The above video is titled 'Using your STU-II' [16] and contains a brief introduction in the various components of the STU-II and its use. It shows how to enter the Crypto Ignition Key (CIK), how to place a call in initial clear or initial secure mode, and how to connect multiple telephone sets.

For the more technically minded, the above video, titled 'STU-II rekeying' [17] shows how keys were entered into the KY-71 by means of KOI-18 or KYK-13 key fill device. It also shows how the keys, distributed on punched paper tape, could be transferred from a KOI-18 to a KYK-13.

President Ronald Reagan
Whenever an American president is travelling or is on holidays, he needs to be able to speak with his advisors and staff at the White House and the Pentagon within seconds whenever emergency strikes. A the time of the STU-II, it would be installed in a room in the vicinity of the president.

Invasion of Grenada
In 1983, the Caribbean Island of Grenada with its 91,000 population, lost its revolutionary government to a bloody military coup. Grenada is a former UK colony that became independent in 1974. As it is located south of the United States (and east of Cuba), the Organization of American States (OAS) asked the US to intervene. The US started planning Operation Urgent Fury on 22 October 1983 and started the invasion of Grenada just a few days later on 25 October 1983 [14].

Ronald Reagan at the Eisenhower Cabin at the Augusta National Golf Course in Georgia (US). Copyright Reagan Library [13].

Around the time of the coup, US President Ronald Reagan was staying at the Augusta National Golf Course in Georgia (US). As the invasion would take place less than three days later, it was important to have secure conversations with the Pentagon. The image above shows former US President Ronald Reagan at the Eisenhower Cabin at the Augusta National Golf Course where, late in the evening of 22 October 1983, he uses a STU-II. Please note that the telephone set on the table aside him is just the terminal; the actual STU-II itself is located in the adjacent room [15].

Ronald Reagan at the Eisenhower Cabin at the Augusta National Golf Course in Georgia (US). Copyright Corbis [13].

The image above is taken around the same time as the previous one. It shows National Security Advisor Bud McFairlane (left), Secretary of State George Schultz (center) and President Ronald Reagan (right) in the Eisenhower Cabin at the Augusta National Golf Course in Georgia (US) on the evening of 22 October 1983. The STU-II is still visible on the table at the right of the image [13].

Compatible telephones
Spendex 40
Shortly after the development of the STU-II had been completed (1980), Dutch Defense contractor Philips Usfa started development of a STU-II compatible crypto phone that would fit on a desktop whilst meeting the (TEMPEST) requirements of the Department of Defence (DoD) and NATO.

The new unit was called Spendex 40 and was introduced around 1983, shortly after the STU-II had gone into production. Although relatively large and heavy, the Spendex 40 was much smaller than the STU-II and was a truely portable device. It is shown in the image on the right.

Spendex 40 was available in a 2-wire and 4-wire version, and introduced the concept of the CIK (Crypto Ignition Key), a large blob connected at the front, that was used to protect the crypto keys stored inside the device. Keys were loaded by means of a standard fill device (e.g. KYK-13).
Click here for more information about the Philips Spendex 40

By special arrangement with the NSA, Philips was one of the first companies to be allowed to implement the highly secret SAVILLE algorithm in their own custom-designed crypto chip, the OQ4430. This enabled Philips to sell the Spendex 40 to the Dutch Government and to NATO.

Philips had managed to implement a much smaller version of the LPC-10 vocoder, by building it around three NEC µPD7720 first-generation DSP chips, nearly identical to the LPC implementation of MIT Lincoln Laboratory that was demonstrated to the director of the NSA on 3 June 1982 [7]. According to eye-witnesses at Philips Usfa in the early 1980s, visiting NSA inspectors were very suprised by the higher speech quality and the much smaller size, compared to the STU-II [8].

 More about the Spendex 40

Elcrovox 1/4
In the light of a bi-lateral agreement between the USA and NATO, some European countries were allowed to develop their own STU-II compatible devices. Following the Philips Spendex 40 in the early 1980s, Siemens developed the Elcrovox 1/4 in the late 1980s.

The initial version implemented SAVILLE in firmware, but was turned down by the NSA who insisted on a hardware implementation. Siemens then developed a dedicated SAVILLE chip.

 More about the Elcrovox 1/4

Elcrovox 1-4D with CTI#1

Shortly after development of the STU-II was finished (1980), Joel Feldman demonstrated a single-board implementation of the LPC vocoder at a DoD/DARPA meeting on 3 June 1982 [7]. The new vocoder was based around three NEC µPD7720 first-generation DSP chips and was developed at the Lincoln Laboratory at MIT. It proved that a much smaller implementation of the LPC vocoder was possible and that DSP-technology offered improved speech quality at the same time.

Around the same time, engineers at Philips Usfa (Netherlands) had already implemented a nearly identical LPC vocoder in the STU-II compatible Spendex 40 (see above) which was much smaller and had improved speech quality as well [8].

These experiences proved that is was possible to create a single-unit STU device that would fit on a desktop. In 1984 development was started of the next generation STU-III devices that would be even smaller. Production of the STU-III started in 1987 and lasted well into the 2000s. Most units were built by Motorola (e.g. SECTEL).
Click here for more information about the STU-II/B

In the early 1990s, the NSA introduced the STU-II/B. It was built by Motorola and was intended to replace all STU-II compatible devices, including the STU-II itself and the Philips Spendex 40. The design was based on the new STU-III hardware, but for historical reasons the designator STU-II/B was used for the Army. This was probably done to allow a smooth transition from the original STU-II. The most significant difference with the STU-III, was the presence of a standard U-229 socket at the rear of the device, allowing a key filler, such as the KYK-13, to be connected.

 More about the STU-II/B

Compared to a standard DTMF telephone set, the STU-I terminal has an extra row of keys to the right of the usual keys. These keys were provided for compatibility with the AUTOVON (and later: IVSN) non-secure telephone network used world-wide by the Department of Defence (DoD) [11].

AUTOVON (Automatic Voice Network) was a military phone system that was designed in the US in 1963 to survive nuclear attacks. It allowed non-secure voice calls with precedence (piority override). In the late 1960s, the DoD started the roll-out of a secure version of AUTOVON, called AUTOSEVOCOM, but this project was cancelled a few years later due to problems and high cost.

The STU-I allowed secure calls over the non-secure AUTOVON network. Later crypto phones, like the STU-II, the STU-II/B and the Spendex-40, featured the same AUTOVON compatibility.
DNS handset for IVSN

IVSN was the Initial Voice Switched Network developed by NATO in the mid-1970s for unclassified voice calls. It was designed to replace the cumersome and expensive AUTOSEVOCOM network. Starting with 4 switches in Europe in 1980, the system grew to 24 switches at the peak of its use in the mid-1980s. The blue telephone set shown above was used with this network. When IVSN was officially closed down on 30 November 2005 it still consisted of 18 switches, some of which were still in use in 2011 [11]. IVSN had four levels of priority override:

  • FO
    Flash override
  • F
  • I
  • P

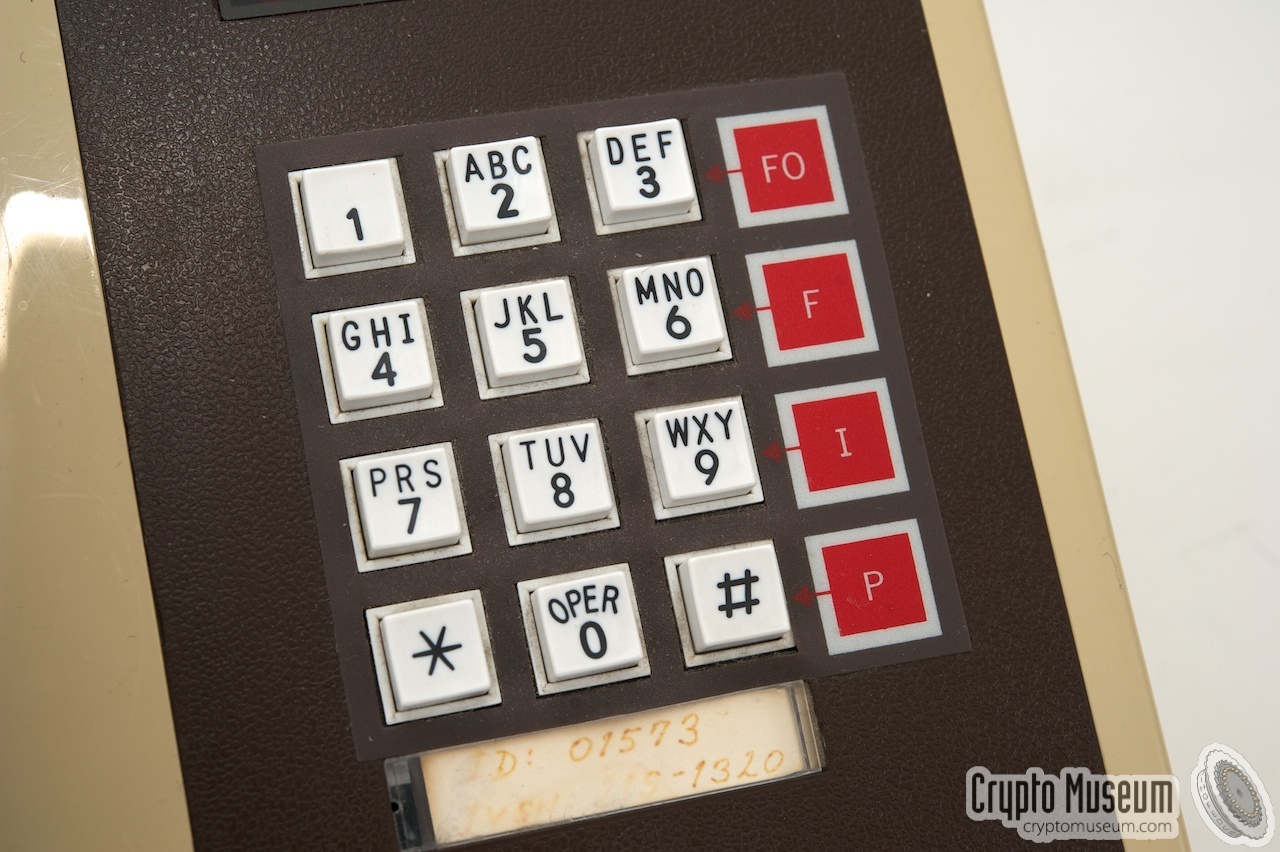

The four extra keys generate DTMF-signals in the rarely used 1633Hz column. On some later keyboards, these keys are sometimes called A, B, C and D. After a nuclear attack, it would be very difficult for government officials to obtain a free telephone line, as nearly everyone would try to make a phone call. By pressing the letter P, the user would signal the switch to appoint a free line by priority. Higher ranking officials were allowed to press I (Immediate) to get a higher priority.

Military users were allowed to press F (Flash) in order to get a free line nearly instantly. It was thought that only the president and his circle were allowed to use FO (Flash Override) to give them the highest possible priority. Note that not all levels of priority were available to each subscriber; it had to be assigned to specific nodes first.

 More about AUTOVON

DNS handset for IVSN DNS handset for IVSN Handset off-hook Calling indicator light Push-To-Talk switch (PTT) Using the PTT in half-duplex mode Keypad Bottom view
1 / 8
DNS handset for IVSN
2 / 8
DNS handset for IVSN
3 / 8
Handset off-hook
4 / 8
Calling indicator light
5 / 8
Push-To-Talk switch (PTT)
6 / 8
Using the PTT in half-duplex mode
7 / 8
8 / 8
Bottom view

  • KY-71
    Main STU-II terminal
  • HYX-71
    STU-II telephone set
  • CIK-71
    Crypto Ignition Key
  • J-BOX
    Optional connection box for additional telephone sets
