Kama   T-47/50
Body wearable covert radio - under construction

The T-47/50, codenamed KAMA 1 , was a solid-state battery powered body wearable covert transceiver developed in the USSR around 1968. The radio was intended for use by the intelligence services of the USSR, such as the KGB, and was used for surveillance operations.

KAMA consists of a so-called body pack (main unit), a detachable remote control unit (RCU) and various accessories. The body of the KAMA radio is somewhat curved, so that it can easily be hidden under the operator's clothing, where it was usually carried in some kind of harness.

The physical appearance of the radio greatly resembles that of the Sinitsa radio direction finder that was built in the same era. In fact it even shares some of its accessories, such as the speaker and the vibrator.

KAMA covert radio

  1. KAMA is a river in west-central Russia, rising west of the Ural Mountains and flowing about 2030 km to the Volga River, of which it is the largest tributary.

KAMA covert radio

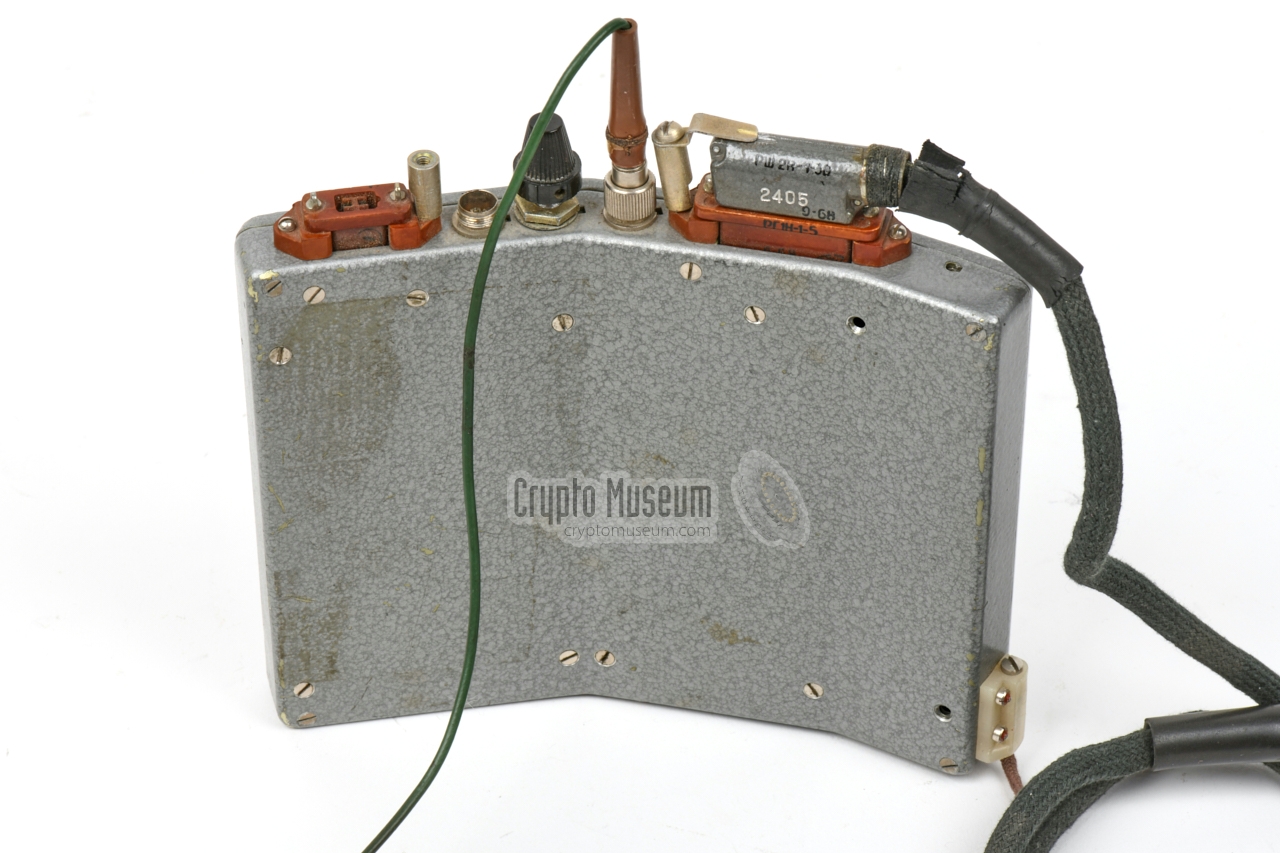

Curved shape for concealment on the body
A
×
A
1 / 2
KAMA covert radio
A
2 / 2
Curved shape for concealment on the body

Parts
KAMA transceiver
Remote Control Unit (RCU)
Concealable microphone
Concealable loudspeaker
Concealable vibrator
Cloth harness for carrying Kama on the body
Transceiver
...

Remote Control Unit   RCU
KAMA is equipped with a remote control unit (RCU that is similar to other covert transceivers, such as NEVA. The RCU is removable, so that its cable can be guided through the sleeve of the operator's coat more easily.

Microphone
...

Speaker
...

Vibrator
...

Harness
...

B
×
B
1 / 1
1 / 1

Specifications
  • Design
    USSR, Russia
  • Year
    1968
  • User
    KGB
  • Purpose
    Surveillance, observations
  • Frequency
    148 - 150 MHz (?)
  • Modulation
    FM
  • Channels
    1 or 2 (depending on model)
  • Power
    External battery pack
Accessories
  • K47/50 transceiver (main unit)
  • Remote Control Unit (RCU)
  • Vibrator
  • Microphone
  • Speaker
  • Body harness or carrying pocket
Wanted
At present, no further information about this covert radio is available, as we do not have one in our collection yet. If you are able to offer one, or if you can provide additional information about this device, please contact us.

References
  1. USSR Special Forces Intelligence Secret Radios, T47/50 KAMA
    Website. Retrieved July 2016.

  2. Louis Meulstee, Kama
    Wireless for the Warrior, Volume 4, Supplement, Chapter 182.
