TAIYO TD-L1706
Radio direction finder

The TD-L1706 is a mobile radio direction finder (RDF), developed in the late-1980s by Taiyo Musen in Japan. The unit was intended for mobile (vehicle) direction finding and was used by various European Radio Monitoring Services 1 for locating clandestine radio transmitters (pirates).

The system consists of three parts: a processing unit – that was usually mounted in the trunk of the car – a compass display, and a flat antenna that could be mounted on (or in) the roof of the car. The device supports two types of antennas: an adcock antenna and a smaller flat antenna.

The latter was commonly used for mobile RDF applications and is known as EF-353. It exists in four variants, each of which covers a section of the entire 20-1000 MHz frequency span. In the Netherlands it was disguised as the sunroof of the car, for which it was modified somewhat.

TD-L1706 direction finder

The antenna could be used outside its frequency range, at the price of a performance penalty. In the Netherlands, the TD-L1706 was first used in the late 1980s with the PAN-1000 mobile intercept receiver. In the mid-1990s, when the PAN-1000 was succeeded by the new PAN-2000 system, the TAIYO TD-L1706 was reused. Although the TF-L1706 units have meanwhile been phased out, its EF-353 antenna is still in use today (2018) with the latest generation PAN-3000.

  1. It is known that the TD-L1706 was used by the Radio Monitoring Services of the UK and the Netherlands.

TD-L1706 direction finder Front panel Power socket Disabled IF input socket TAIYO compass display EF-353 antenna - top view Modified power socket
A
×
A
1 / 7
TD-L1706 direction finder
A
2 / 7

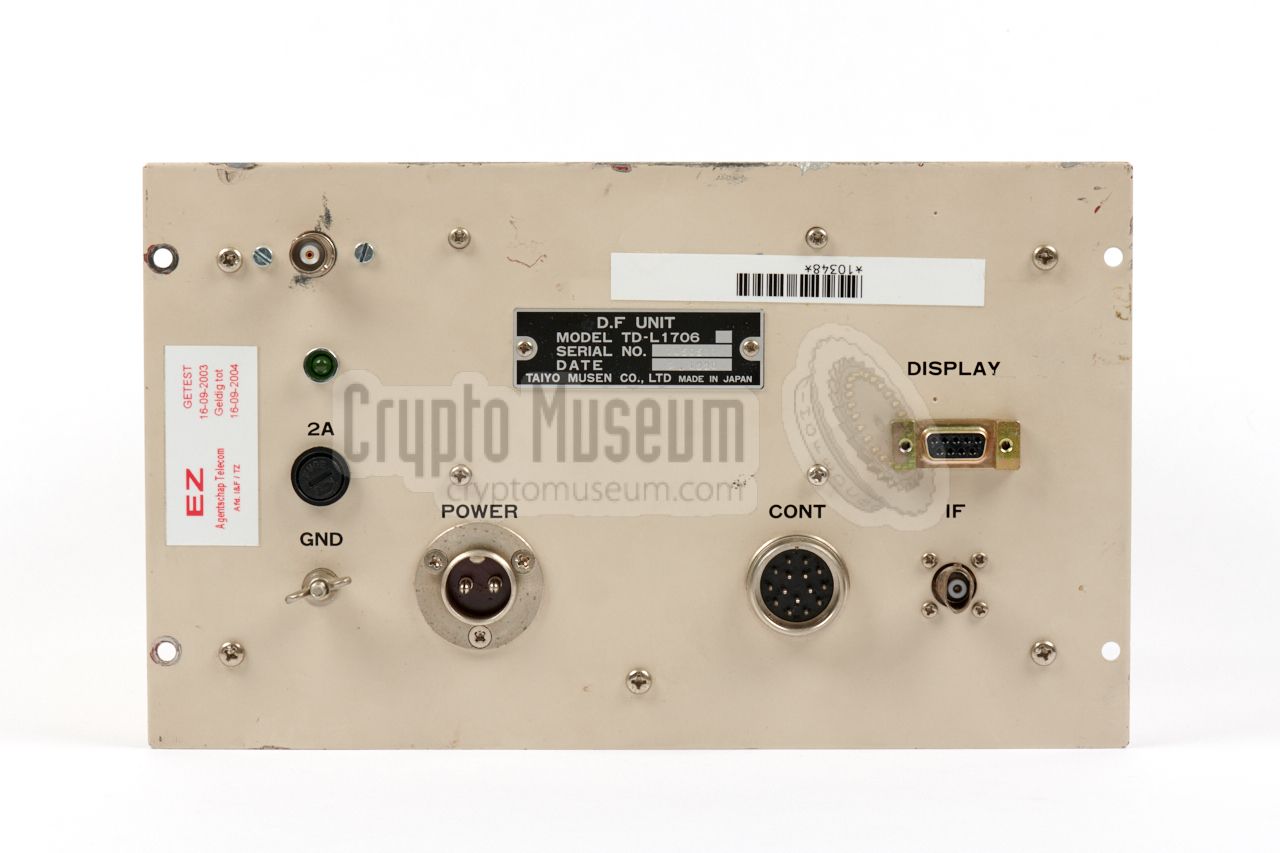

Front panel
A
3 / 7
Power socket
A
4 / 7

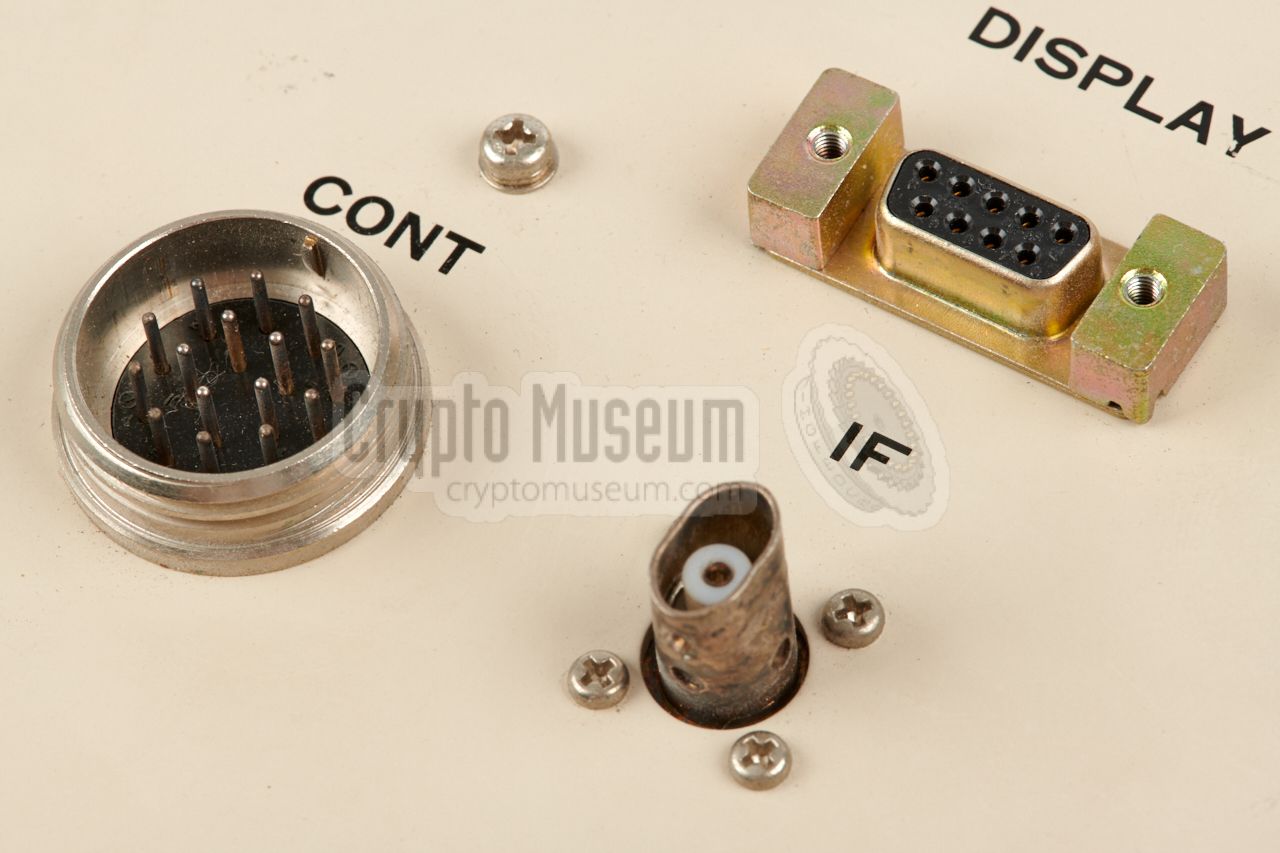

Disabled IF input socket
A
5 / 7
TAIYO compass display
A
6 / 7
EF-353 antenna - top view
A
7 / 7

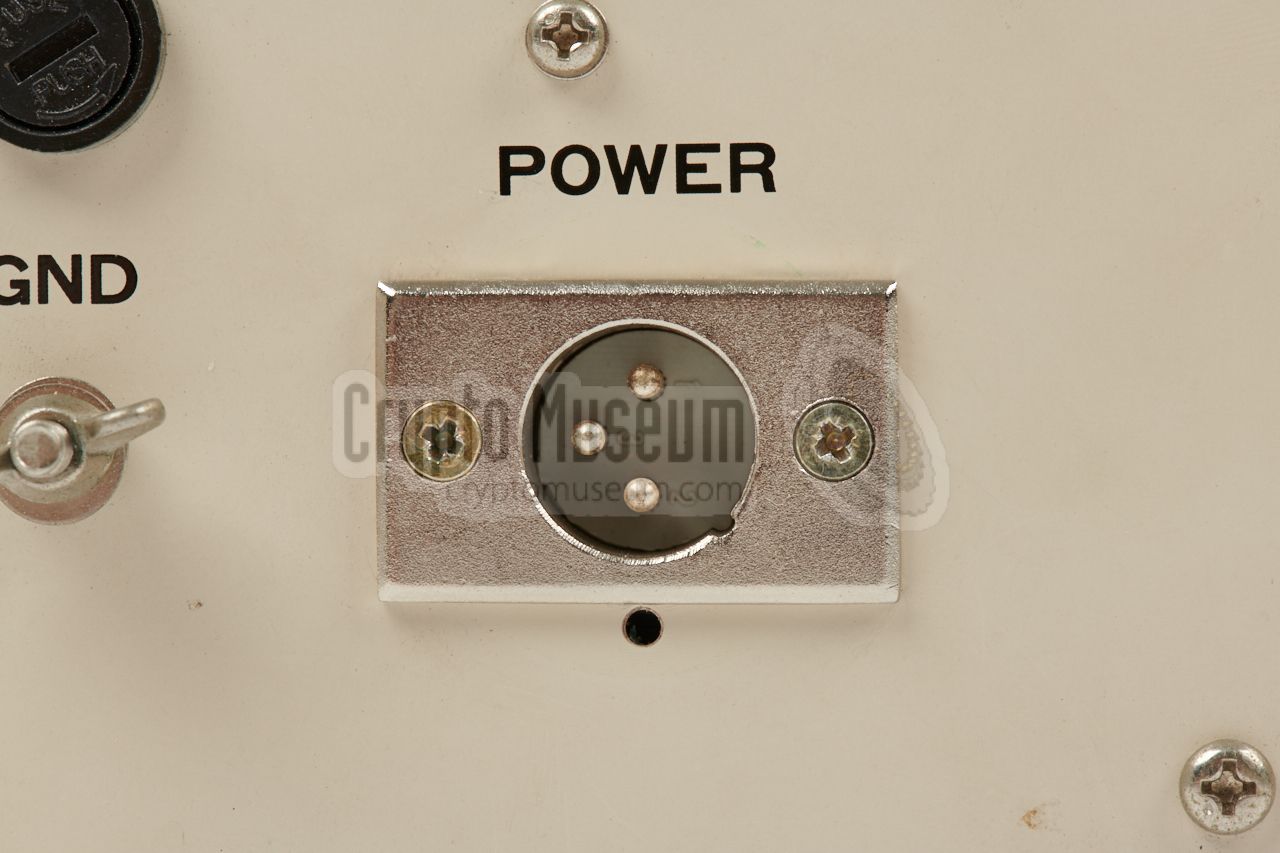

Modified power socket

Setup
The diagram below shows the basic setup of the TD-1706 direction finder. At the top left is the directional antenna, which contains four directive elements that are switched in quick rotational order by the switcher. The output of the switcher is amplified and passed to an external receiver, which is not part of the system. Switcher and pre-amplifier are both integrated with the antenna.


At the bottom is the main unit, or controller. It controls the speed and the order in which the antennas are switched. Furthermore, it takes the bare 10.7 MHz or 455 kHz IF output from the receiver and converts it to the angle of incidence of the signal, based on amplitude variations between the four antennas. The calculated angle is then passed to the compass display.


Use in the Netherlands
The TAIYO TD-L1706 was developed primarily for use aboard ships, for finding the direction to a beacon and for locating fish. It was soon discovered however, that the device was also suitable for locating (clandestine) transmitters on land, not least because of its very compact antenna.

In the Netherlands, the Radio Monitoring Service — then known as RCD — first started using the TD-L1706 in the late 1980s, in combination with their custom-built PAN-1000 intercept receivers.

The PAN-1000 had been developed by the Dutch Radar Laboratory (NRP) and it was planned that the NRP would also develop a direction finder for it. When this turned out to be more difficult than expected, the TAIYO TD-L1706 was found to be a more than adequate alternative for mobile use.

 More about the PAN-1000

Complete PAN-1000 set

The TD-L1706 and its antenna appeared to behave very well in an urban environment and it was found that the antenna could be integrated in the roof of the car, disguised as a sunroof.

In fact, it behaved so well, that it was reused in the mid-1990s with the successor of the PAN-1000. The image on the right shows the new PAN-2000 with replaced the PAN-1000. It was used from the mid-1990s to approx. 2007. The TD-L1706 and its display are at the far right.

 More about the PAN-2000

Complete PAN-2000 intercept system

Hiding the antenna in the sunroof of the car was not easy. First of all the antenna was slightly bigger than the opening of the sunroof, so that part of the metal flange had to be milled-off. This later became a standard factory-modification. Furthermore, it is extremely important for a good operation of the antenna, that it has sufficient grounding, and that there are no discontinuities in its vicinity that can act as a parasitic antenna. Such parasites will seriously affect the accuracy.

Although the TD-L1706 has meanwhile been phased-out at the Dutch Radio Monitoring Service, its EF-353 antenna is still in use today (2018) with their PAN-3000. For this reason, the EF-353 antennas have not yet ended up on the surplus market, like the PAN-1000 and PAN-2000 have.


Main unit
Central to the TD-L1706 system is the main unit or controller. It measures approx. 25 × 22 × 14.5 cm, with the front panel sticking out in all directions. It does not have any direct controls. All connections are on one side of the unit, as shown in the image below. At the Radio Monitoring Service, this unit was usually mounted in the trunk of the vehicle, close to the external receiver.

The unit is powered by 12V DC, which should be applied to the 2-pin socket (1) at the left. The connectors for this socket are now obsolete and will be very difficult to find. In our case, it was replaced by a regular 3-pin male XLR socket that is wired according to the regular conventions.

The directional antenna should be connected to the large 15-pin HIROSE connector at the right (2). Suitable plugs for this socket are obsolete now, but might be available from surplus stock. The compass display should be wired 1:1 to the 9-pin female (DB9/F) socket at the top right (3).


At the bottom right is a BNC socket for the input of the 10.7 MHz IF signal from the receiver (4). As the wiring of this socket appeared to be picking up interference from the digital parts of the unit, the Dutch RCD removed the wiring to this socket and added a new socket at the top left (5), close to the actual IF amplifier board. They also added an additional filter to the IF input and changed the values of some components on the IF amplifier board to improve its behaviour.


Compass display
The angle of incidence of the intercepted signal, as calculated by the main unit (shown above), is visible on the compass display shown in the image on the right. The unit measures 125 x 110 x 50 mm and can be mounted at a convient place on the dashboard of the car, close to the driver.

The compass has a 3-digit red LED display at the center, and a circle with 72 red LEDs around it. When the angle is calculated, the exact angle is shown on the 3-digit display. Furthermore, the LED in the circle that corresponds to the exact angle, will be lit, so that the driver has a quick indication of the appropriate driving direction.

The compass display shown here, has been modified so that the 3-digit display the center can be turned off when it attracts too much attention or when it is not stable. For this reason, a switch has been added at the left side.

TAIYO compass display

The display is connected to the DB9/F socket marked DISPLAY at the front panel of the main unit, via a long cable. If this cable is too long, it might affect the stability of the display, in which case the filtering components (mounted behind the DB9/F socket on the main unit) may have to be altered. The wiring of this cable is available below, and consists of address and data lines.

TAIYO compass display Rear view Front side Rear side Close-up of compass display 11-pin socket at the rear Switch for turning off degree display (modification) Cable connected at the rear
B
×
B
1 / 8
TAIYO compass display
B
2 / 8

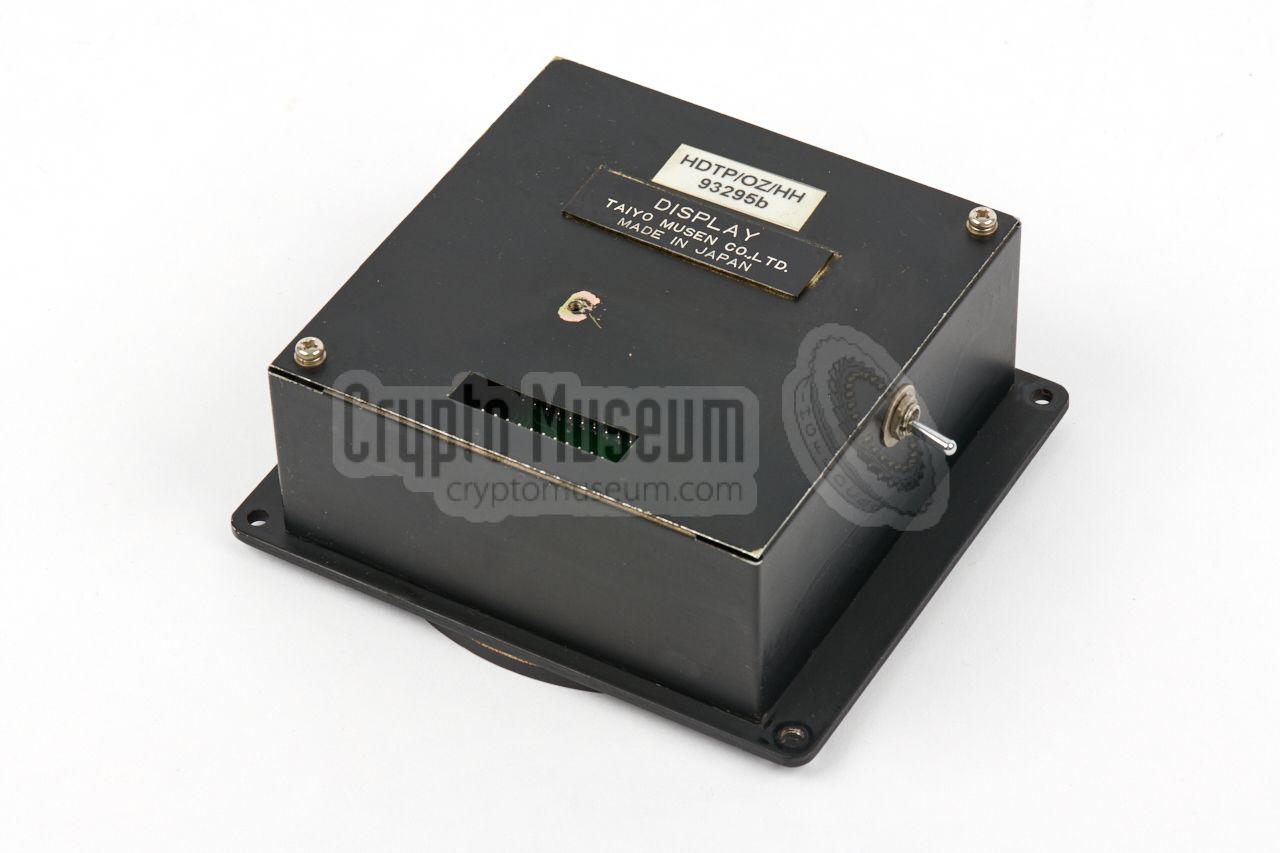

Rear view
B
3 / 8

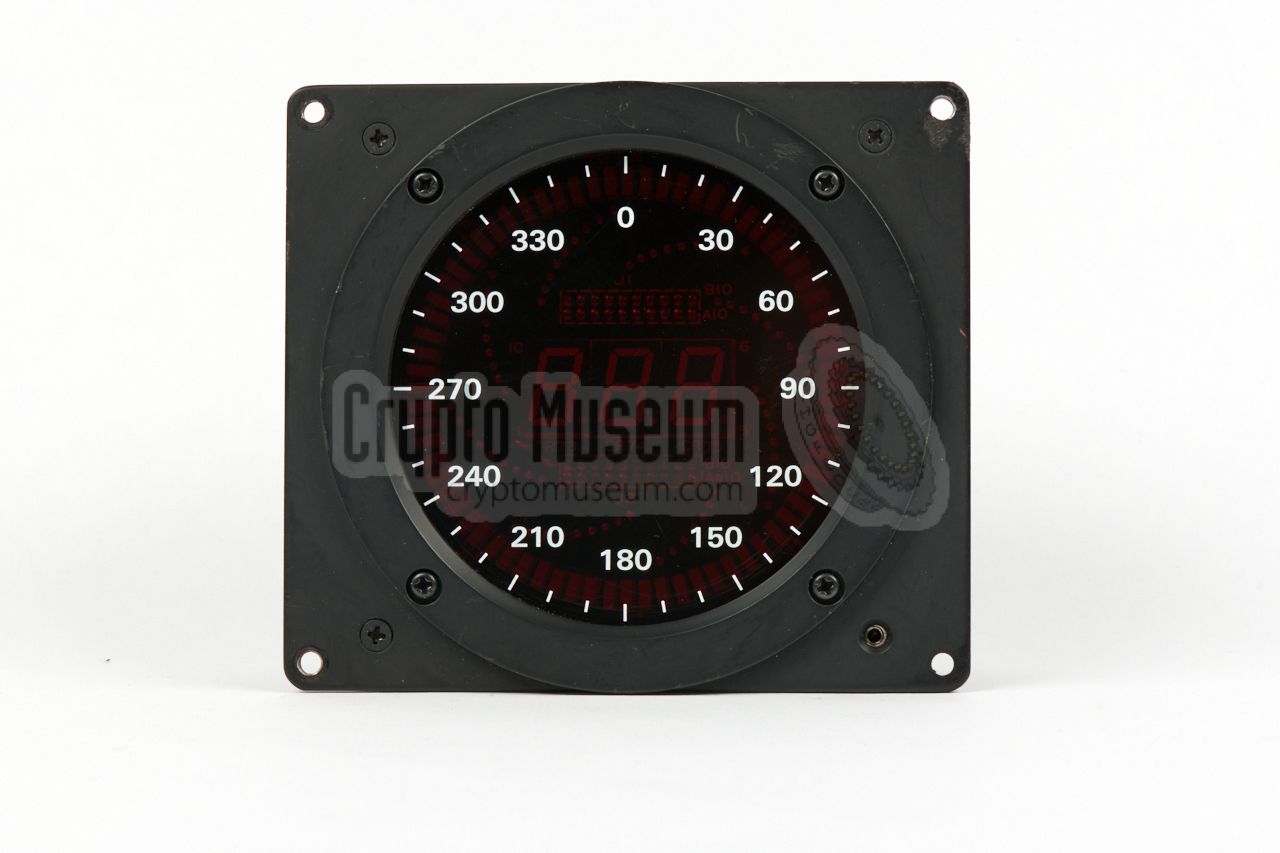

Front side
B
4 / 8

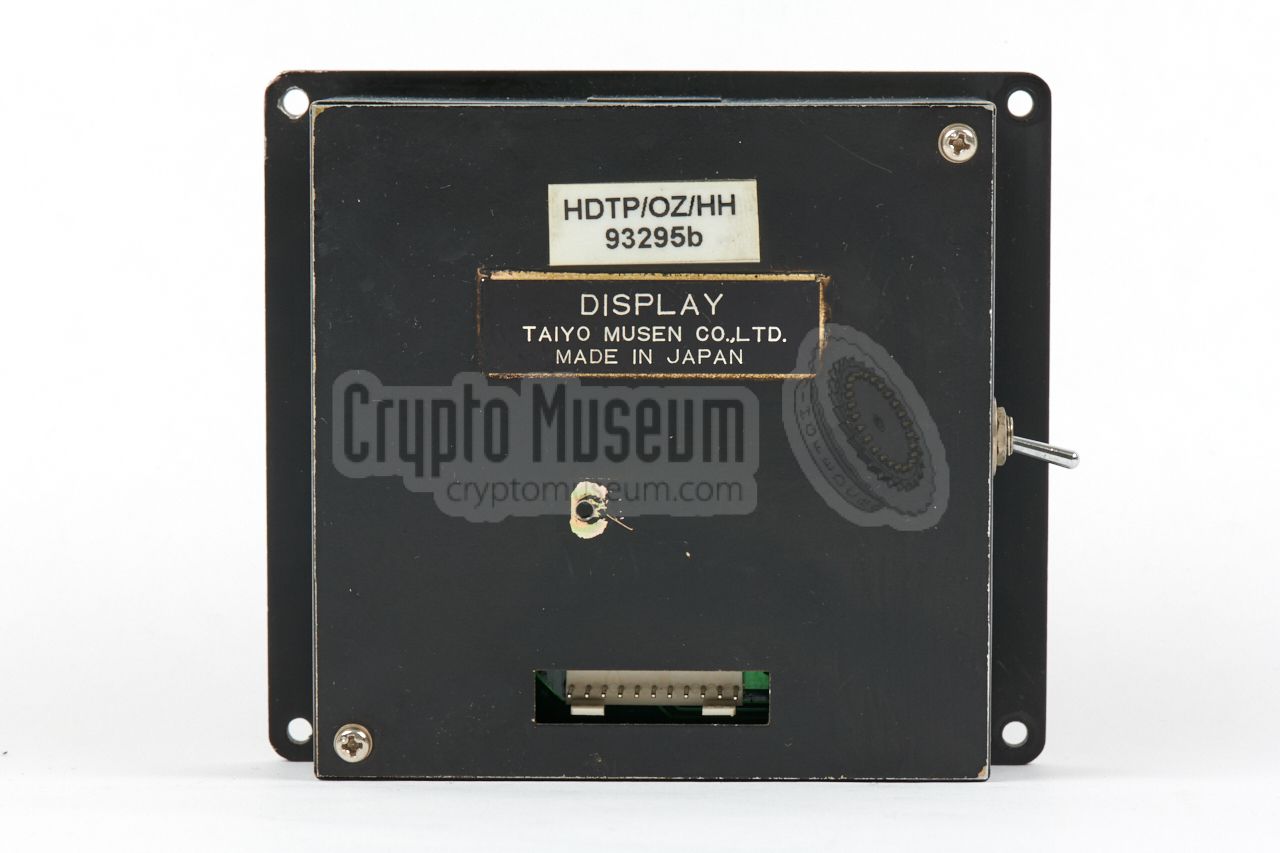

Rear side
B
5 / 8

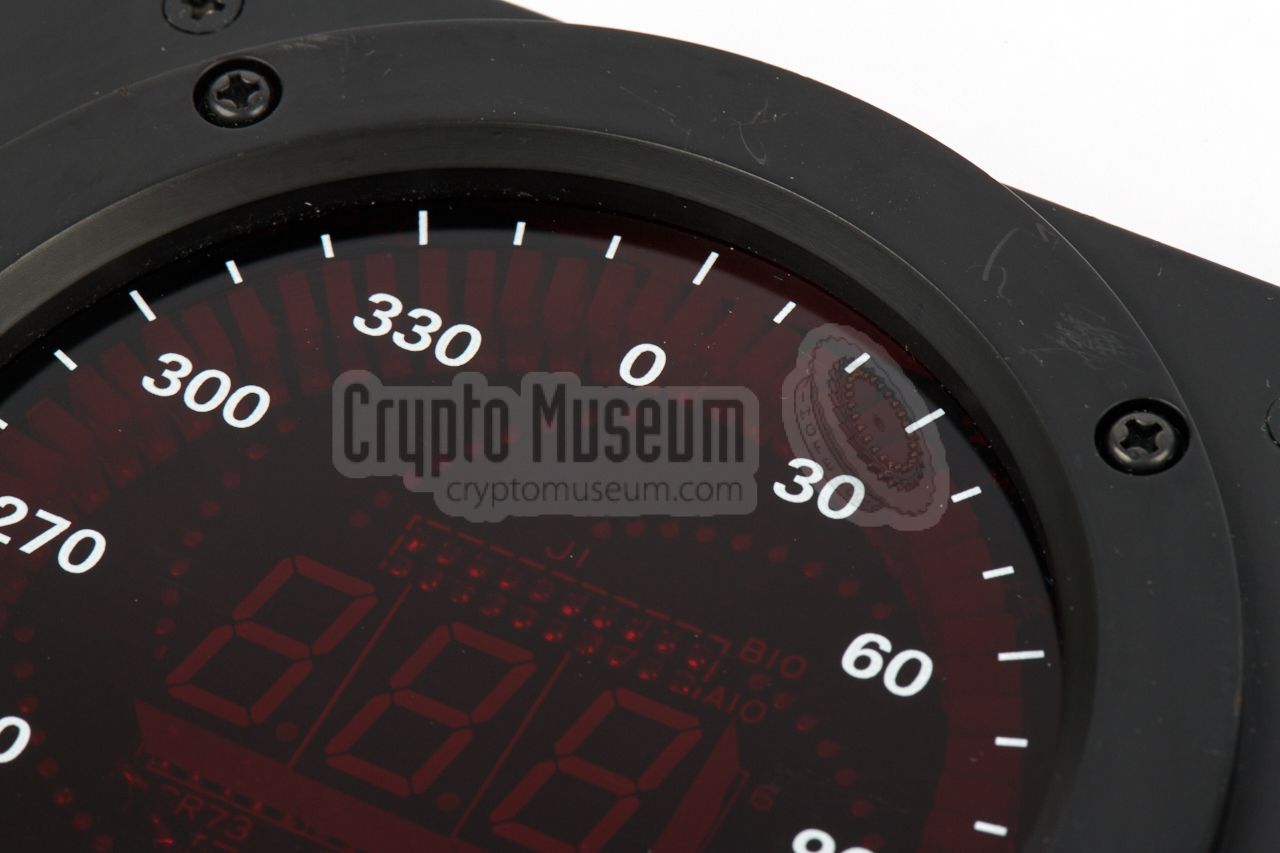

Close-up of compass display
B
6 / 8

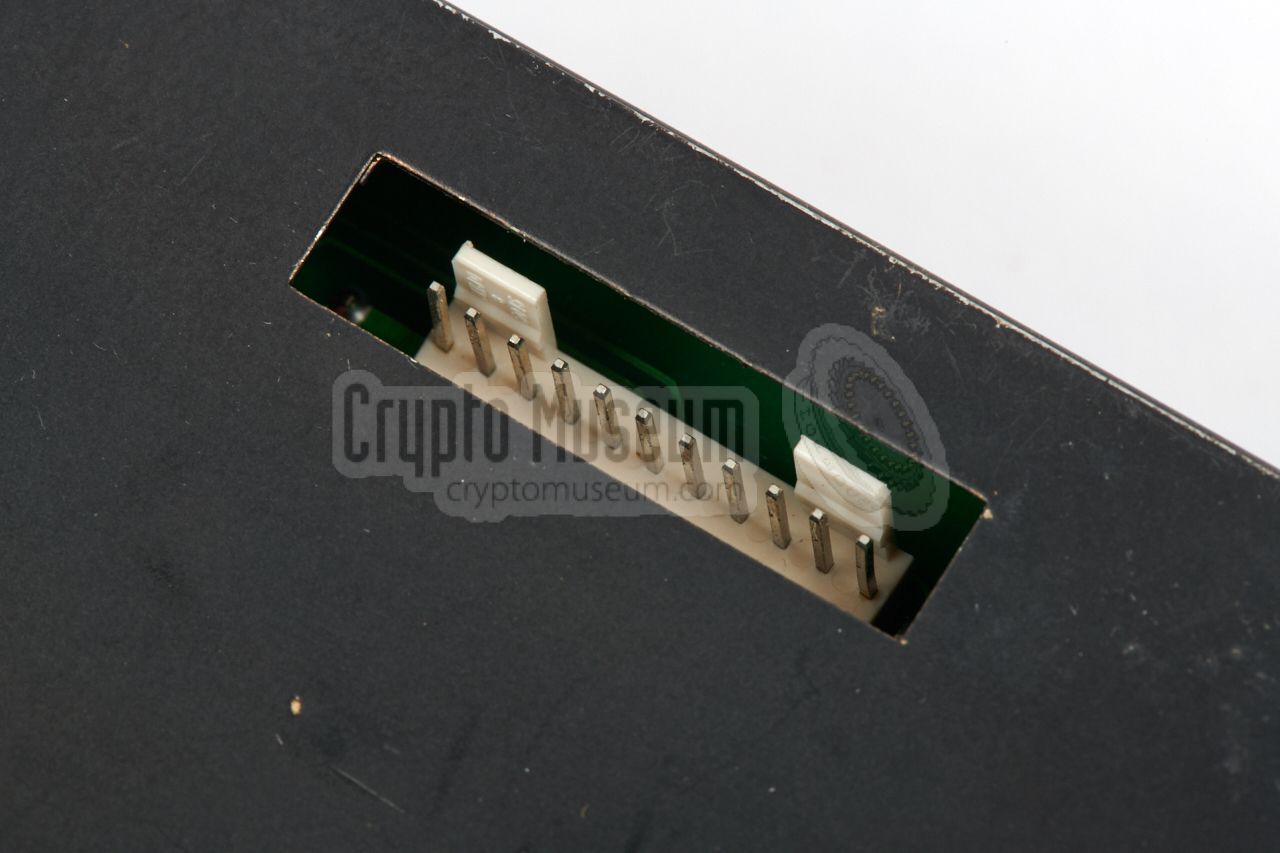

11-pin socket at the rear
B
7 / 8

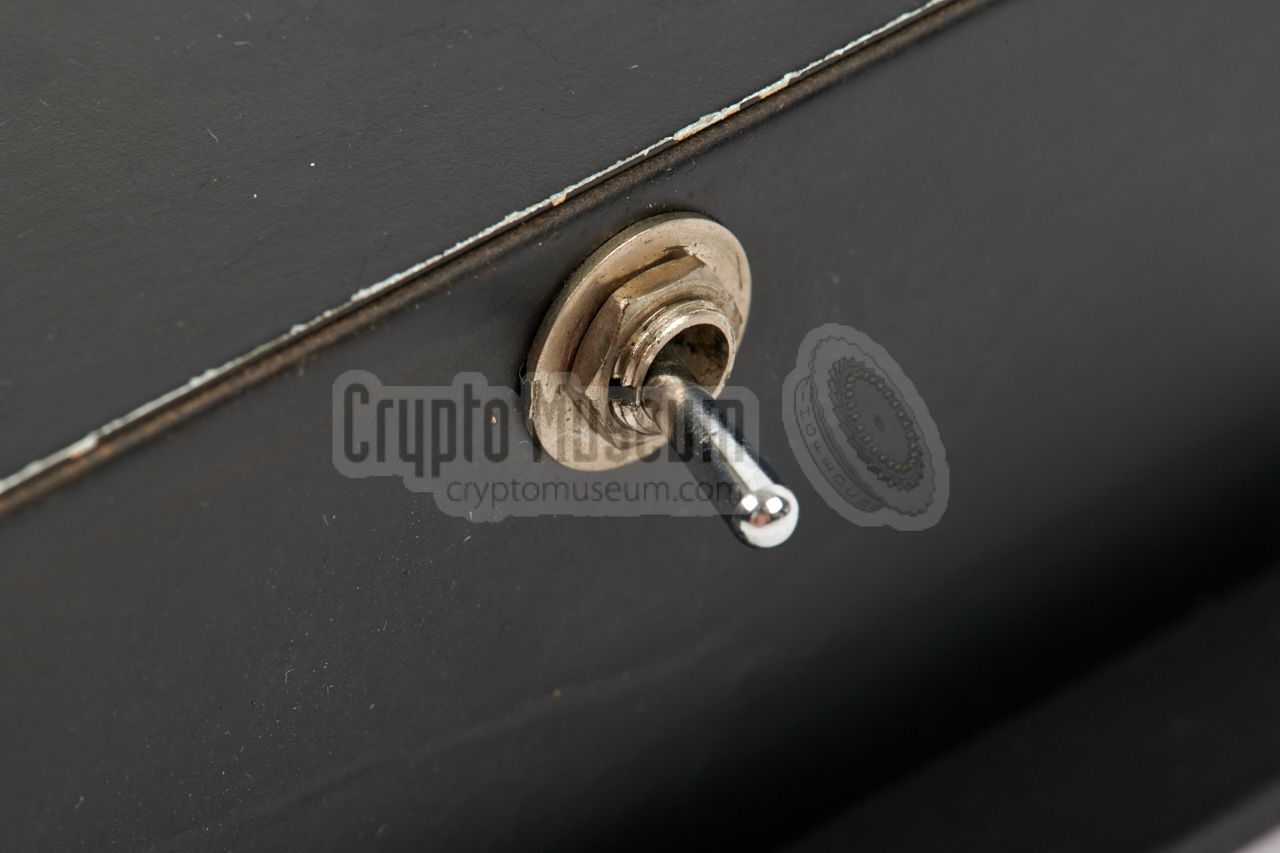

Switch for turning off degree display (modification)
B
8 / 8

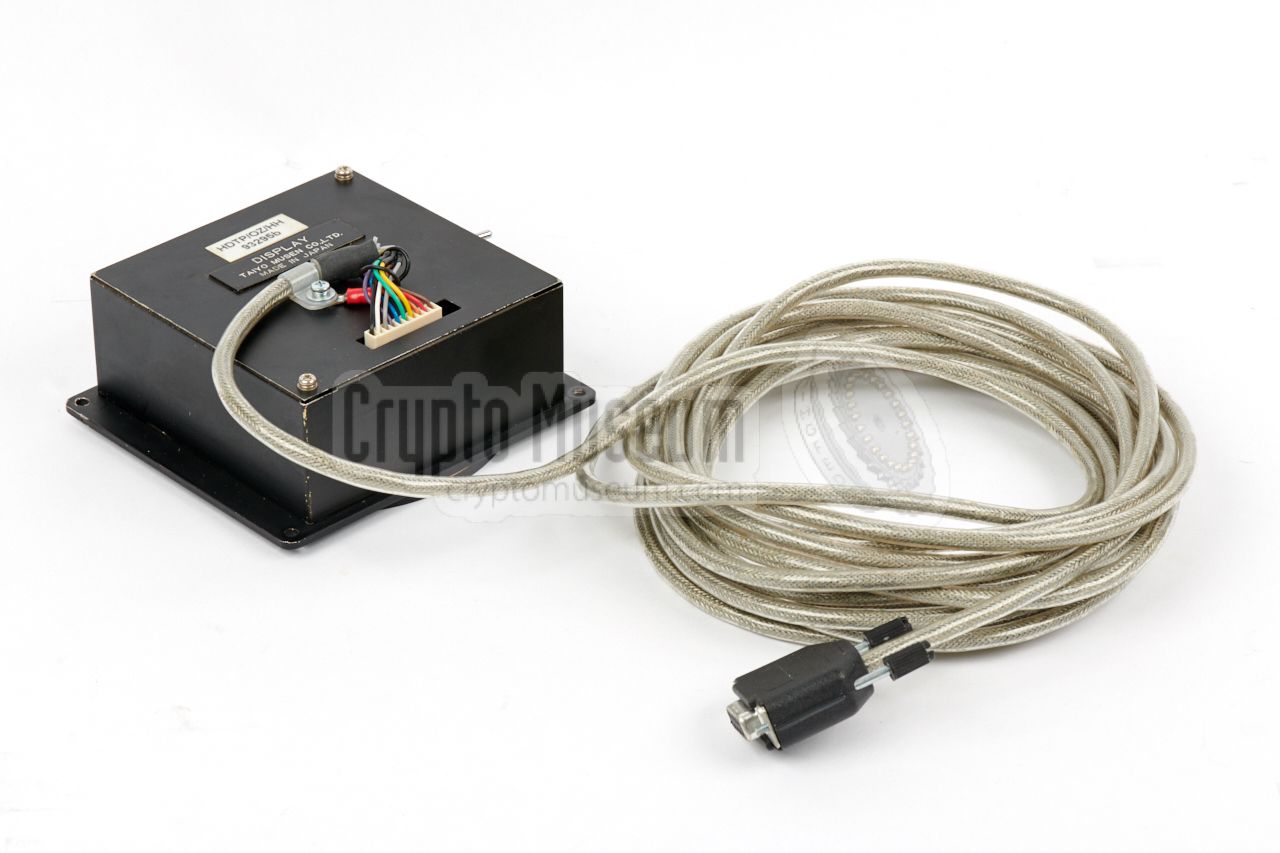

Cable connected at the rear

Flat antenna   EF-353 - wanted item
Several directional antennas were available for the TAIYO TD-L1706, but it was generally used with the so-called flat antenna — EF-353 — shown in the image below. This antenna is suitable for 30 MHz to 500 MHz, and even works outside this range, albeit with a reduced performance.

The patented antenna [B] consists of a circular metal tub with a plastic top. Inside the tub are four directive antennas in a special arrangement. At the bottom of the tub is a rotational switcher — that selects one of the antennas under control of the TD-L1706 — and an RF pre-amplifier.

The output of the pre-amplifier is fed to the antenna input of an external receiver which is not part of the system. Basically, any type of communications receiver can be used, as long as it has a direct output of its 10.7 MHz or 455 kHz IF stage. A good example is the ICOM IC-R9000.

EF-353 antenna - top view

The output of the antenna resembles that of a (physically) fast rotating antenna, and will result in amplitude variations of the 10.7 MHz IF signal from the receiver. By using an AM detector, the envelope of this fluctuating signal is extracted, after which the microcontroller does the rest.

EF-353 antenna - top view Bottom view Electronic switching unit (left) and RF pre-amplifier (right) Electronic switching unit (0 and 90) EF-353 antenna with cable Amplifier close-up Connector (to main unit)
C
×
C
1 / 7
EF-353 antenna - top view
C
2 / 7

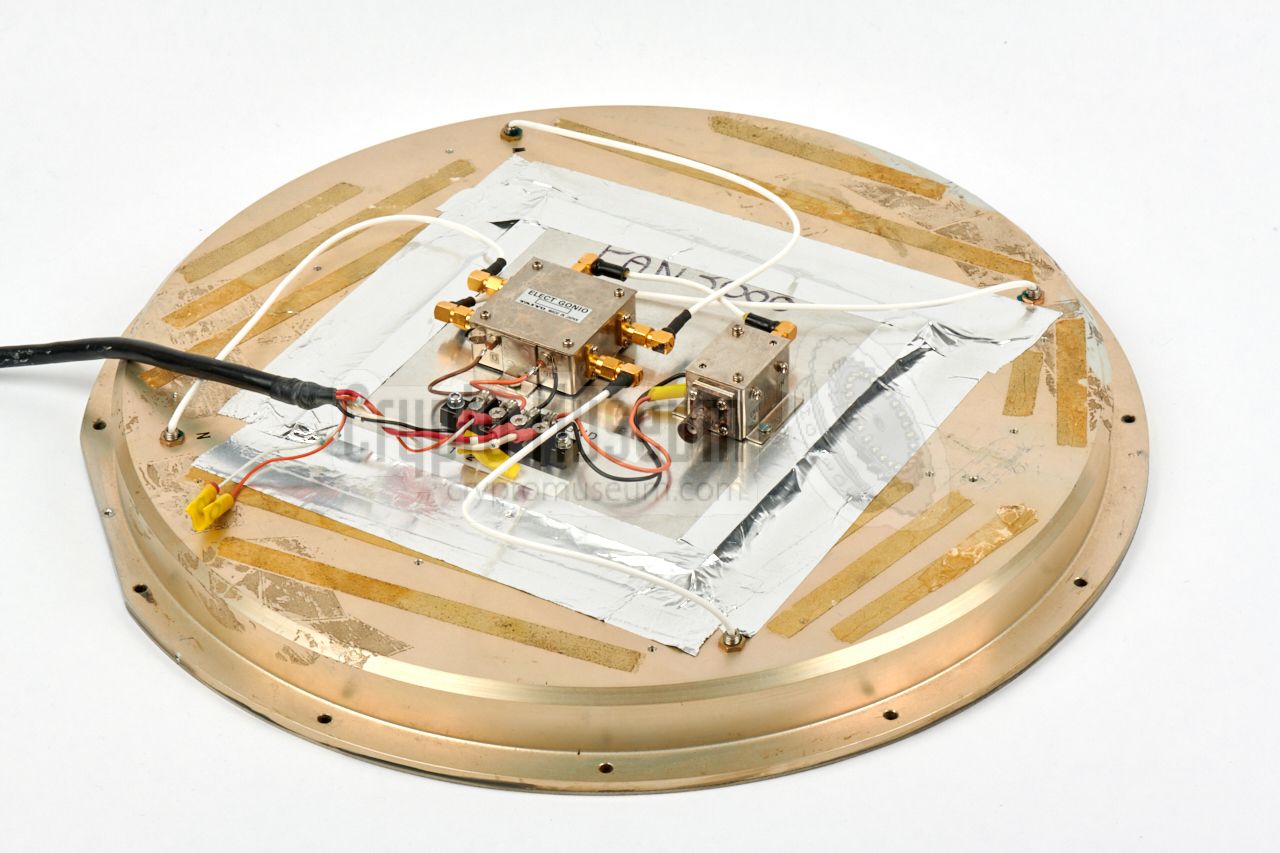

Bottom view
C
3 / 7

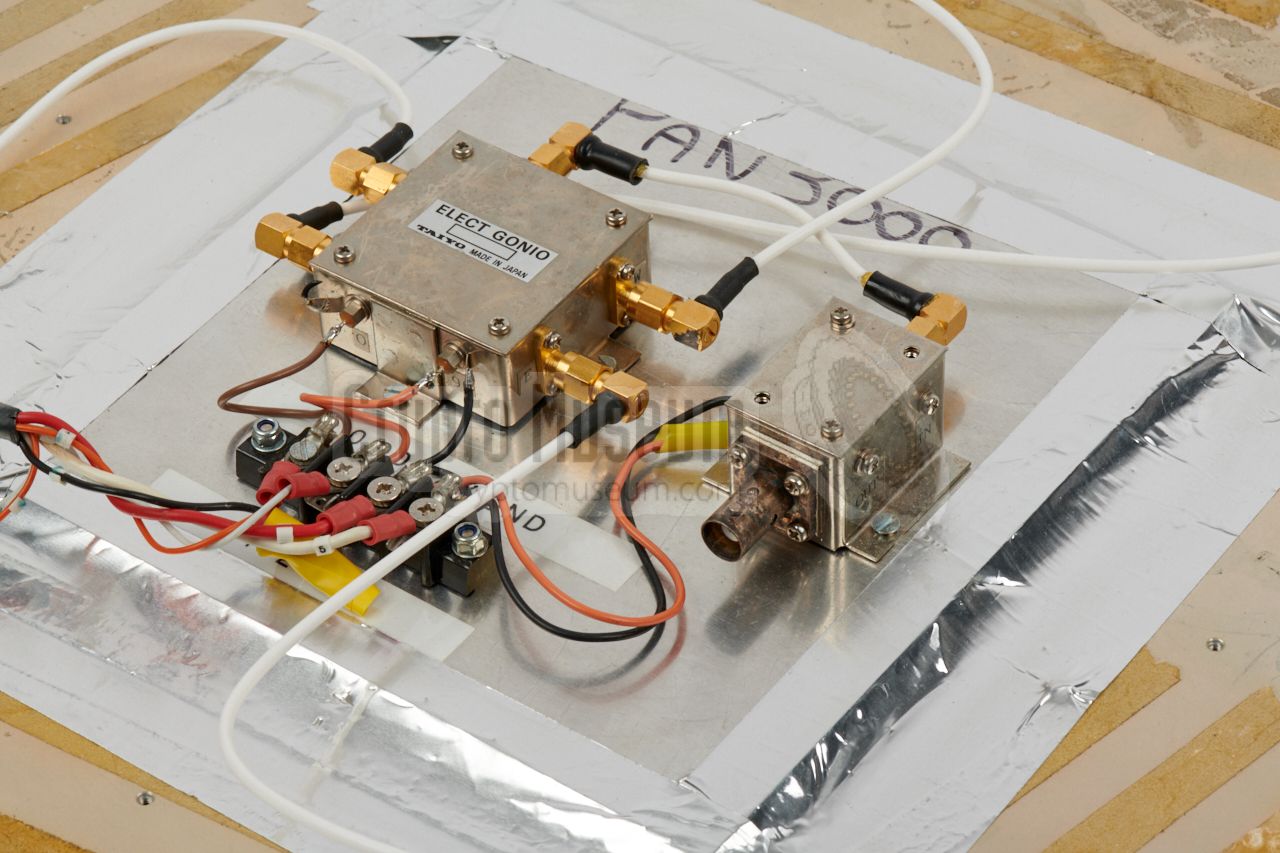

Electronic switching unit (left) and RF pre-amplifier (right)
C
4 / 7

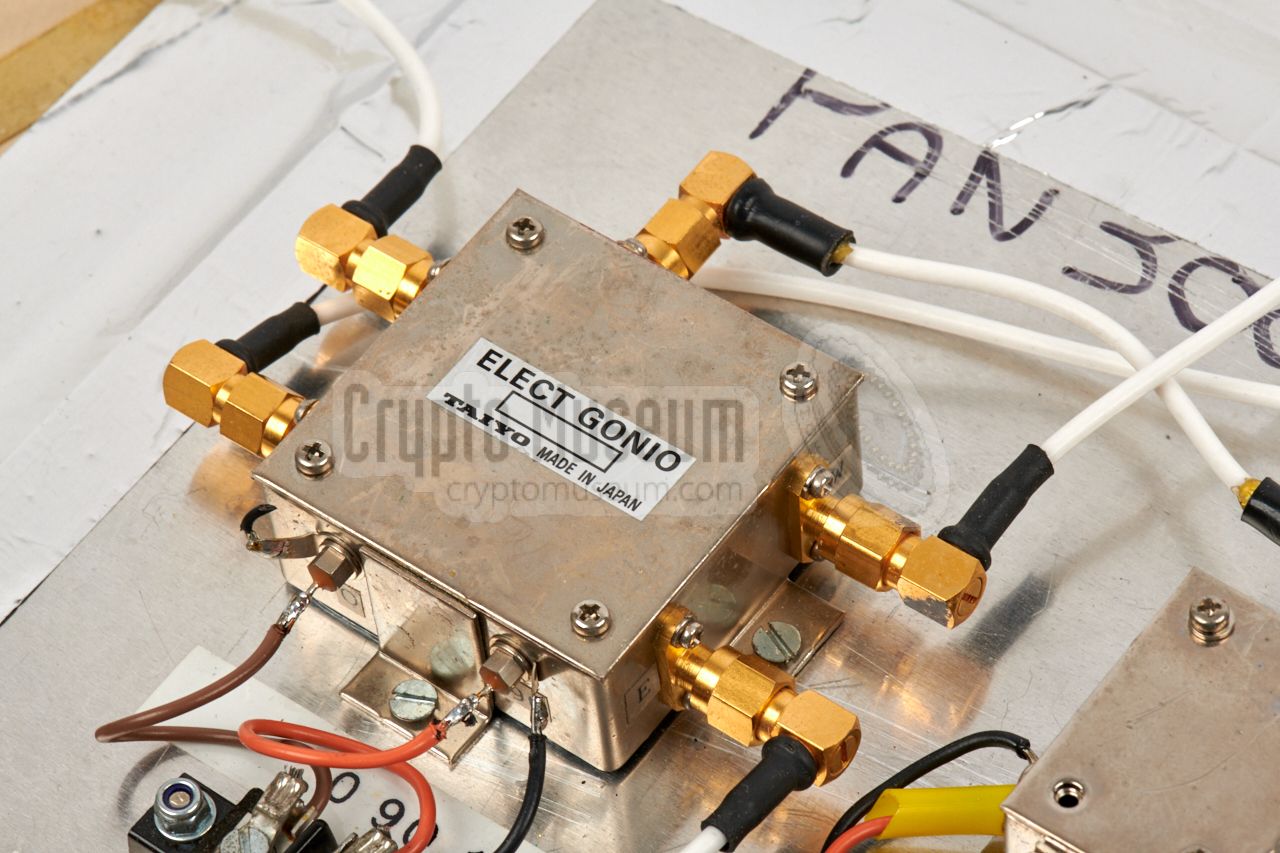

Electronic switching unit (0 and 90)
C
5 / 7

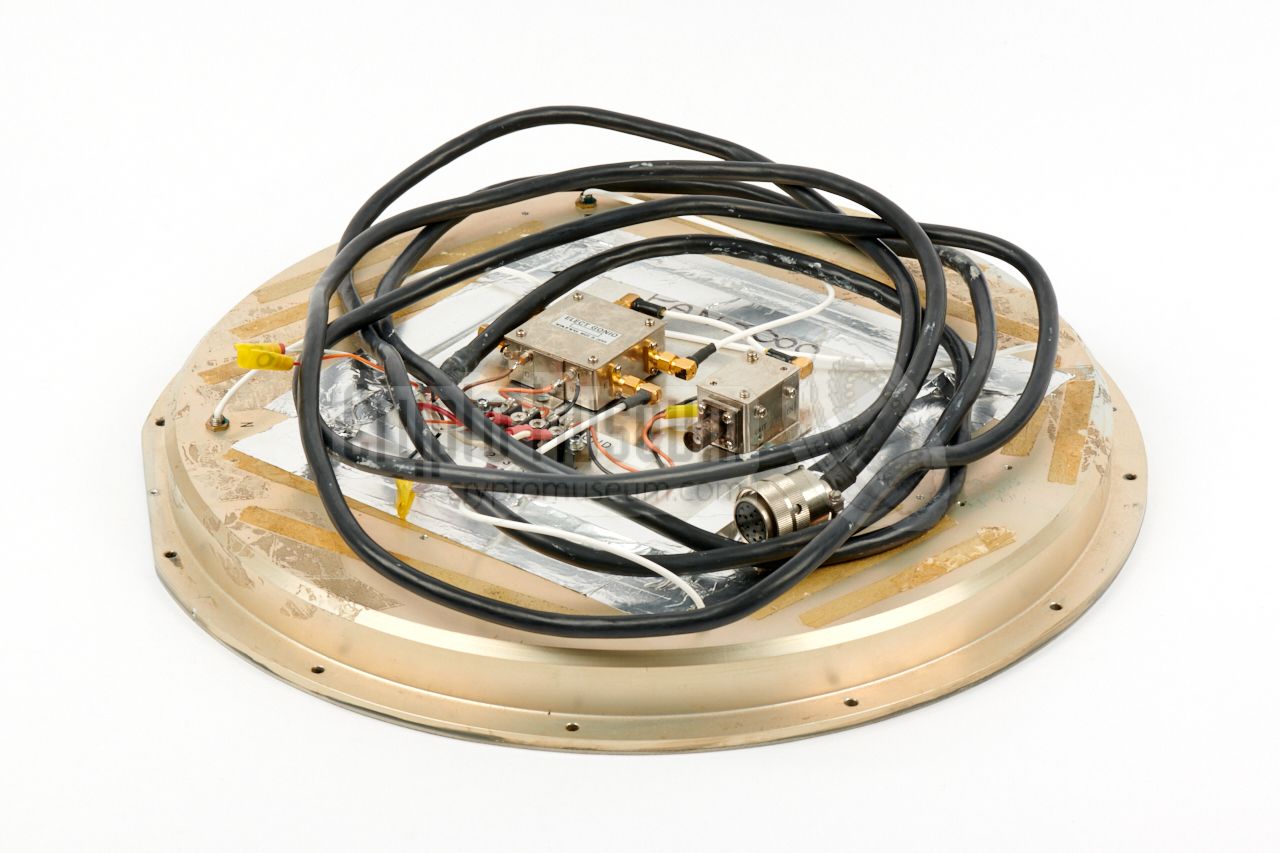

EF-353 antenna with cable
C
6 / 7

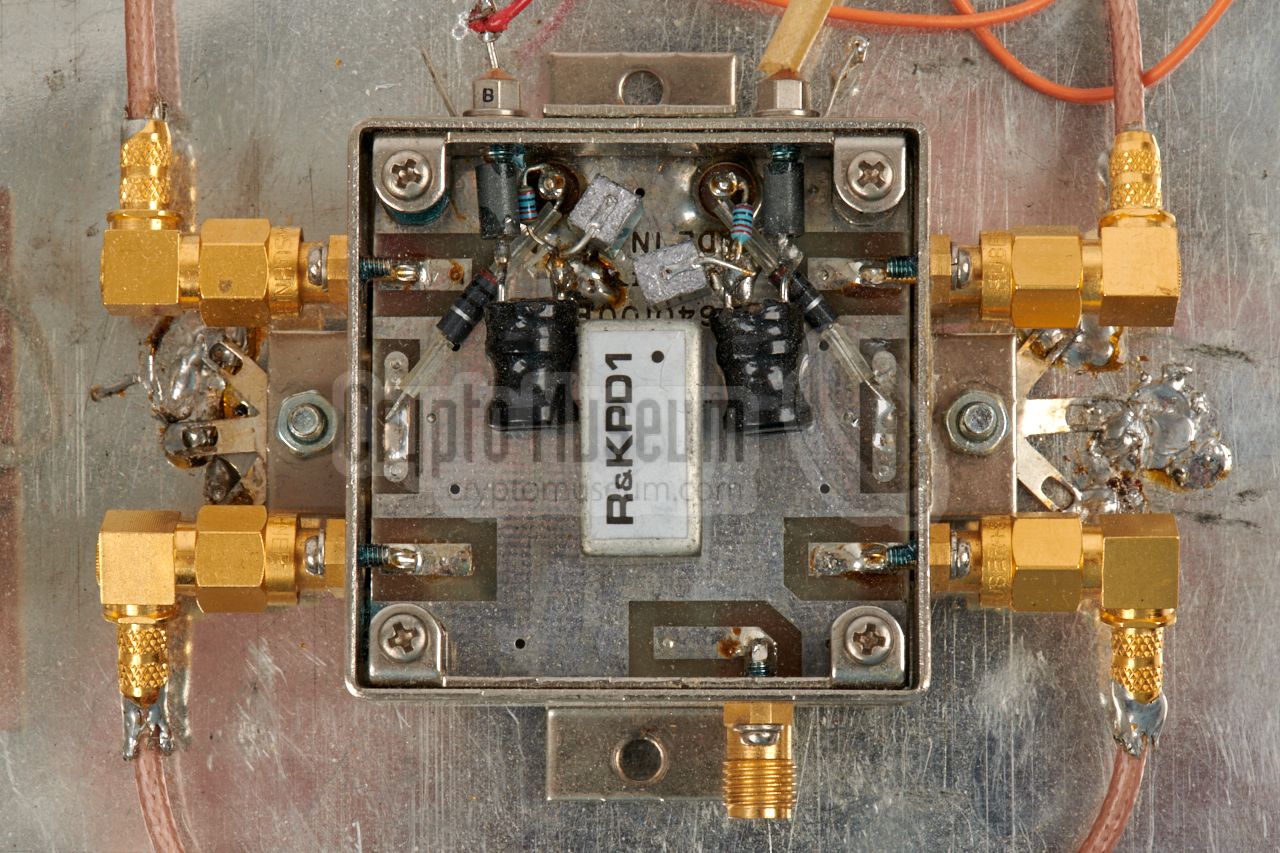

Amplifier close-up
C
7 / 7

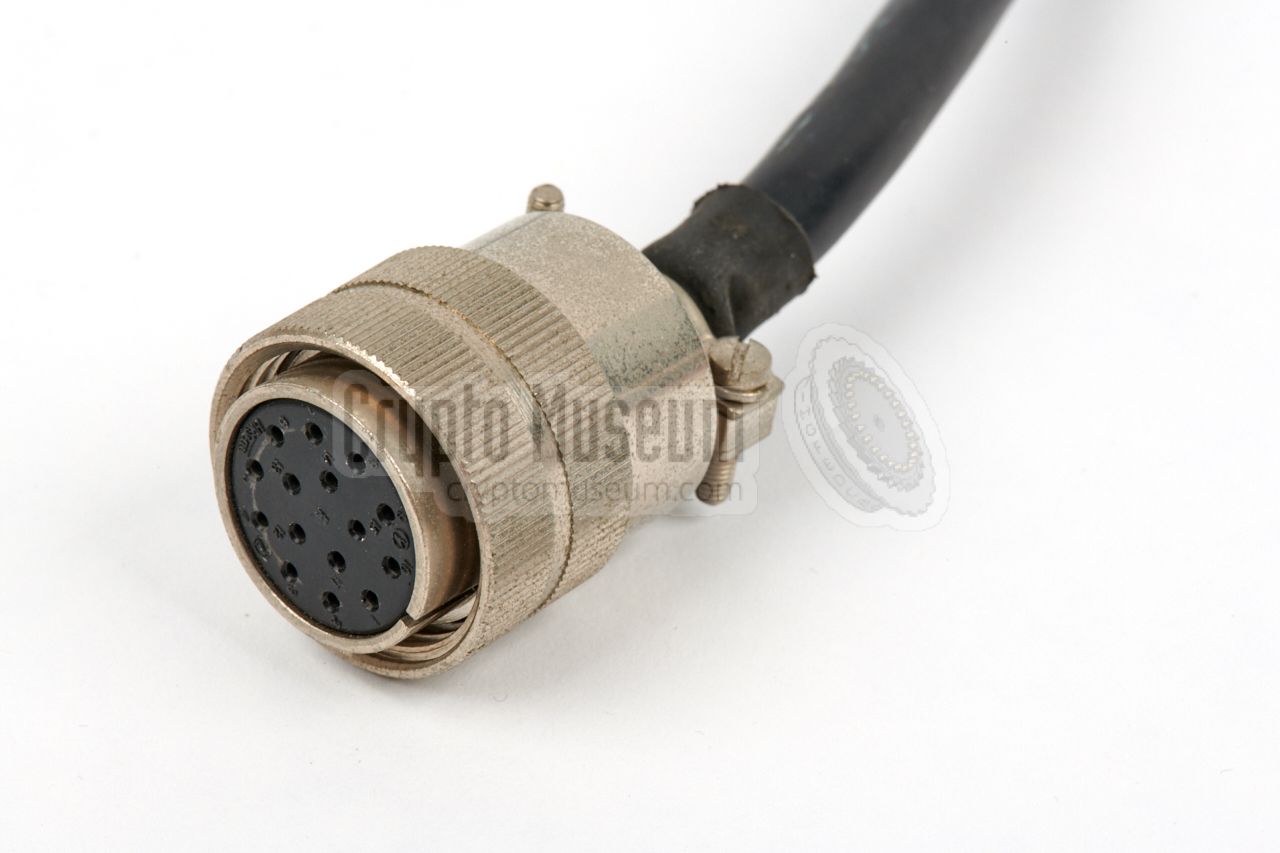

Connector (to main unit)

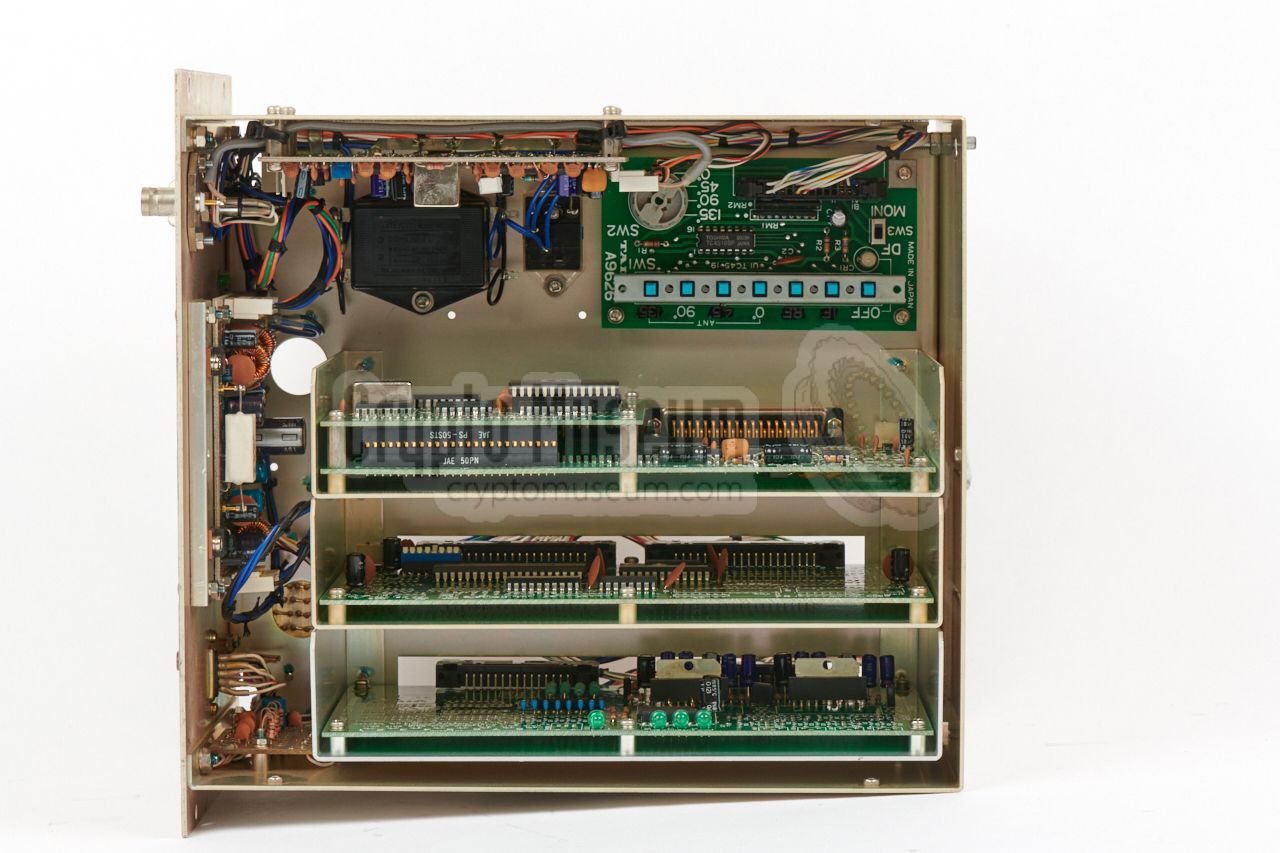

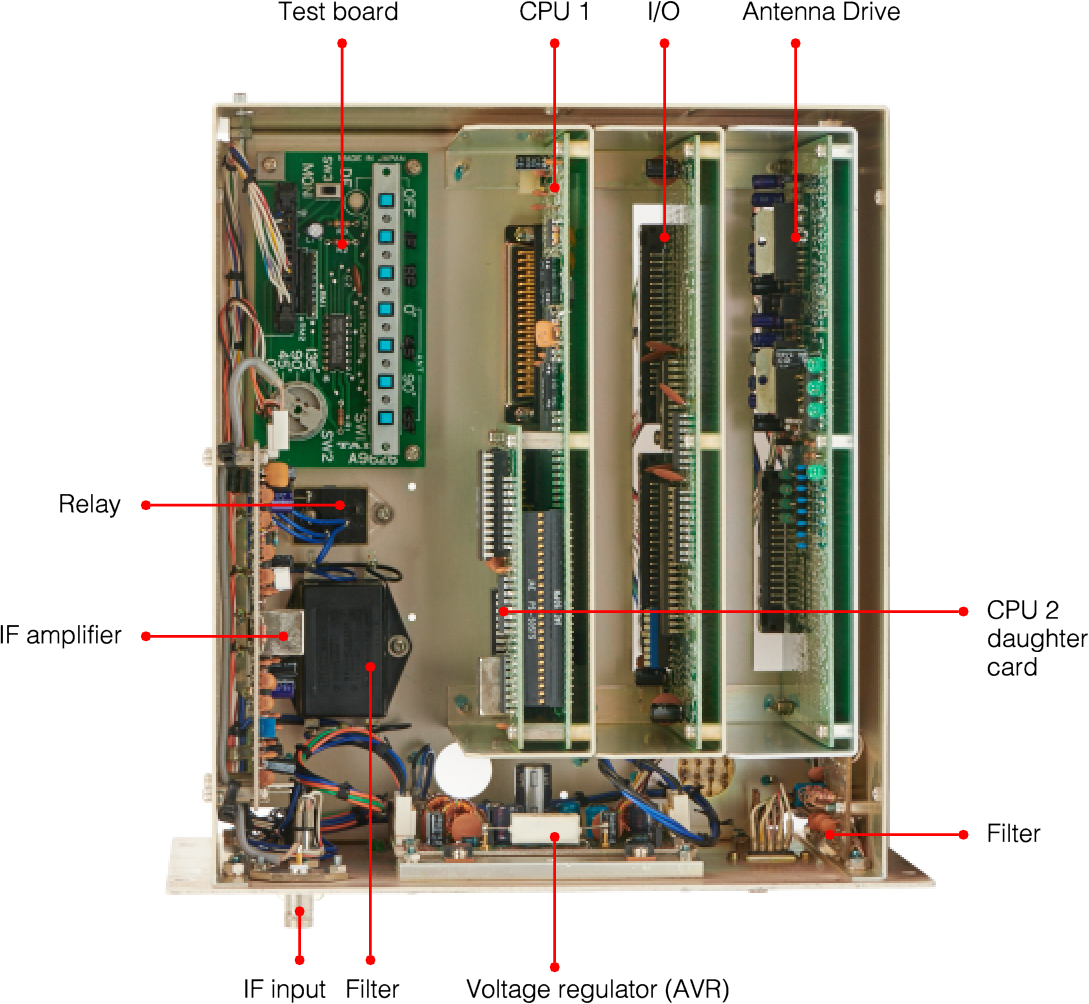

Top view of the interior


Interior
The interior of the TD-L1706 main unit can be accessed by removing the top and bottom lids from the case, each of which are held in place by 5 screws. The top lid gives access to the printed circuit boards (PCBs), whilst the bottom lid covers the backplane connectors and some wiring.

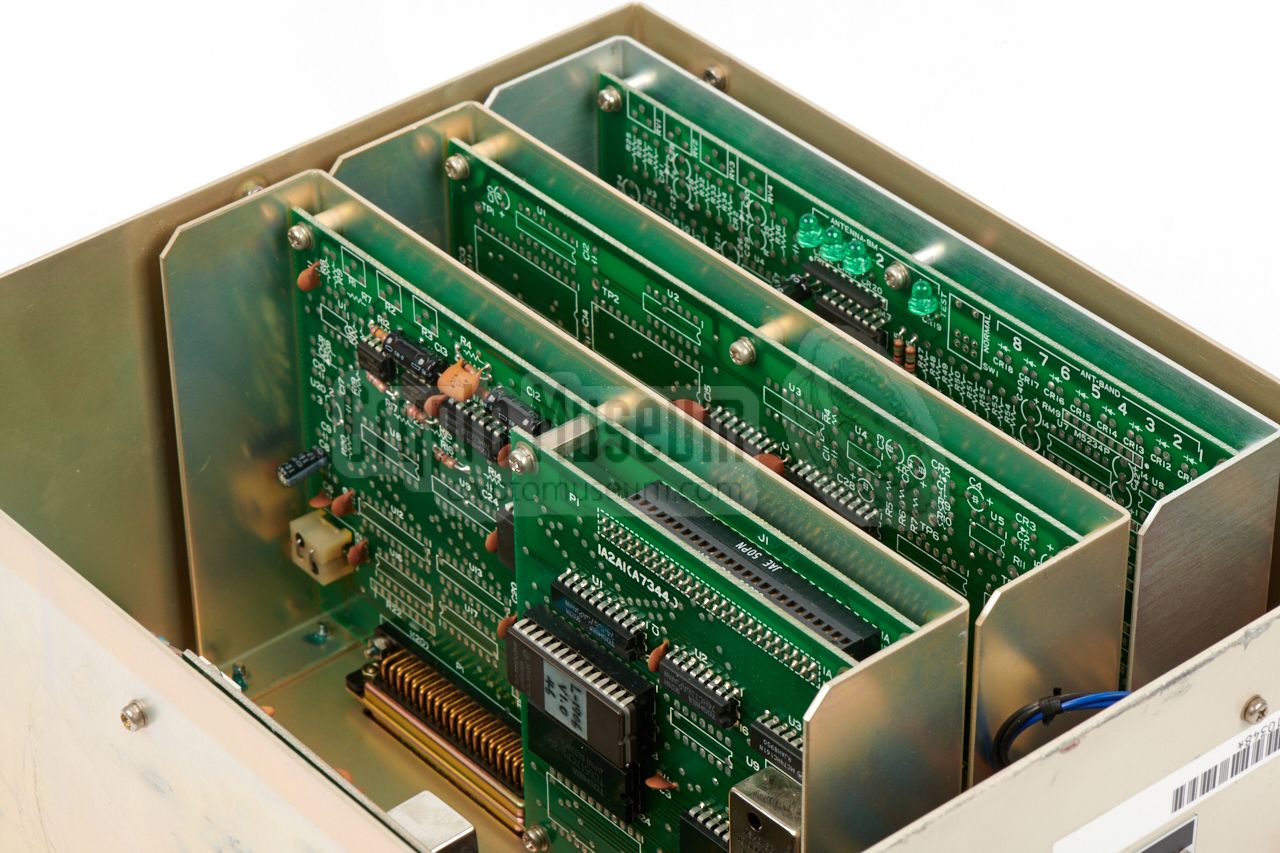

The image on the right shows the three basic modules of the system. Front left to right: the processor board (with a half-size daughter card, the I/O board and the Antenna Drive board.

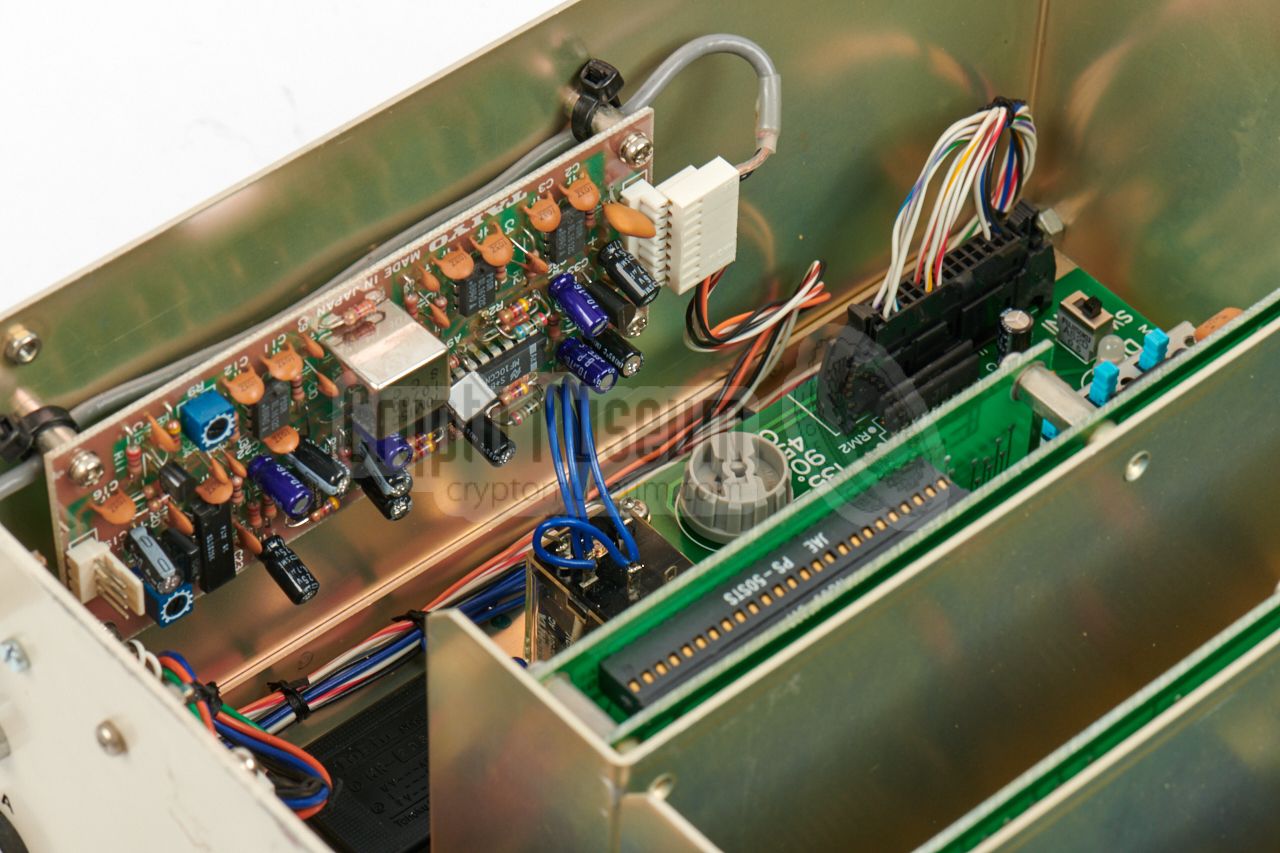

Mounted to the left side of the case is the IF input amplifier, for which an extra input was added at the top left of the front panel. Behind the IF amplifer – mounted to the bottom of the case – is the test board. The latter can be used to verify the operation of each of the antennas. A small voltage regulator board – known as the AVR – is mounted to the rear of the front panel.

Main system modules

The device is powered by 12V DC, typically from the battery of a boat or car. This voltage is internally converted to 9V for the analogue parts and 5V for the digital circuits. The 9V voltage is also supplied to the switcher inside the antenna, via the 15-way HIROSE connector at the front.

Interior - seen from the front Bottom view Main system modules IF input amplifier Test board Power board Wiring Noise filter and relay
D
×
D
1 / 8

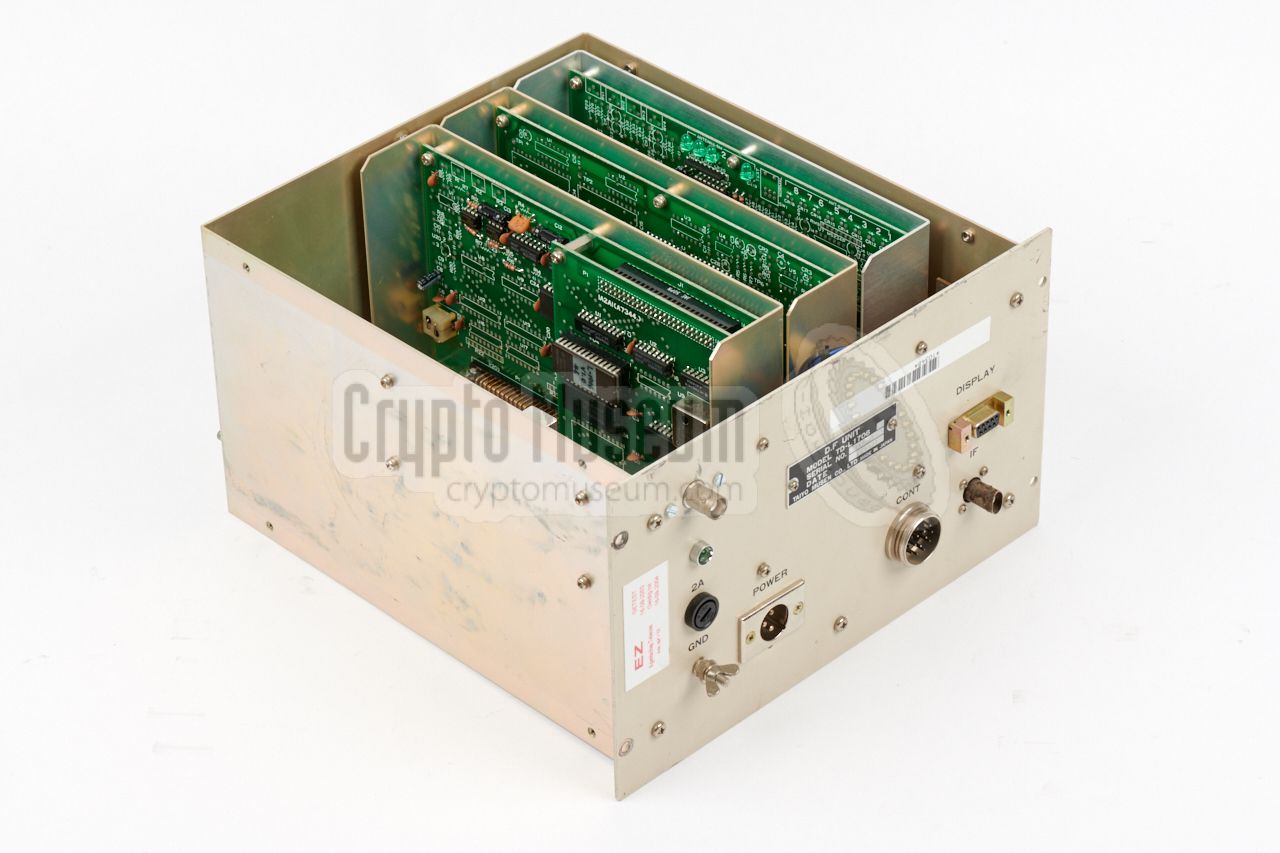

Interior - seen from the front
D
2 / 8

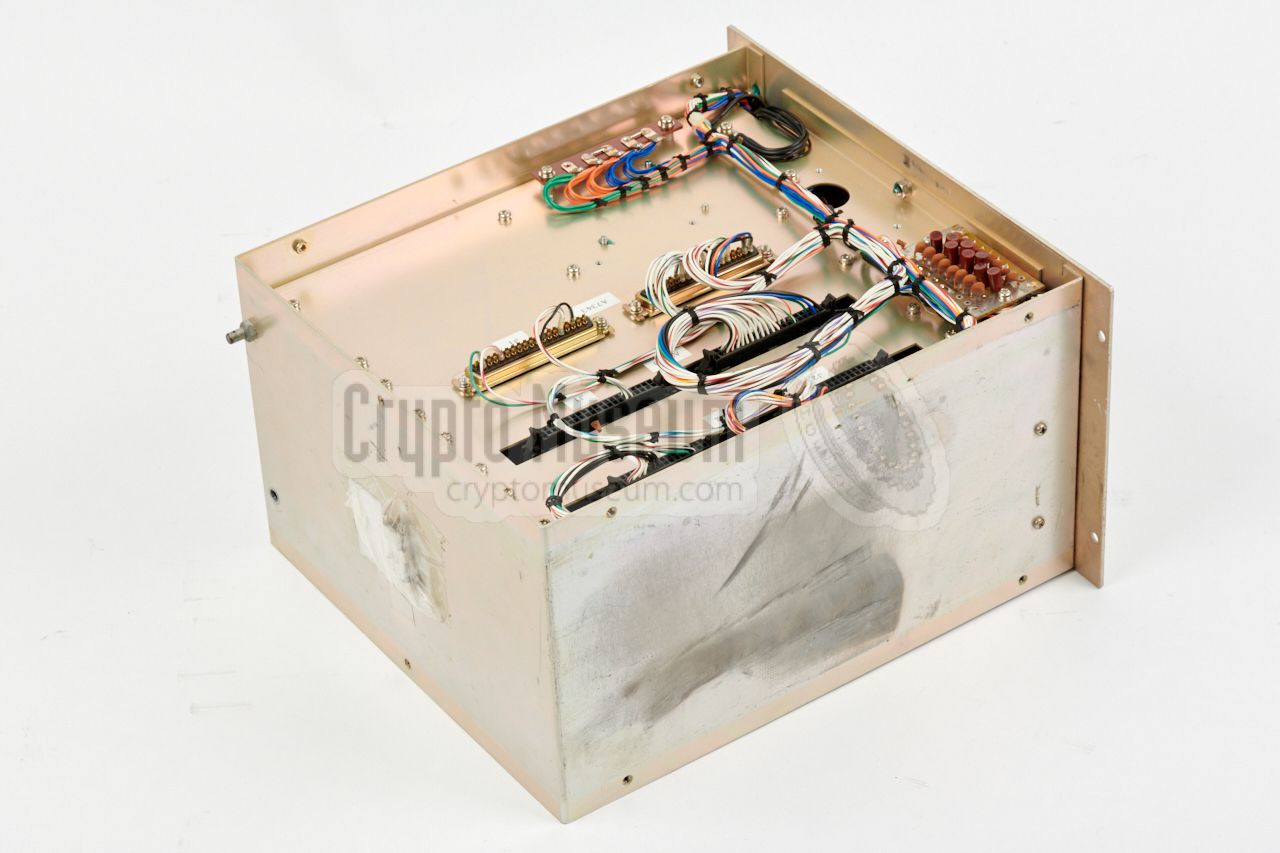

Bottom view
D
3 / 8
Main system modules
D
4 / 8
IF input amplifier
D
5 / 8

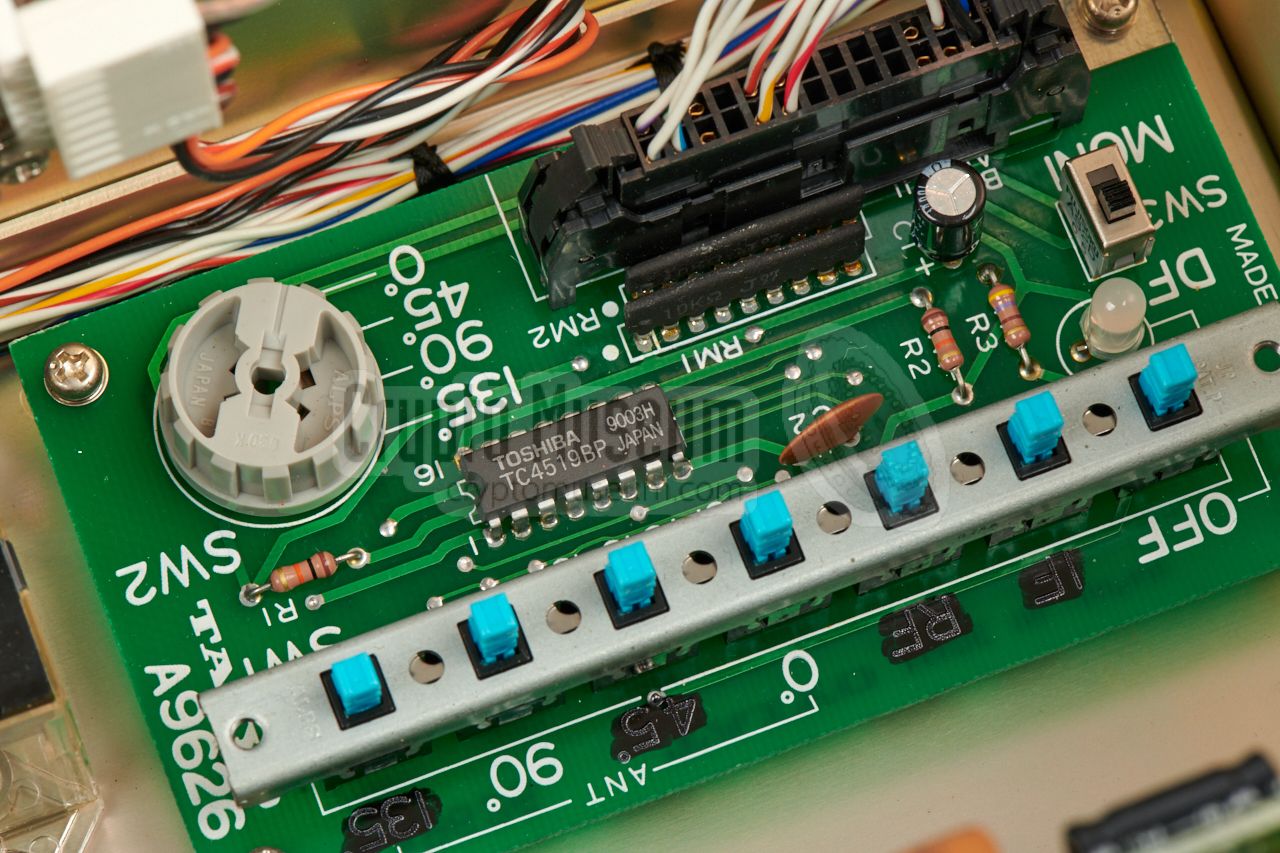

Test board
D
6 / 8

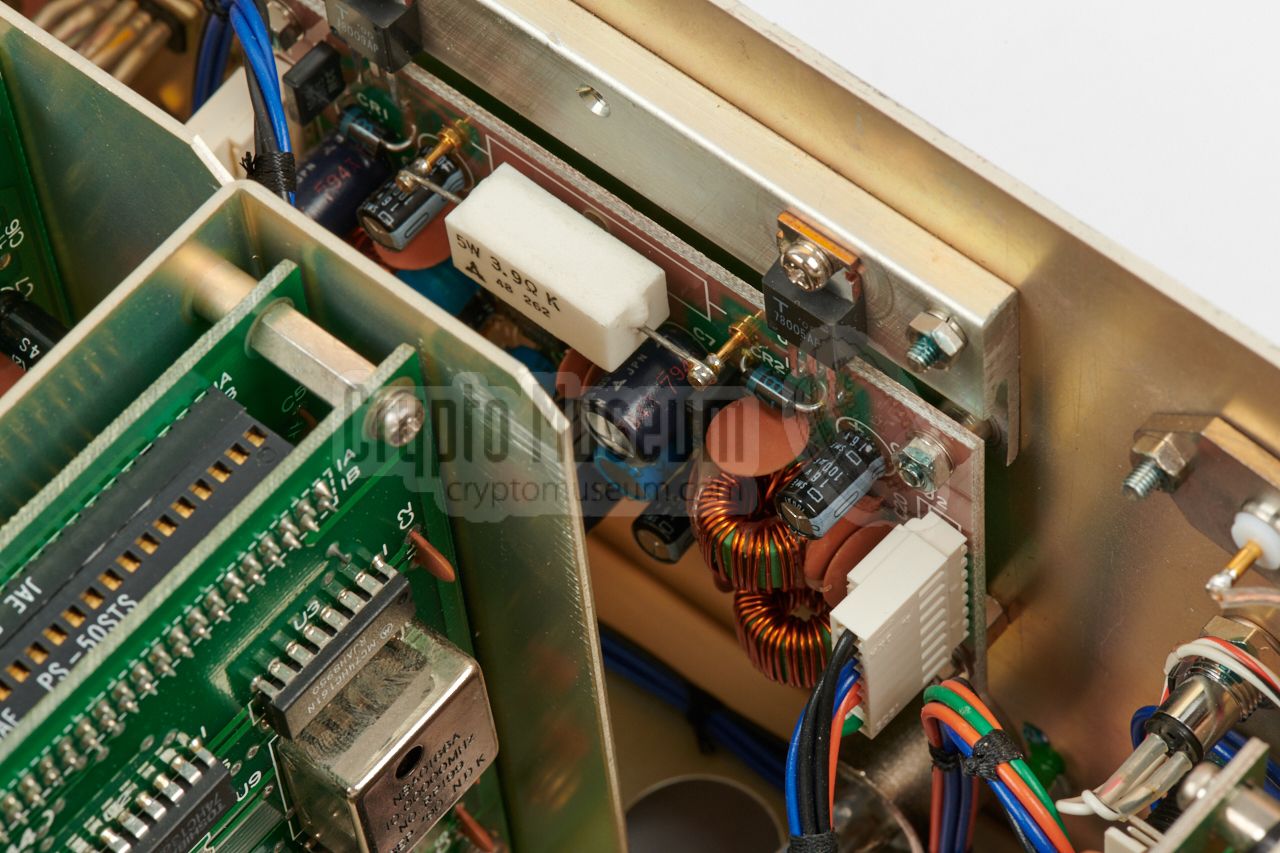

Power board
D
7 / 8

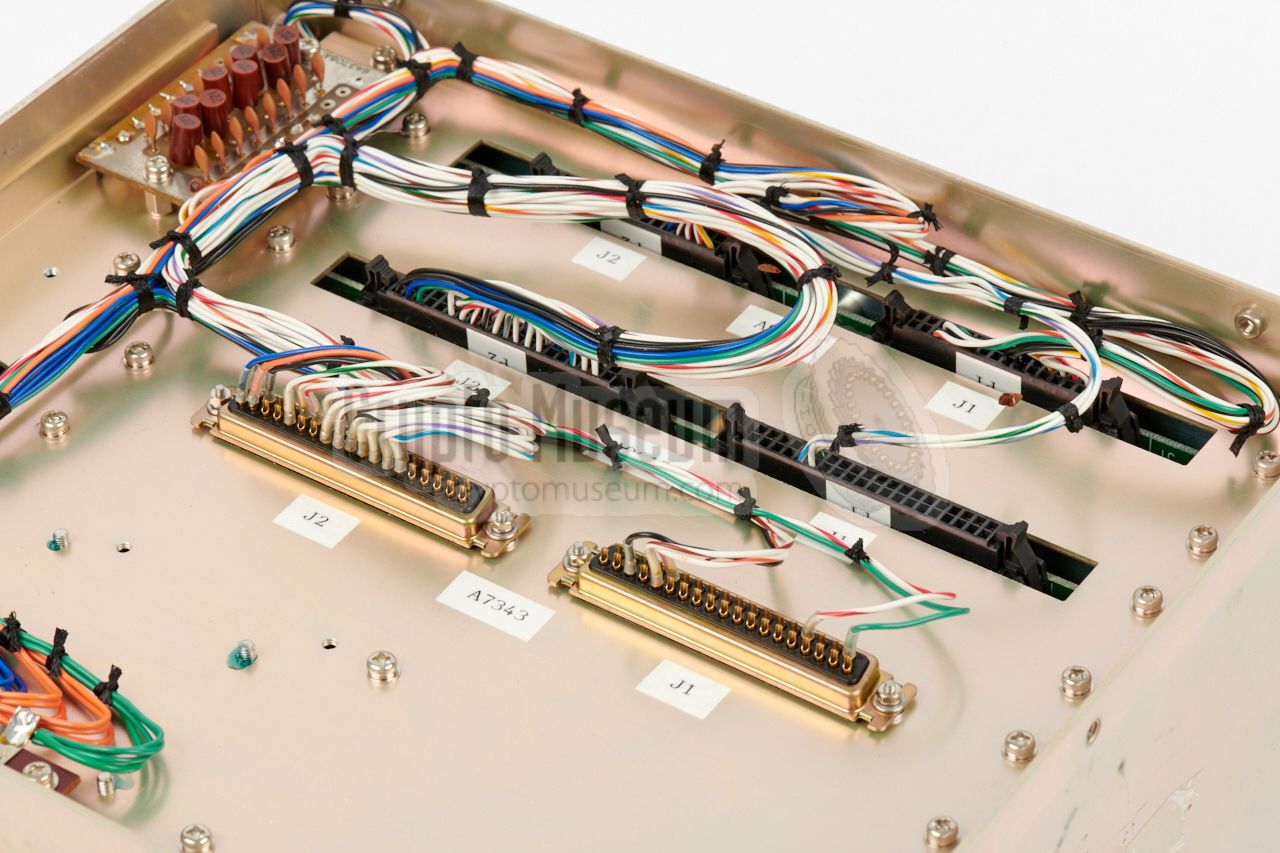

Wiring
D
8 / 8

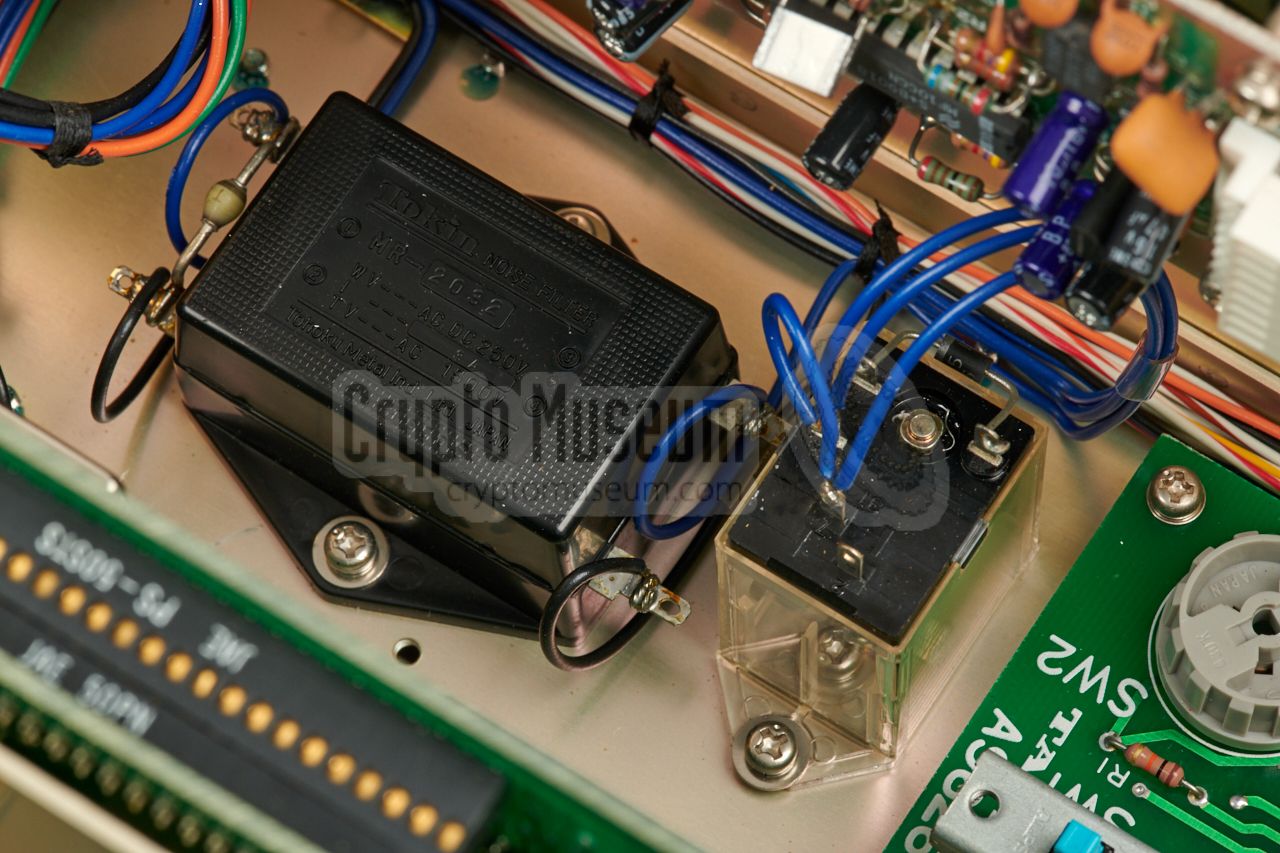

Noise filter and relay

Antenna
The diagram below shows the construction of the antenna. It is housed in a disc-shaped metal tub, which is closed with a plastic sheet at the top. Inside the tub are four antennas in a circular arrangement, each pointing to one of the four main compass axes (N, W, S and E), relative to the position of the vehicle. Each antenna is fed at the outer edge and is terminated at the center of the disc with a 50Ω resistor to ground. All antenna cables must have exactly the same length.


At the centre of the disc, below the antenna strips, is a metal cone that keeps the impedance constant in the tapered part of the antenna. The four coaxial cables to the antennas are fed through the bottom of the disc and are guided to the top by a metal pipe. The shield of the coaxial cable is connected to ground at the top of the guiding pipe. The other end of the four coaxial cables are joined in the switcher, which is mounted at the bottom of the disc, together with the RF pre-amplifier. The output of the pre-amplifier is connected to the (external) receiver.


PCBs
  • IF Amplifier
    A9642
  • I/O
    A9618
  • CPU (main)
    A7373
  • CPU (plug-in)
    A7344
  • Antenna drive
    A9612
  • Test board
    A9626
  • AVR
    A9641
  • Filter 1
    340895A
  • Filter 2
    340895A
Theory
In Radio Direction Finding (RDF), there are many different techniques that can be used to get the bearing to a transmitter. Well-known principles are – for example – Doppler, Adcock and Homer. The TD-L1706 uses a different principle that is based on amplitude variations in the received signal, caused by a fast rotating antenna. This is also known as the Watson-Watt method.

Rather than using a physically fast rotating antenna – which would be difficult to implement – the TD-L1706 uses four or eight antennas that are switched in quick succession. This method is also known as pseudo-rotation. In case of the TAIYO EF-353, which is used here, four small Beverage-Antennas are used, each of which covers a 90 degree segment, or quadrant, of a full circle.


The Beverage antenna was invented in 1920 by Harold H. Beverage when working for the General Electric Company (GEC) and is explained in US Patent 1,381,089 [3]. It was enhanced by Beverage in 1938 — meanwhile working for the Radio Corporation of America (RCA) — as filed in US Patent 2,247,743 [4]. The antenna is basically an open transmission line which is terminated at the end, as shown in the diagram above. When properly terminated (R), it has a great directivity as shown in the directional diagram above, with the highest sensitivity in the direction of the feedpoint [4].


In the EF-353, four Beverage antennas are used, each pointing to one of the four main compass directions (N, E, S and W), and fed at the outer edge. The diagram above shows the antennas as seen from the top, each with its own directional diagram. Now assume a transmitter is placed at, say, 20° east from the north, then each antenna will give a different signal strength, illustrated above with red arrows. When we switch the antennas in quick succession – typically at a speed of 135 Hz – the amplitude of the intercepted signal into the receiver will vary accordingly, like this:


The same fluctuations in signal strength can be observed in the 10.7 MHz IF signal from the receiver, which can be regarded as a form of Amplitude Modulation (AM). The better the directivity of the antenna, the higher the AM modulation depth of the observed IF signal.


Applying this 10.7 MHz IF signal to an AM-detector and passing the resulting signal through a low-pass filter, will result in an envelope that resembles the shape of a sine wave (here shown in red). After removing the DC-component, the signal will look like this:


By finding the zero-crossings and examining the direction of the tangent at these points, the software in the microprocessor is now able to determine the offset from the start position. As the fast 135 Hz pseudo-rotation is also under control of the microprocessor, this can be translated directly into the angle of incidence of the intercepted signal. As the calculated angle might have an error – typically caused by delays in the IF circuitry – DIP switches are present to set an offset.

In reality, the way in which the antennas of the TD-L1706 are switched is slightly more complex than explained above. The antenna's are not selected one-at-a-time, but always in pairs (NE, ES, SW and WN). This results in a higher signal level, a smoother AM-signal, and a 45° offset in the measured angle. The latter is compensated in the software of the microprocessor.

 More about the Watson-Watt direction finder


Connections
Power socket
The TD-L1706 requires an operating voltage of approx. 12V DC, which should be connected to the 2-pin Tajimi 16R-2M socket at the front panel. As this type of connector became obsolete many years ago, it may be difficult to find a suitable plug for it. Looking into the socket:

  1. (-) Battery (GND)
  2. (+) Battery (+12V DC)
    Tajimi 2-pin male socket 16R-2M
Power socket (modified)
As the power socket on the device is now obsolete, it might be a good idea to replace it with a more common 3-pin male XLR socket, similar to the one on the 12V DC power input of the PAN-2000 FFT Processor. We have done this on the device featured here. Pinout is now as follows:

  1. (+) Battery (+12V DC)
  2. (-) battery (0V)
  3. n.c.
    3-pin male XLR socket
Display
  1. To pin 1 of compass display
  2. To pin 2 of compass display
  3. To pin 3 of compass display
  4. To pin 4 of compass display
  5. To pin 5 of compass display
  6. To pin 6 of compass display
  7. To pin 7 of compass display
  8. To pin 8 + 9 of compass display
  9. To pin 10 + 11 of compass display
    DB9 female socket (looking into the socket). Molex 11 pin connector, as seen from the rear of the compass unit.
Control
The CONT socket on the front panel of the main TD-L1706 unit, is for connection to the EF353 antenna. It carries the power and control lines for the antenna (not the antenna signal itself). The socket is a HIROSE RM21TR-15P. The plug needed for this socket is RM21WTP-15S. When using the flat antenna (which is the case here), only the 4 wires indicated with an arrow are needed.

  1. 0° ←
  2. 45°
  3. 90° ←
  4. 135°
  5. n.c.
  6. n.c.
  7. B1 (?)
  8. B2 (?)
  9. B3 (?)
  10. n.c.
  11. n.c.
  12. 9V ←
  13. 9V
  14. GND ←
  15. GND
IF input
The TD-L1706 should normally be fed with the 455 kHz or 10.7 MHz IF signal from a monitoring or communications receiver, which should be applied to the BNC socket at the bottom right of the front panel. As the Dutch Radio Monitoring Service found this input inadequate, their TD-L1706 units were modified with a new IF input circuit that has its socket at the top left of the panel [2].


Documentation
  1. Service Manual for the Automatic Digital Direction Finder TD-L1706
    TAIYO Musen CO. Ltd. Date unknown. 74 pages.

  2. US Patent 4,635,065, Antenna for Direction Finders
    Filed on behalf of Taiyo Musen on 31 July 1984.
References
  1. Nico van Dongen (PA3ESA), PAN-2000 and system description
    Crypto Museum, July 2018.

  2. AT/RCD technician, Personal correspondence
    April 2018 — August 2018.

  3. Harold H. Beverage, US Patent 1,381,089
    Filed 10 April 1920 on behalf of GEC.

  4. Harold H. Beverage, US Patent 2,247,743
    Filed 10 December 1938 on behalf of RCA.

  5. Karl Rothammel, Rothammels Antnnenbuch (German), Beverage-Antenne
    12th edition, 2001-2002. ISBN 3-88692-033-X. Chapter 11.2.2, p. 255.
