GPO Telephone 300
General information - under construction

This page contains some general information about the 300-series GPO telephones, in particular information about the 394 and 396 models that were used as part of the Secraphone (scrambler phone). For more detailed information, please check out the links at the bottom of this page.

The GPO 300 series was developed in co-operation with Ericsson UK and is based on the Ericsson N1015, N1016, N1017, N1374 and N1376 models [4], albeit with a British GPO No. 164 handset.

Known models
A few examples of phones in the 300-series:

  • 332
    Basic unit with dial, bell and handset (no buttons)
  • 330
    Version for private branch exchange (recall button) 1
  • 312
    Version for Shared Service installations (party line)
  • 332 CB
    Version without dial (and sometimes without drawer)
  • 394 LB
    2 or 3-button version for CB systems
  • 396 LB
    2 or 3-button version for CBS systems
  1. The recall button connects earth (ground) to the telephone loop.

Connections
The drawing below shows the standard terminal block that is present on all 300-series GPO phones. It is mounted at the bottom of the metal chassis and is normally used for connection of the line and the handset. All components of the telephone, such as the transformer, the bell, the capacitor, the dial and the hook switch are connected to this terminal block. Note that on Secra­phone voice terminals, additional wiring is present via the 9K terminal block. Pinout is as follows:


Connection block T as seen from the bottom of the phone

For a standard telephone set, the line is usually connected at 1 (A) and 9 (B), and the handset is connected at 4 (M), 5 (MR) and 6 (R). There should be shorting strips between 1 and 2, between 8 and 9 and between 10, 11 and 12, as indicated by the red lines in the drawing above. If you want to convert a telephone set for use on 'modern' analogue systems, check out this website.

 How to convert a telephone for use on modern networks (off-site)

Interior bottom view Connection block (T) seen from the bottom of the phone
Key Unit 303/A (9K switch pack)

No. 303/A key unit   9K
The 394/396 telephone, that is used as the voice terminal of the Secraphone, has two or three switches at the top of the bakelite case. These buttons directly operate the 303A key unit (also known as a 9K switch pack) which consists of two 4-pole make-before-break switches (4K) and one single-pole make-before-break switch (1K) mounted in between the other two. For other types of key units, check out Robert Freshwater's excellent website [3]. The pin-out of the 9K:

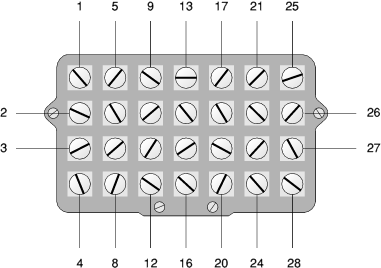

Connection block 9K as seen from the rear of the phone

Each of the contacts of this terminal block, with the exception of contact 28, is wired to one of the contacts of the 9 individual switches. Contact 28 is not connected (nc). When looking from the front of the telephone, the three buttons are identified (from left to right) as A, B and C. Pressing a button, automatically releases the other buttons. Depending on the configuration, the keys are latching or momentarily. In our case, only the rightmost button (C) latches when it is pressed. On some phones, the buttons are also released when the handset is placed in the cradle (on-hook).

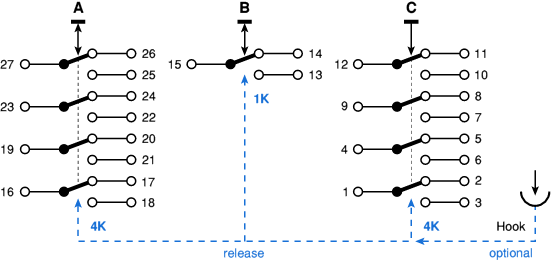

The switches inside the 9K switch pack with their terminal numbers

Note that the individual switches of the 9K switch pack, are of the so-called make-before-break (MBB) type. This means that when pressing the button, there is a short moment when all three contacts of the switch are connected together (shorted). This is the opposite of the more common break-before-make (BBM) switch. Although standard switch symbols are used in the diagram above, make-before-break (MBB) switches are sometimes explained with the following symbols:


Three possible symbols for MBB switches.

The individual contacts of each switch are usually named as in the diagram above. The fixed contact, or mother contact, is known as common (c). The contact that is connected to the common when the switch is in rest, is known as the normally closed contact (nc). The contact that is connected to the common when the button is depressed, is known as normally open (no).

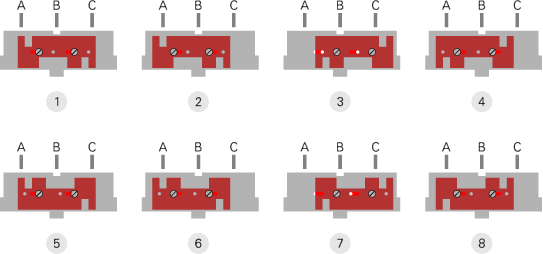

Interior front/top view Interior rear/top view Close-up of the frame Top view of the 9K switch pack (303/A unit) Metal plate for 'programming' the behaviour of the three buttons 303/A key block (9K switch pack) Pressing the rightmost button Pressing the leftmost button
Manufacturer codes
Below is a non-exhaustive list of manufacturer codes found on an inside GPO/BT telephones. The list is by no means complete or correct, but might be of use when restoring old telephones. For a more complete overview and additional information, please refer to Petra Henderson's pages [1].

A   Edison Swan Electric Ltd.

AA   Pinching & Walton

AAG   Mullards Ltd
London

AAR   Associated Automation

AEG   GEC Telecommunication
Glenross (Scotland, UK) [not to be confused with the German AEG]

AEI   Associated Electrical Industries
Later: Henley Cables. Henley later took over Siemens Bros and Thorn EMI and was then taken over itself by GEC Telephones.

AEK   GEC-AEI Telecommunications
Kirkaldy (Scotland, UK)

AK   Peel Conner
This was the telephone manufacturing branch of GEC UK from 1910 to 1921.
Later markings include GEC and AKE.

ATL   Austin Taylor Ltd
Bangor (Whales, UK)

C   GEC
Coventry (UK). Currently known as GPT.

DAE   A.P. Besson Ltd
Hove (Sussex, UK)

DFM   Denis Ferranti Meters Ltd
Bangor (Gwynedd, UK)

E   British Ericsson
Later: Plessey, later: GPT

ET   British Ericsson
Later: Plessey, later: GPT

EET   Plessey
Beeston (Nothinghamshire, UK)

EEX   Plessey
Sunderland (UK), formerly Ericsson

FB   Post Office factory
Birmingham (UK)

FBR   Post Office factory
Birmingham (UK) Refurbished items

FED   LM Ericsson
Sweden

FHR   Post Office factory
Halloway (UK) Refurbished items

FNR   Post Office factory
Edinburg (Scotland, UK) Refurbished items

FWG   STC Consumer Electronics
Cwmcam (Wales, UK)

FWR   Post Office factory,
Cwmcam (Wales, UK) Refurbished items

GEC   GEC, Coventry (UK)
Currently known as GPT

GEN   GEC-AEI Telecommunications
Newton Aycliffe, Co. Durham

GNA   PYE
Aidre (UK). Later renamed TMC.

GTE   Dennis Ferranti
Ferranti imported or licensed GTE phones, as part of a joint venture with GTE USA and GTE Belgium.

H   Automatic Tlephone and Electric (ATE)
Later marked as PL (Plessey)

HAA   Plessey Strowger Works
Liverpool (UK)

KRM   Krone
Cheltenham (UK)

PEH   Pye
Hastings

PL   Plessey
Later became GEC-Plessey Telephones (GPT). Many of the war-time 300-series telephones were manufactuered by Plessey and will therefore have the PL marking.

PX   Phoenix
Hendon, London (UK). Later PXA.

PXA   Phoenix
Hendon, London (UK)

S   Siemens Brothers
Later AEI, later: GEC, now: GPT.

SB   S.G. Brown Ltd.

SEA   Siemens-Edison Swan
London N17 (UK). Later part of AEI.

SEG   AEI Ltd
Woolwich, London SE18 (UK). Formerly Siemens Brothers (S).

SER   AEI Ltd
West Hartlepool, Co. Durham (UK). Formerly Siemens Brothers (S).

SEW   Siemens Edison Swan
Woolwich, London SE15 (see also SEA).

SPK   Plessey
Speeke, Liverpool (UK)

STC   Standard Telephone Company
New Southgate, London (UK)

STM   Standard Telephone Company
Belfast (Northern Ireland)

TE   Telephone Manufacturing Company (TMC)

TEA   Telephone Manufacturing Company (TMC)
West Dulwich (UK)

TES   Telephone Manufacturing Company (TMC)
St. Mary (UK)

TGR   Thorn-Ericsson
Rochester (UK)

TGW   Thorn-Ericsson
Scunthorpe (UK)

TMA   Telephone Manufacturing Company (TMC)
Airdrie (UK)

W   Western Electric
Later: STC.

World War II
During WWII, most 300-series telephones were manufactured by Plessy and by TMC (also Pye-TMC), especially the ones that were used for the war effort. This means that the most likely codes to be found on these devices are PL, TE, TEA, TES, TMA and GNA.

Reproduction parts
High-quality reproduction parts, such as braided handset cord and line cords, that closely match the original colours and production processes, are available from Chris Elliot, Vintage Telephone, in the UK [5]. Some fully restored GPO telephones are available here as well.

 Visit website

Glossary
Expressions and abbreviations used on this page:

BT   British Telecom
Arguably the largest telecom operator of the UK. Previously state-owned and known as the General Post Office (GPO).

CB   Central Battery system
System in which all the energy needed for transmission and signalling is delivered by the exchange. No local batteries or hand generators are used at the telephone end. (More [3])

CBS   Central Battery Signalling system
Similar to a CB system, except that the mircophone is powered locally by a battery at the telephone end. Power for signalling is provided by the exchange as in a CB system. In the UK there were three types of CBS. (More [3])

GPO   General Post Office
The state-owned post and telecommunications operator in the UK, before it was renamed BT and privitised. The GPO was als known as British Post Office (BPO) and simply as Post Office (PO). It is currently known as British Telecom (BT).

PL   Plessey
Manufacturing code used on the body of the telephone sets and also inside, often stamped on the chassis. The manufacturer's code is also cast inside the bakelite body.

TE   TMC (see below)
Manufacturing code used on the body of the telephone sets and also inside, often stamped on the chassis. The manufacturer's code is also cast inside the bakelite body.

TMC   Telephone Manufacturing Company
The original manufacturer of the Secraphone in St. mary Cray (Kent, UK) [6].

Documentation
  1. Handset No. 164 circuit diagram
    First released 25 January 1935. Issue C, 5 January 1968. 1

  2. Telephone No. 332 circuit diagram N-432
    First released 3 October 1951, Issue E, 22 February 1968. 1

  3. Telephone No. 394 circuit diagram
    First released 30 September 1937. Issue A, 25 January 1968. 1

  4. Telephone No. 396 circuit diagram
    First issued 16 July 1937. Issue F, 26 January 1968. 1
  1. Documentation obtained from Robert Freshwater [2].

References
  1. Petra Henderson,
    Retrieved February 2016.

  2. Robert Freshwater, TELEPHONE No. 394
    BOBs Telephone File (website) Retrieved June 2014.

  3. Robert Freshwater, T300 Type Telephone Keys
    BOBs Telephone File (website) Retrieved March 2016.

  4. Robert Freshwater, Ericsson Telephone No's N-1015 - N1017
    BOBs Telephone File (website) Retrieved March 2016.

  5. Chris Elliot, Reproduction parts for GPO phones
    Vintage Telephony (website). Visited March 2016.
